Side-By-Side Refrigerator

Model # 10658534700 Official Kenmore side-by-side refrigerator

Here are the diagrams and repair parts for Official Kenmore 10658534700 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

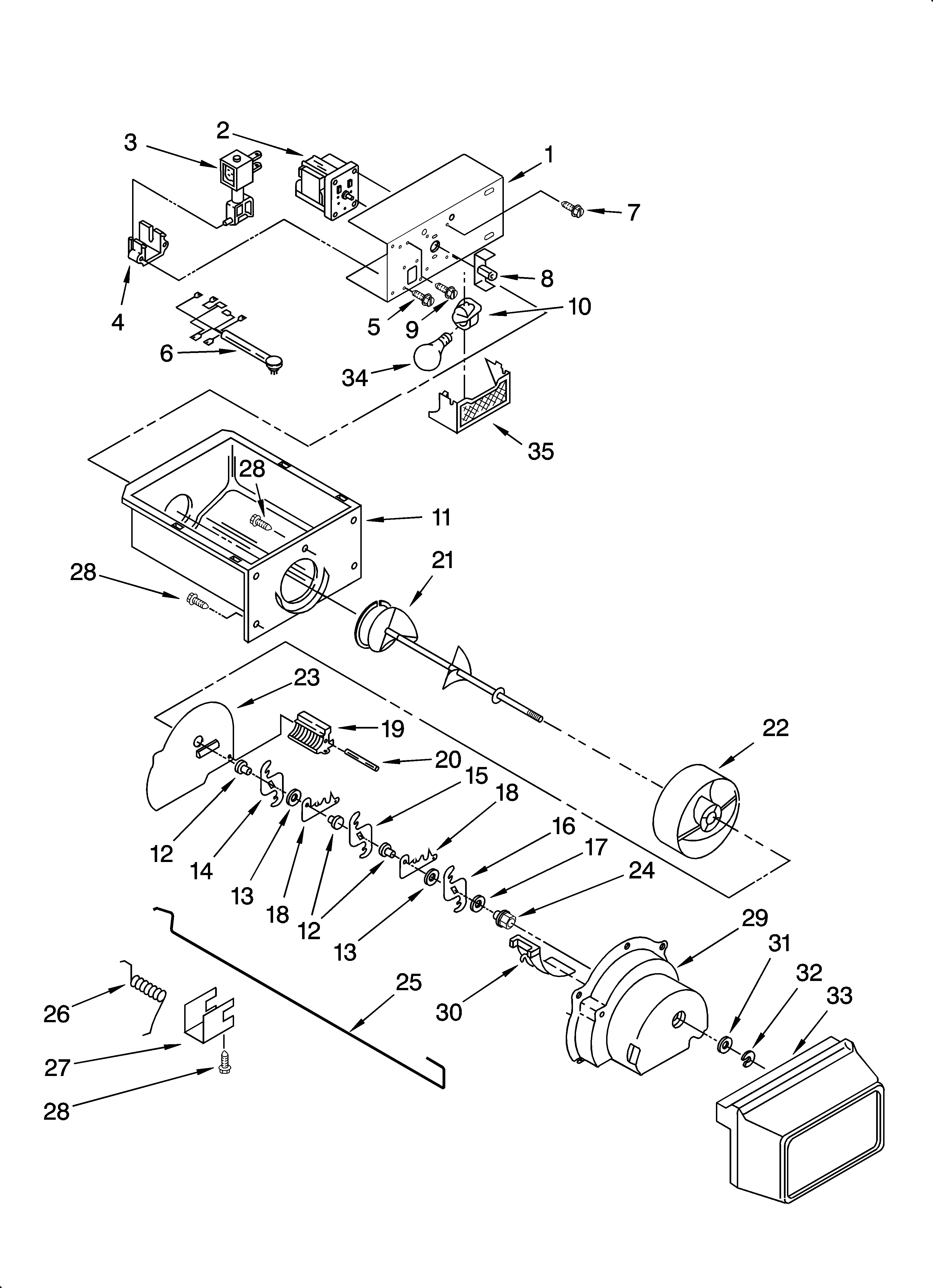

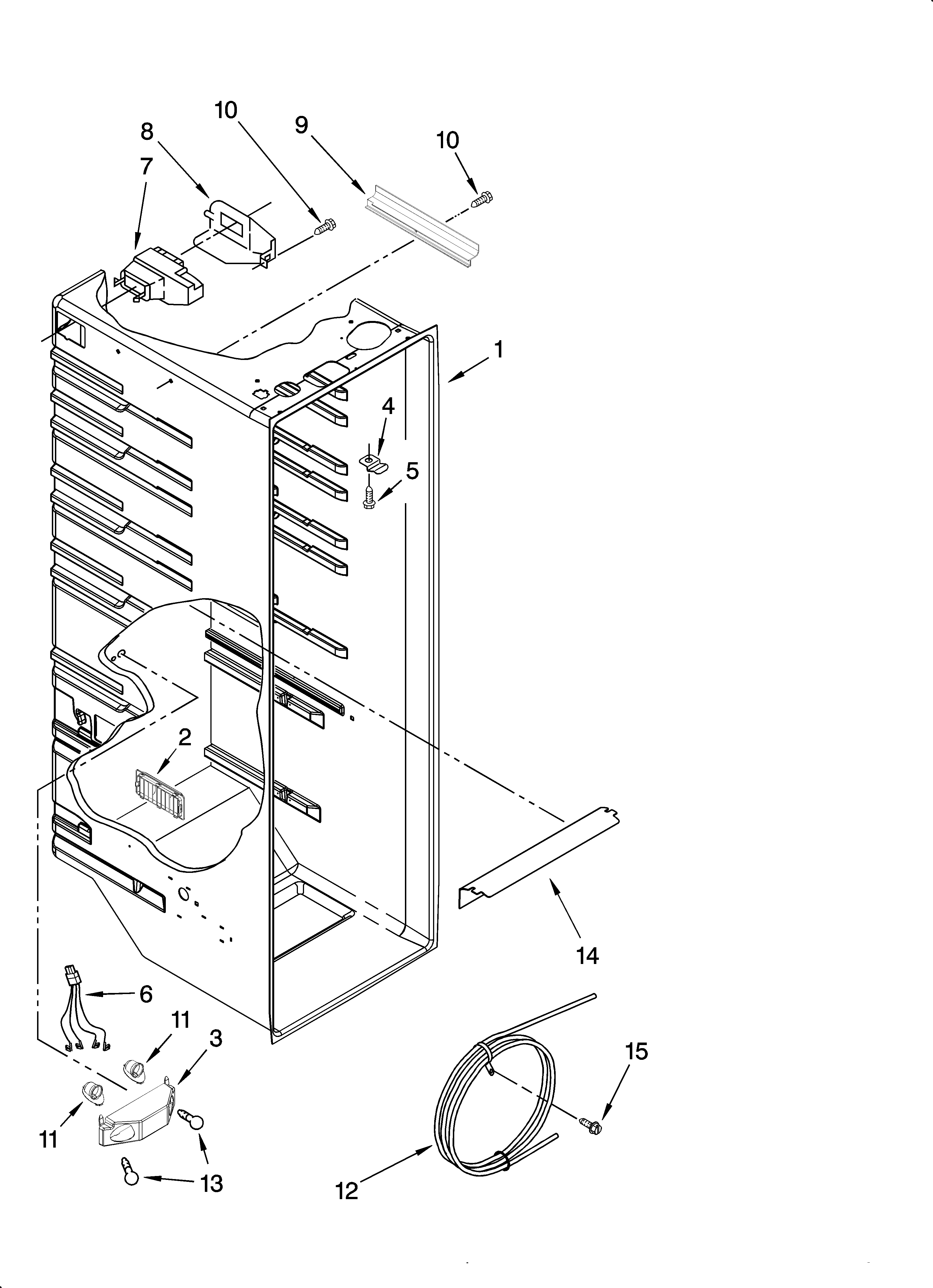

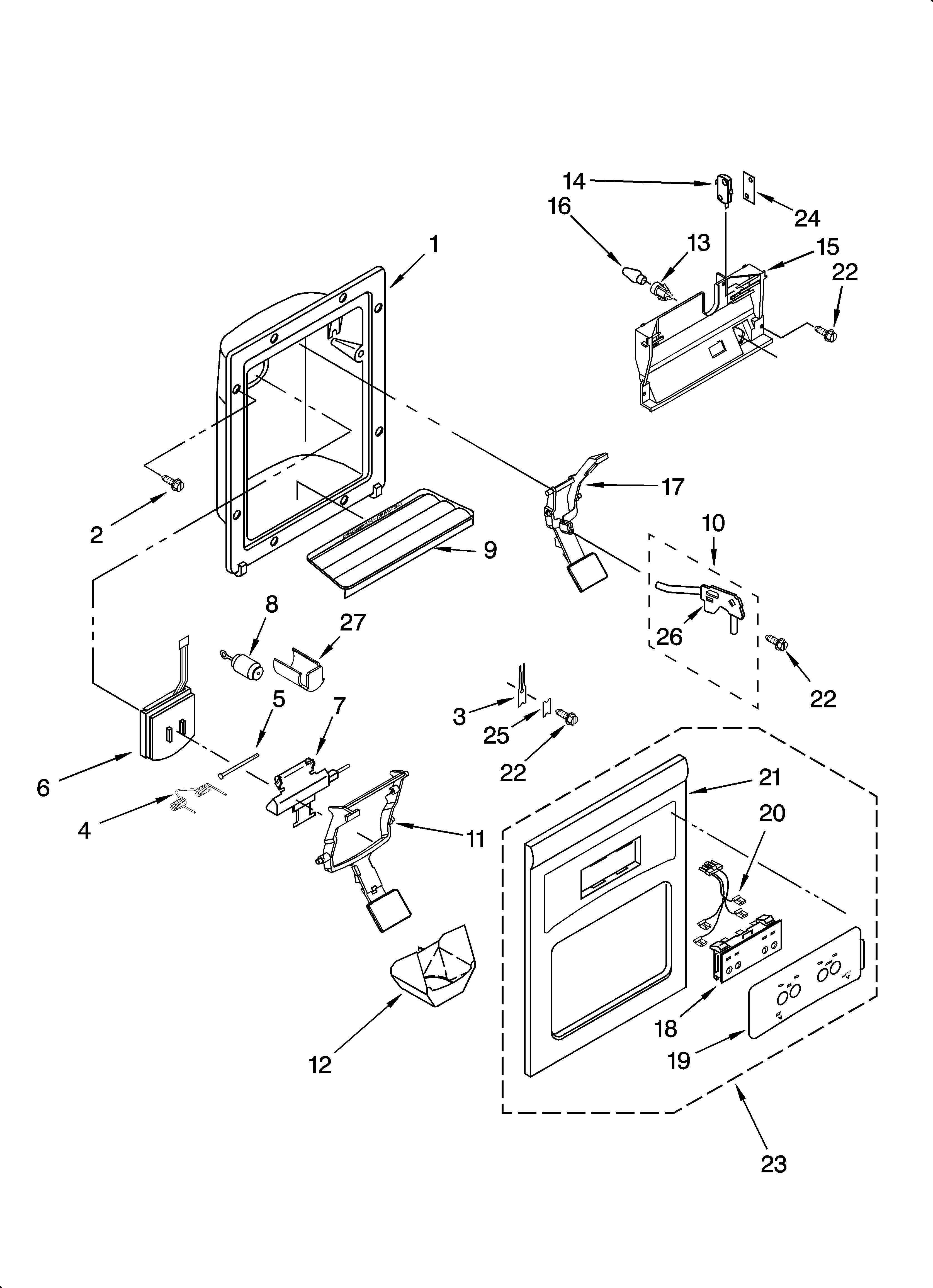

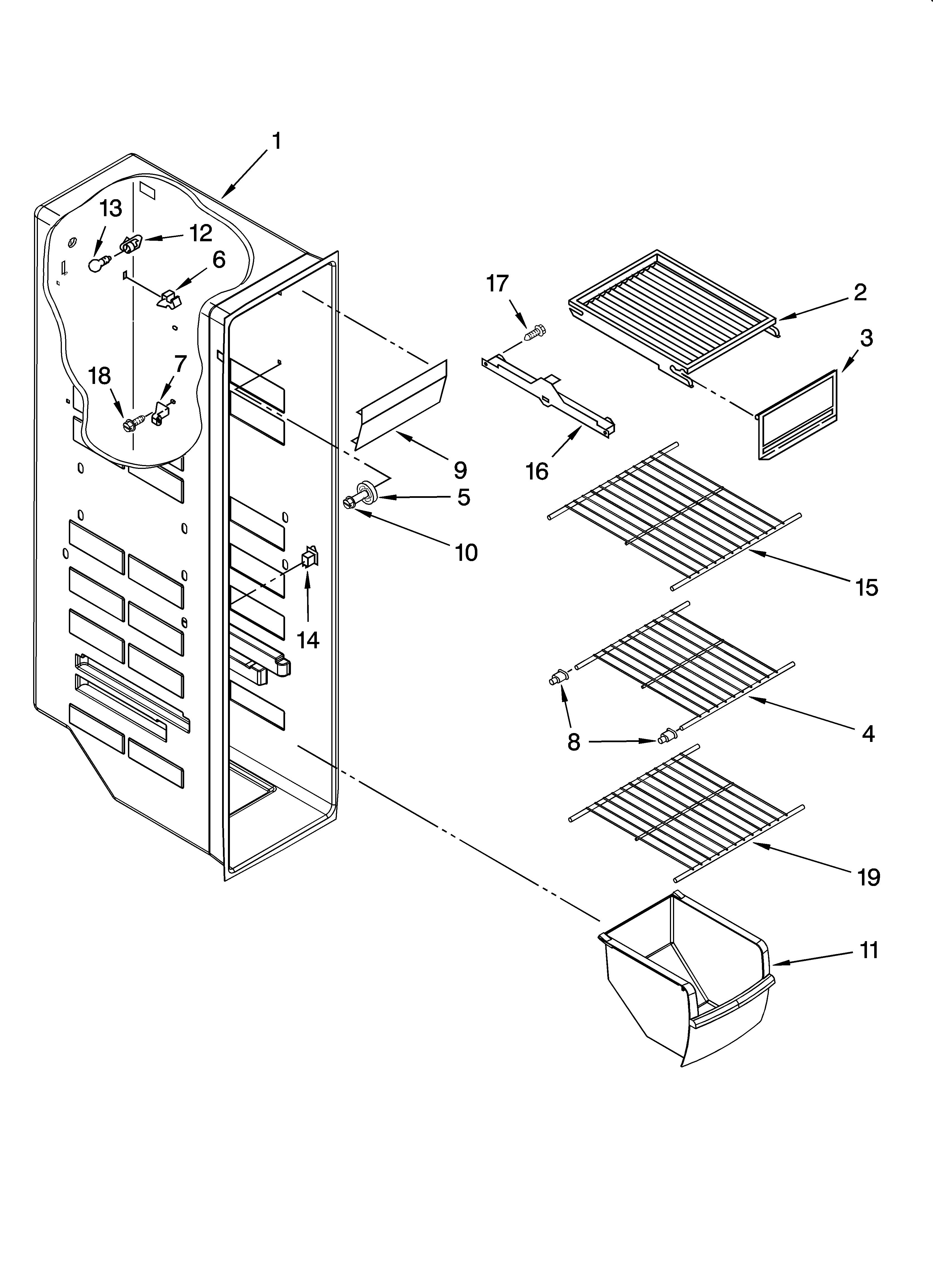

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for10658534700 Refrigerators

  • Genuine Kenmore Refrigerator Water Filter 9020
    #11

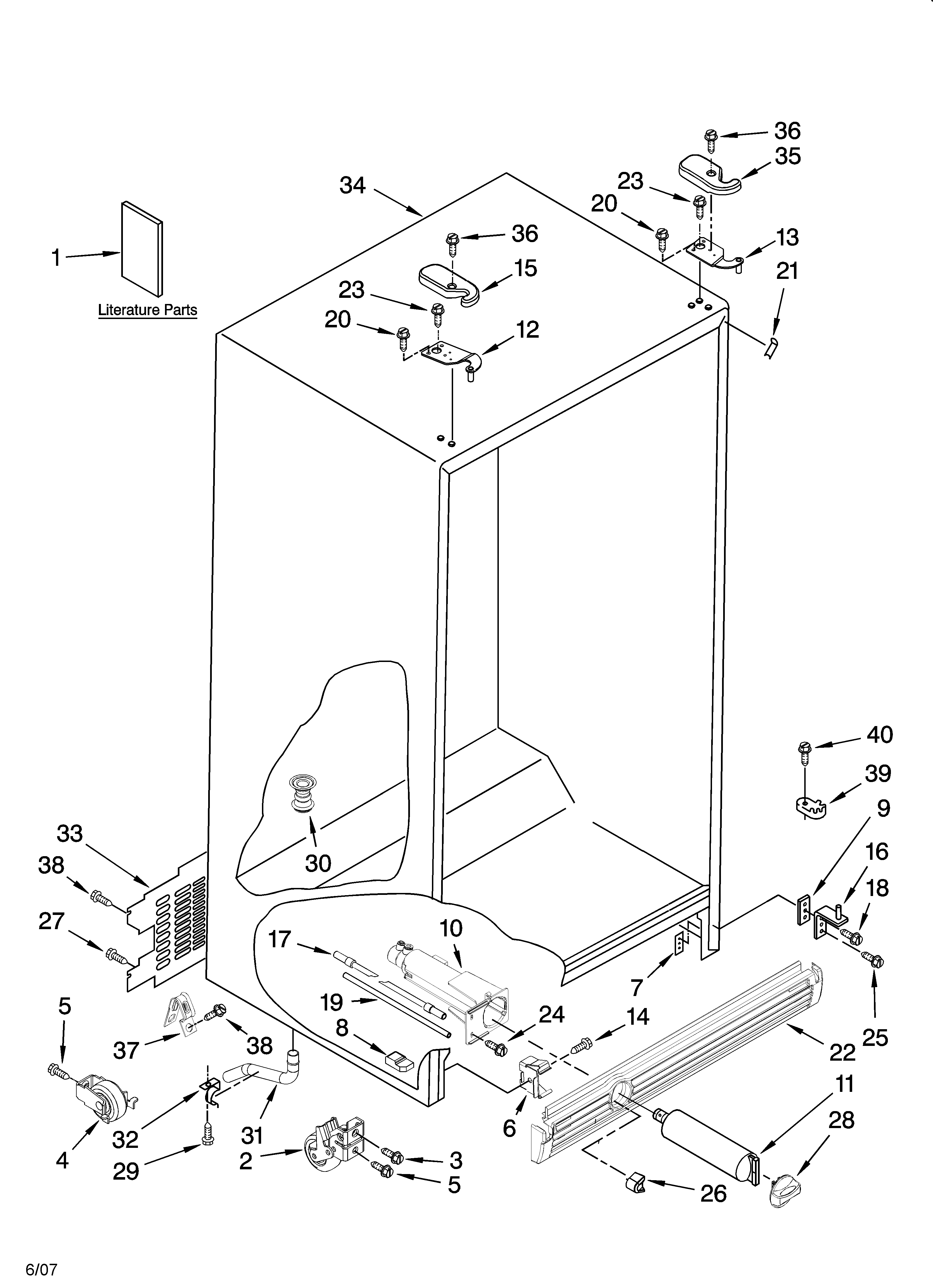

    Cabinet parts diagram

    Genuine kenmore refrigerator water filter

    Part #9020

    Replaced by #EDR3RXD1

    ?
    Manufacturer substitution
    This part replaces 9020. Substitute parts can look different from the original.
    5 (1)
    BEST SELLER

    Get free shipping with Automatic Reorder

    $59.99
    Back Order
  • Drier W/dye 2317845
    #26A

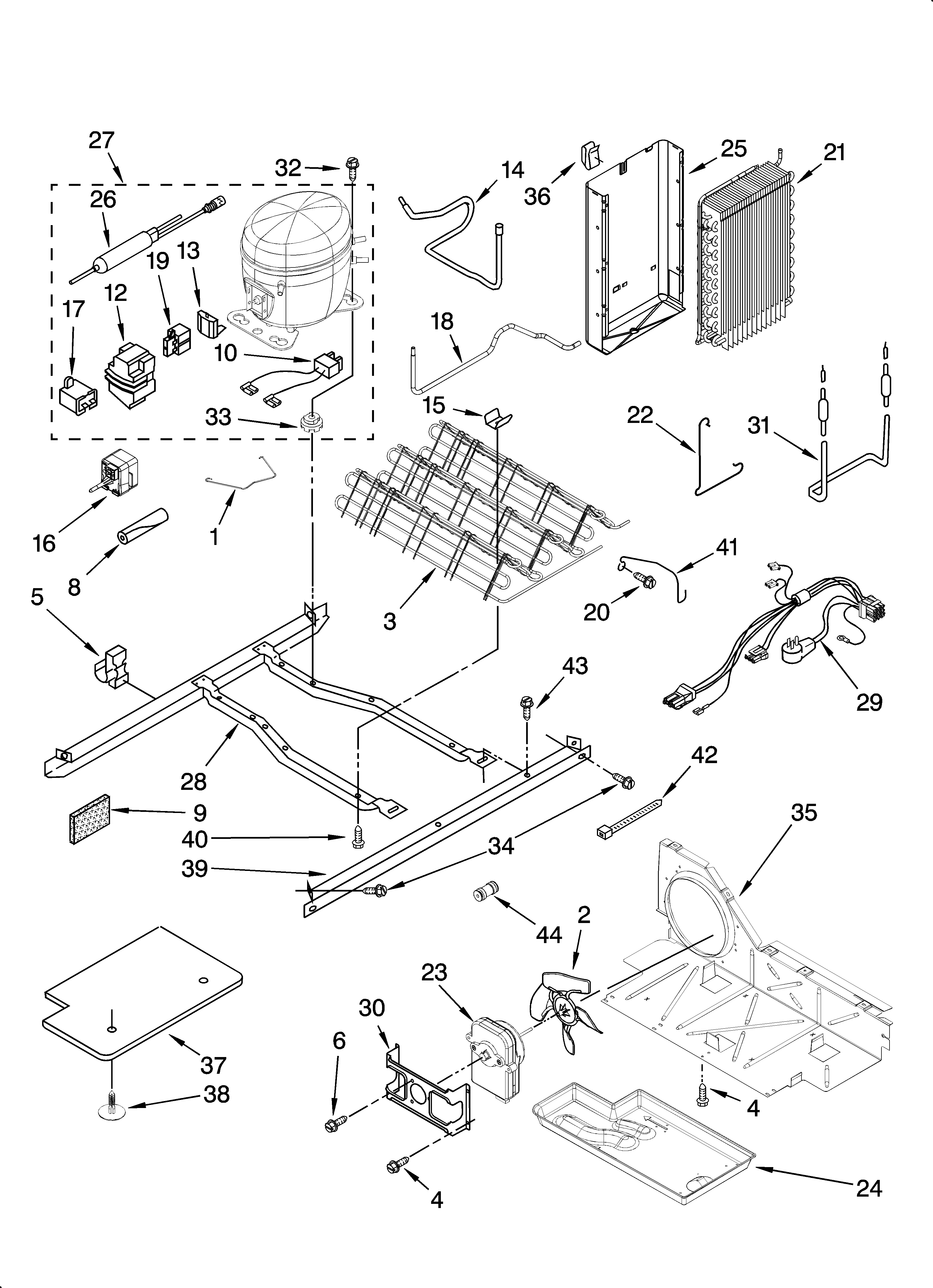

    Unit parts diagram

    Drier w/dye

    Part #2317845

    Replaced by #WPW10143759

    ?
    Manufacturer substitution
    This part replaces 2317845. Substitute parts can look different from the original.
    BEST SELLER
    $20.04 |
    23% OFF Phone Price : $26.04
    In Stock
  • Refrigerator Inlet Valve 2315534
    #6

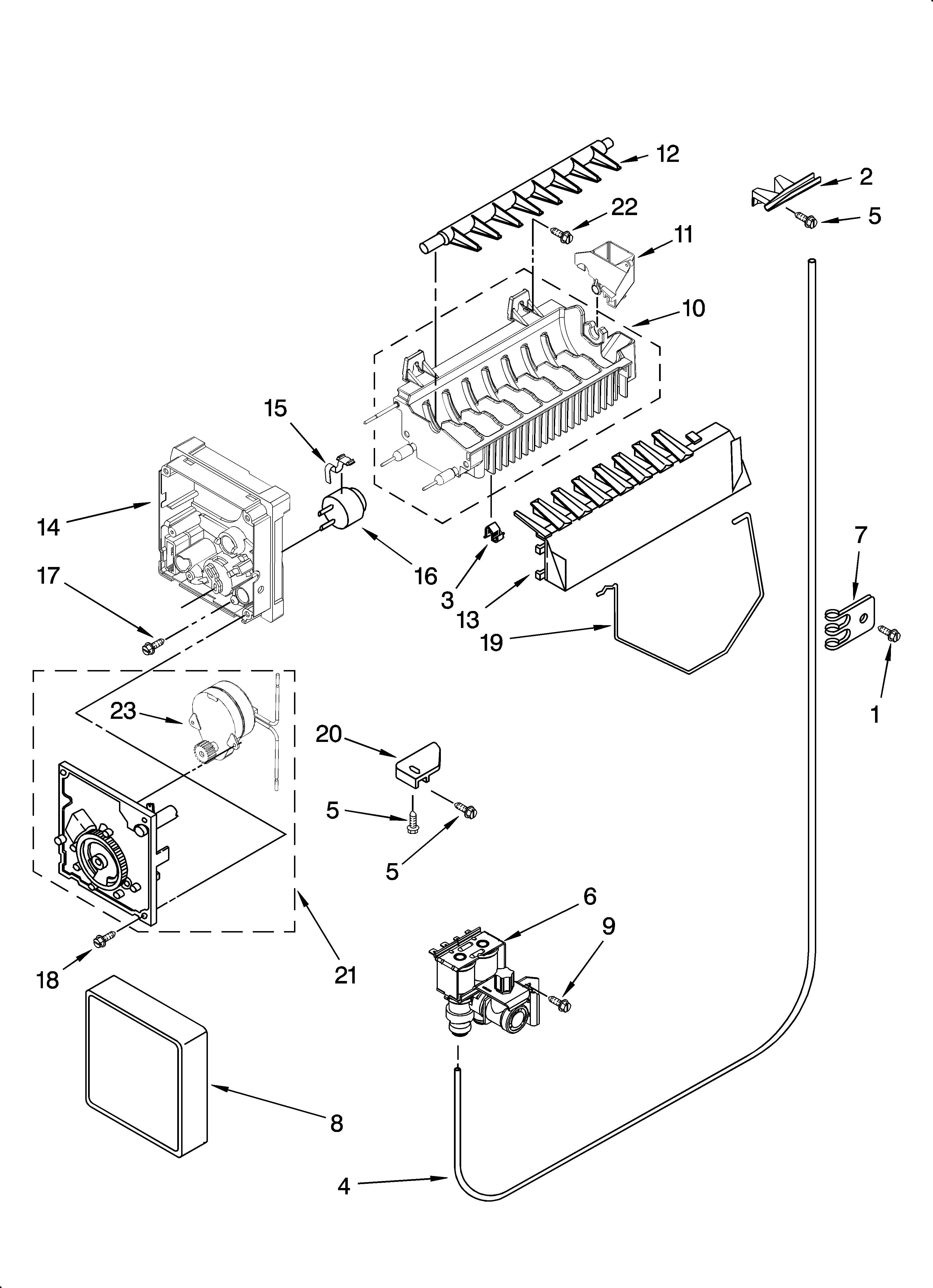

    Icemaker parts, optional parts (not included) diagram

    Refrigerator inlet valve

    Part #2315534

    Replaced by #W10408179

    ?
    Manufacturer substitution
    This part replaces 2315534. Substitute parts can look different from the original.
    4.08 (83)
    BEST SELLER
    $64.16 |
    9% OFF Phone Price : $70.16
    In Stock
  • Refrigerator Crisper Pan 2188652
    #10

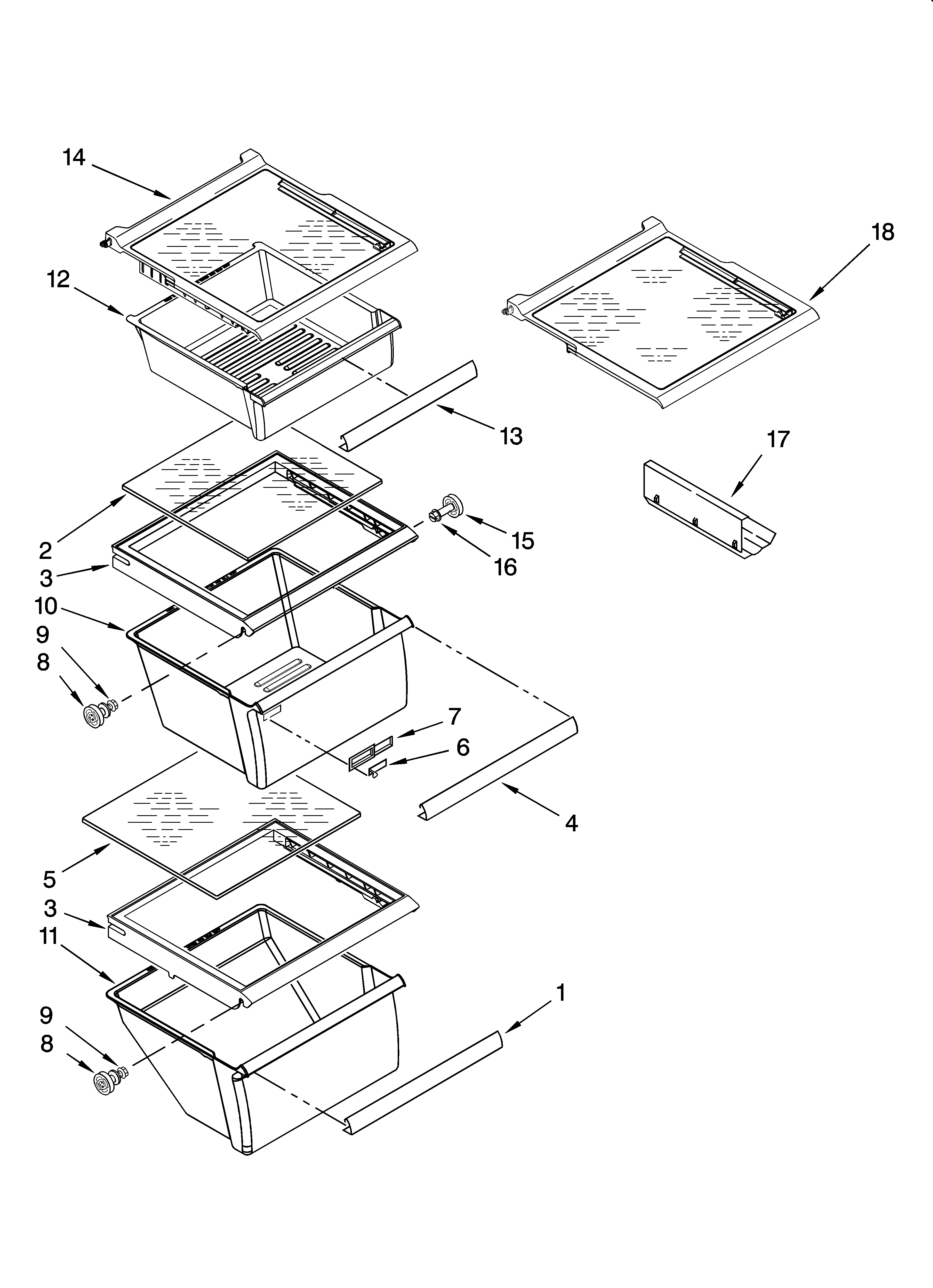

    Refrigerator shelf parts diagram

    Refrigerator crisper pan

    Part #2188652

    Replaced by #WP2188656

    ?
    Manufacturer substitution
    This part replaces 2188652. Substitute parts can look different from the original.
    4.49 (270)
    BEST SELLER
    $69.83 |
    8% OFF Phone Price : $75.83
    In Stock
  • Refrigerator Thermostat 2198202
    #5

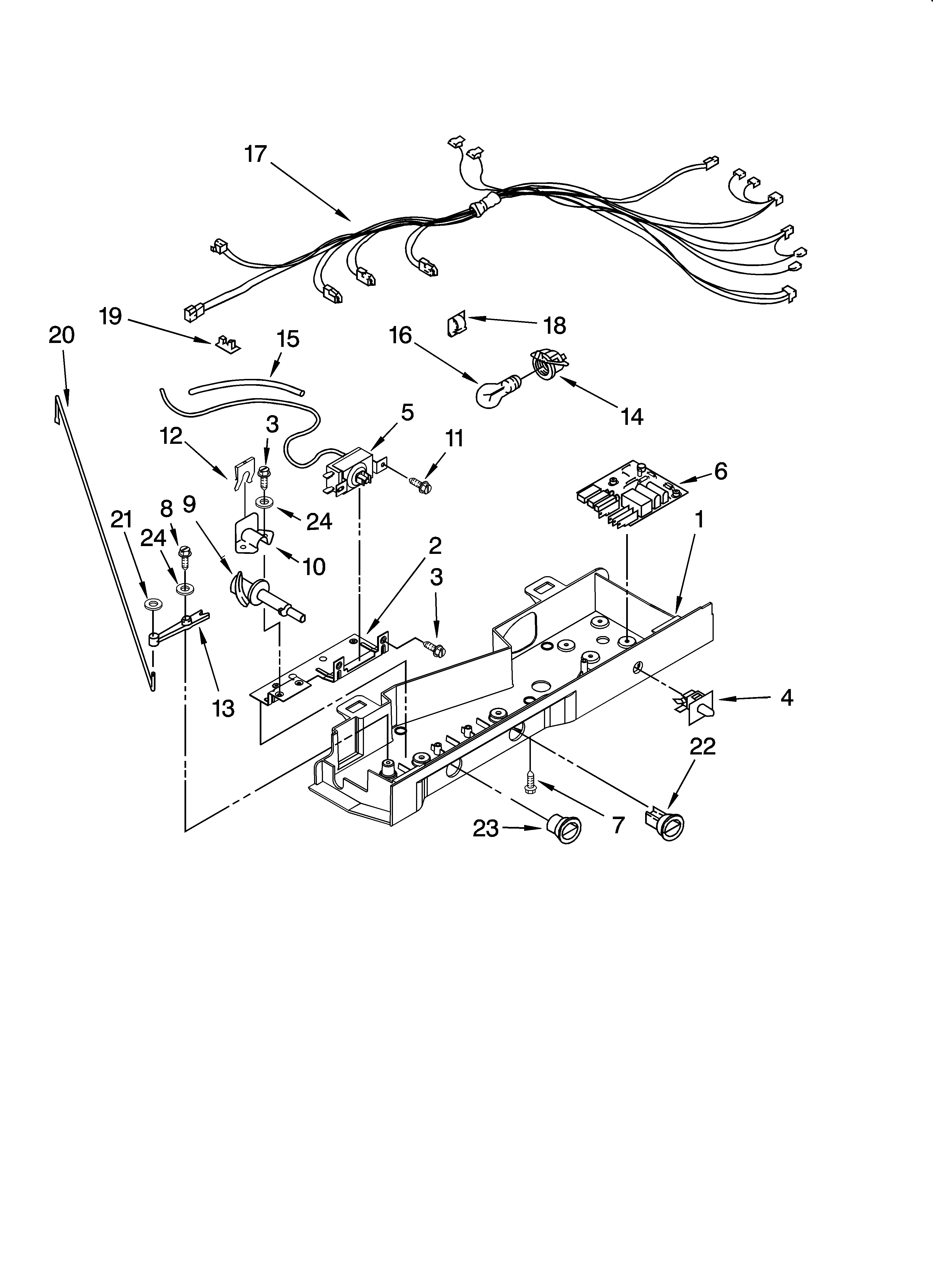

    Control parts diagram

    Refrigerator thermostat

    Part #2198202

    Replaced by #WP2198202

    ?
    Manufacturer substitution
    This part replaces 2198202. Substitute parts can look different from the original.
    4.33 (21)
    BEST SELLER
    $71.40 |
    8% OFF Phone Price : $77.40
    In Stock
  • Refrigerator Ice Maker W10122507
    #100

    Icemaker parts, optional parts (not included) diagram

    Refrigerator ice maker

    Part #W10122507

    Replaced by #WPW10190965

    ?
    Manufacturer substitution
    This part replaces W10122507. Substitute parts can look different from the original.
    4.67 (39)
    BEST SELLER
    $82.41 |
    7% OFF Phone Price : $88.41
    In Stock
  • Refrigerator Defrost Bi-metal 2315504
    #3

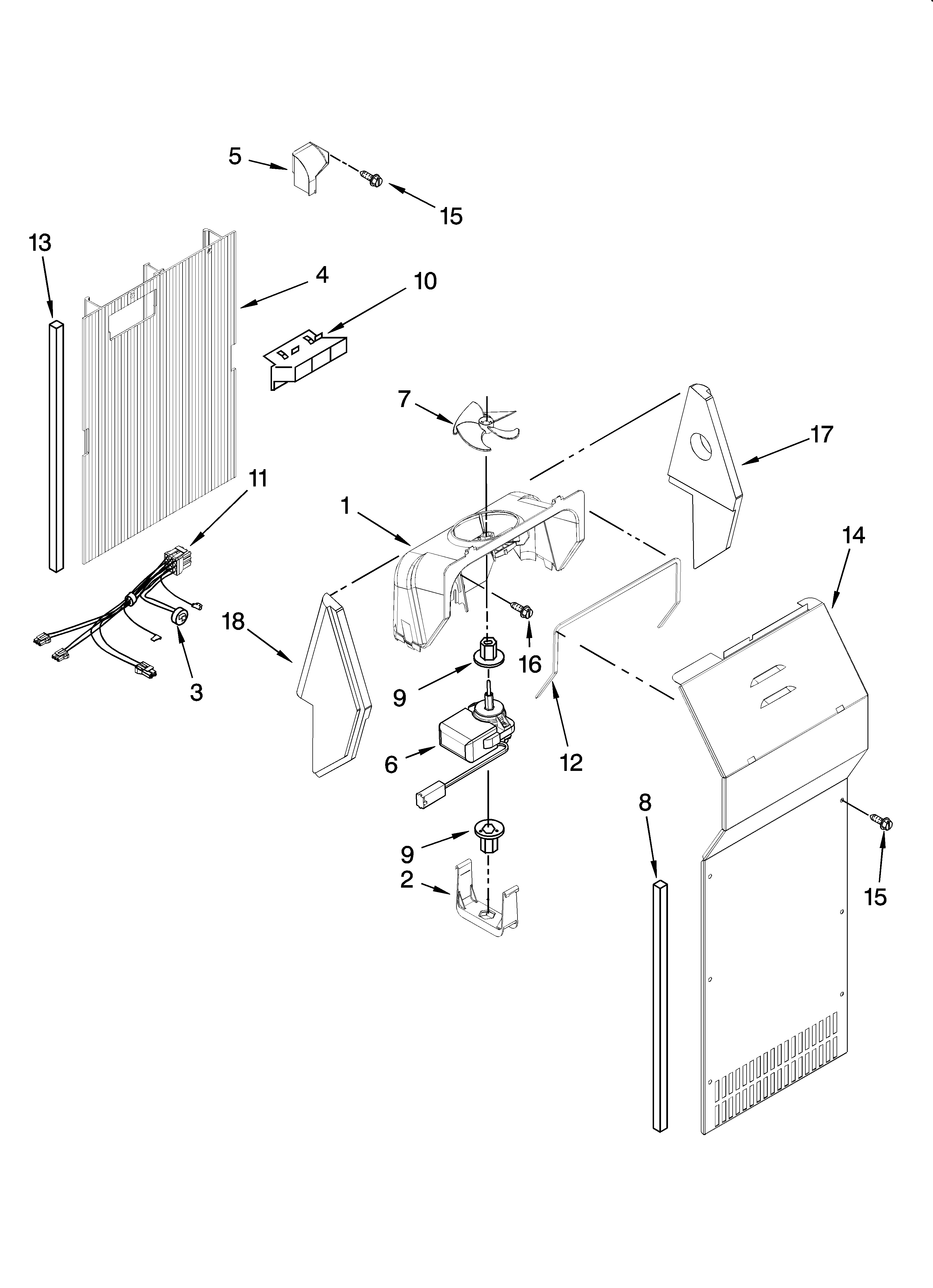

    Air flow parts diagram

    Refrigerator defrost bi-metal

    Part #2315504

    Replaced by #WPW10225581

    ?
    Manufacturer substitution
    This part replaces 2315504. Substitute parts can look different from the original.
    4.53 (17)
    BEST SELLER
    $28.80 |
    17% OFF Phone Price : $34.80
    In Stock
  • Refrigerator Door Cam (black) 2182178
    #8

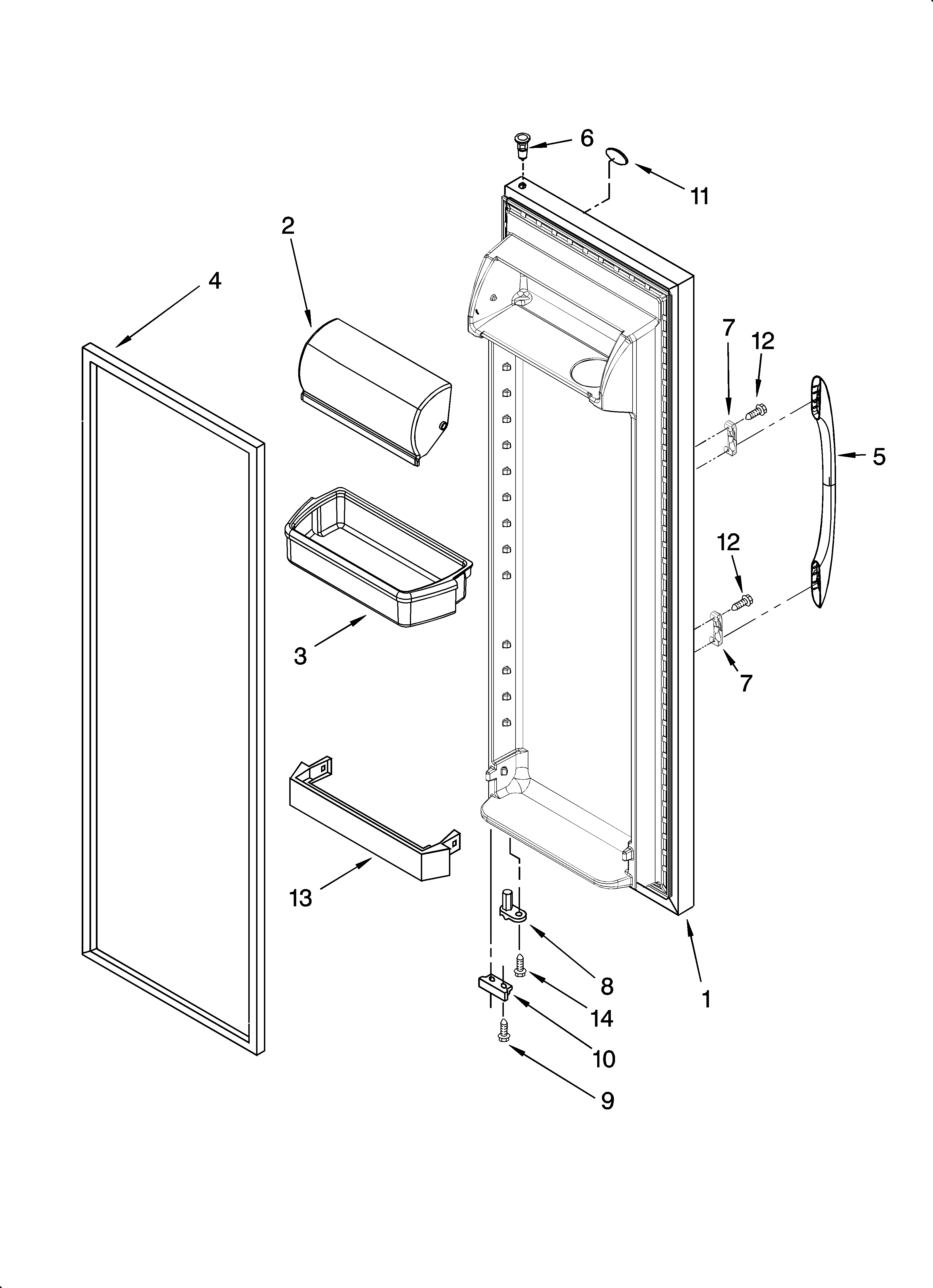

    Refrigerator door parts diagram

    Refrigerator door cam (black)

    Part #2182178

    Replaced by #WP2182179

    ?
    Manufacturer substitution
    This part replaces 2182178. Substitute parts can look different from the original.
    3.98 (56)
    BEST SELLER
    $10.94 |
    15% OFF Phone Price : $12.94
    In Stock
  • Refrigerator Door Closer Cam 2182179
    #11

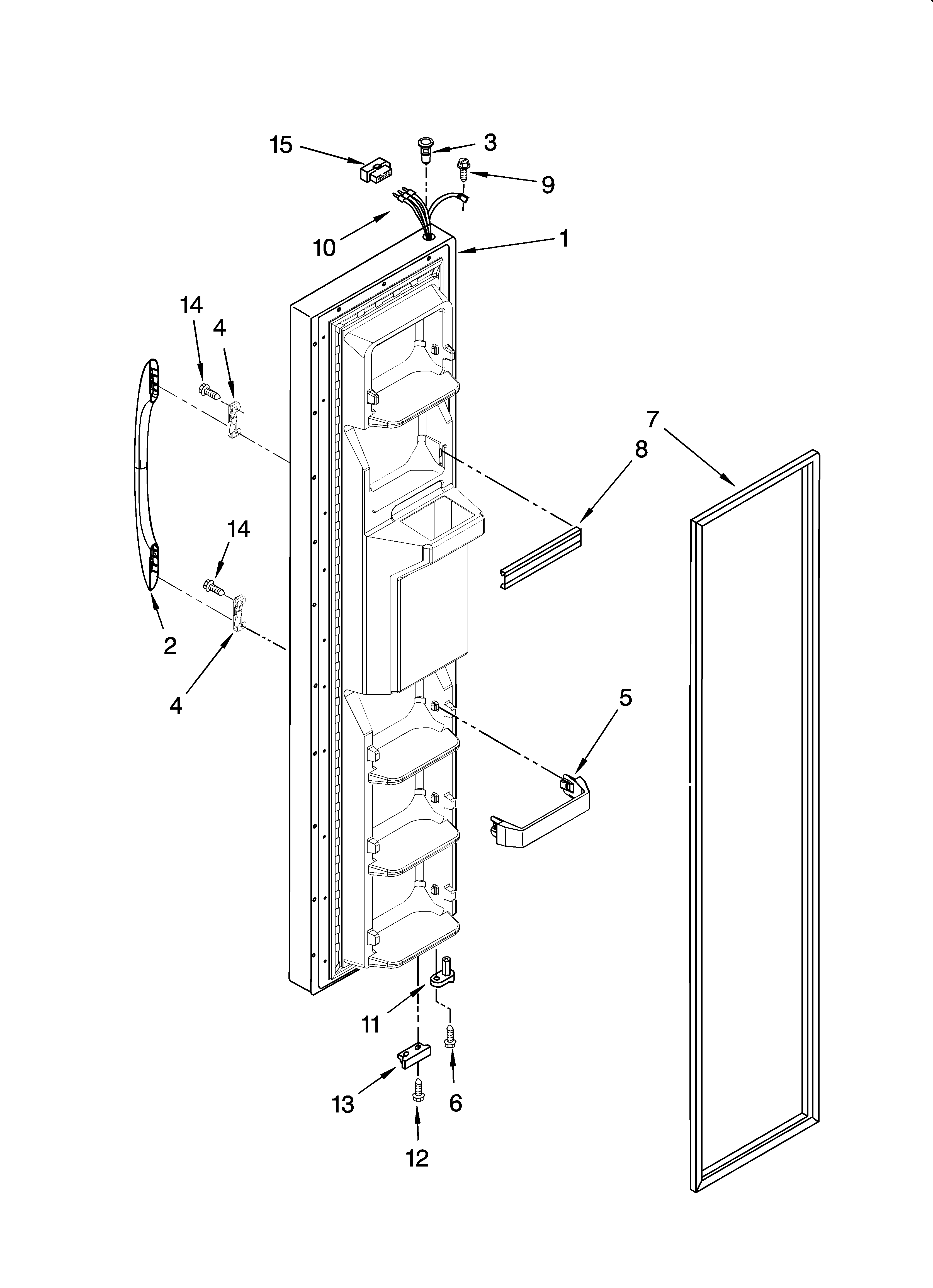

    Freezer door parts diagram

    Refrigerator door closer cam

    Part #2182179

    Replaced by #WP2182179

    ?
    Manufacturer substitution
    This part replaces 2182179. Substitute parts can look different from the original.
    3.98 (56)
    BEST SELLER
    $10.94 |
    15% OFF Phone Price : $12.94
    In Stock
  • Refrigerator Meat Pan 2188654
    #11

    Refrigerator shelf parts diagram

    Refrigerator meat pan

    Part #2188654

    Replaced by #WP2188664

    ?
    Manufacturer substitution
    This part replaces 2188654. Substitute parts can look different from the original.
    4.4 (90)
    BEST SELLER
    $49.18 |
    11% OFF Phone Price : $55.18
    In Stock
