Model # D28700TY1 Official DeWalt saw

Here are the diagrams and repair parts for Official DeWalt D28700TY1 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Dewalt Bolt 623090-00
#79

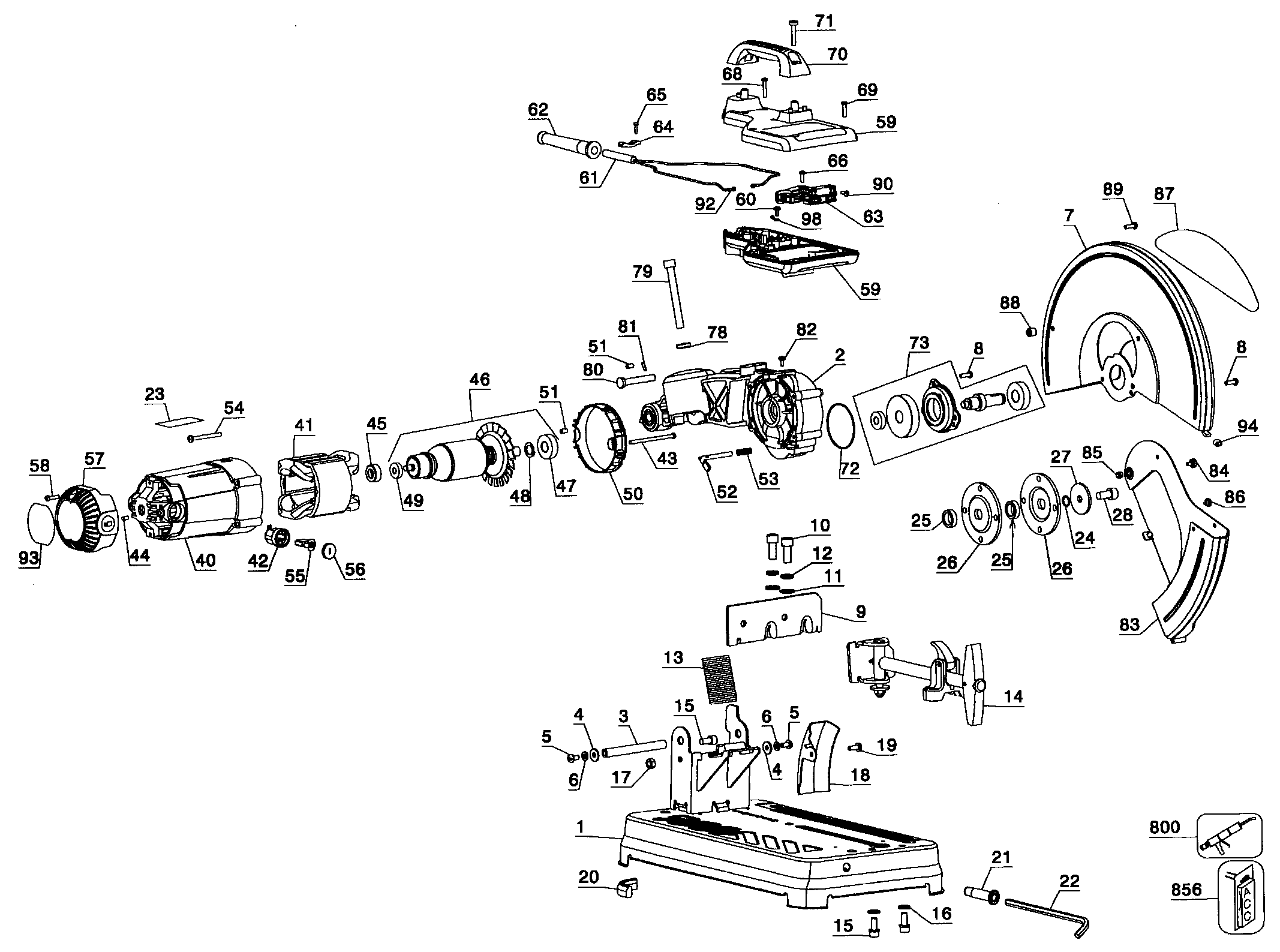

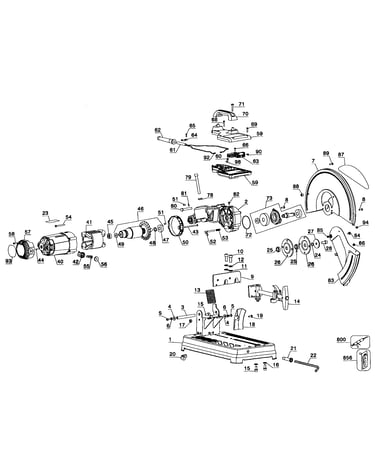

Saw asy diagram

Dewalt bolt

Part #623090-00

The manufacturer no longer makes this part, and there's no substitute part

Hex Wrench 384717-00
#22

Saw asy diagram

Hex wrench

Part #384717-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 621088-00
#53

Saw asy diagram

Spring

Part #621088-00

The manufacturer no longer makes this part, and there's no substitute part

Spndle Lck 621087-00
#52

Saw asy diagram

Spndle lck

Part #621087-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker M5x55mm Scrw 98094-55
#54

Saw asy diagram

Black & decker m5x55mm scrw

Part #98094-55

The manufacturer no longer makes this part, and there's no substitute part

Washer 330016-18
#4

Saw asy diagram

Washer

Part #330016-18

The manufacturer no longer makes this part, and there's no substitute part

Pin 621104-00
#80

Saw asy diagram

Pin

Part #621104-00

The manufacturer no longer makes this part, and there's no substitute part

Clamp Washer 621079-00
#26

Saw asy diagram

Clamp washer

Part #621079-00

The manufacturer no longer makes this part, and there's no substitute part

Brush Cap 622441-00
#56

Saw asy diagram

Brush cap

Part #622441-00

The manufacturer no longer makes this part, and there's no substitute part

Rubber Stop 386526-00
#94

Saw asy diagram

Rubber stop

Part #386526-00

The manufacturer no longer makes this part, and there's no substitute part
