Model # CA5548VLD1 Official ICP central air conditioner
Here are the diagrams and repair parts for Official ICP CA5548VLD1 central air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
CA5548VLD1 Central Air Conditioner
#6

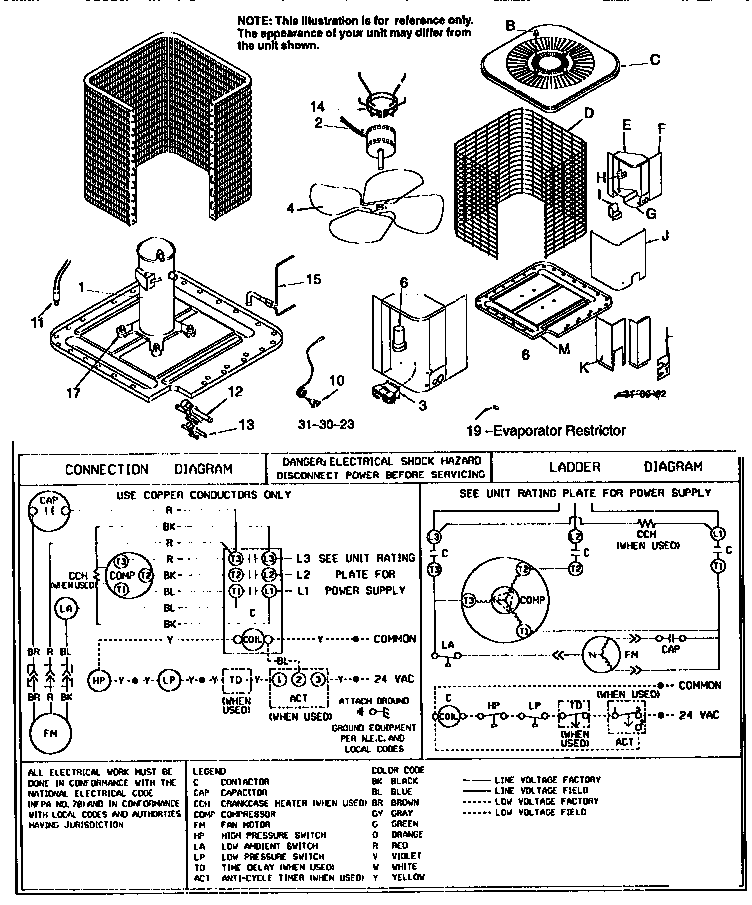

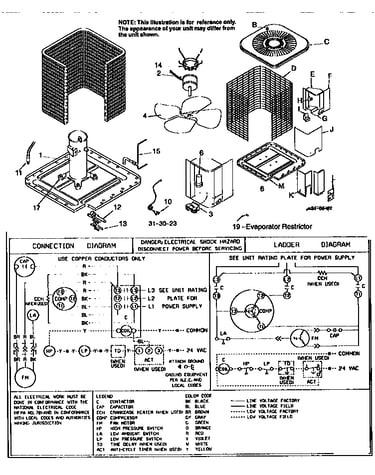

Functional replacement parts diagram
Cap rnrd
Part #1094954
Replaced by #12005
?
Manufacturer substitution
This part replaces 1094954. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
#2
Functional replacement parts diagram
Mtr cnd
Part #1068865
Replaced by #1052662
?
Manufacturer substitution
This part replaces 1068865. Substitute parts can look different from the original.
$182.64 |
6% OFF Phone Price : $194.64
In Stock
#14
Functional replacement parts diagram
Central air conditioner condenser fan motor mount
Part #1051460
$310.20
In Stock
#H
Functional replacement parts diagram
Clamp capctr
Part #1095020
$100.98
In Stock
#3
Functional replacement parts diagram
Contactor
Part #607339
Replaced by #90-163
?
Manufacturer substitution
This part replaces 607339. Substitute parts can look different from the original.
$38.53
In Stock
#10
Functional replacement parts diagram
Control
Part #1069160
Replaced by #1063432
?
Manufacturer substitution
This part replaces 1069160. Substitute parts can look different from the original.
$140.54
In Stock
#11
Functional replacement parts diagram
Cont lo pres
Part #1080365
Replaced by #1071713
?
Manufacturer substitution
This part replaces 1080365. Substitute parts can look different from the original.
$57.87
In Stock
#B
Functional replacement parts diagram
Cap nut
Part #1052963
The manufacturer no longer makes this part, and there's no substitute part
#M
Functional replacement parts diagram
Base
Part #1052693
The manufacturer no longer makes this part, and there's no substitute part
#12
Functional replacement parts diagram
Valve suct
Part #1080996
The manufacturer no longer makes this part, and there's no substitute part
