KitchenAid
Garbage Disposal

Model # KBDS250S1 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid KBDS250S1 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Whirlpool Garbage Disposal Mounting Flange 4211304
#7

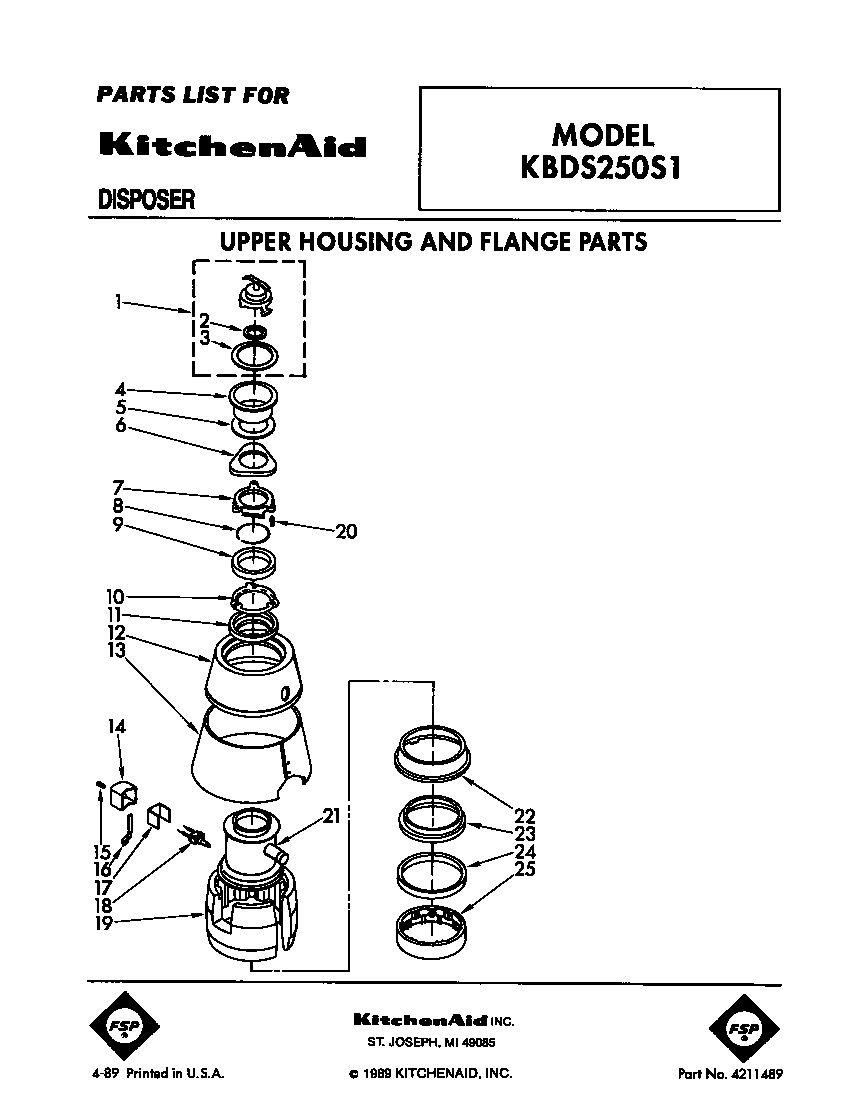

Disposer assembly diagram

Whirlpool garbage disposal mounting flange

Part #4211304

$55.09
In Stock
Whirlpool Flange 4211303
#6

Disposer assembly diagram

Whirlpool flange

Part #4211303

$50.87
In Stock
Flange 4211301
#4

Disposer assembly diagram

Flange

Part #4211301

$46.27
In Stock
Gasket 4211411
#9

Disposer assembly diagram

Gasket

Part #4211411

$9.98
In Stock
Whirlpool Garbage Disposal Mounting Flange Screw 4211305
#20

Disposer assembly diagram

Whirlpool garbage disposal mounting flange screw

Part #4211305

$16.79 |
11% OFF Phone Price : $18.79
In Stock
Whirlpool Ring 4211306
#8

Disposer assembly diagram

Whirlpool ring

Part #4211306

This item is not returnable
$7.49
In Stock
Gasket 4211355
#2

Disposer assembly diagram

Gasket

Part #4211355

This item is not returnable
$5.89
In Stock
Whirlpool Adapter 4211396
#35

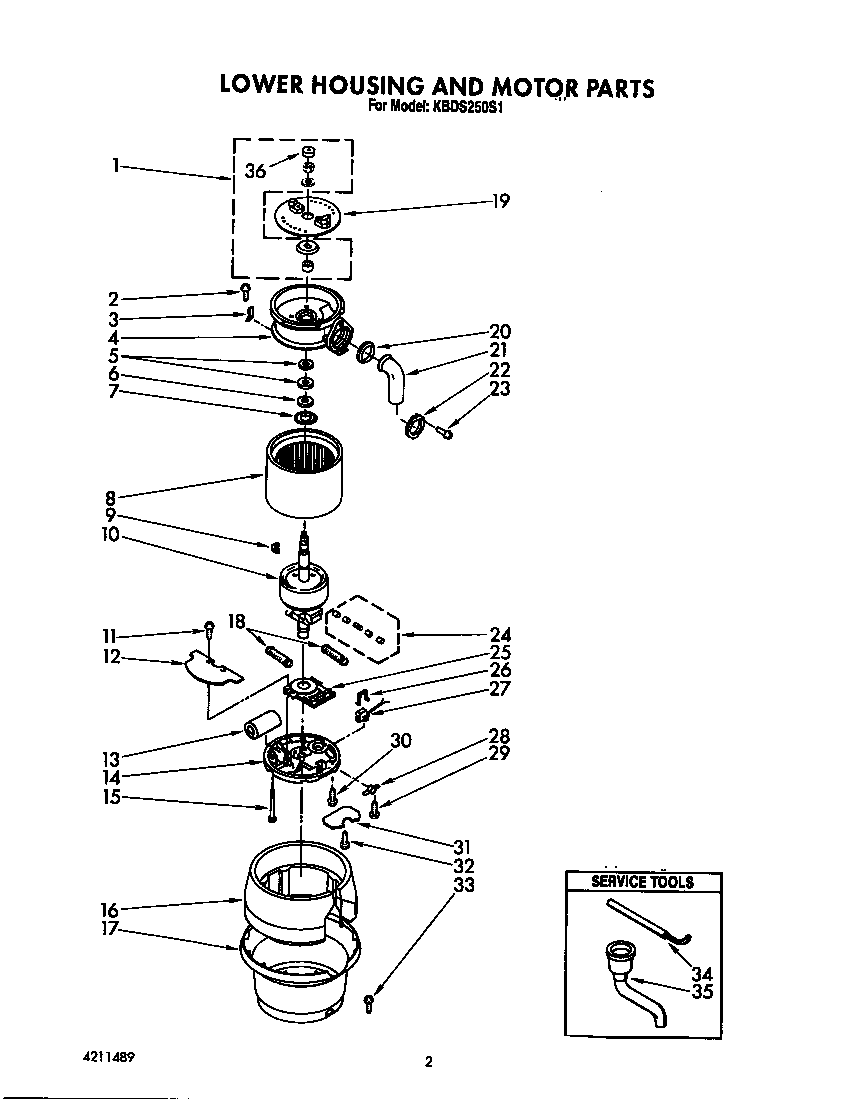

Lower housing/motor diagram

Whirlpool adapter

Part #4211396

$240.89
In Stock
Wrench 4211435
#34

Lower housing/motor diagram

Wrench

Part #4211435

Replaced by #WP8174310

?
Manufacturer substitution
This part replaces 4211435. Substitute parts can look different from the original.
This item is not returnable
$17.59 |
10% OFF Phone Price : $19.59
In Stock
Plug 4211341
#36

Lower housing/motor diagram

Plug

Part #4211341

Replaced by #4211578

?
Manufacturer substitution
This part replaces 4211341. Substitute parts can look different from the original.
$43.24
In Stock
