Model # 1162645082 Official Kenmore canister vacuum
Here are the diagrams and repair parts for Official Kenmore 1162645082 canister vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part

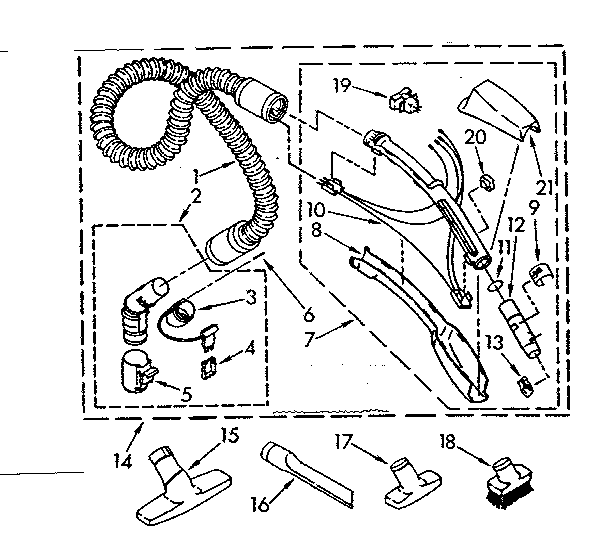

SELECT DIAGRAM
Browse Parts for1162645082 Vacuum Cleaners
- #27

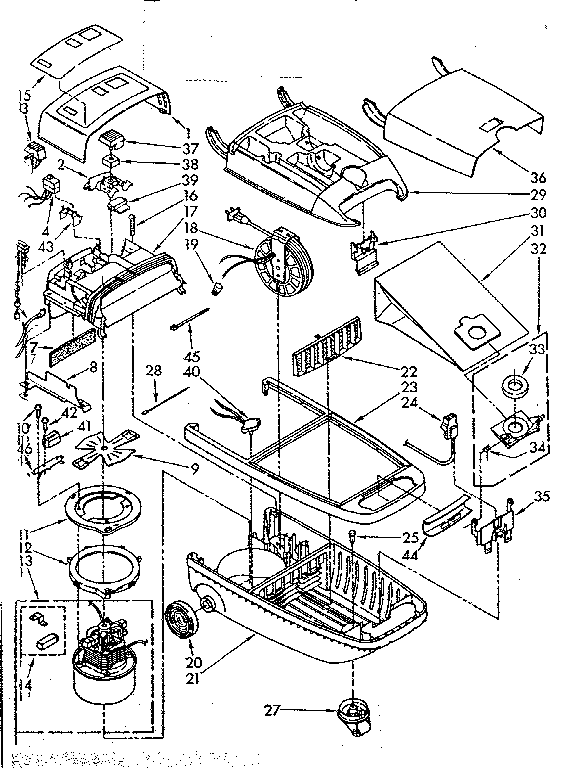

Vacuum cleaner parts diagram
Vacuum casterPart #4147966
The manufacturer no longer makes this part, and there's no substitute part
- #13
Vacuum cleaner parts diagram
MotorPart #4147248
The manufacturer no longer makes this part, and there's no substitute part
- #10
Vacuum cleaner parts diagram
ScrewPart #681697
The manufacturer no longer makes this part, and there's no substitute part
- #44
Vacuum cleaner parts diagram
GripPart #4147255
The manufacturer no longer makes this part, and there's no substitute part
- #16
Vacuum cleaner parts diagram
ScrewPart #681550
The manufacturer no longer makes this part, and there's no substitute part
- #28
Vacuum cleaner parts diagram
Lead wirePart #4147394
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Wiring diagramPart #LIT4148190
The manufacturer no longer makes this part, and there's no substitute part
- #43
Vacuum cleaner parts diagram
ClaspPart #706916
The manufacturer no longer makes this part, and there's no substitute part
- #25
Vacuum cleaner parts diagram
Pin (white)Part #706884
The manufacturer no longer makes this part, and there's no substitute part
- #21
Vacuum cleaner parts diagram
BasePart #4148041
The manufacturer no longer makes this part, and there's no substitute part
