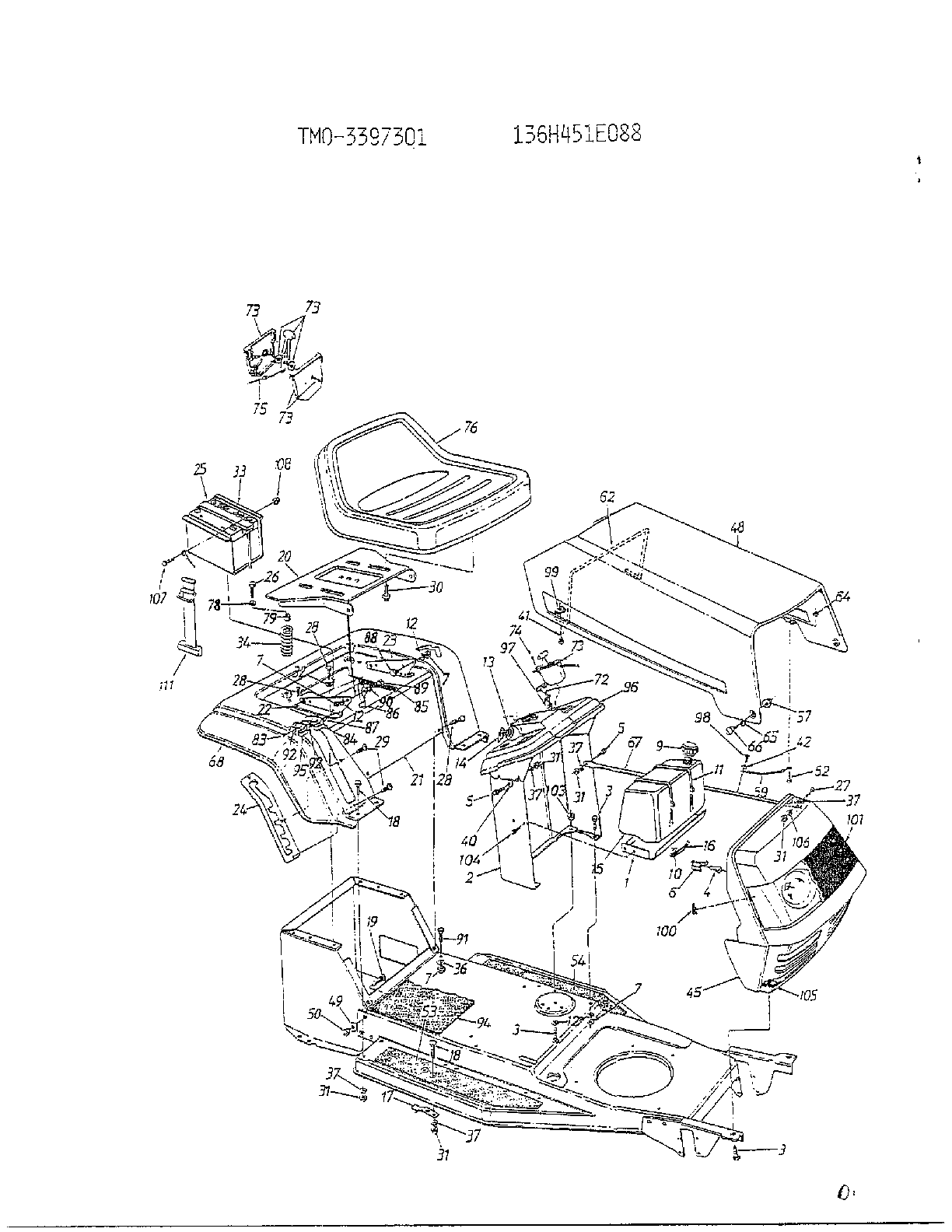

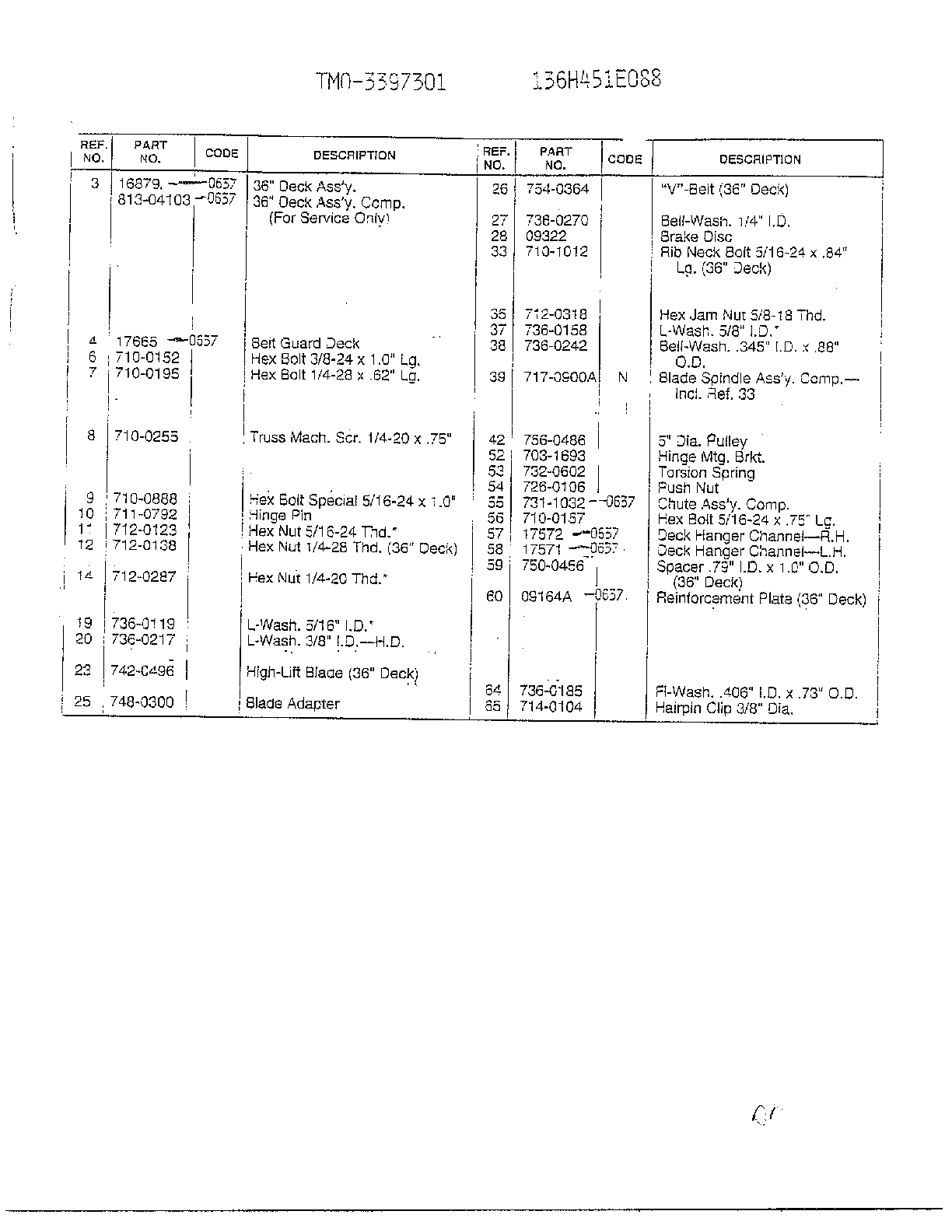

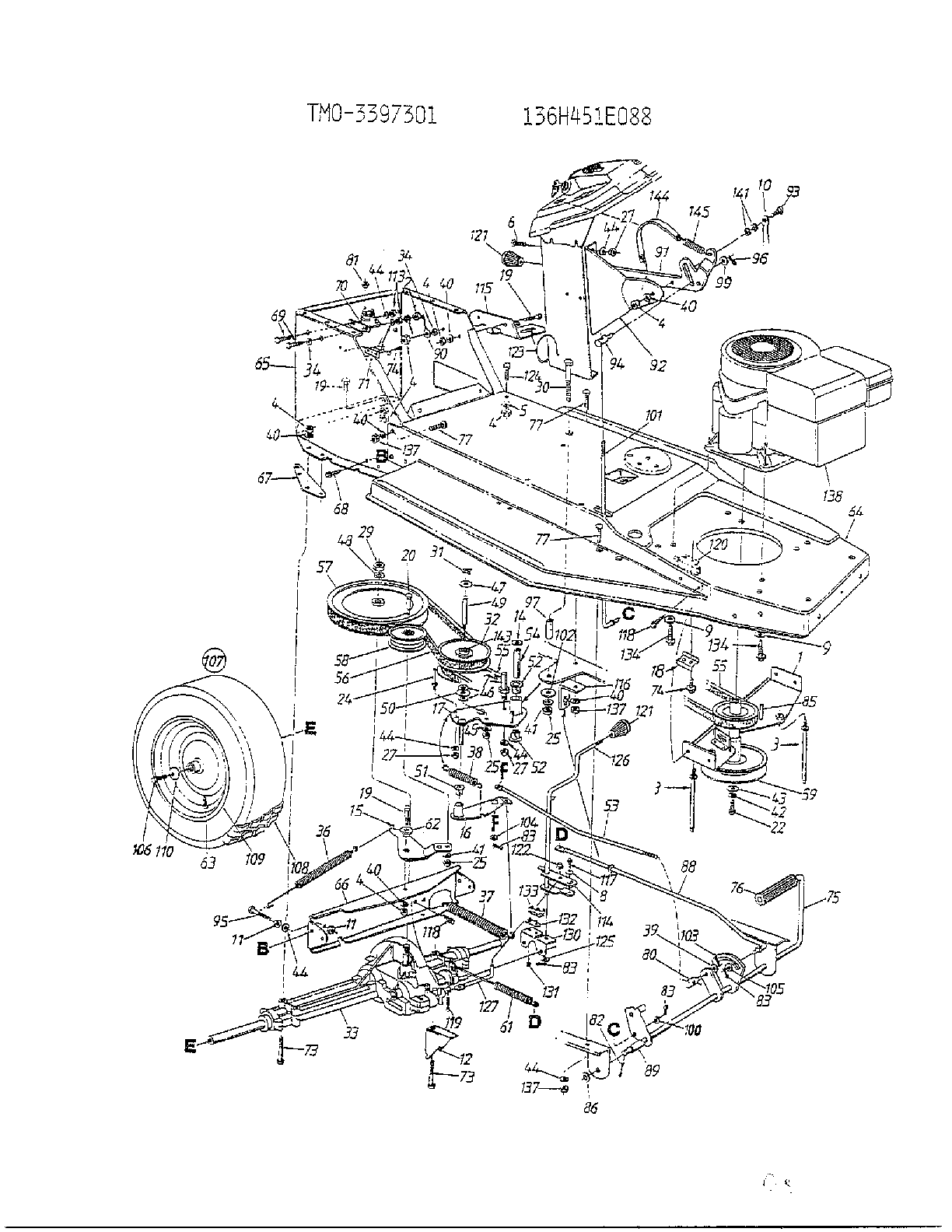

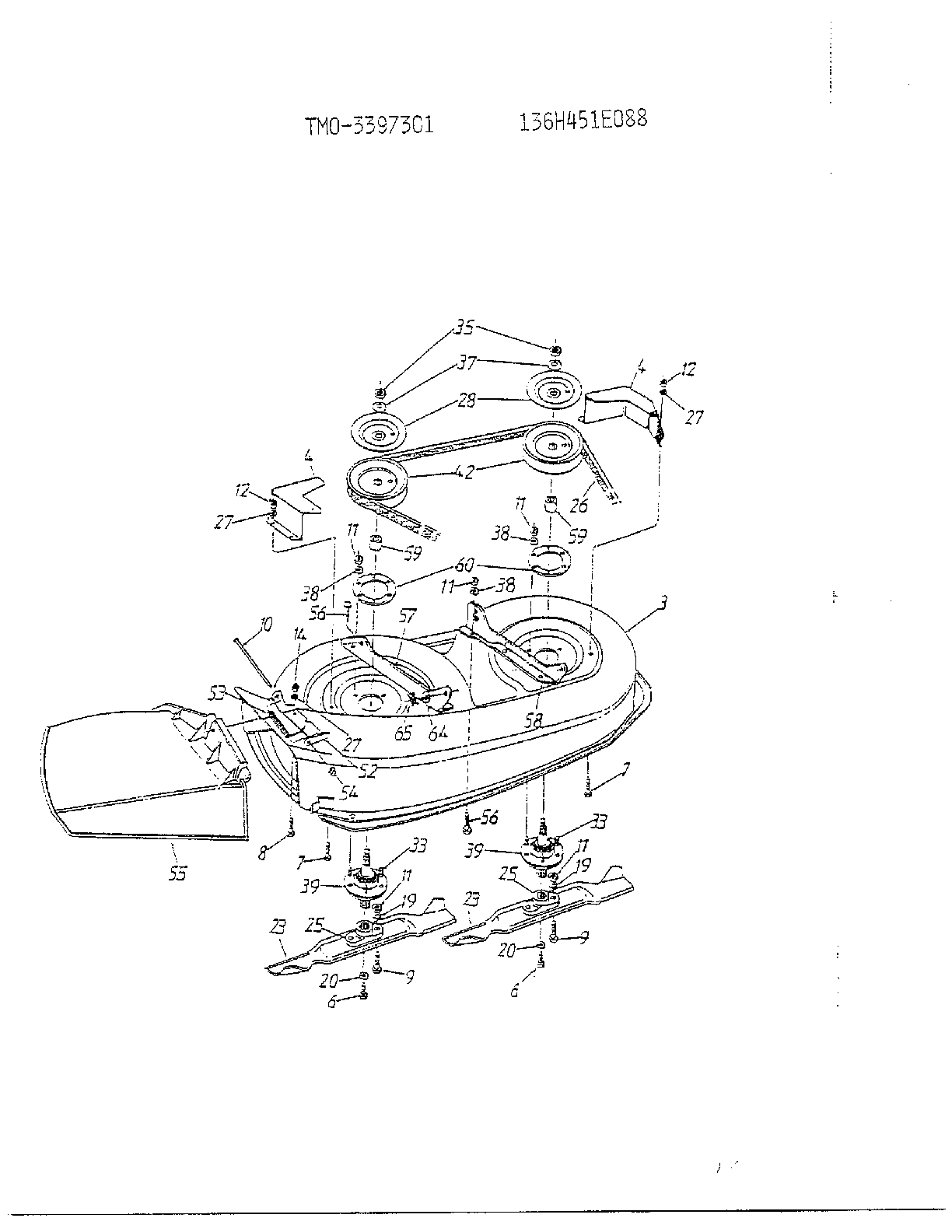

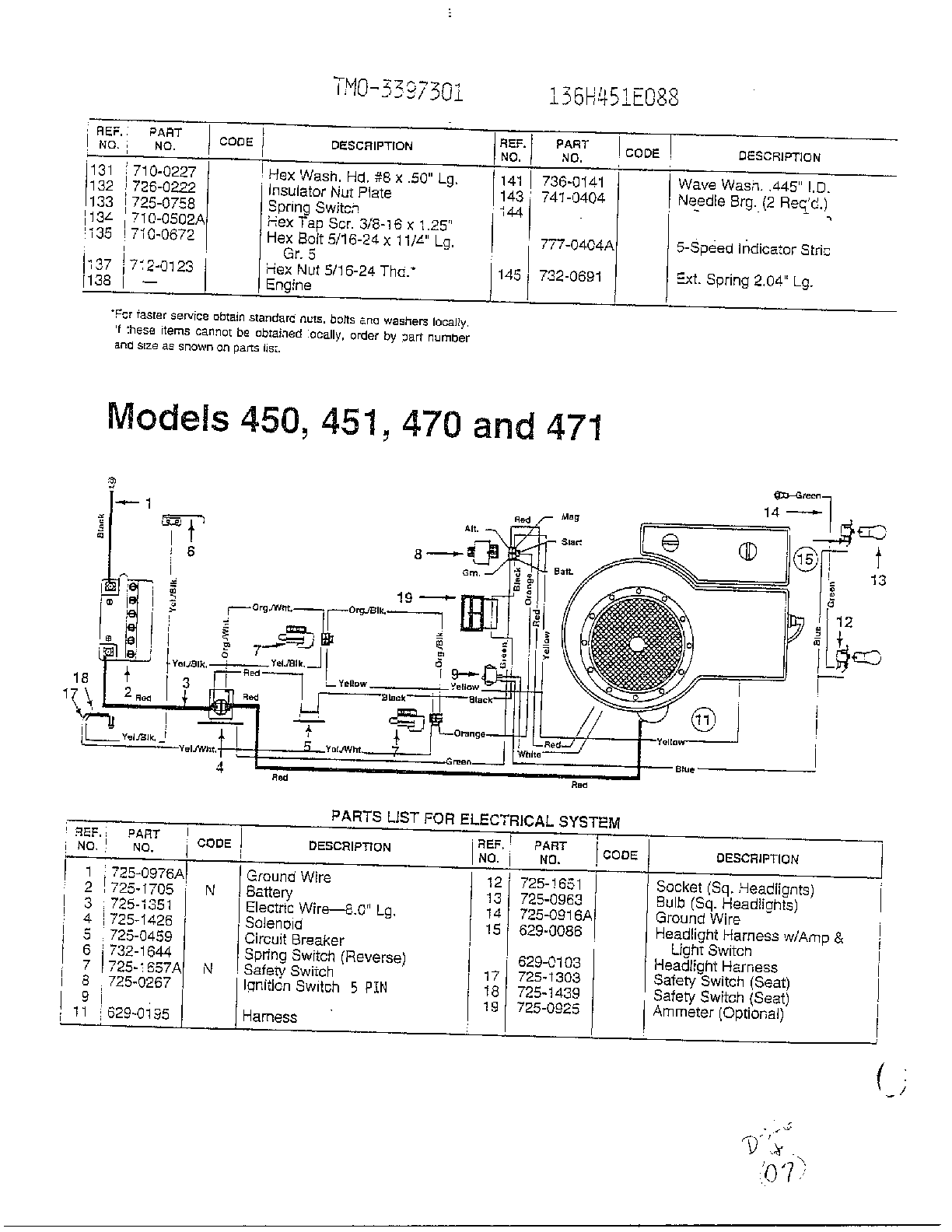

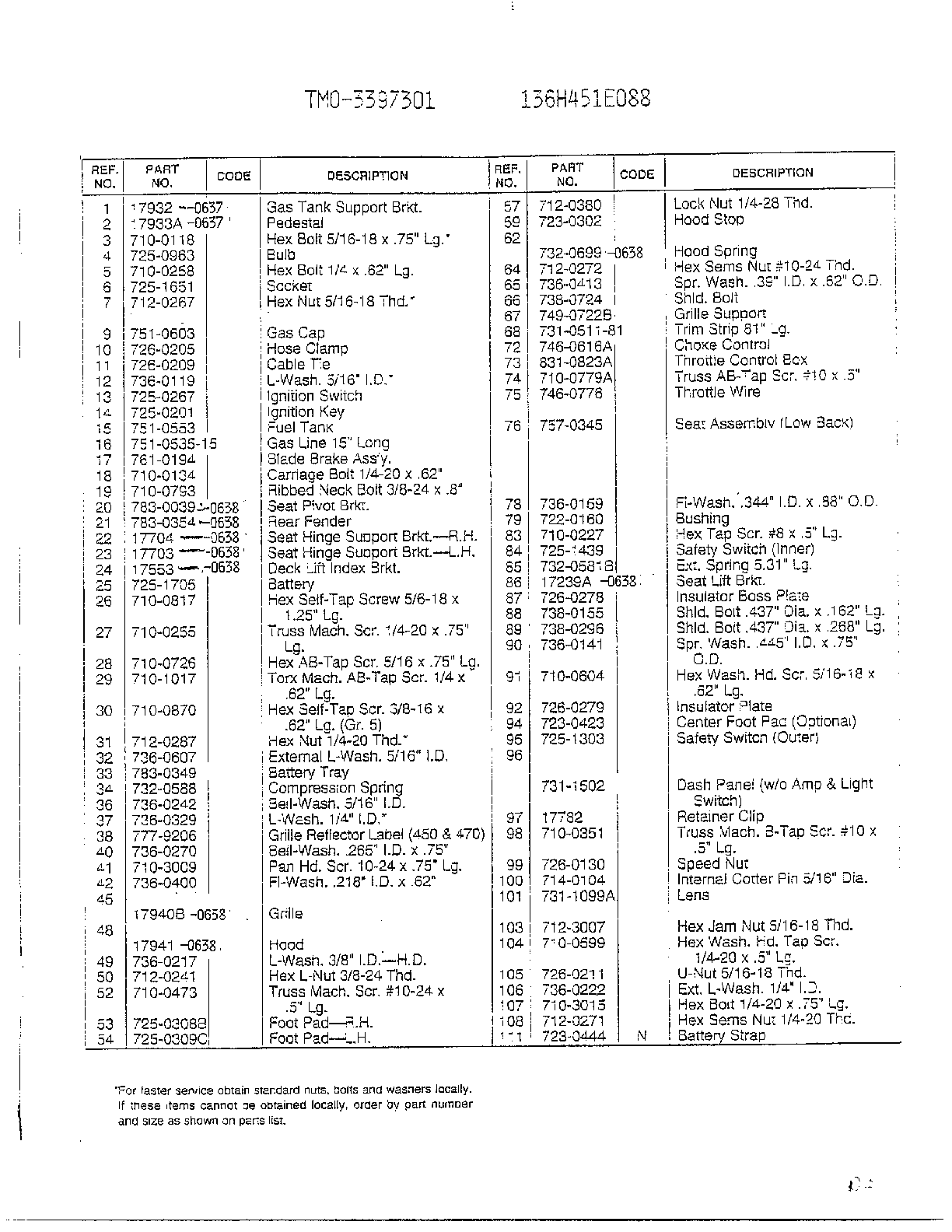

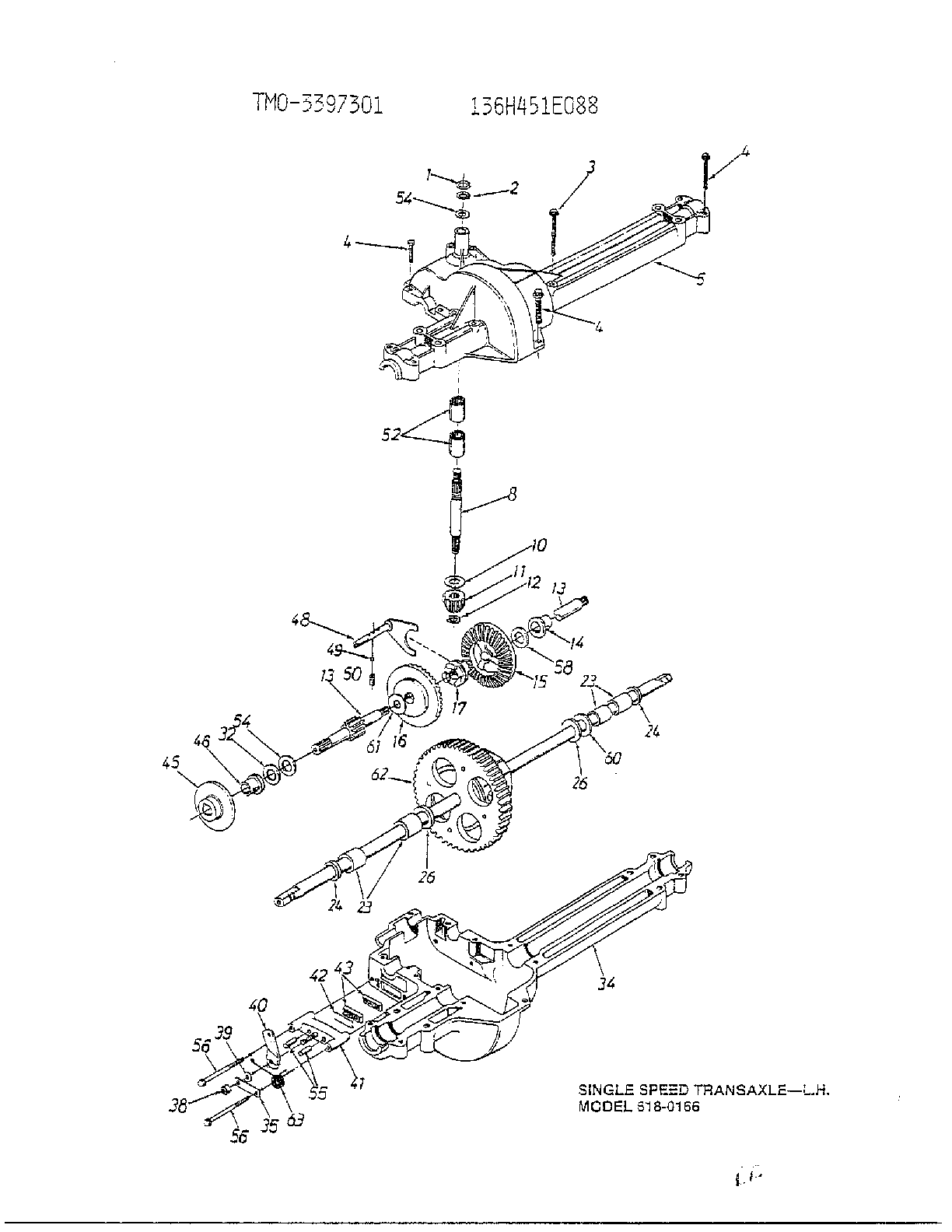

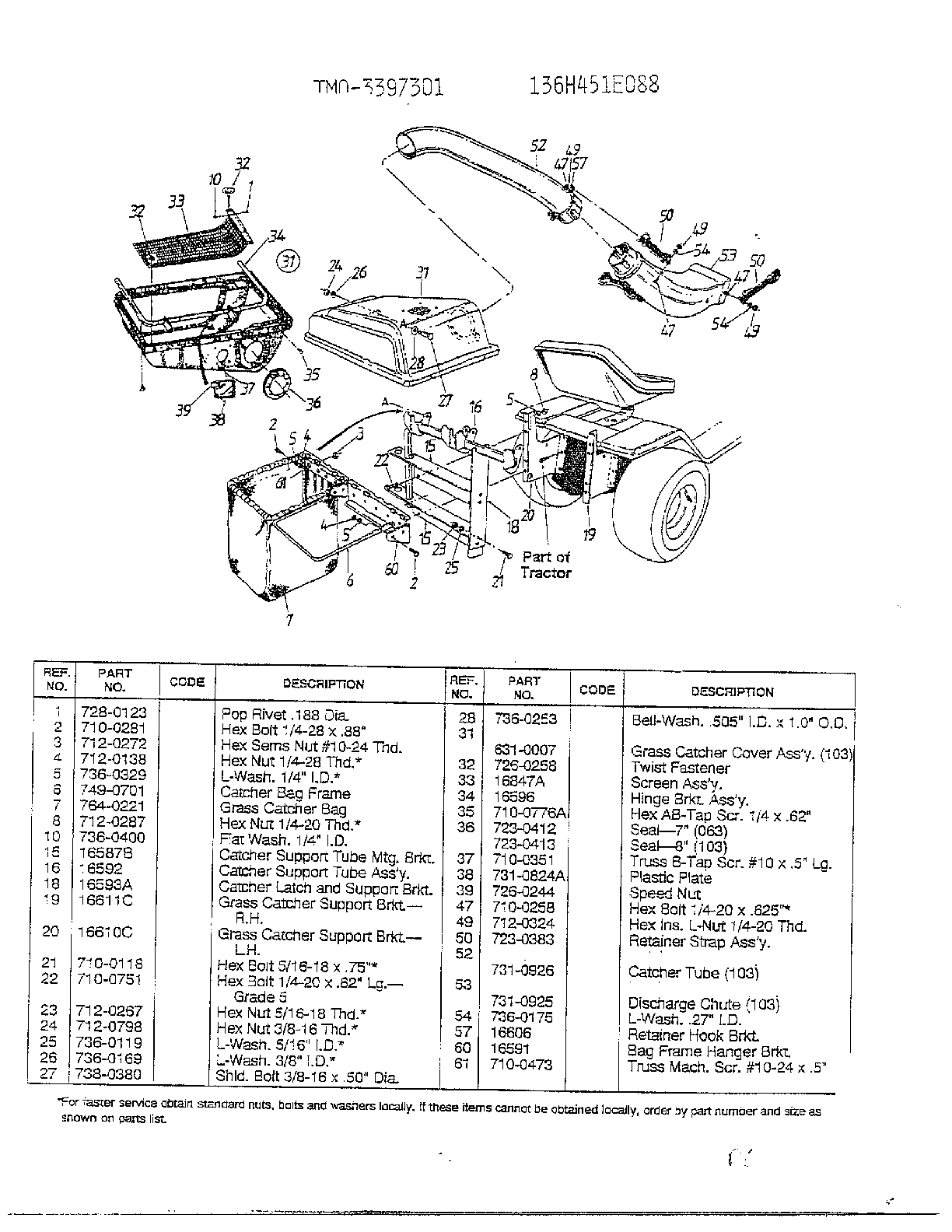

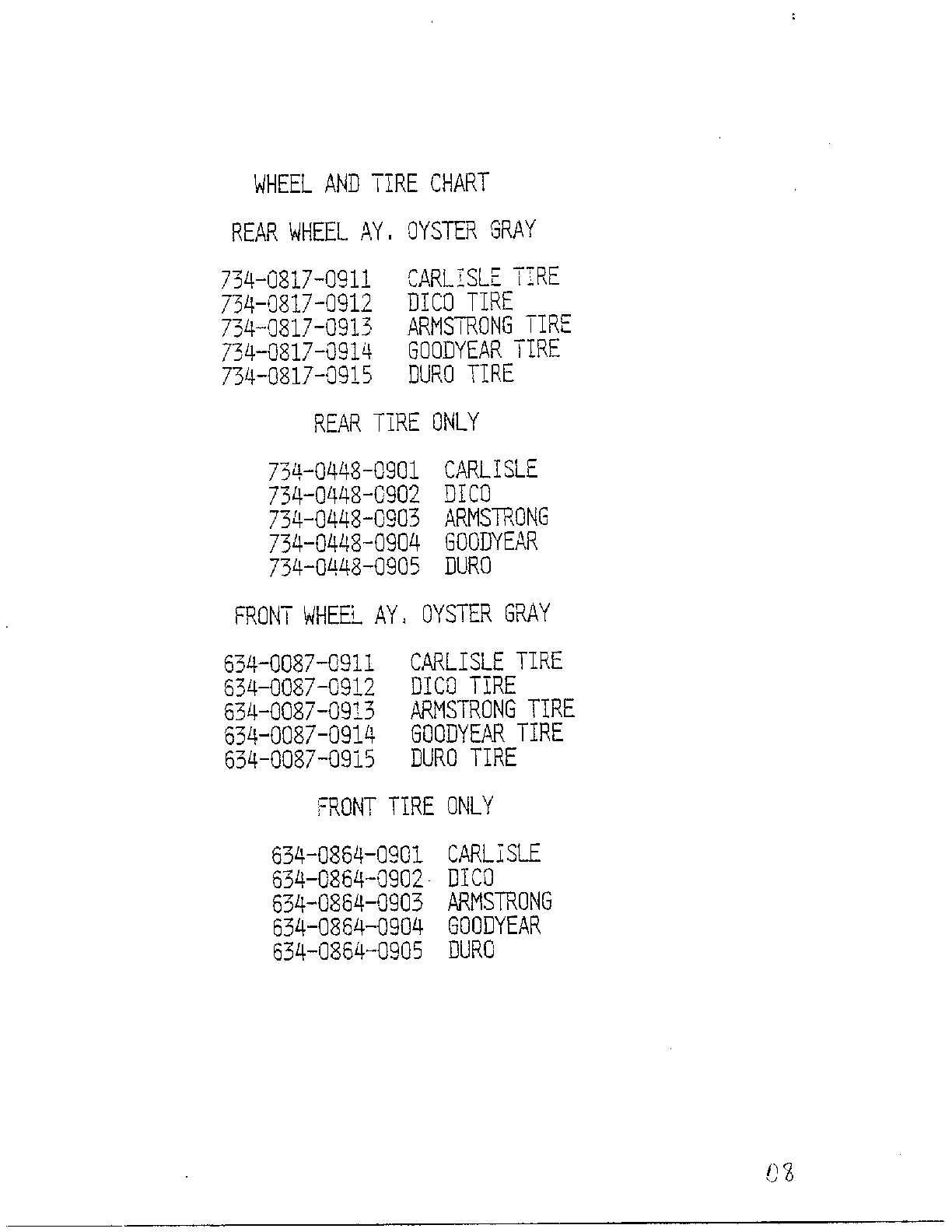

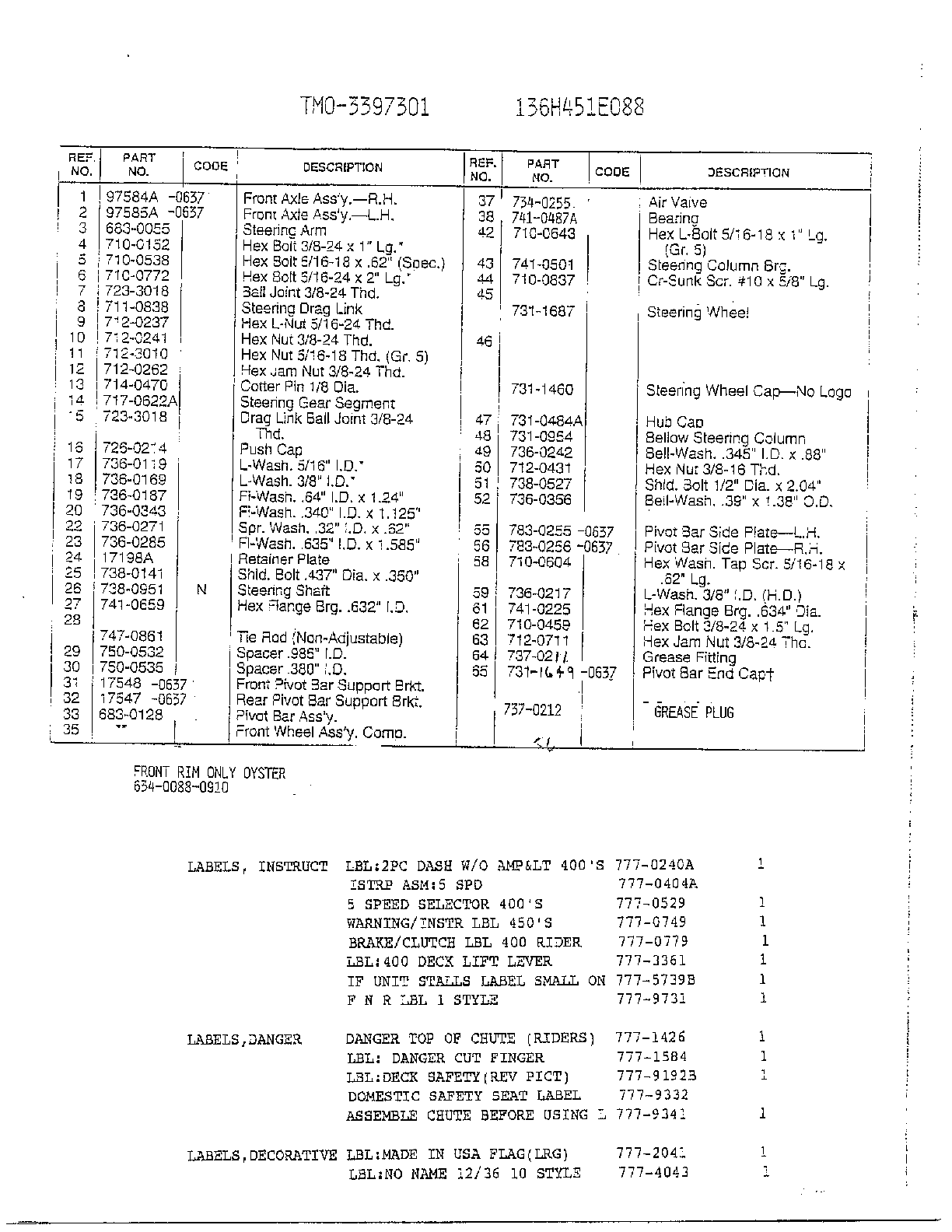

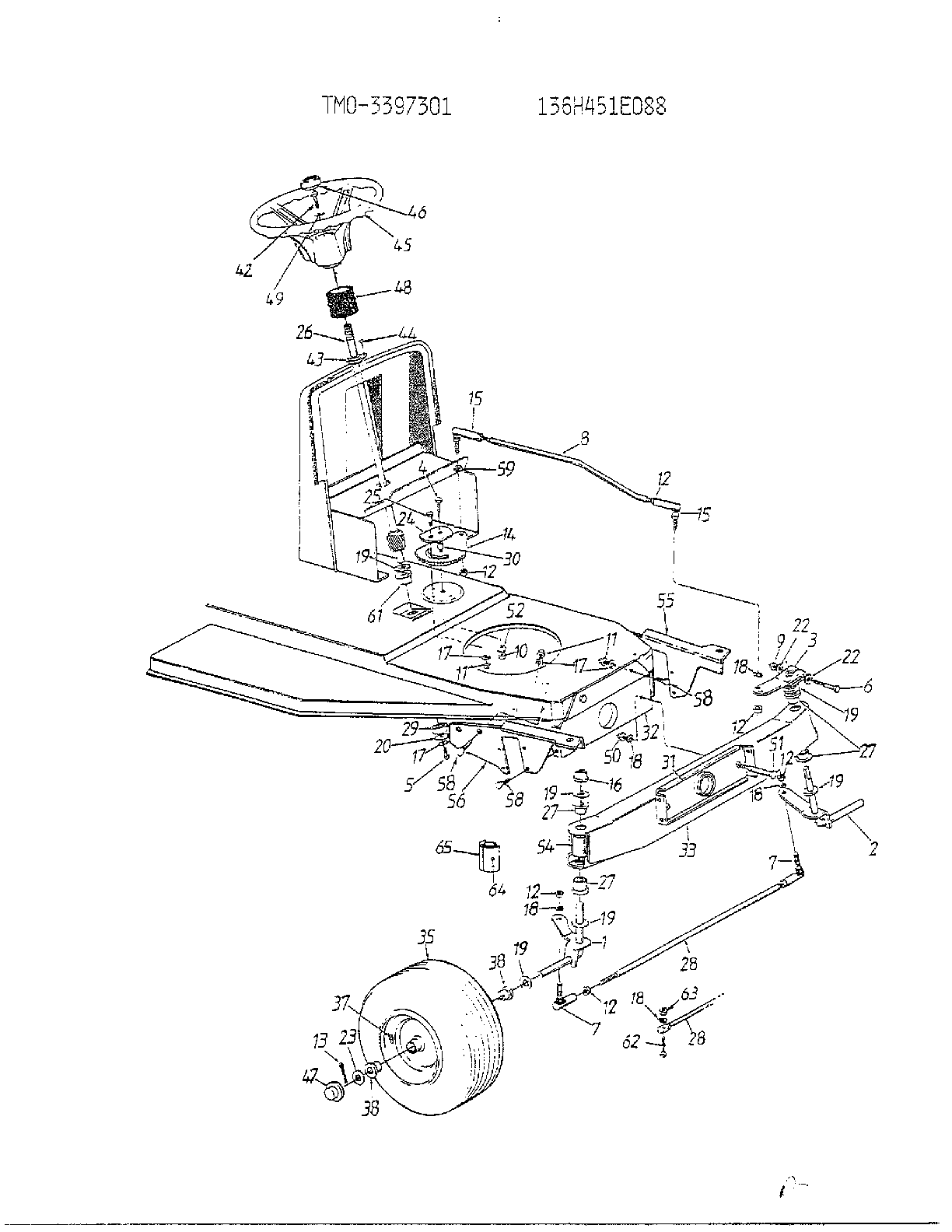

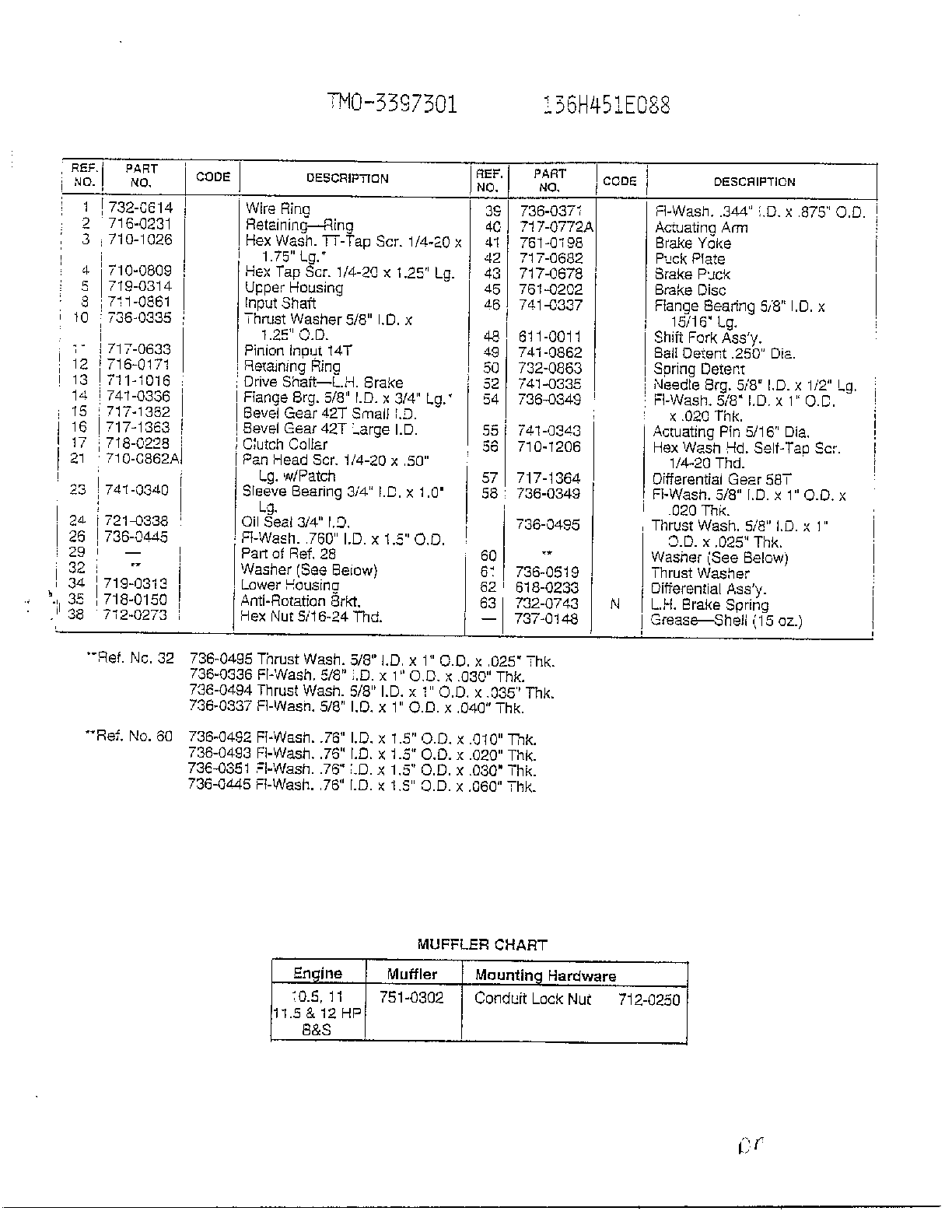

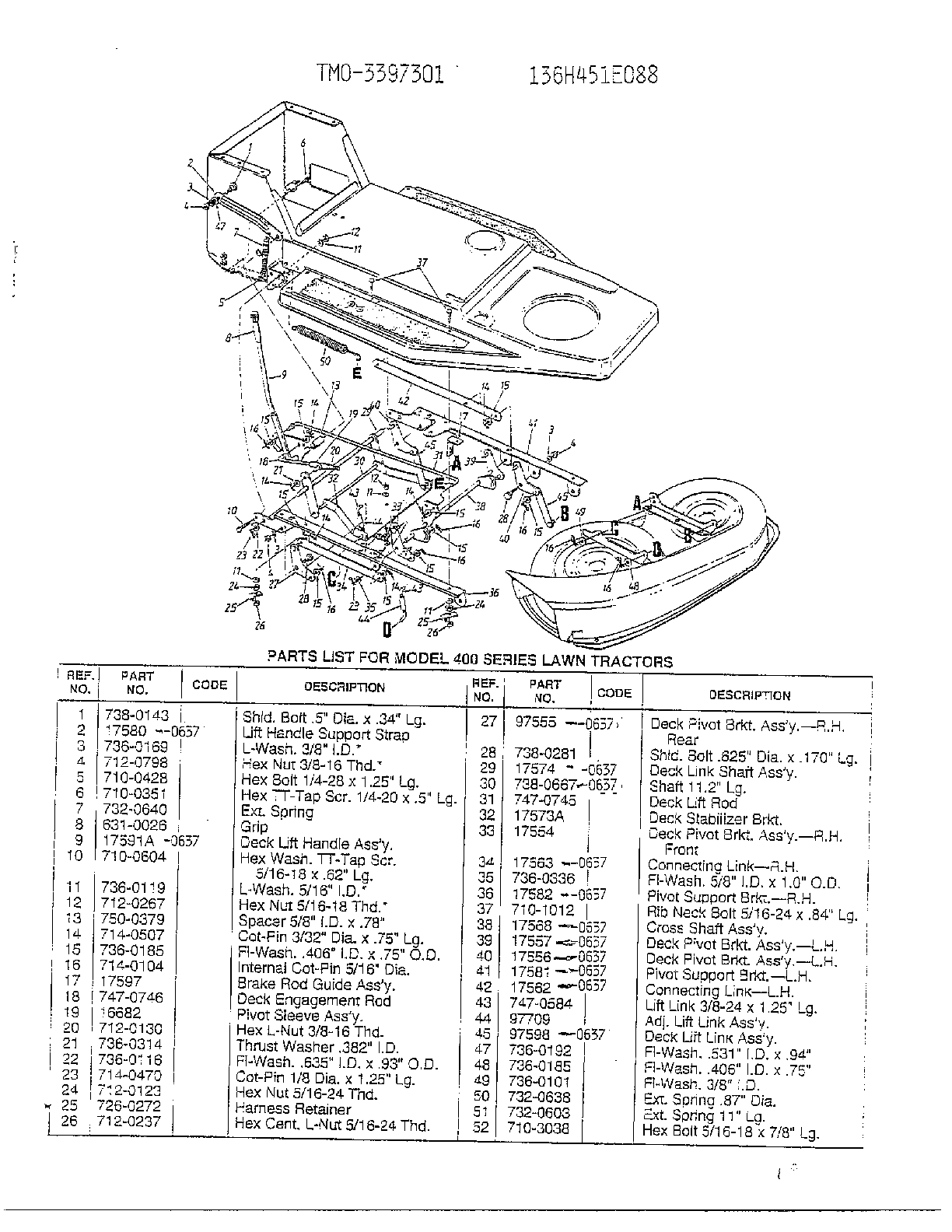

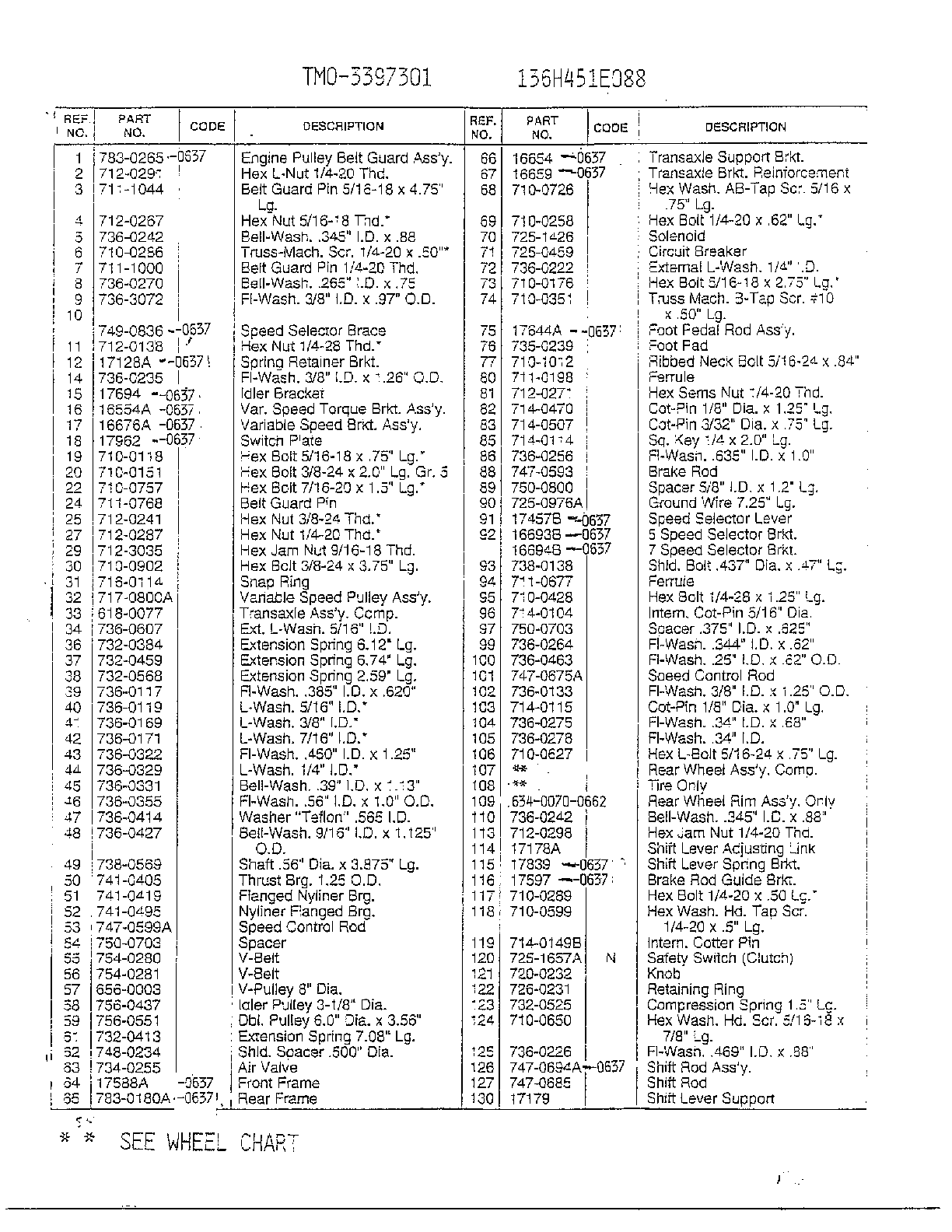

Here are the diagrams and repair parts for Official MTD 136H451E088 lawn tractor, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Part #710-0837
Part #710-0672
Part #710-0809
