Model # NE59R6631SG/AA-00 Official Samsung free standing electric range

Here are the diagrams and repair parts for Official Samsung NE59R6631SG-AA-00 free standing electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

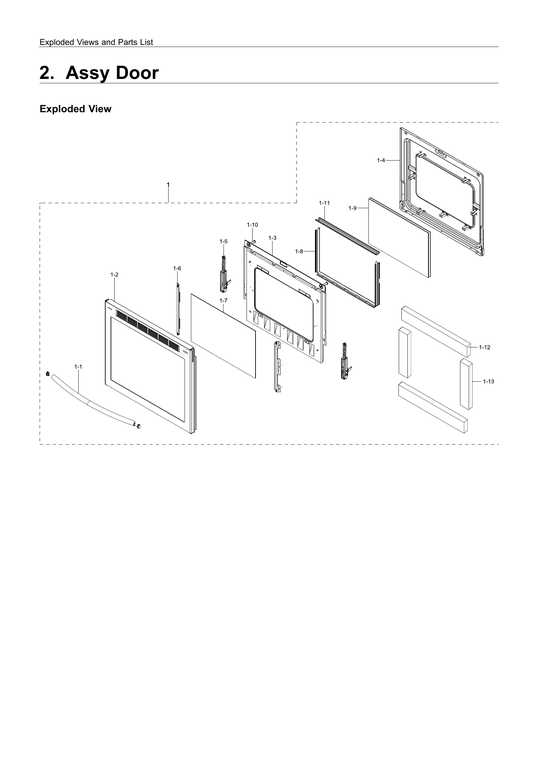

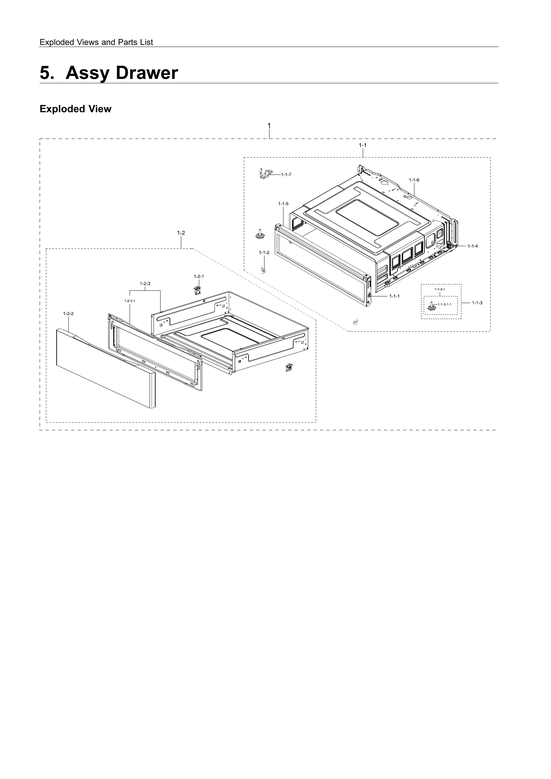

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Range Surface Element Control Switch DG44-01006A
#1-3-6

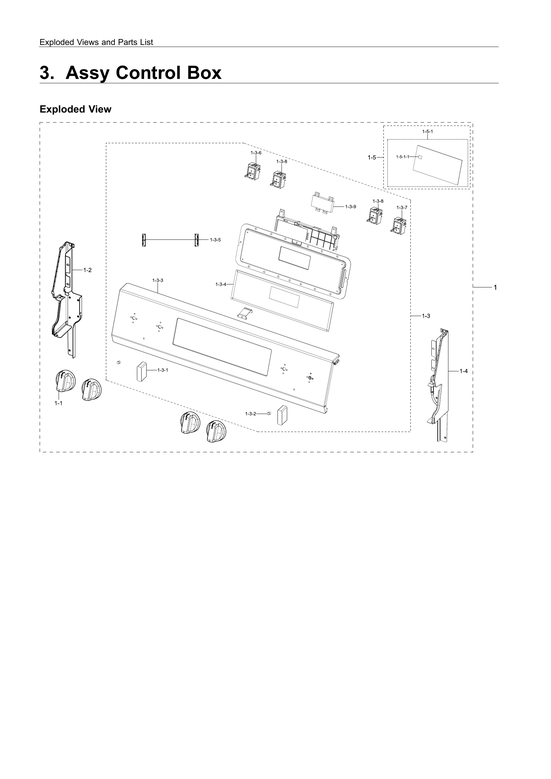

Control box assy diagram

Range surface element control switch

Part #DG44-01006A

BEST SELLER
$108.35 |
10% OFF Phone Price : $120.35
In Stock
Range Display Board DG07-01005A
#1-3-9

Control box assy diagram

Range display board

Part #DG07-01005A

BEST SELLER
$140.13 |
8% OFF Phone Price : $152.13
In Stock
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
#32-1

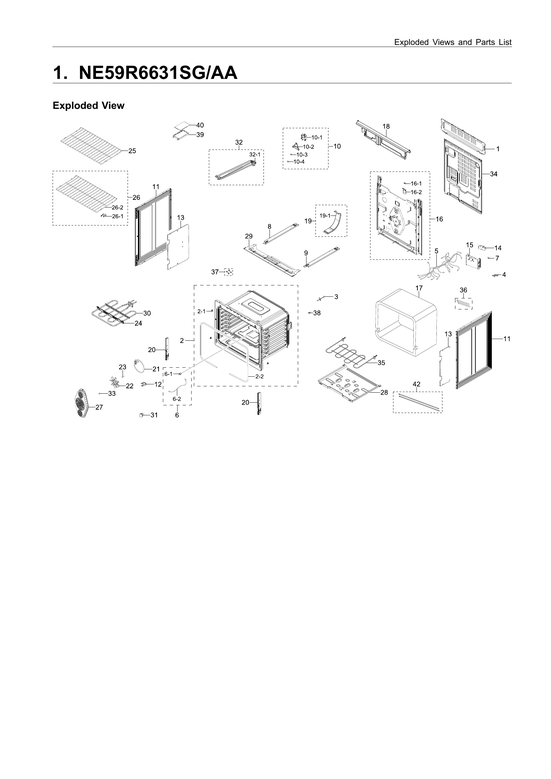

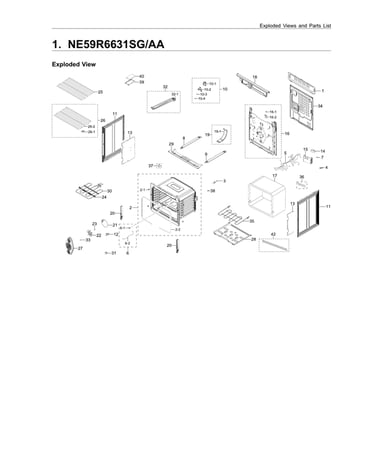

Main assy diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$17.74 |
10% OFF Phone Price : $19.74
In Stock
Range Convection Fan Motor Assembly (replaces Dg96-00110a) DG96-00110E
#10

Main assy diagram

Range convection fan motor assembly (replaces dg96-00110a)

Part #DG96-00110E

BEST SELLER
$109.81 |
10% OFF Phone Price : $121.81
In Stock
Range Terminal Block (replaces Dg65-00003a) DG96-00173A
#14

Main assy diagram

Range terminal block (replaces dg65-00003a)

Part #DG96-00173A

BEST SELLER
$56.41 |
10% OFF Phone Price : $62.41
In Stock
Range Radiant Surface Element, 6-in DG47-00060A
#1-2

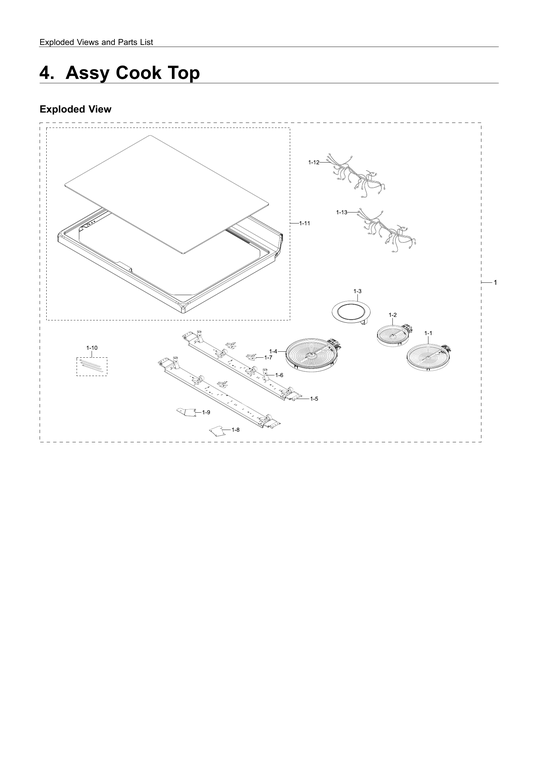

Cooktop assy diagram
