GE
Electric Cooktop

Model # PHP9030DJ2BB Official GE electric cooktop

Here are the diagrams and repair parts for Official GE PHP9030DJ2BB electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Element WB30X21490
#12

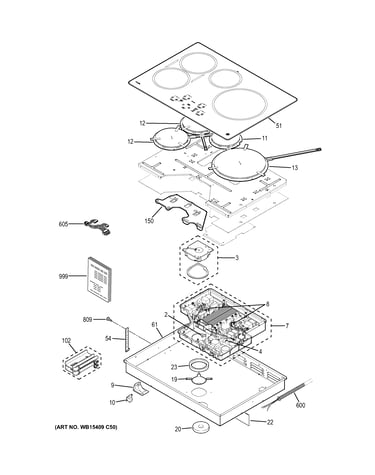

Control panel & cooktop diagram

Element

Part #WB30X21490

Replaced by #WB30X38226

?
Manufacturer substitution
This part replaces WB30X21490. Substitute parts can look different from the original.
$100.60
In Stock
Element WB30X24600
#13

Control panel & cooktop diagram

Element

Part #WB30X24600

Replaced by #WB30X38227

?
Manufacturer substitution
This part replaces WB30X24600. Substitute parts can look different from the original.
$111.10
In Stock
Control Assembly WB27X24261
#7

Control panel & cooktop diagram

Control assembly

Part #WB27X24261

Replaced by #WB27X33085

?
Manufacturer substitution
This part replaces WB27X24261. Substitute parts can look different from the original.
$428.50
In Stock
Element WB30X24233
#11

Control panel & cooktop diagram

Element

Part #WB30X24233

Replaced by #WB30X38225

?
Manufacturer substitution
This part replaces WB30X24233. Substitute parts can look different from the original.
$72.11
In Stock
Cooktop Gas Blower WB26X24235
#3

Control panel & cooktop diagram

Cooktop gas blower

Part #WB26X24235

$100.15 |
11% OFF Phone Price : $112.15
In Stock
Screw WB01X1137
#809

Control panel & cooktop diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Display Board WB27X24230
#150

Control panel & cooktop diagram

Display board

Part #WB27X24230

$60.14 |
9% OFF Phone Price : $66.14
In Stock
Board Rj45 C WB27X24119
#10

Control panel & cooktop diagram

Board rj45 c

Part #WB27X24119

$28.71 |
17% OFF Phone Price : $34.71
In Stock
Fan WB02X24262
#19

Control panel & cooktop diagram

Fan

Part #WB02X24262

$8.71
In Stock
Range Installation WB01X24570
#102

Control panel & cooktop diagram

Range installation

Part #WB01X24570

$29.87 |
17% OFF Phone Price : $35.87
In Stock
