Model # DSC-HX1 Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-HX1 digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

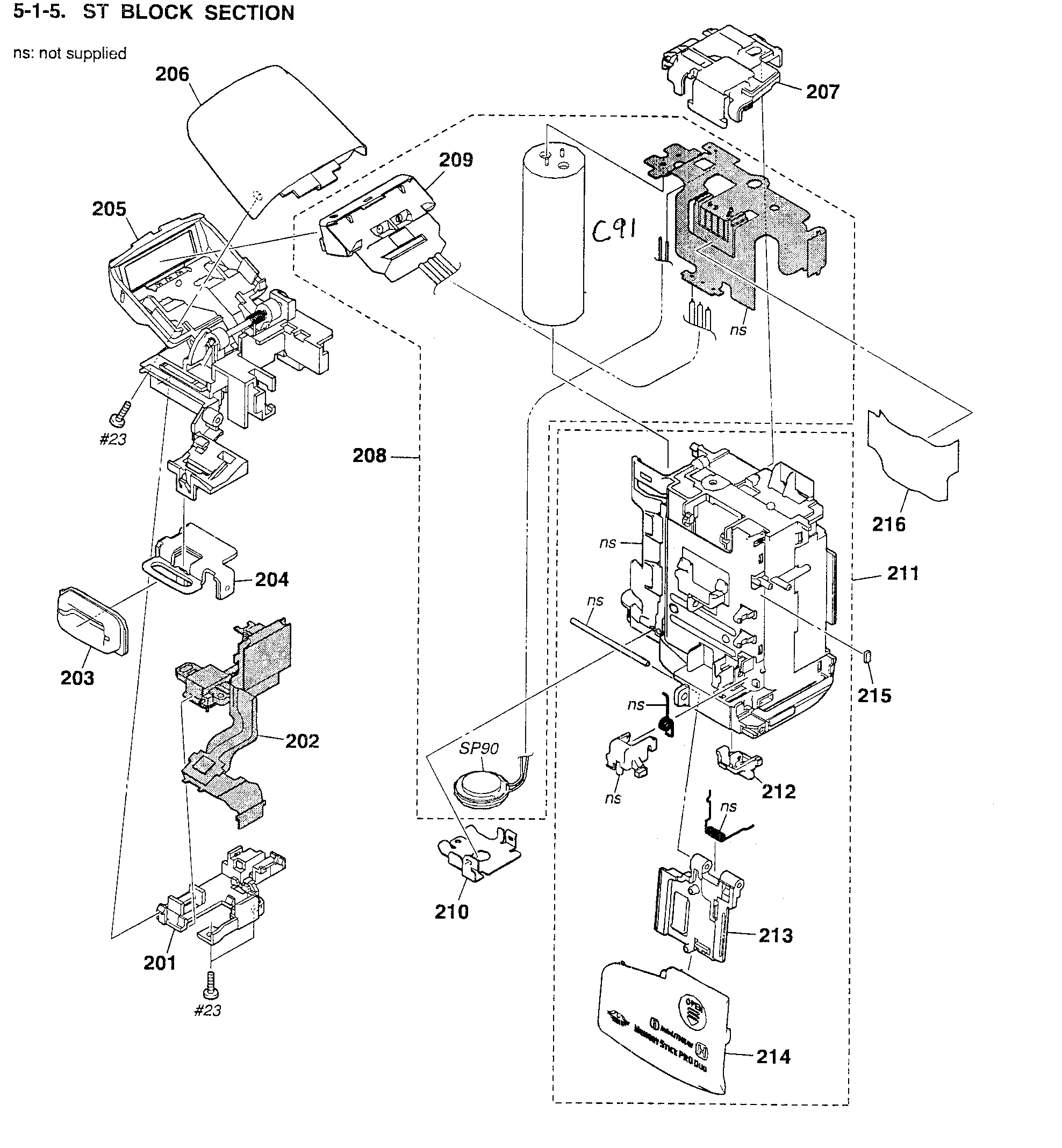

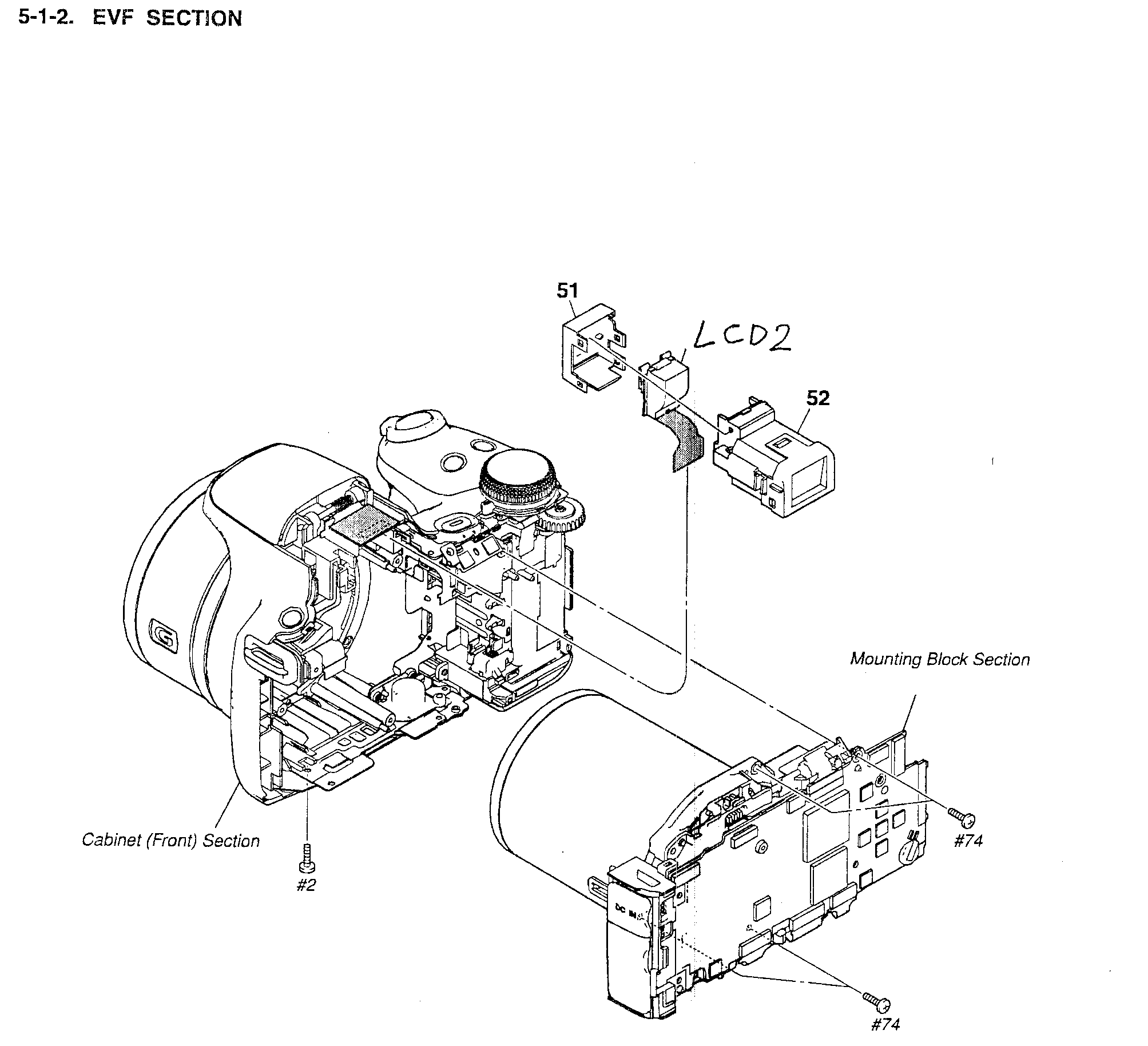

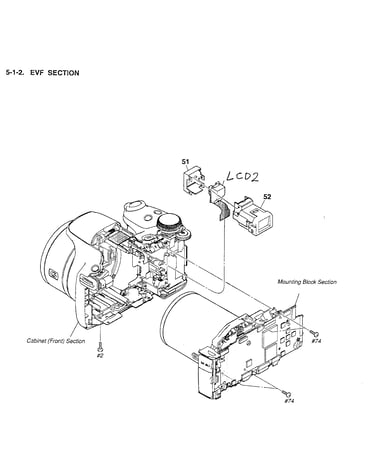

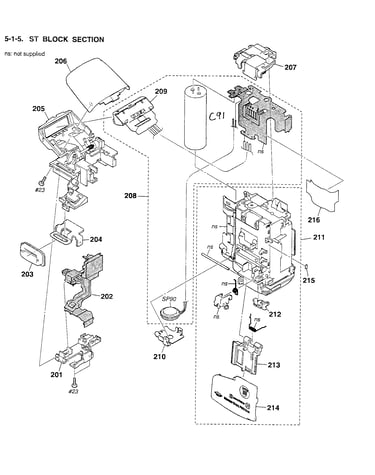

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Conversion Adapter 182255211
#NI

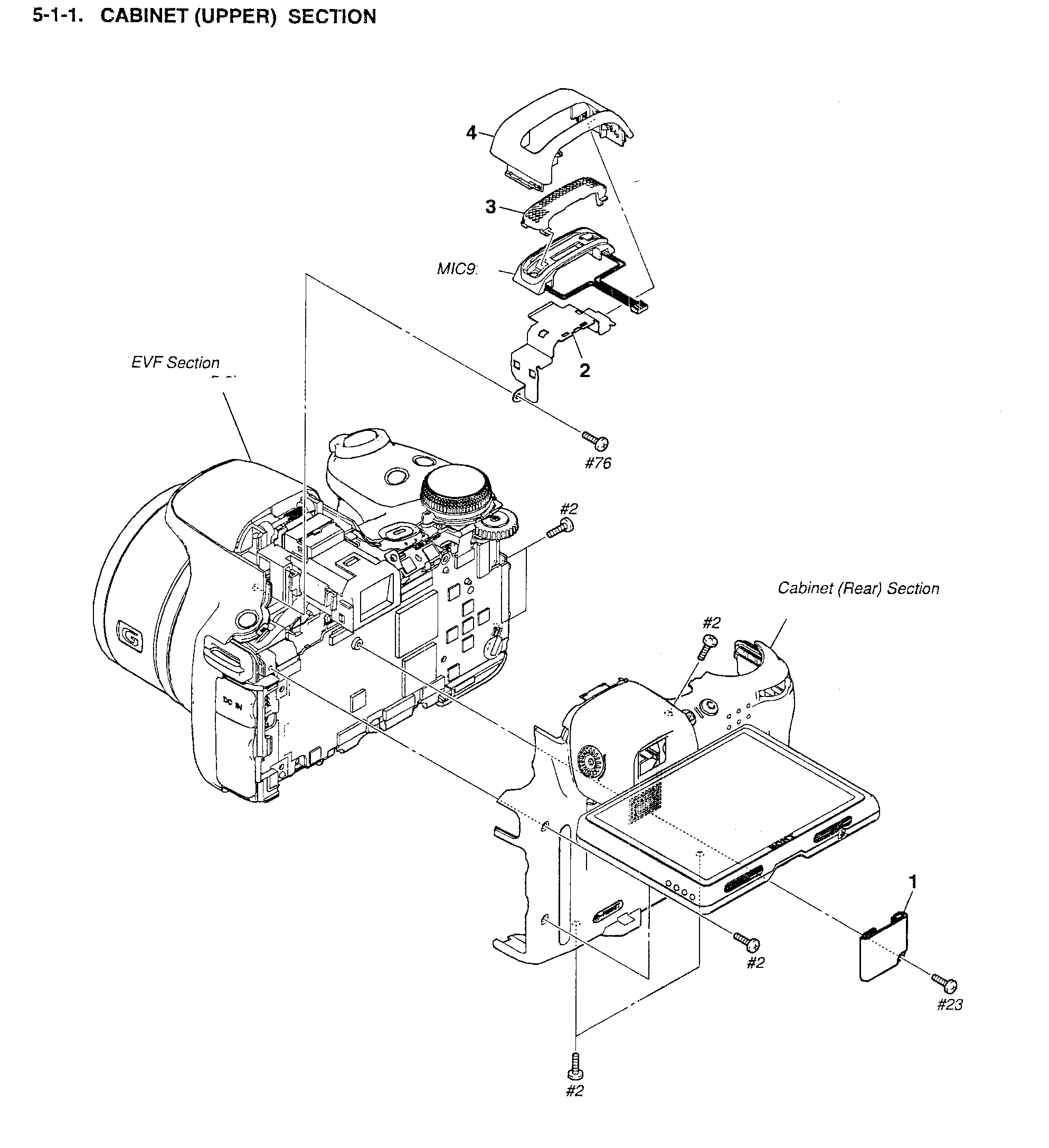

Upper cabinet diagram

Conversion adapter

Part #182255211

$44.37
In Stock
Screw 310676601
#152

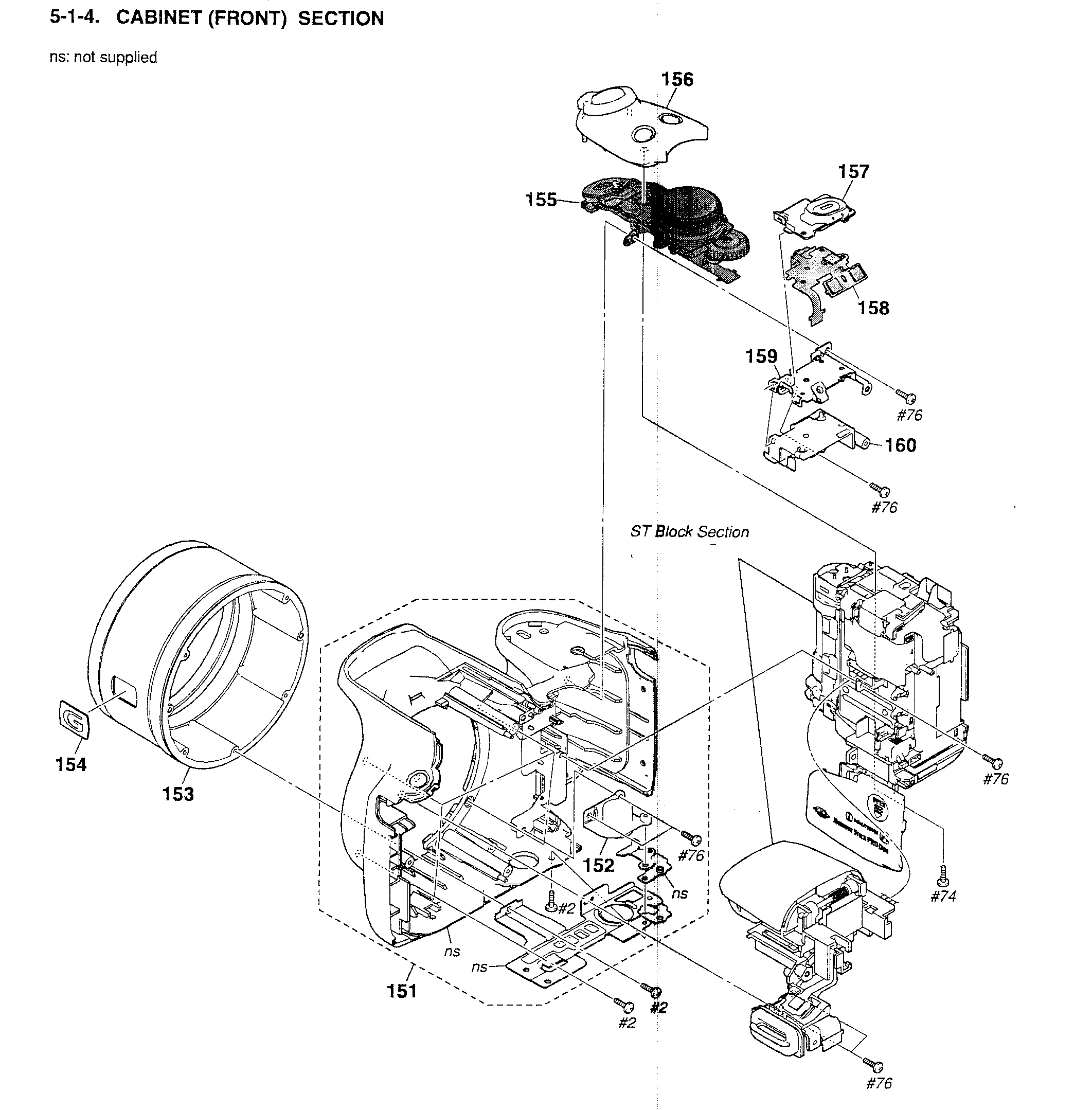

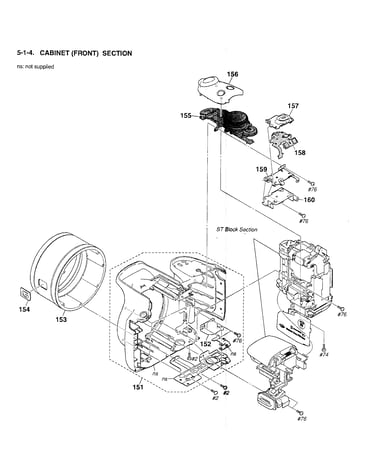

Front cabinet diagram

Screw

Part #310676601

$8.26
In Stock
Lithium Battery 175681311
#BT1

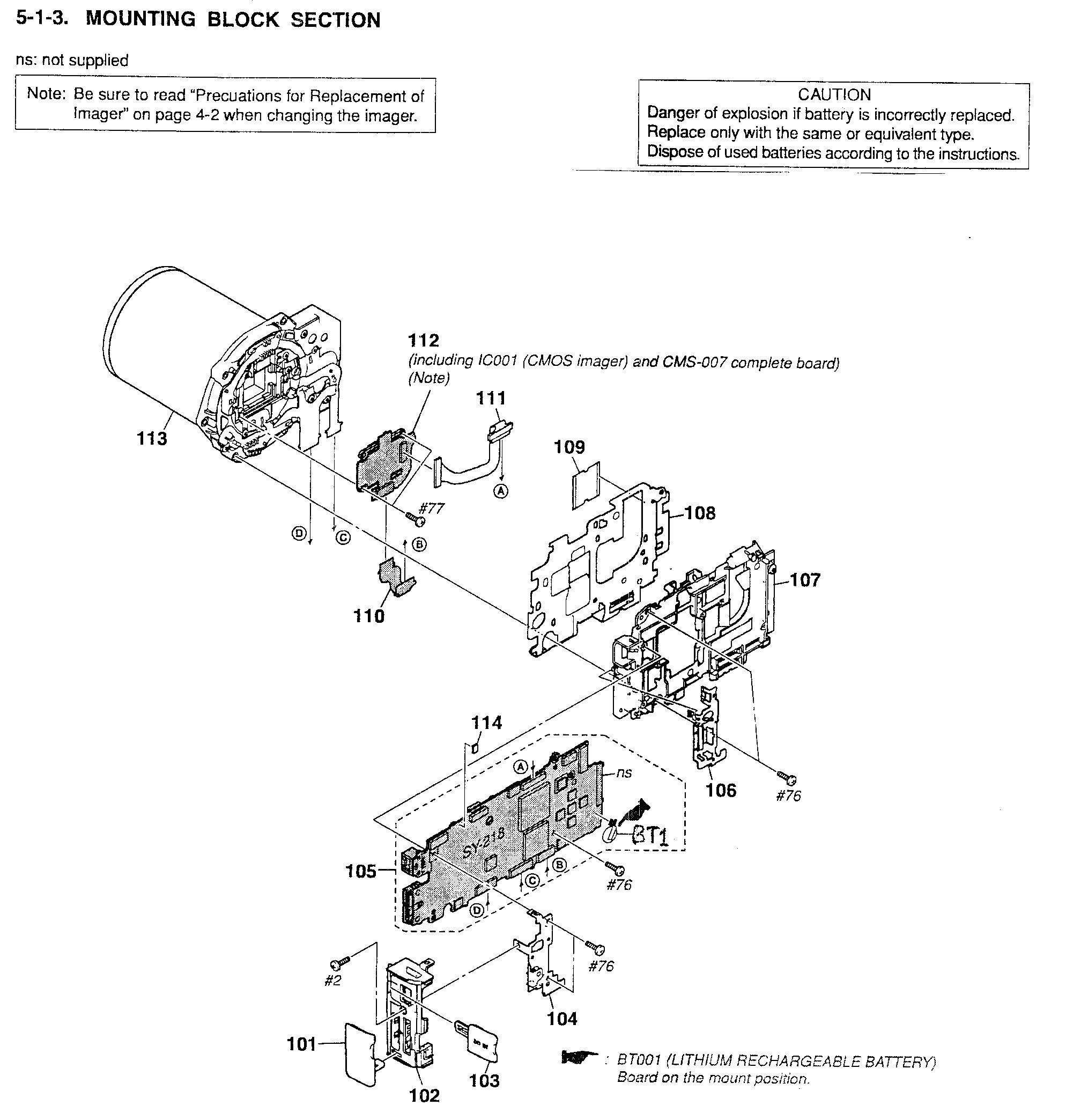

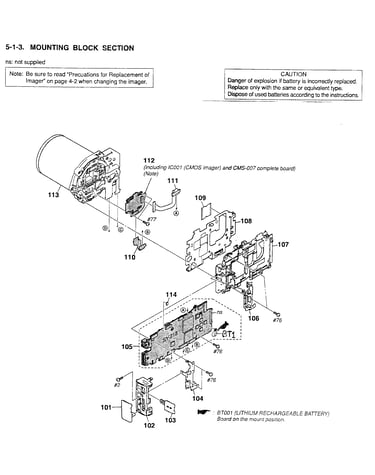

Mounting block diagram

Lithium battery

Part #175681311

$15.95
In Stock
Sony Window 414245901
#301

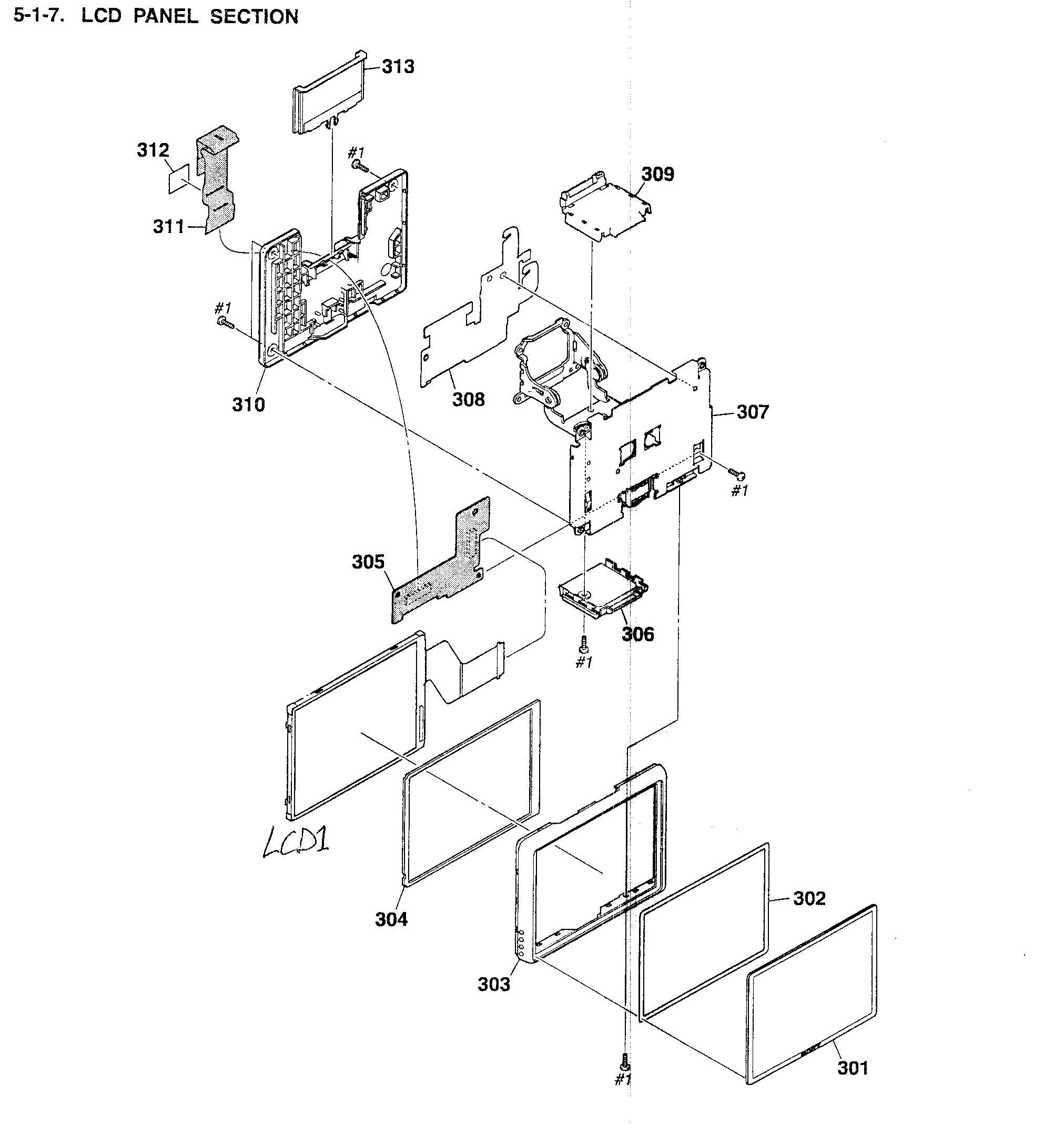

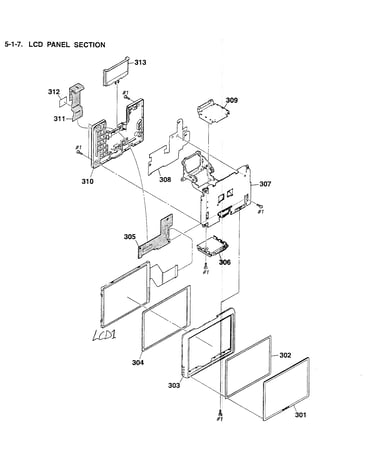

Lcd panel diagram

Sony window

Part #414245901

$38.40
In Stock
Sony Screw B1.2 308615631
#S77

Mounting block diagram

Sony screw b1.2

Part #308615631

This item is not returnable
$2.30
In Stock
Screw-sil 266655111
#S76

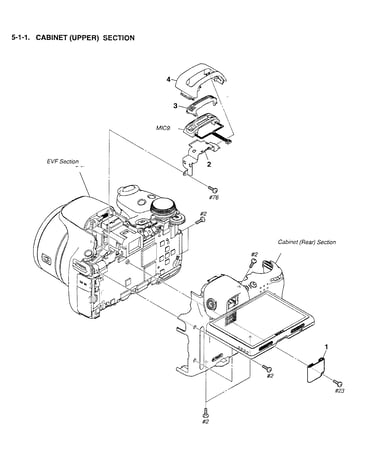

Upper cabinet diagram

Screw-sil

Part #266655111

This item is not returnable
$3.54
In Stock
Sony Cmos Block A1727691A
#112

Mounting block diagram

Sony cmos block

Part #A1727691A

$148.43
In Stock
Lcd Module 180283111
#LCD1

Lcd panel diagram

Lcd module

Part #180283111

$124.27
In Stock
Screw 308020421
#S12

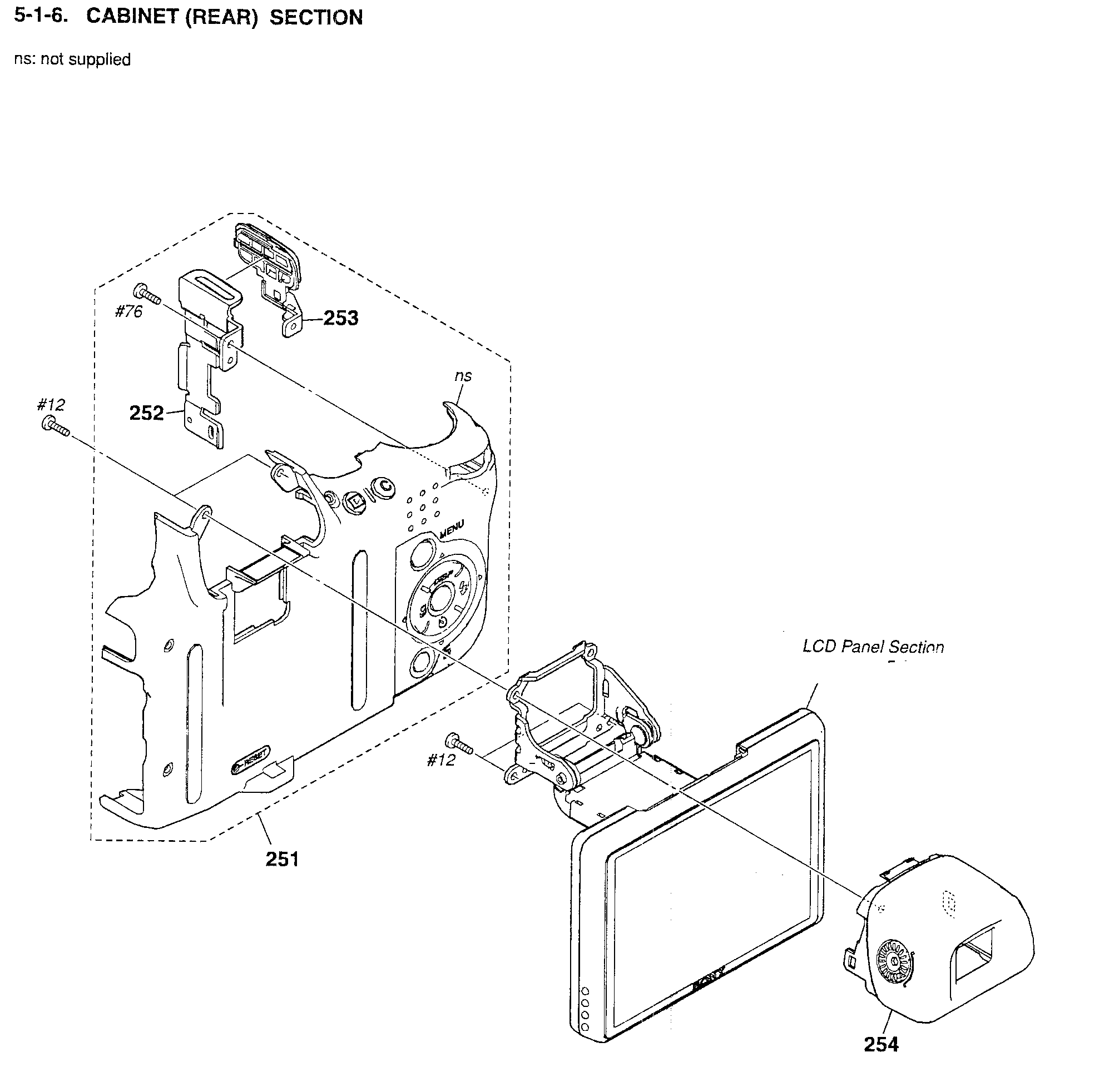

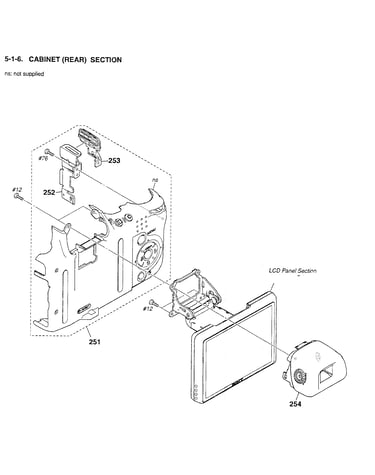

Rear cabinet diagram

Screw

Part #308020421

This item is not returnable
$3.15
In Stock
Sony Lens Block A1710163A
#113

Mounting block diagram

Sony lens block

Part #A1710163A

$336.19
In Stock
