Maytag
Top-Mount Refrigerator

Model # MTB2455BRA Official Maytag top-mount refrigerator

Here are the diagrams and repair parts for Official Maytag MTB2455BRA top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

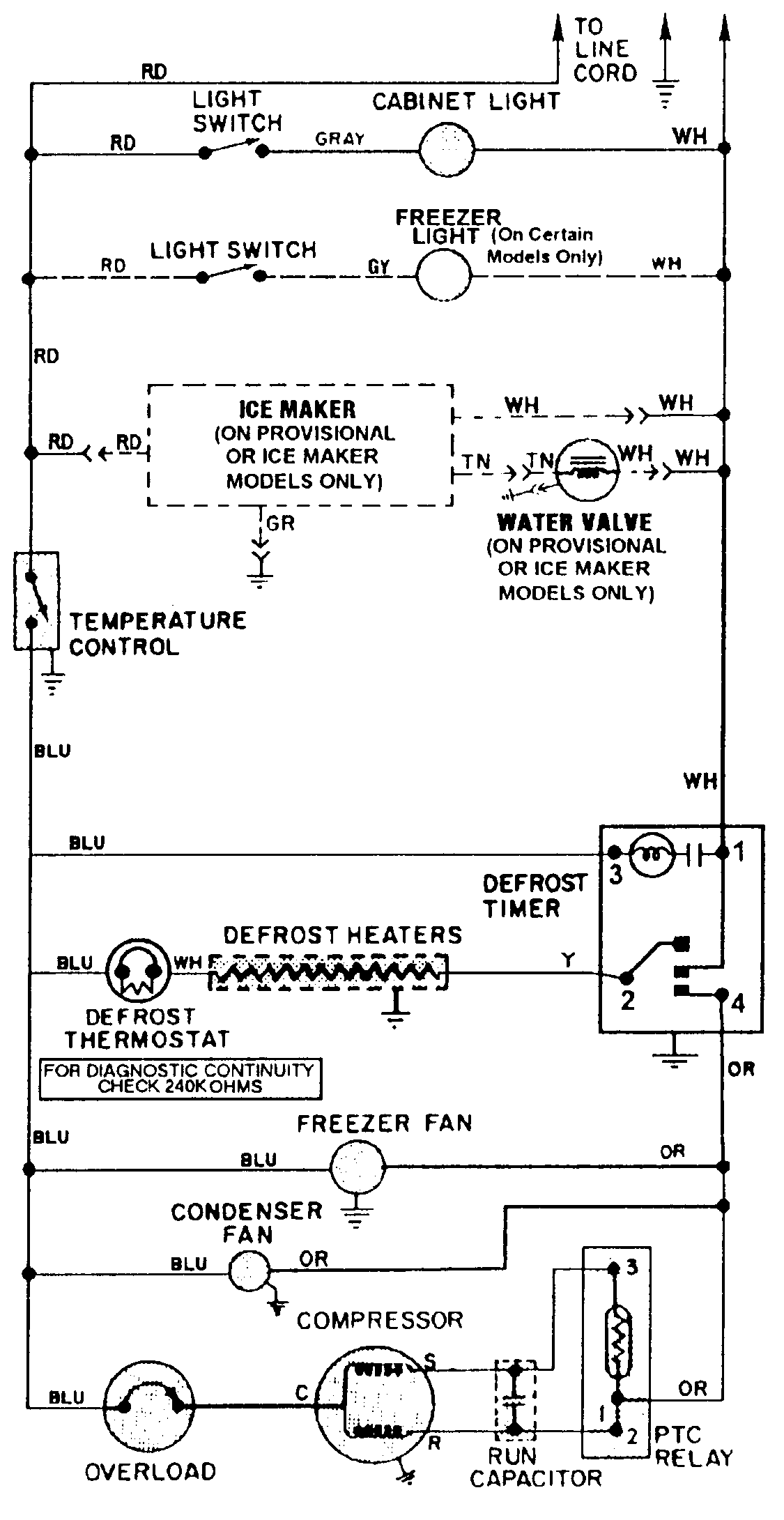

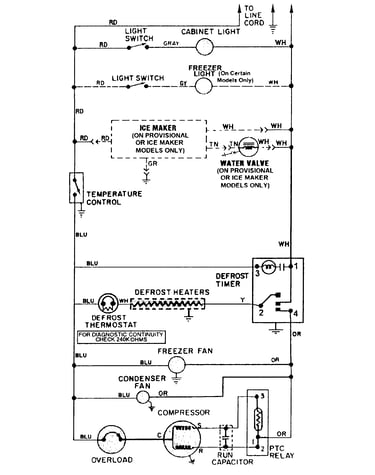

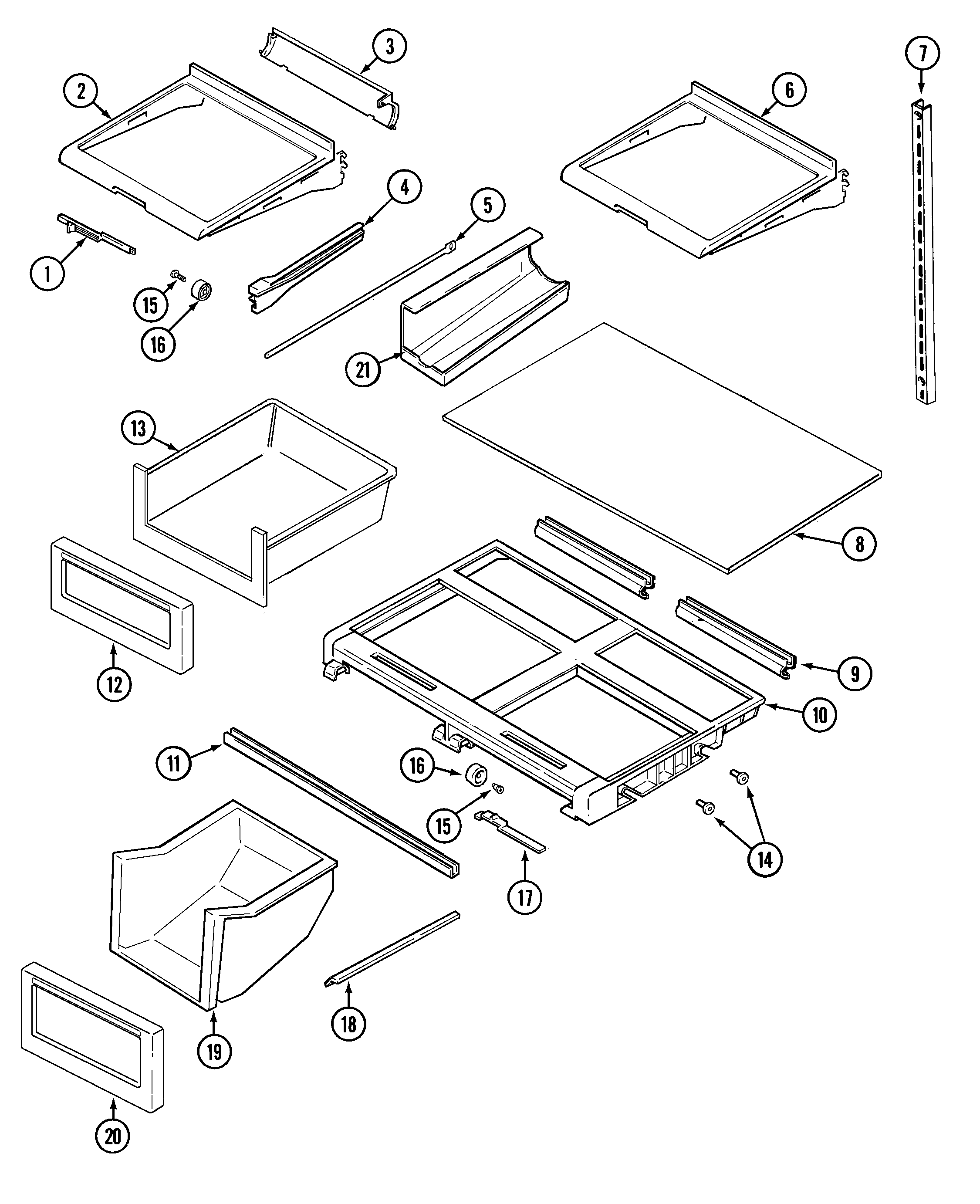

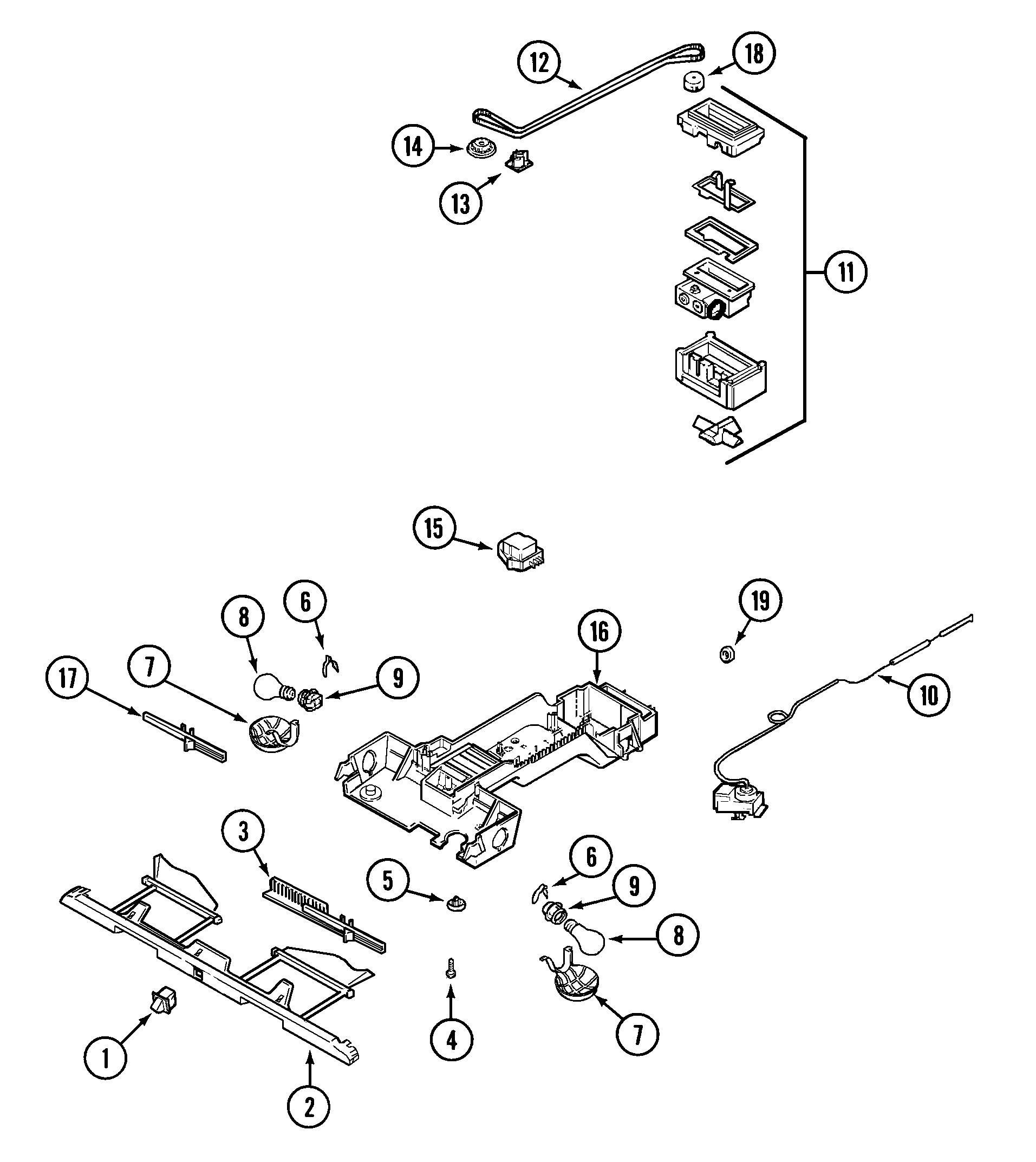

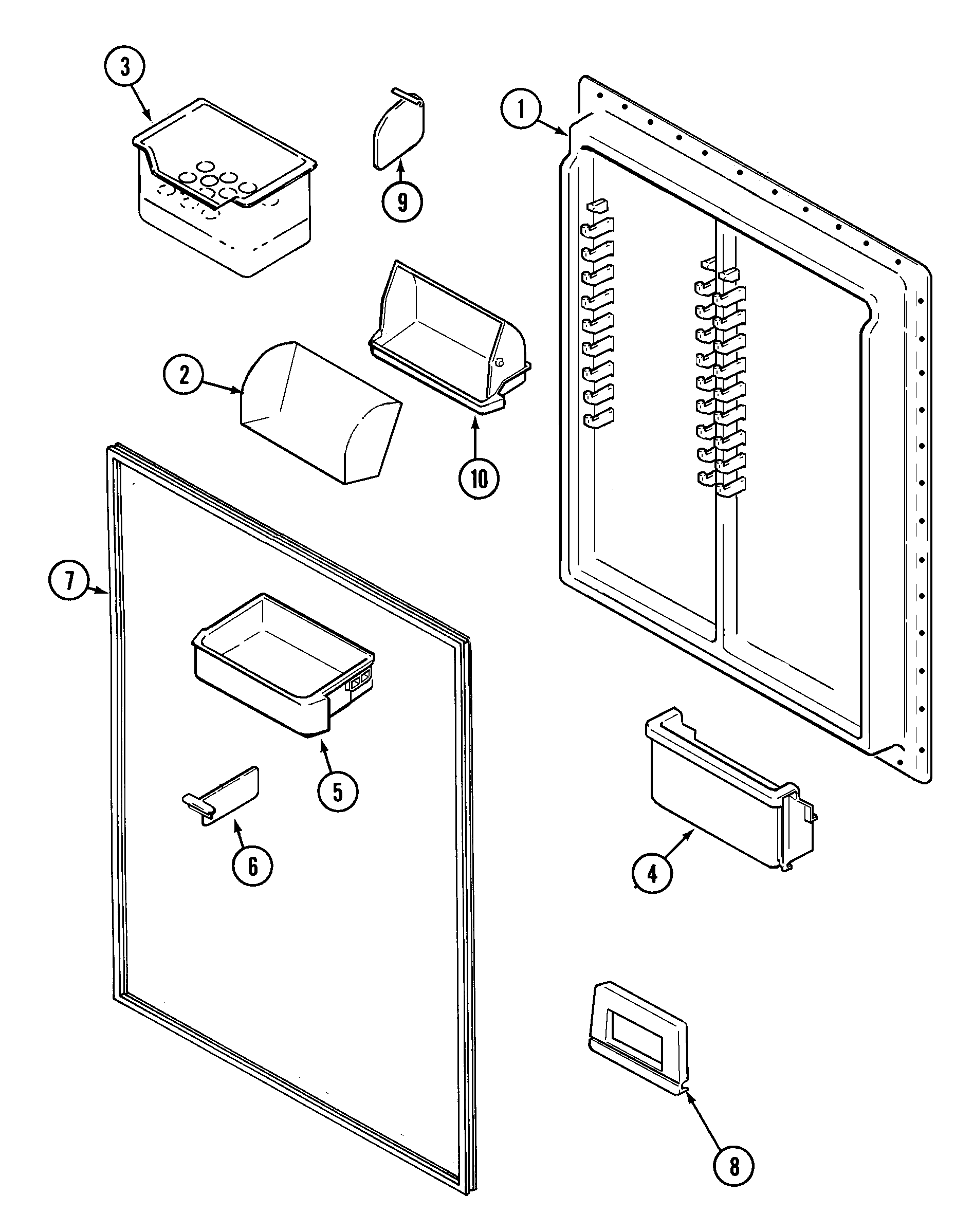

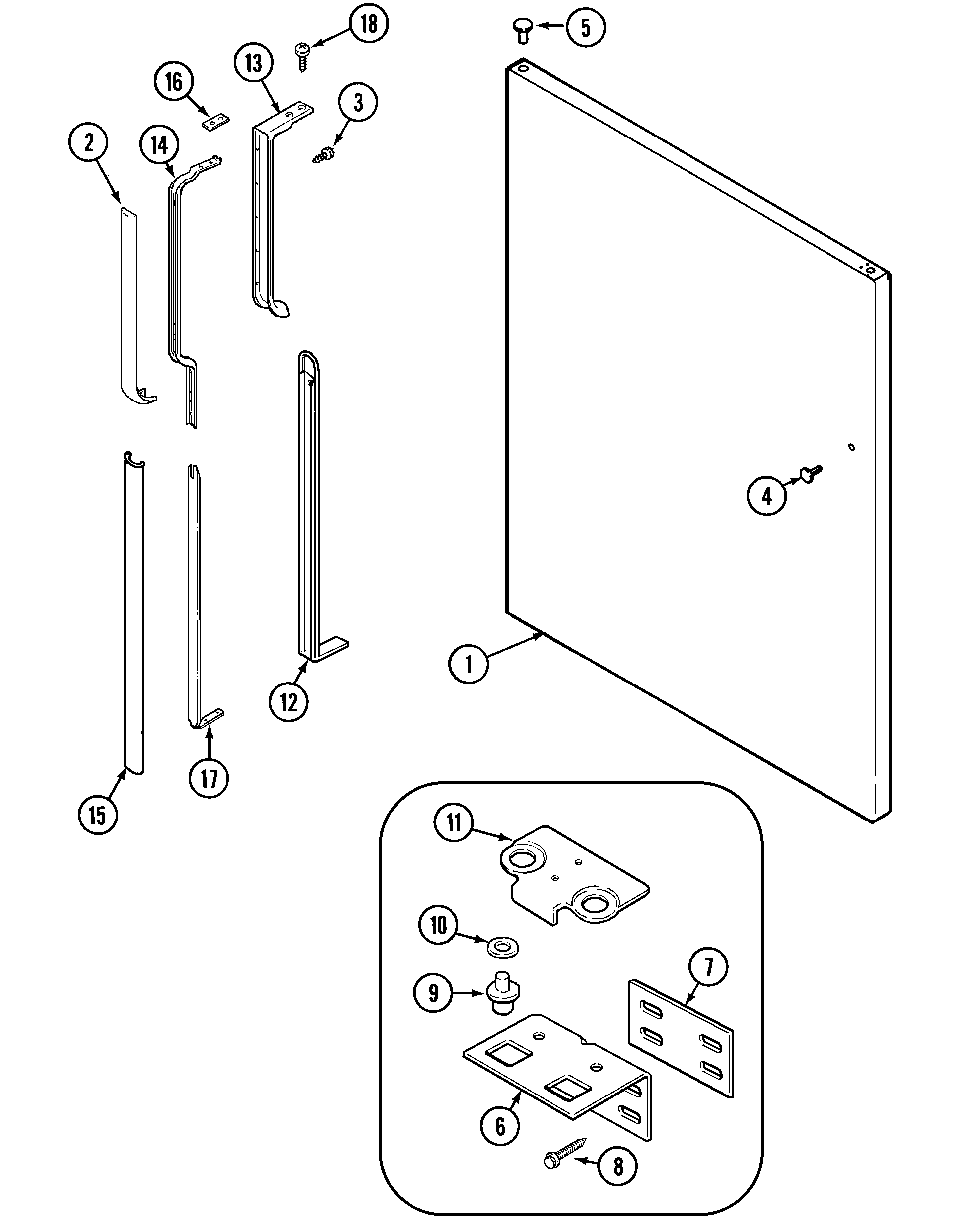

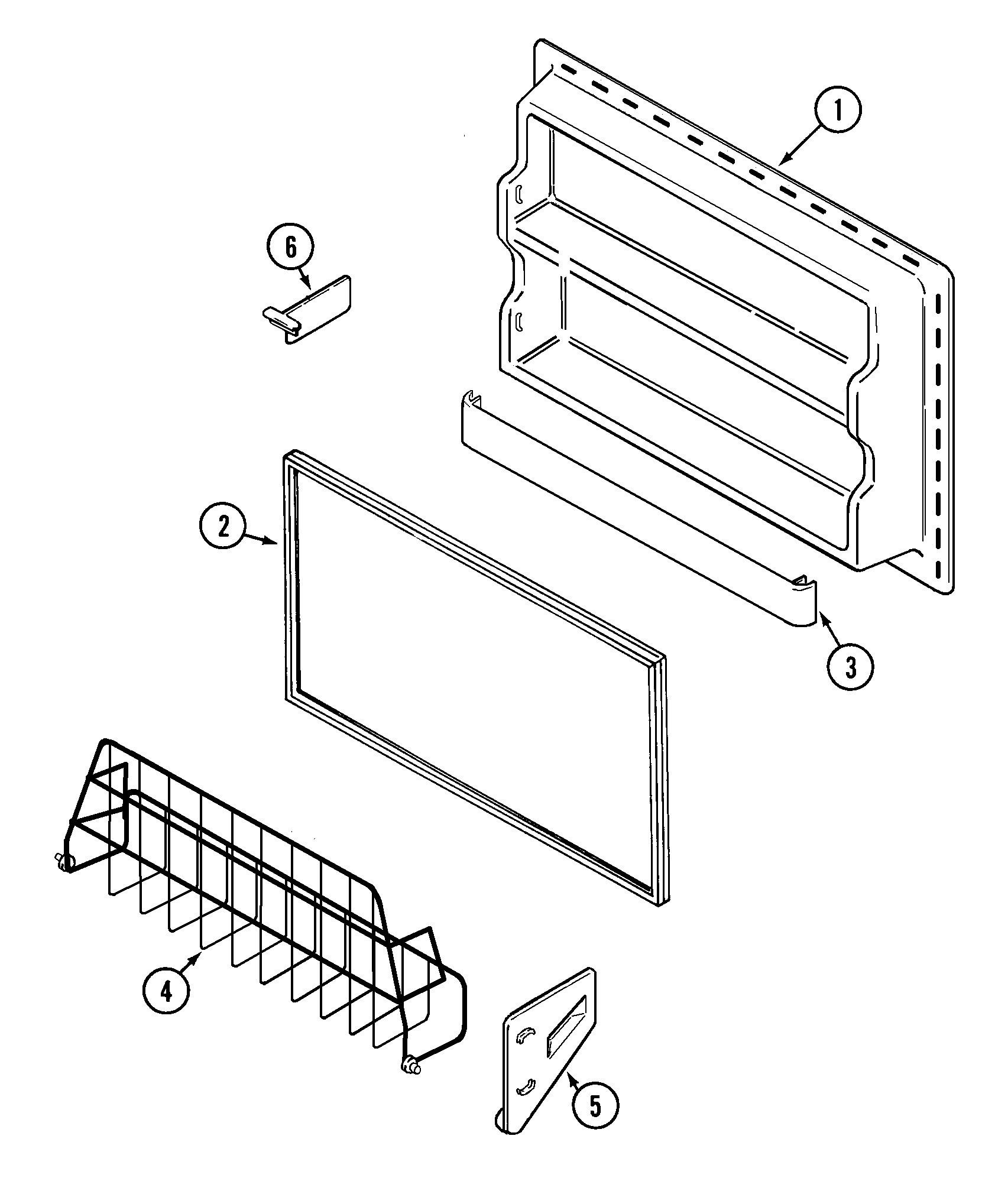

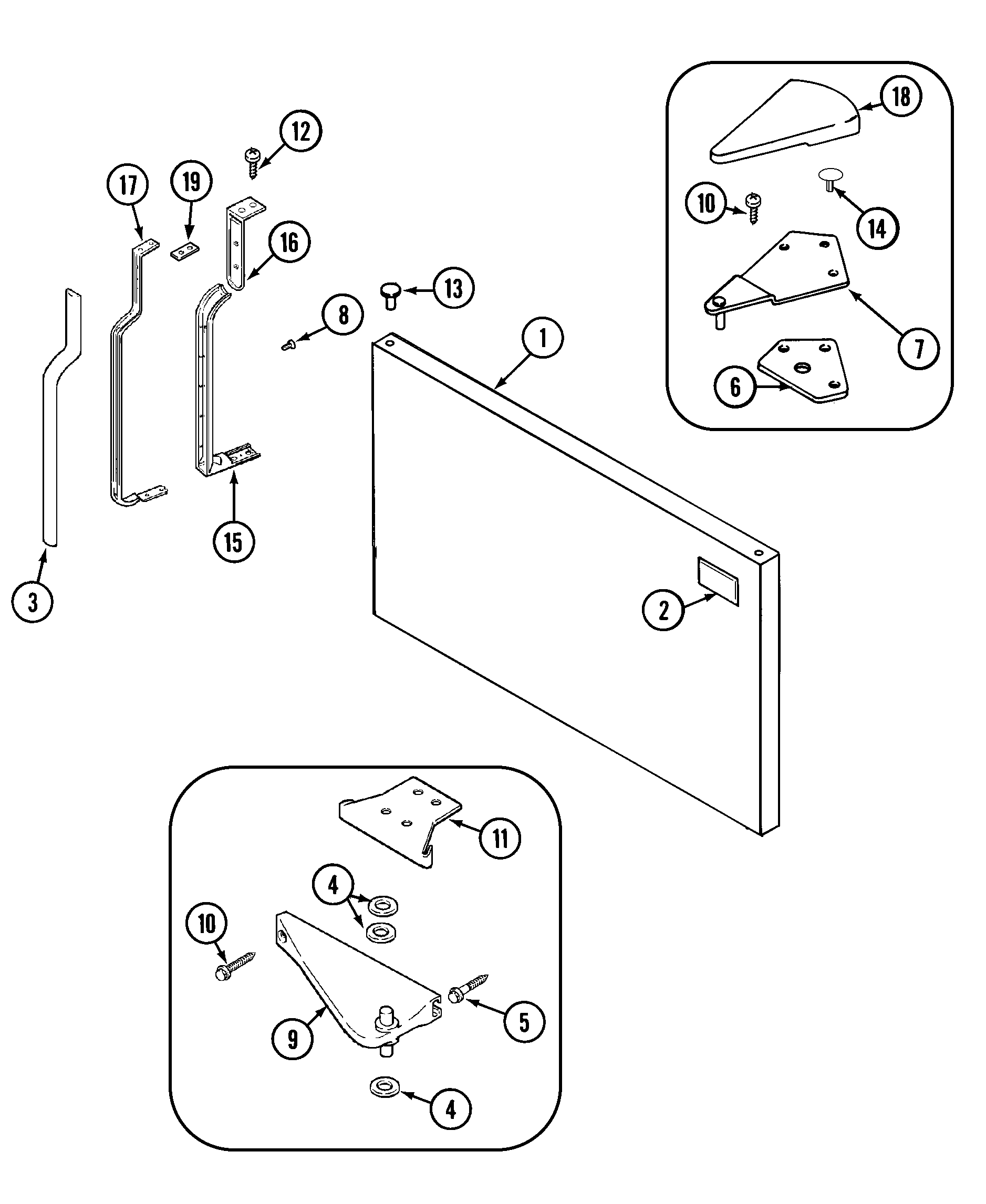

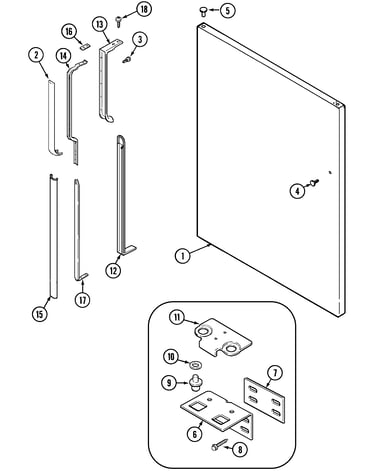

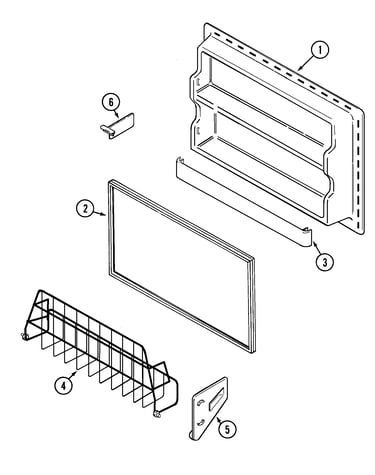

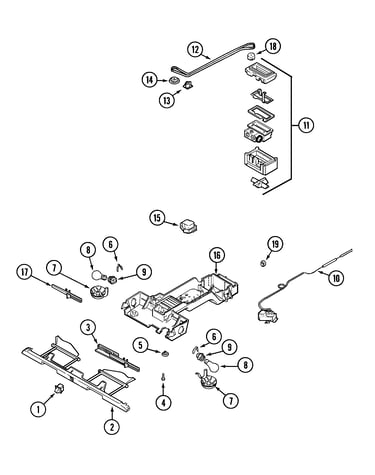

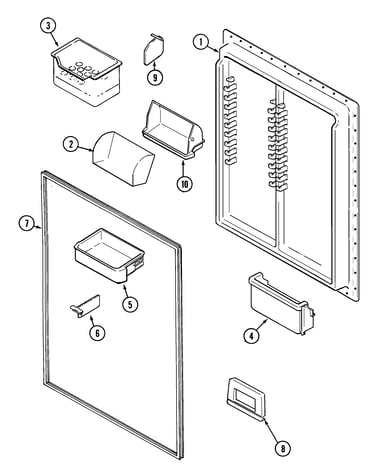

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 231 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

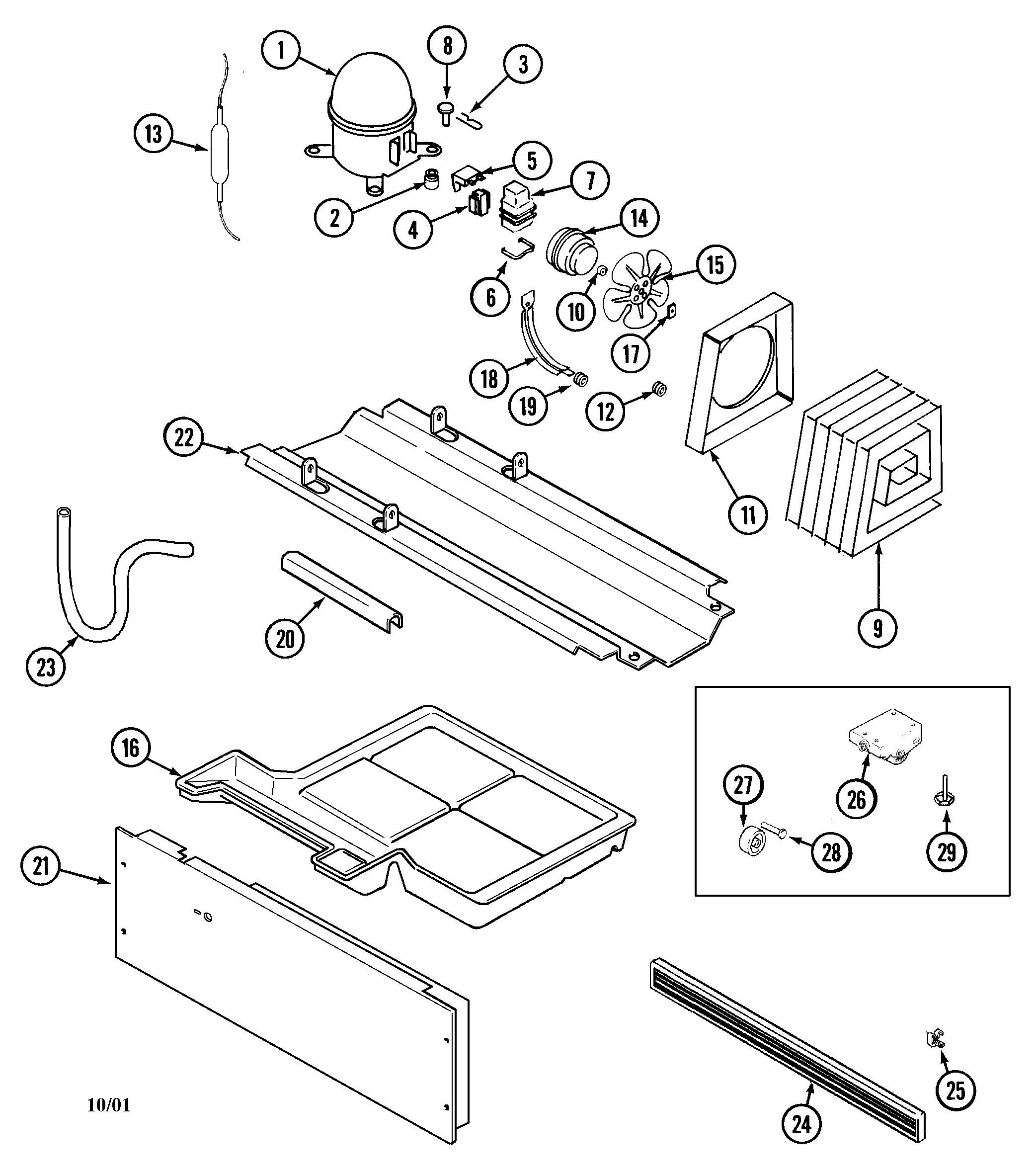

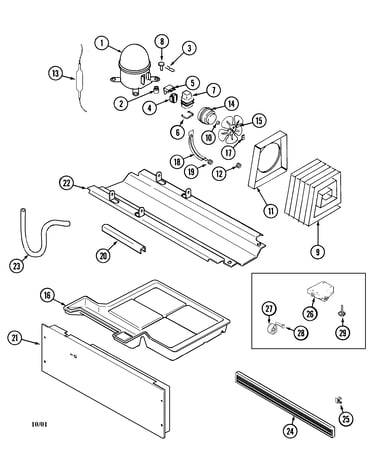

Compressor diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Mold And Heater 95098-1
#1

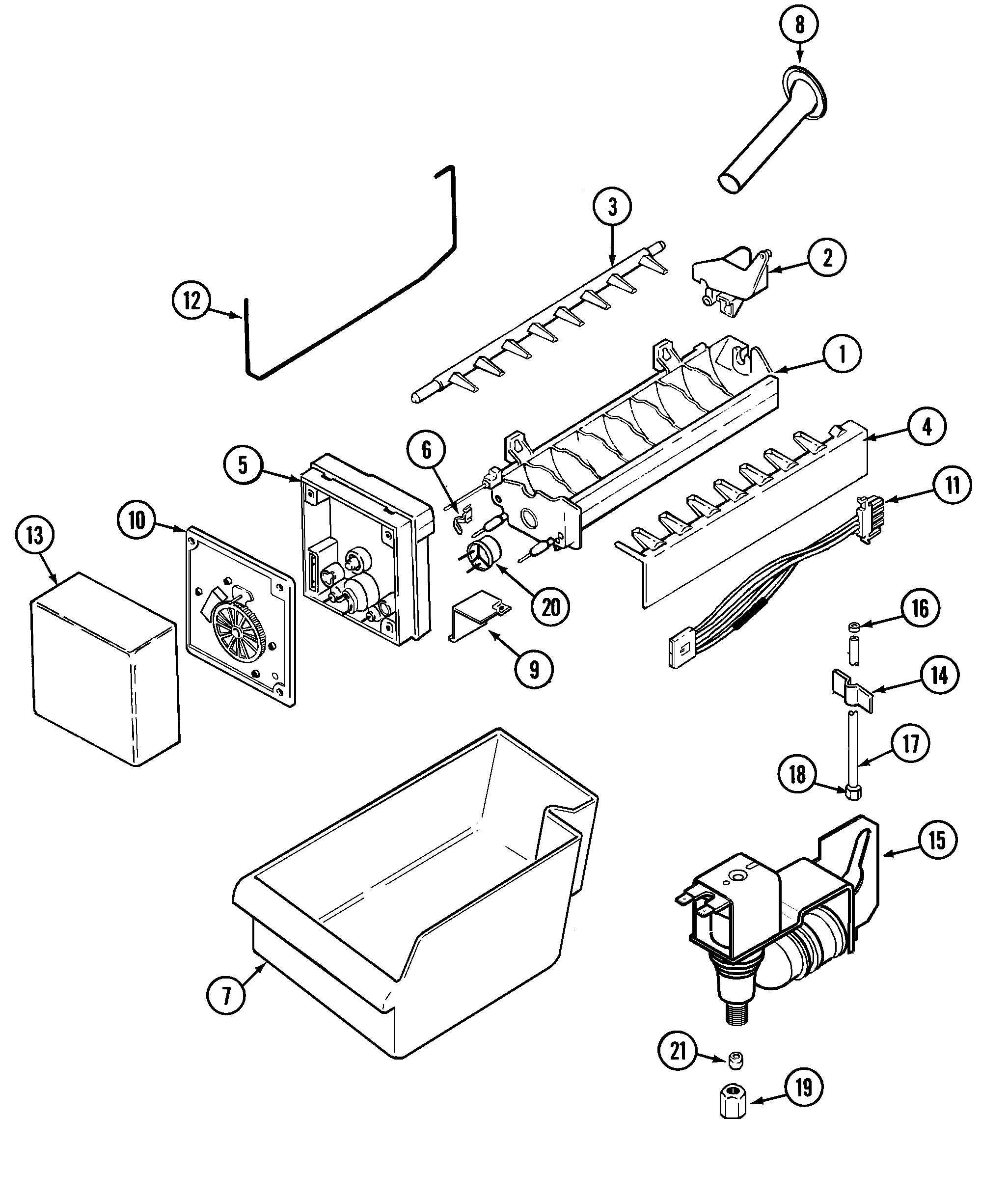

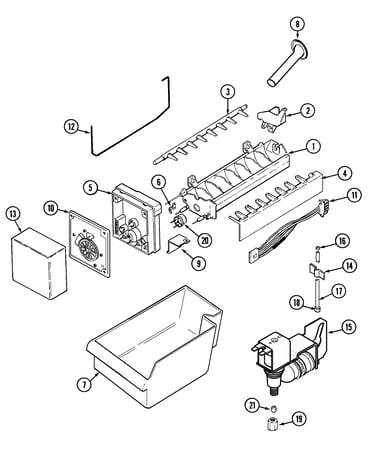

Optional ice maker kit-uki1000axx diagram

Refrigerator mold and heater

Part #95098-1

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 95098-1. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Ice Maker Module 95109-1
#10

Optional ice maker kit-uki1000axx diagram

Refrigerator ice maker module

Part #95109-1

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 95109-1. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Light Bulb 31956-1
#26

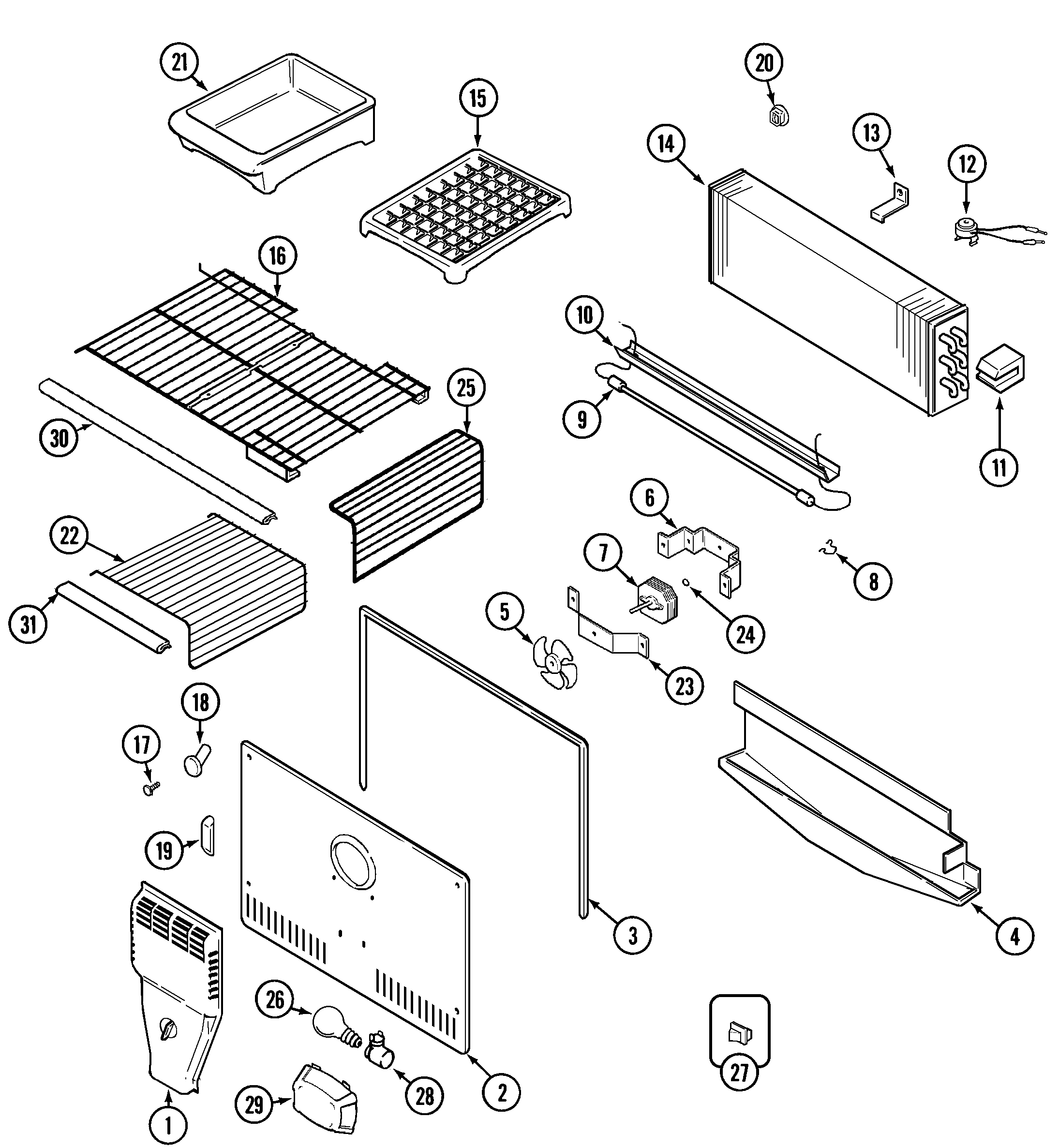

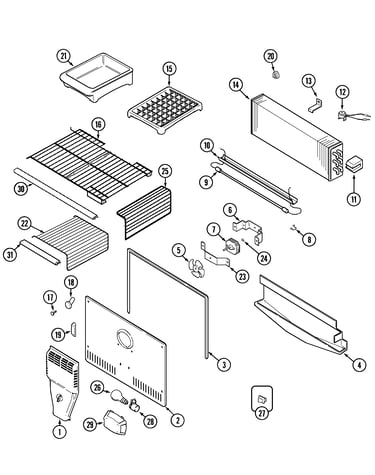

Freezer compartment diagram

Refrigerator light bulb

Part #31956-1

Replaced by #40A15

?
Manufacturer substitution
This part replaces 31956-1. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Light Switch 66987-1
Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Condenser Fan Motor 61001562
#14

Compressor diagram

Refrigerator condenser fan motor

Part #61001562

Replaced by #833697

?
Manufacturer substitution
This part replaces 61001562. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Screw 65275-49
#21A

Compressor diagram

Refrigerator screw

Part #65275-49

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 65275-49. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Thermostat 95092-1
#20

Optional ice maker kit-uki1000axx diagram

Refrigerator thermostat

Part #95092-1

Replaced by #WP627985

?
Manufacturer substitution
This part replaces 95092-1. Substitute parts can look different from the original.
BEST SELLER
$47.98 |
11% OFF Phone Price : $53.98
In Stock
Tubing Valve 67579-6
#17

Optional ice maker kit-uki1000axx diagram

Tubing valve

Part #67579-6

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces 67579-6. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Screw 400016-1
Screw

Part #400016-1

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400016-1. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
