LCD Television

Model # LC-70SQ17U Official Sharp led television

Here are the diagrams and repair parts for Official Sharp LC-70SQ17U led television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Cover GCOVAE557WJ3A
#7

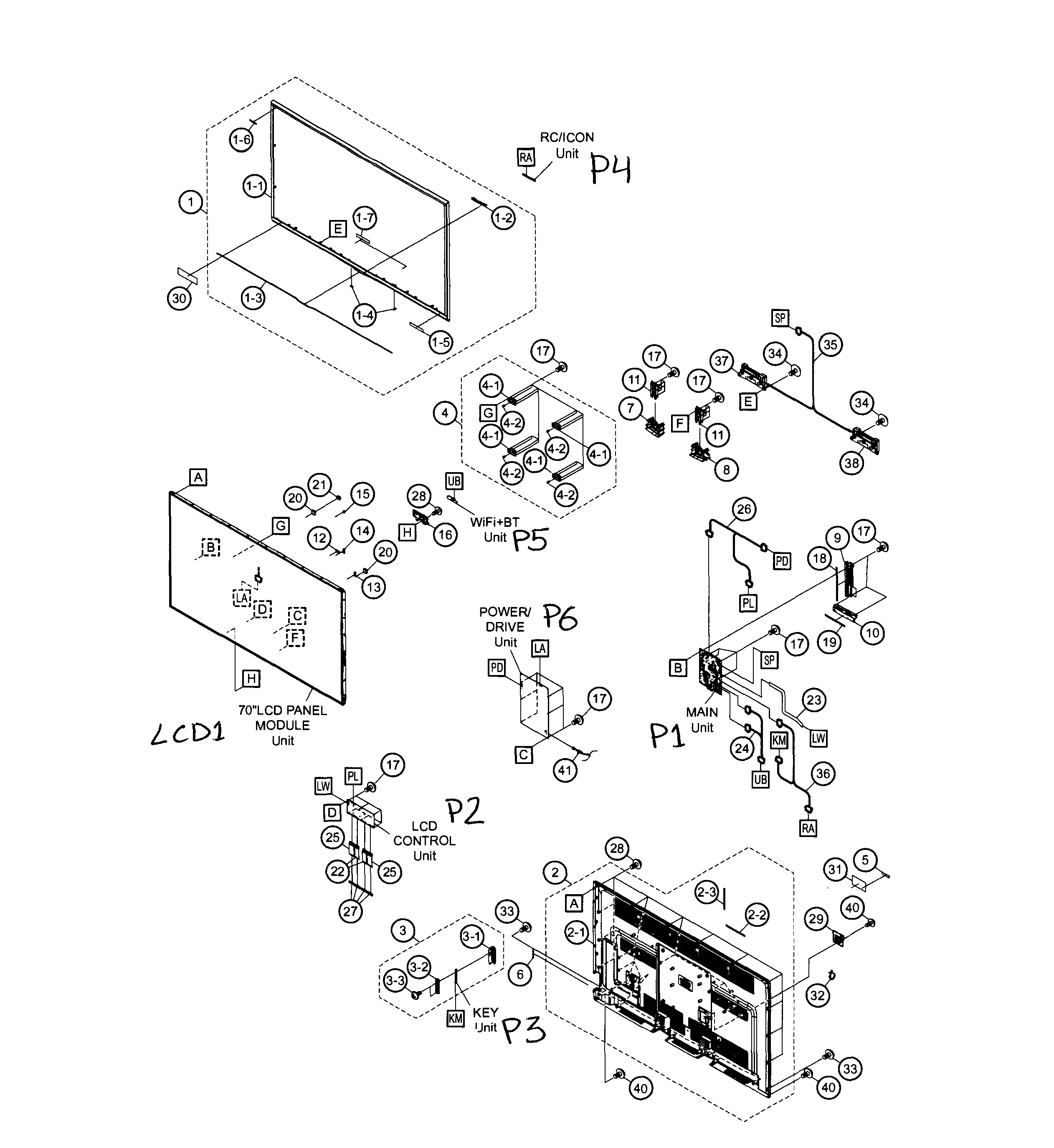

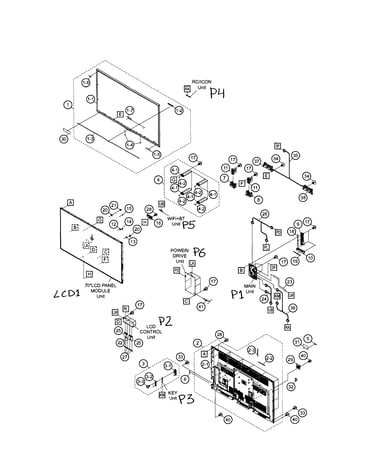

Cabinet parts diagram

Cover

Part #GCOVAE557WJ3A

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb DKEYMG382FM01
#P1

Cabinet parts diagram

Main pcb

Part #DKEYMG382FM01

The manufacturer no longer makes this part, and there's no substitute part

Guide Set- TINS-G058WJZZ
#NI

Cabinet parts diagram

Guide set-

Part #TINS-G058WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Cord 80pin QCNW-N675WJZZ
#25

Cabinet parts diagram

Cord 80pin

Part #QCNW-N675WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Vesa Angle CANGKD824WJ31
#4

Cabinet parts diagram

Vesa angle

Part #CANGKD824WJ31

The manufacturer no longer makes this part, and there's no substitute part

Key Pcb DUNTKF800FM53
#P3

Cabinet parts diagram

Key pcb

Part #DUNTKF800FM53

The manufacturer no longer makes this part, and there's no substitute part

Television Stand Bracket CANGKE160WJ01
#NI

Cabinet parts diagram

Television stand bracket

Part #CANGKE160WJ01

The manufacturer no longer makes this part, and there's no substitute part

Pcb Rc/ico DUNTKG369FM01
#P4

Cabinet parts diagram

Pcb rc/ico

Part #DUNTKG369FM01

The manufacturer no longer makes this part, and there's no substitute part

Television Lcd Control Board DUNTKG400FM02
#P2

Cabinet parts diagram

Television lcd control board

Part #DUNTKG400FM02

The manufacturer no longer makes this part, and there's no substitute part

Television Power Cord QACCDA084WJPZ
#41

Cabinet parts diagram

Television power cord

Part #QACCDA084WJPZ

The manufacturer no longer makes this part, and there's no substitute part
