Toshiba
DVD Player

Model # SD-2800 Official Toshiba dvd player

Here are the diagrams and repair parts for Official Toshiba SD-2800 dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

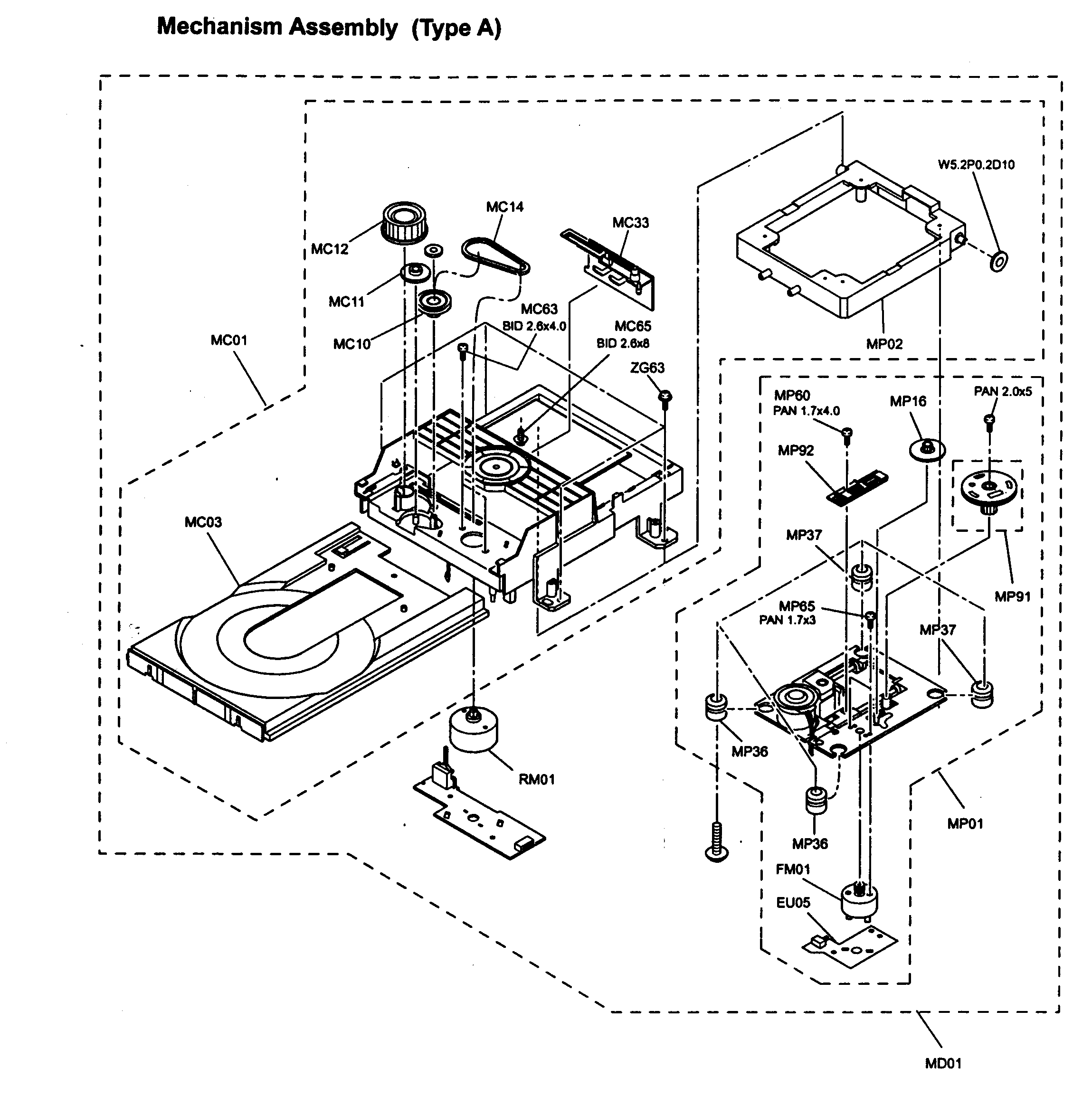

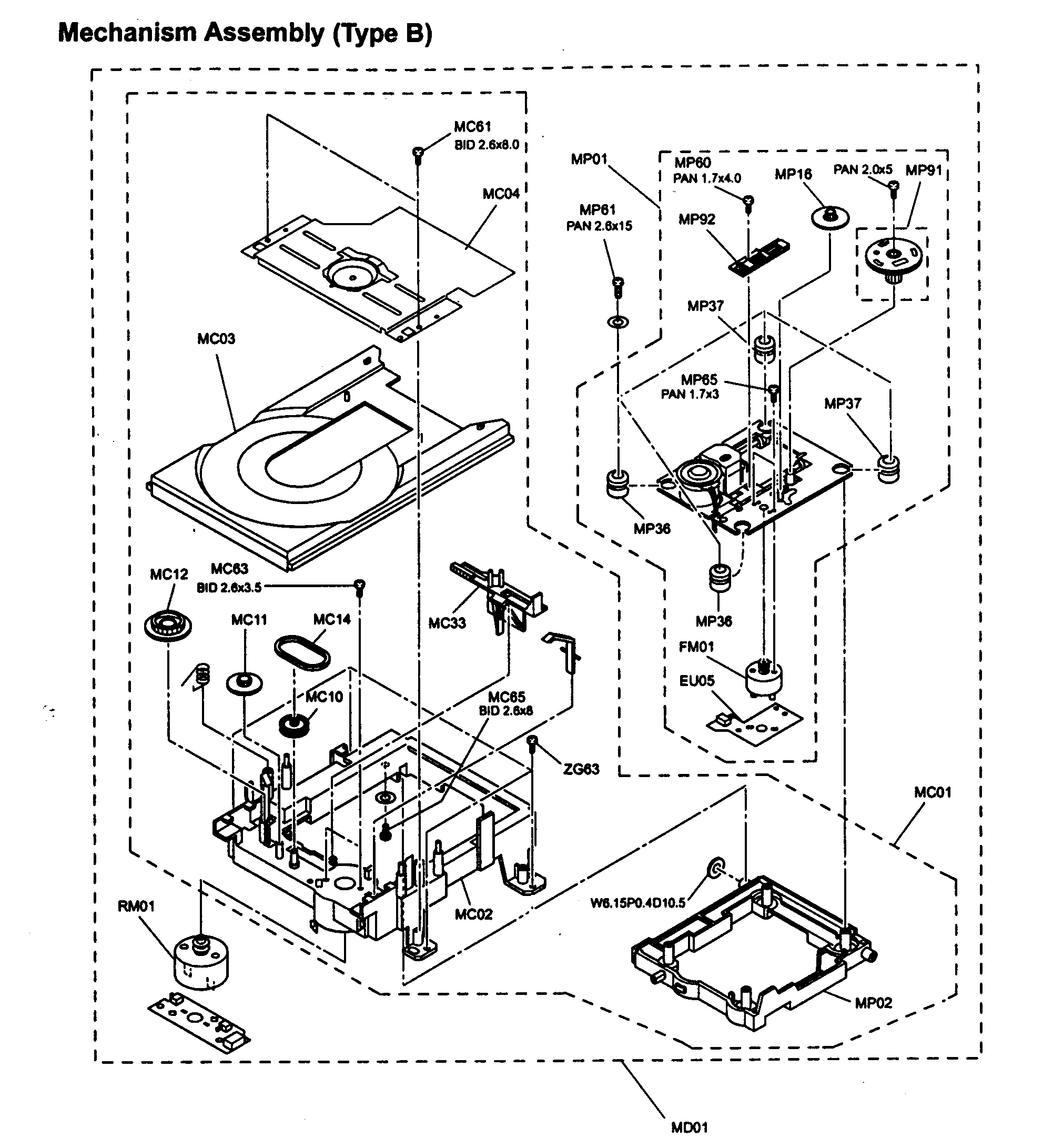

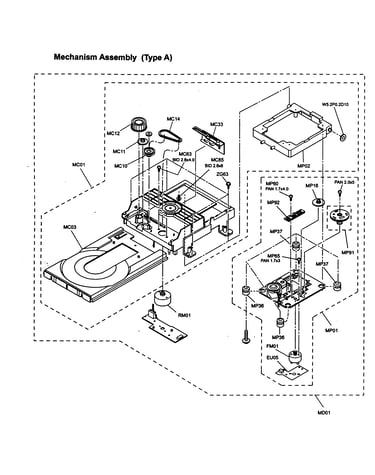

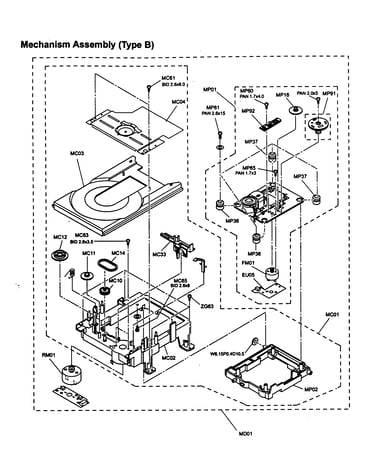

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Diode 79060022
#NI

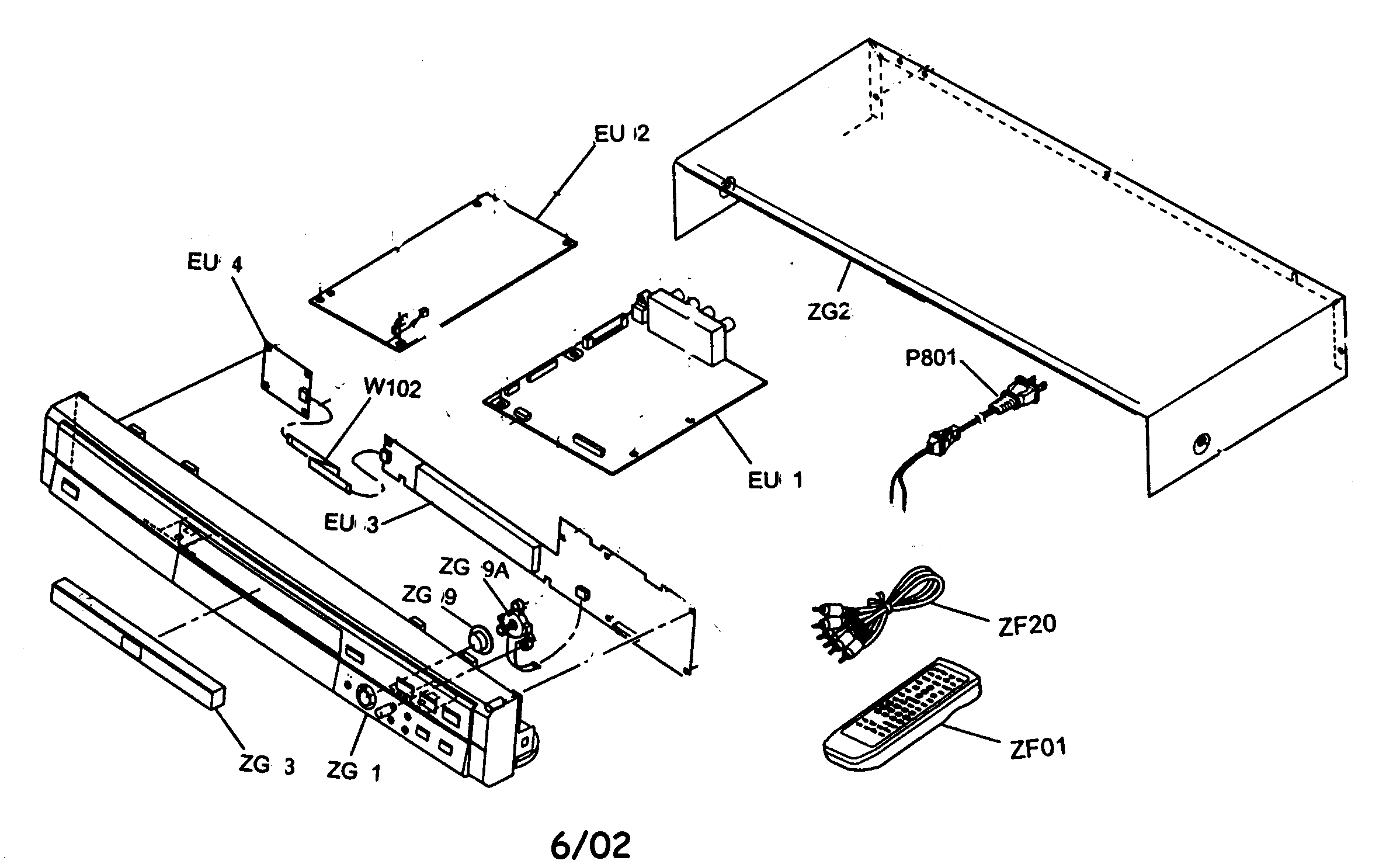

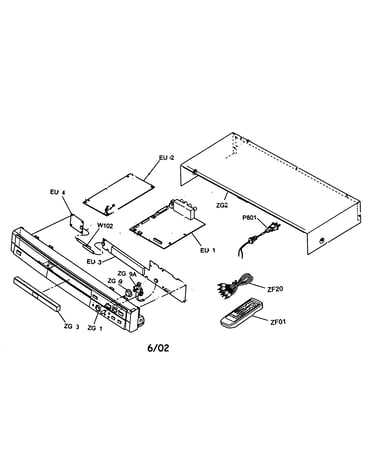

Cabinet parts diagram

Diode

Part #79060022

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Transistor 79050031
#NI

Cabinet parts diagram

Toshiba transistor

Part #79050031

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Tray Panel 79071236
#ZG3

Cabinet parts diagram

Toshiba tray panel

Part #79071236

The manufacturer no longer makes this part, and there's no substitute part

Remote 79078066
#ZF01

Cabinet parts diagram

Remote

Part #79078066

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Zener Diode 79060068
#NI

Cabinet parts diagram

Toshiba zener diode

Part #79060068

The manufacturer no longer makes this part, and there's no substitute part

Filter 79010025
#NI

Cabinet parts diagram

Filter

Part #79010025

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 79040327
#NI

Cabinet parts diagram

Integrated circuit

Part #79040327

The manufacturer no longer makes this part, and there's no substitute part

Zener Diode 79060034
#NI

Cabinet parts diagram

Zener diode

Part #79060034

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Front Pcb 79081107
#EU3

Cabinet parts diagram

Toshiba front pcb

Part #79081107

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Power Pcb 79081108
#EU4

Cabinet parts diagram

Toshiba power pcb

Part #79081108

The manufacturer no longer makes this part, and there's no substitute part
