Kenmore
Bottom-Mount Refrigerator

Model # 79578274900 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79578274900 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

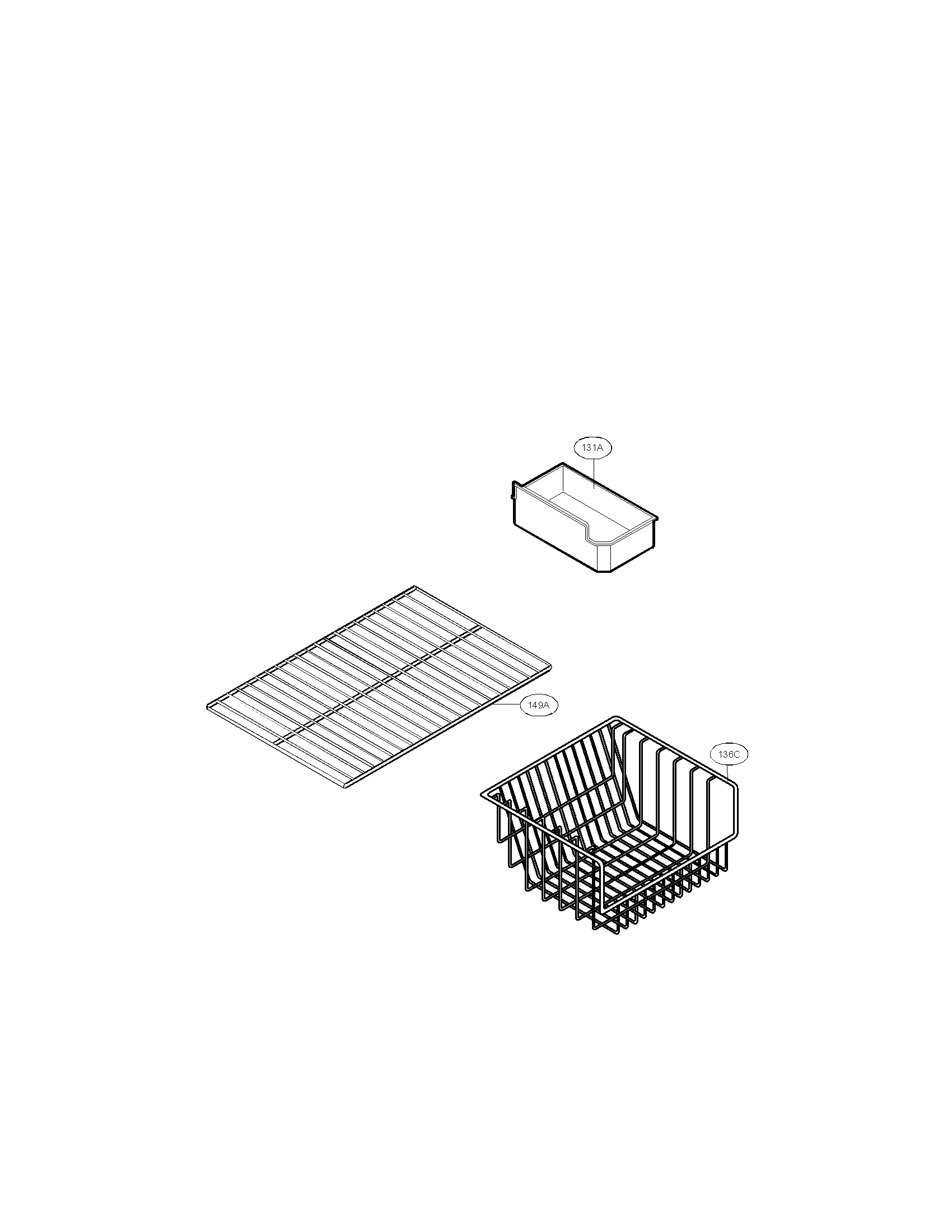

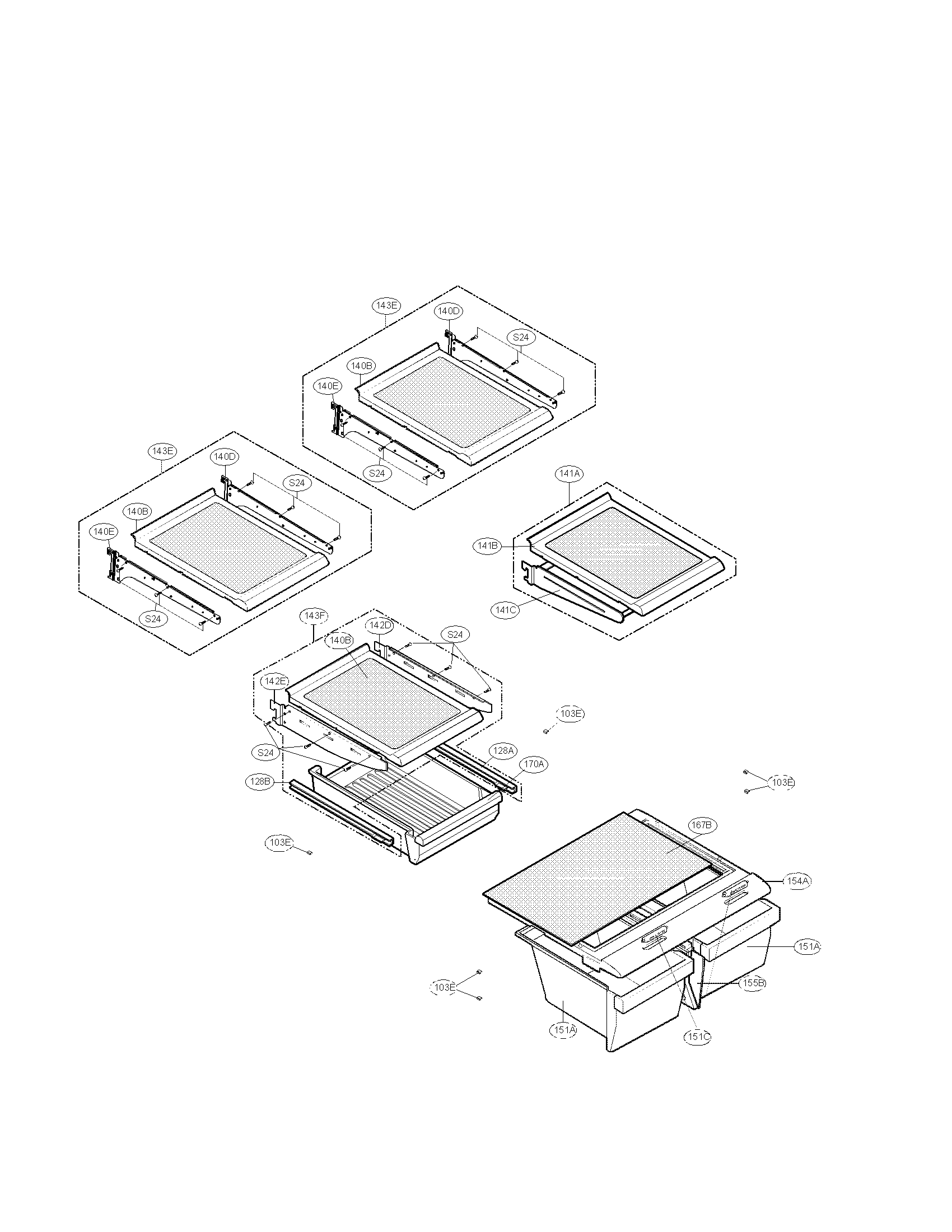

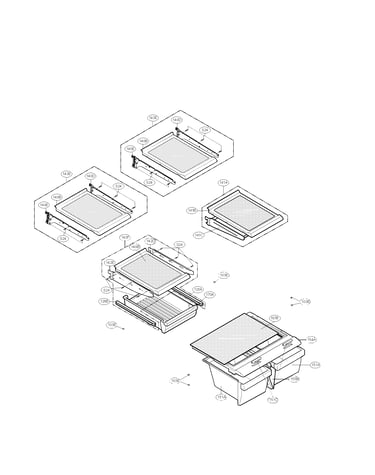

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Refrigerator Filter Dryer 5851JA2007E
#317A

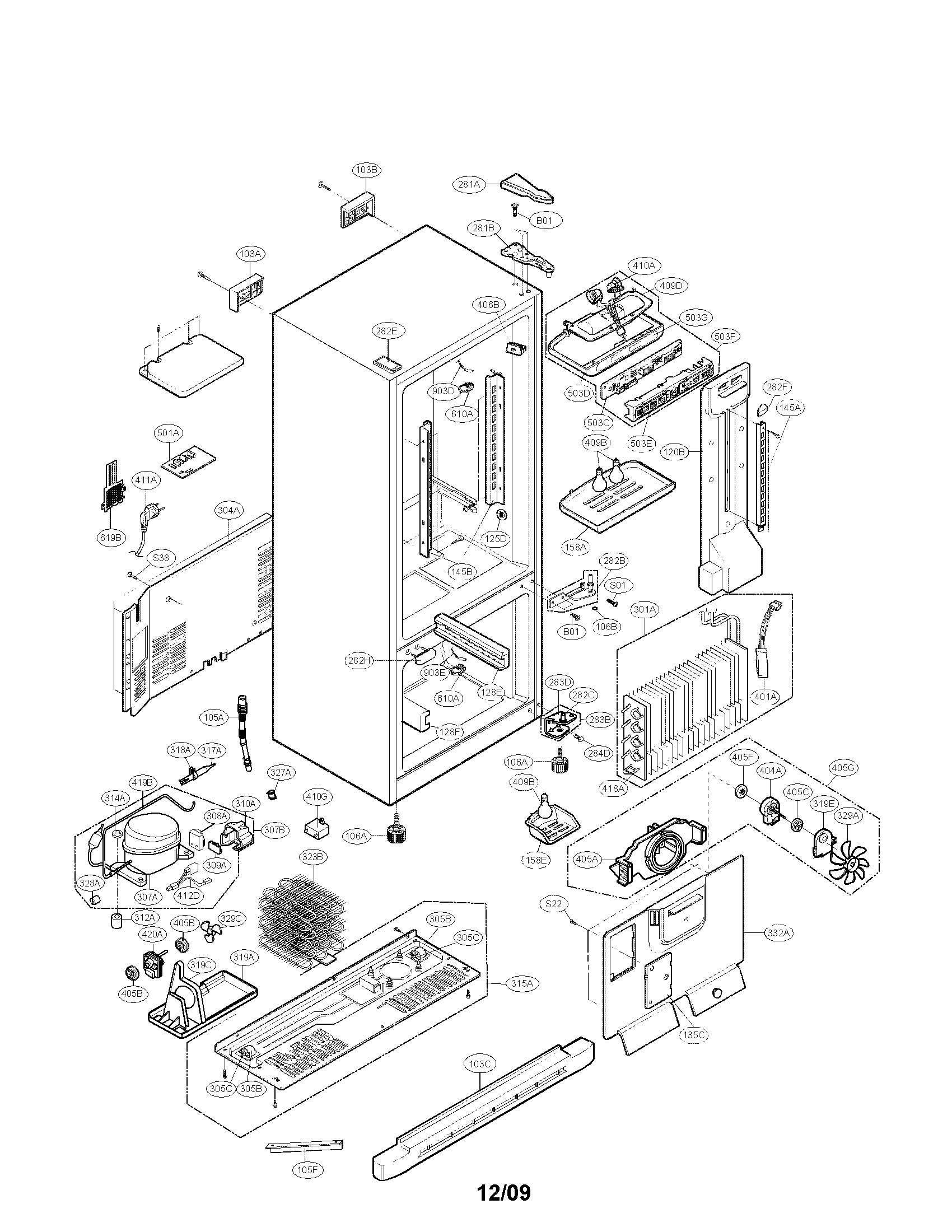

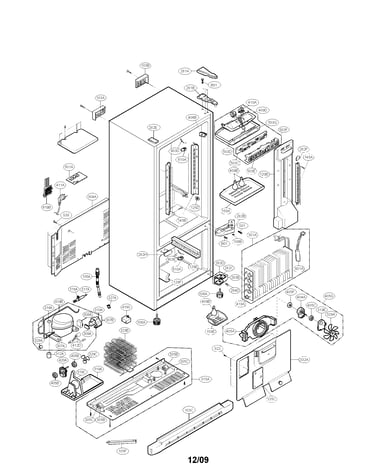

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007E

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007E. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Ice Maker Kit AEQ72909601
#600A

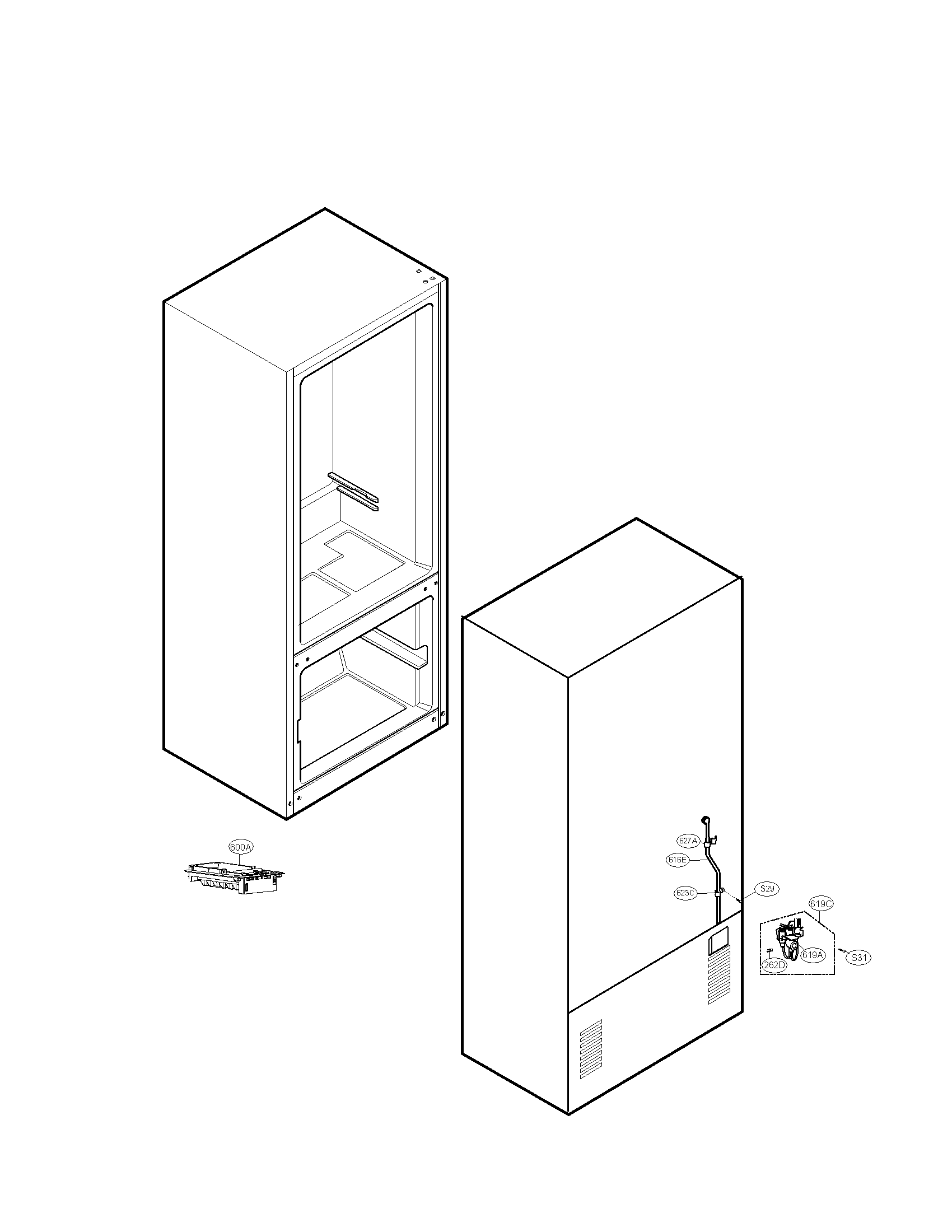

Water and ice maker parts diagram

Ice maker kit

Part #AEQ72909601

Replaced by #AEQ72909602

?
Manufacturer substitution
This part replaces AEQ72909601. Substitute parts can look different from the original.
BEST SELLER
$91.54 |
6% OFF Phone Price : $97.54
In Stock
Refrigerator Door Switch (replaces 6600jb1004a) 6600JB1010A
#406B

Case parts diagram

Refrigerator door switch (replaces 6600jb1004a)

Part #6600JB1010A

BEST SELLER
$21.71 |
22% OFF Phone Price : $27.71
In Stock
Refrigerator Door Hinge Bushing 4984JJ3003A
#286A

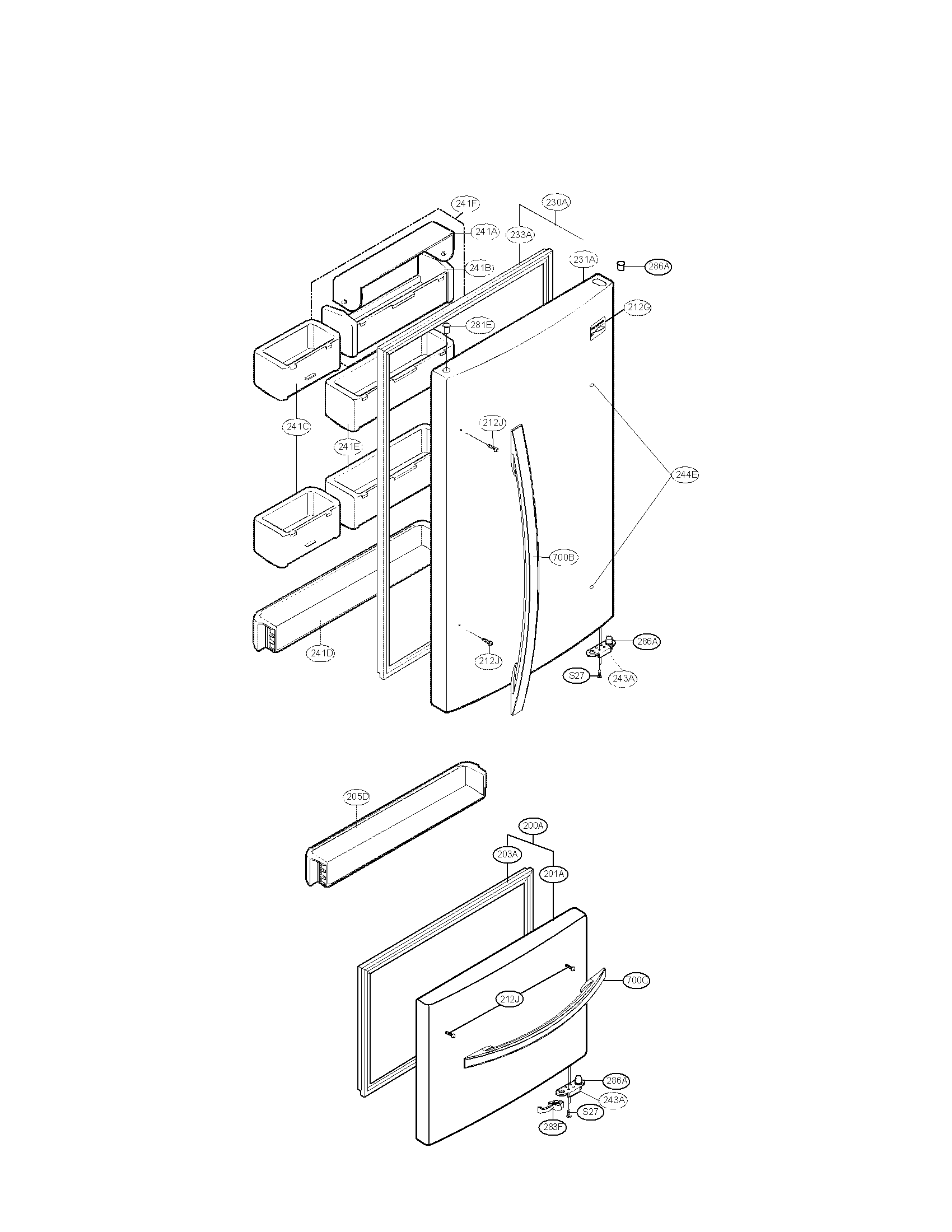

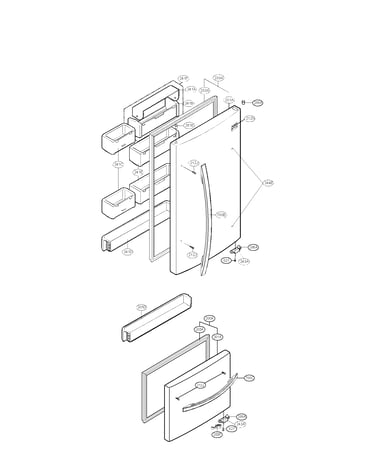

Door parts diagram

Refrigerator door hinge bushing

Part #4984JJ3003A

BEST SELLER
$11.62 |
15% OFF Phone Price : $13.62
In Stock
Refrigerator Water Valve AJU55759301
#619C

Water and ice maker parts diagram

Refrigerator water valve

Part #AJU55759301

Replaced by #AJU55759303

?
Manufacturer substitution
This part replaces AJU55759301. Substitute parts can look different from the original.
BEST SELLER
$62.67 |
9% OFF Phone Price : $68.67
In Stock
Refrigerator Compressor Start Relay EBG32606502
#308A

Case parts diagram

Refrigerator compressor start relay

Part #EBG32606502

Replaced by #6749C-0014E

?
Manufacturer substitution
This part replaces EBG32606502. Substitute parts can look different from the original.
BEST SELLER
$28.23 |
18% OFF Phone Price : $34.23
In Stock
Refrigerator Compressor Mount Retainer Clip (replaces 4620ja3015e, Mjb61877901) 4620JA3015A
#314A

Case parts diagram

Refrigerator compressor mount retainer clip (replaces 4620ja3015e, mjb61877901)

Part #4620JA3015A

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Defrost Sensor Assembly 6615JB2005C
#401A

Case parts diagram

Refrigerator defrost sensor assembly

Part #6615JB2005C

BEST SELLER
$32.15 |
16% OFF Phone Price : $38.15
In Stock
Refrigerator Motor Support Damper 5040JA2009B
#405C

Case parts diagram

Refrigerator motor support damper

Part #5040JA2009B

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Light Socket (replaces 6620jk2001b, 6621jk2001b, 6621jk2002d) 6621JK2003B
#410A

Case parts diagram

Refrigerator light socket (replaces 6620jk2001b, 6621jk2001b, 6621jk2002d)

Part #6621JK2003B

Replaced by #EAG62831801

?
Manufacturer substitution
This part replaces 6621JK2003B. Substitute parts can look different from the original.
BEST SELLER
$101.04
In Stock
