LG
Room Air Conditioner

Model # WG2400R Official LG room air conditioner

Here are the diagrams and repair parts for Official LG WG2400R room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

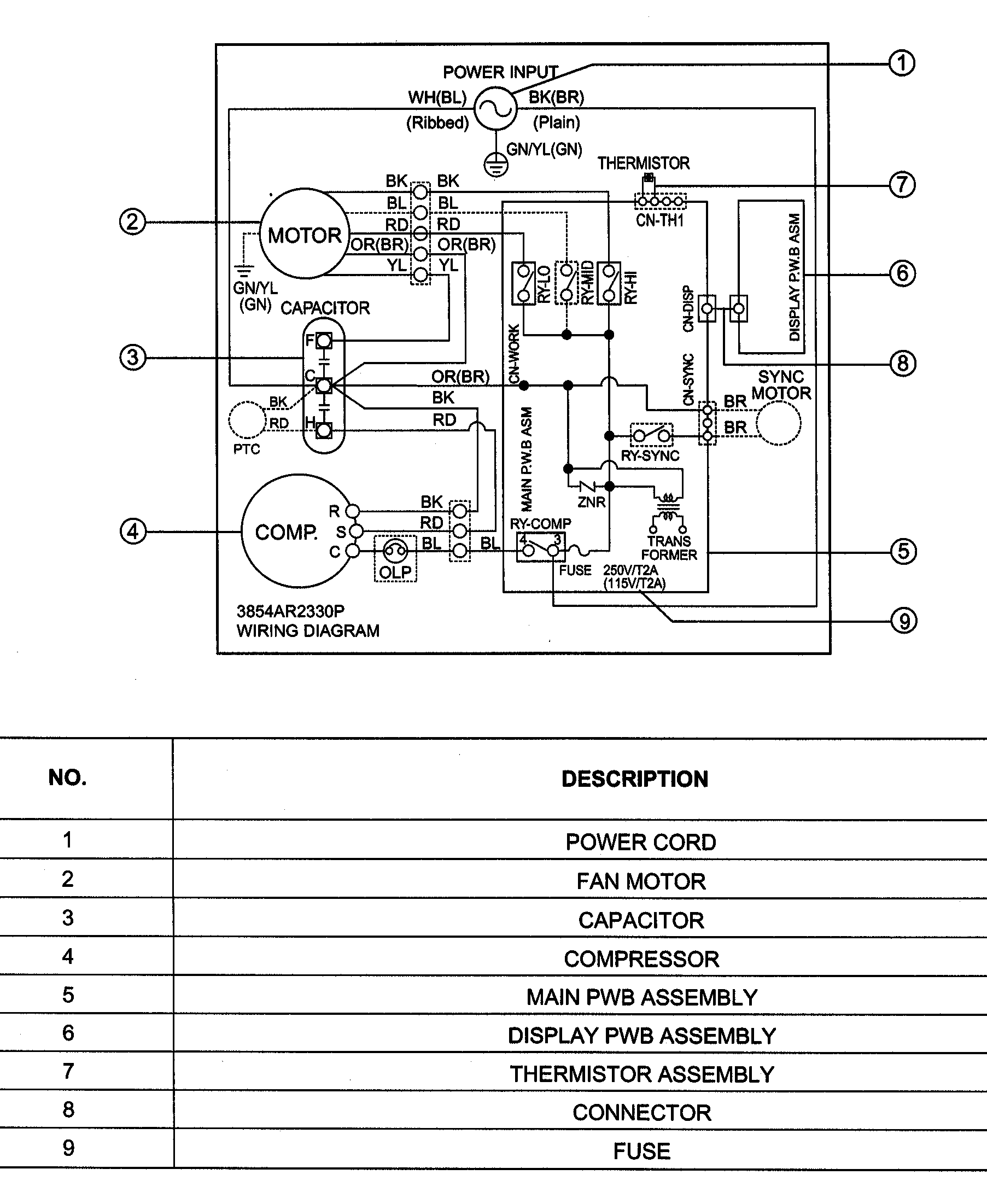

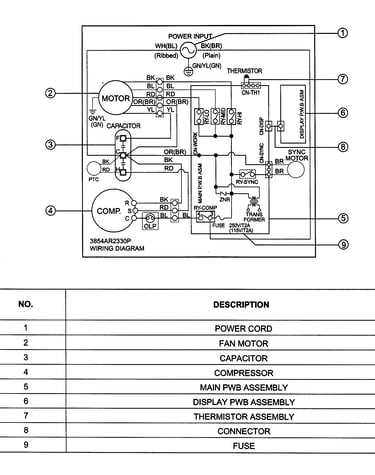

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Thermistor 6323A20003D
#3230

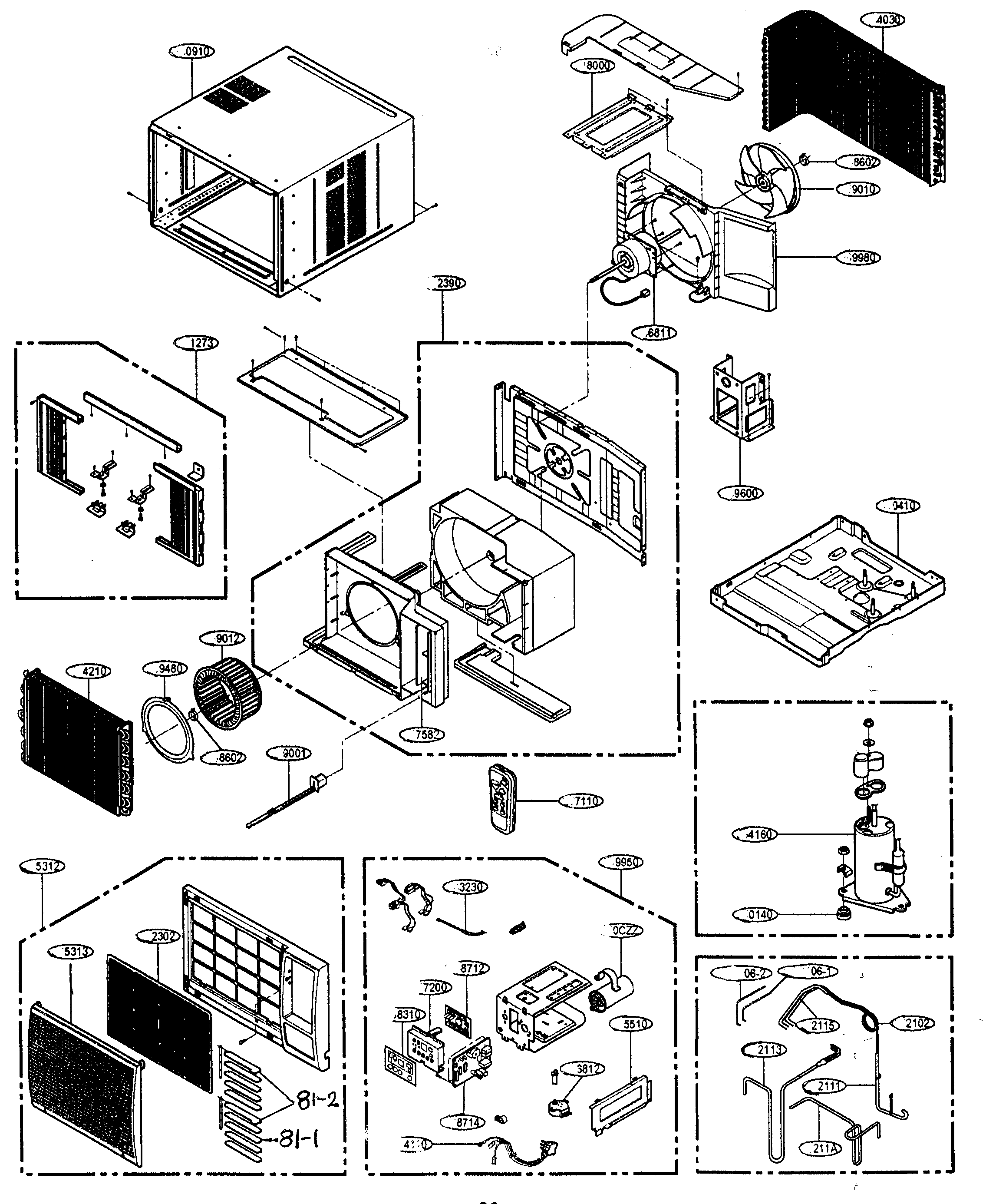

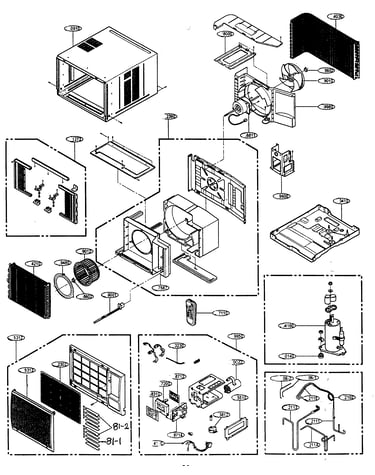

Cabinet parts diagram

Thermistor

Part #6323A20003D

Replaced by #6323A20003S

?
Manufacturer substitution
This part replaces 6323A20003D. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Room Air Conditioner Remote Control 6711A20034S
#7110

Cabinet parts diagram

Room air conditioner remote control

Part #6711A20034S

Replaced by #AKB73795706

?
Manufacturer substitution
This part replaces 6711A20034S. Substitute parts can look different from the original.
$31.05 |
16% OFF Phone Price : $37.05
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932C
#8602

Cabinet parts diagram

Room air conditioner fan blade clamp

Part #3H02932C

Replaced by #MBU64446302

?
Manufacturer substitution
This part replaces 3H02932C. Substitute parts can look different from the original.
This item is not returnable
$4.51
In Stock
Room Air Conditioner Air Filter 5231AR6159A
#2302

Cabinet parts diagram

Room air conditioner air filter

Part #5231AR6159A

Replaced by #5231AR6159T

?
Manufacturer substitution
This part replaces 5231AR6159A. Substitute parts can look different from the original.
This item is not returnable
$11.71 |
15% OFF Phone Price : $13.71
In Stock
Fan 5900AR1330A
#9010

Cabinet parts diagram

Fan

Part #5900AR1330A

Replaced by #5900AR1508G

?
Manufacturer substitution
This part replaces 5900AR1330A. Substitute parts can look different from the original.
$71.96
In Stock
Control Board 6871A20195A
#8712

Cabinet parts diagram

Control board

Part #6871A20195A

$29.98
In Stock
Louver 4758AR7264A
#81-1

Cabinet parts diagram

Louver

Part #4758AR7264A

This item is not returnable
$4.51
In Stock
Comfort-aire Inlet Grille 3530AR1604A
#5303

Cabinet parts diagram

Comfort-aire inlet grille

Part #3530AR1604A

$58.47
In Stock
Cover 3551A30015A
#5510

Cabinet parts diagram

Cover

Part #3551A30015A

This item is not returnable
$7.00
In Stock
Damper 4900AR7265A
#9001

Cabinet parts diagram

Damper

Part #4900AR7265A

$71.93
In Stock
