Model # 4KFC3100BU2 Official KitchenAid food processor

Here are the diagrams and repair parts for Official KitchenAid 4KFC3100BU2 food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Overlay 8211794
#3C

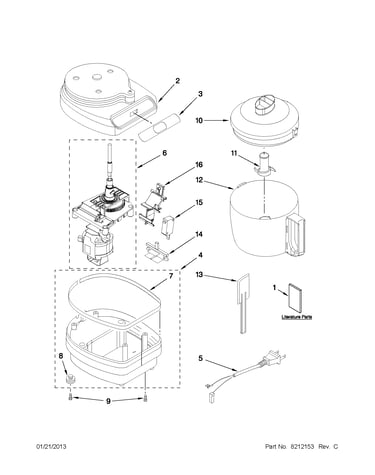

Motor and housing unit diagram

Overlay

Part #8211794

The manufacturer no longer makes this part, and there's no substitute part

Base 8211790
#4A

Motor and housing unit diagram

Base

Part #8211790

The manufacturer no longer makes this part, and there's no substitute part

Overlay 8211768
#3

Motor and housing unit diagram

Overlay

Part #8211768

The manufacturer no longer makes this part, and there's no substitute part

Trim Band 8211785
#7

Motor and housing unit diagram

Trim band

Part #8211785

The manufacturer no longer makes this part, and there's no substitute part

Foot 8211772
#8

Motor and housing unit diagram

Foot

Part #8211772

The manufacturer no longer makes this part, and there's no substitute part

Spatula 8211787
#13

Motor and housing unit diagram

Spatula

Part #8211787

The manufacturer no longer makes this part, and there's no substitute part

Base 8211793
#4B

Motor and housing unit diagram

Base

Part #8211793

The manufacturer no longer makes this part, and there's no substitute part

Base 8211796
#4C

Motor and housing unit diagram

Base

Part #8211796

The manufacturer no longer makes this part, and there's no substitute part

Housing W10158527
#2F

Motor and housing unit diagram

Housing

Part #W10158527

The manufacturer no longer makes this part, and there's no substitute part

Housing 8211797
#2D

Motor and housing unit diagram

Housing

Part #8211797

The manufacturer no longer makes this part, and there's no substitute part
