Model # 10671810 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 10671810 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Cement 797403

#NI

All parts diagram

Cement

Part #797403

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 797403. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Screw, 8 X 1 488480
Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 487294
#50

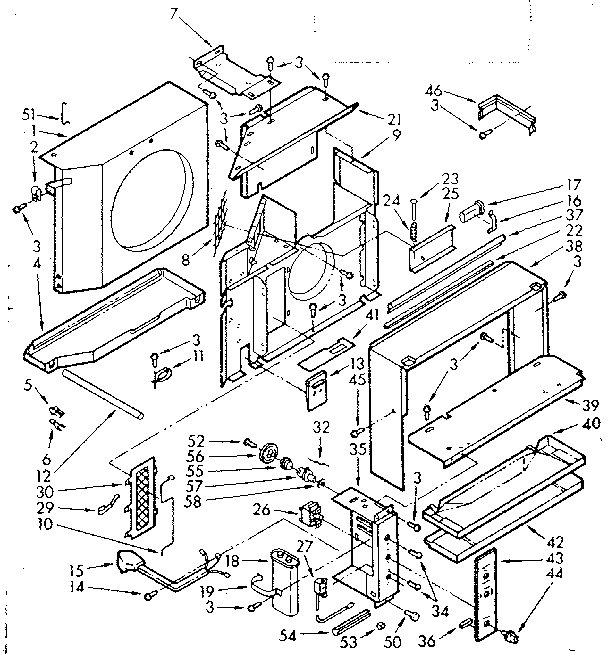

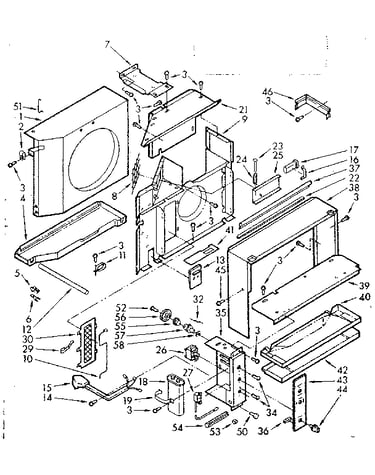

Air flow parts diagram

Screw

Part #487294

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 487294. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Capacitor 470168

#NI

All parts diagram

Capacitor

Part #470168

Replaced by #212643

?
Manufacturer substitution
This part replaces 470168. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Screw 487461
#11

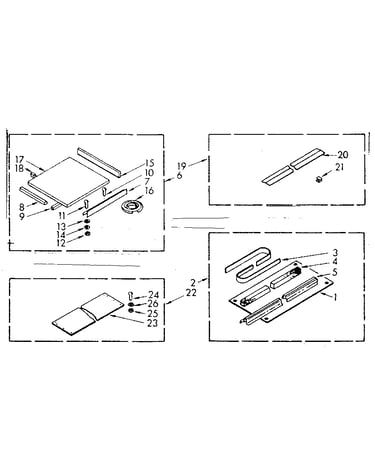

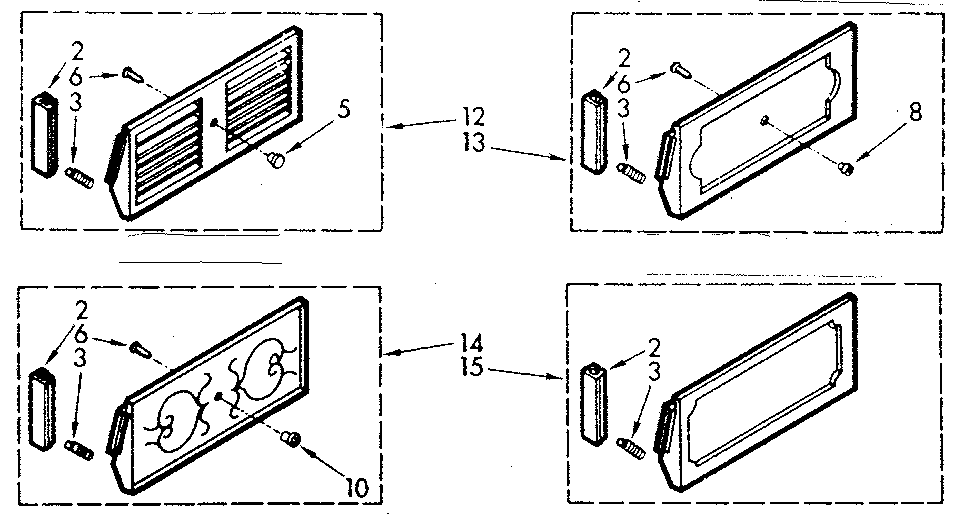

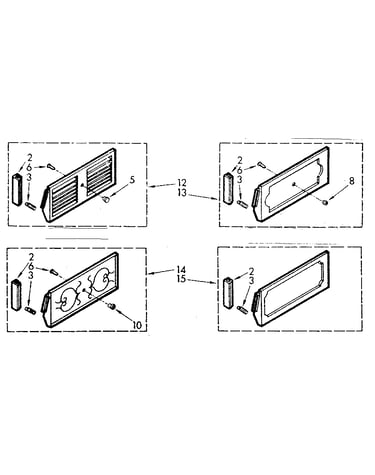

Accessory kit parts diagram

Screw

Part #487461

Replaced by #WP999367

?
Manufacturer substitution
This part replaces 487461. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 488017
#25

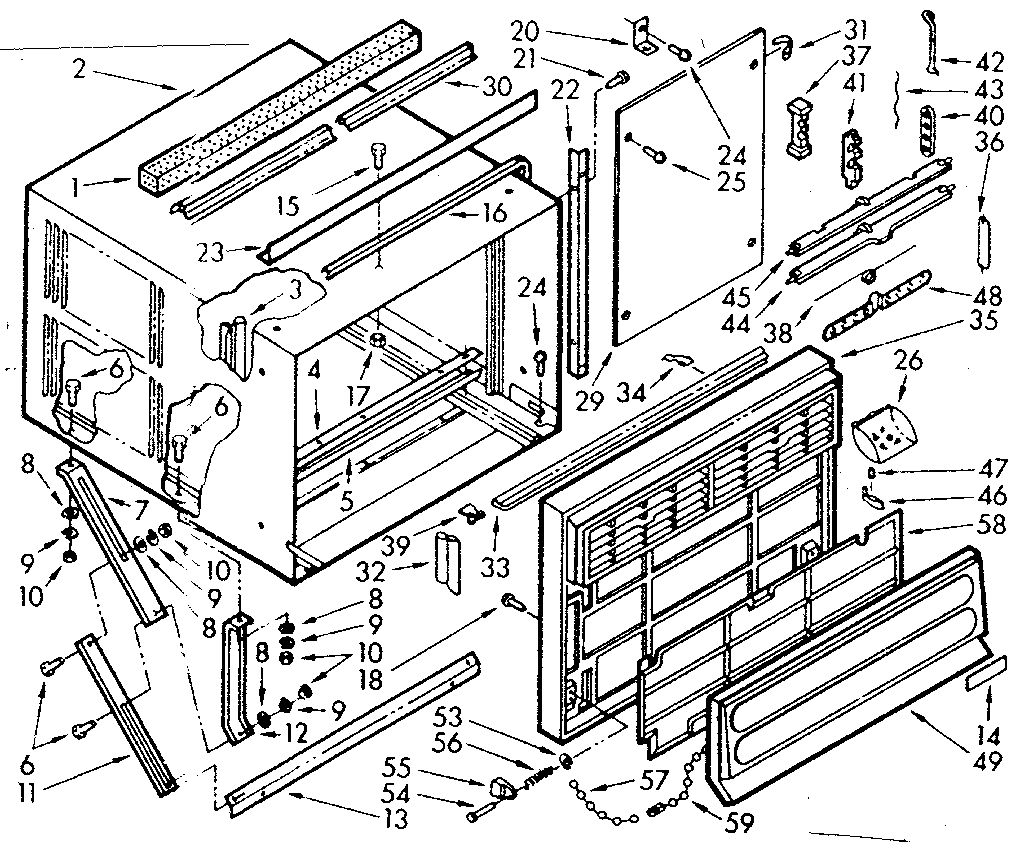

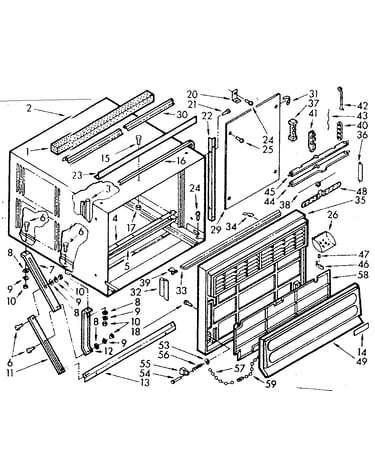

Cabinet parts diagram

Screw

Part #488017

Replaced by #WP965173

?
Manufacturer substitution
This part replaces 488017. Substitute parts can look different from the original.
This item is not returnable
$5.85
In Stock
Bracket Support 644281
#13

Cabinet parts diagram

Bracket support

Part #644281

$35.98
In Stock
Capacitor 473074
#17

Air flow parts diagram

Capacitor

Part #473074

Replaced by #12005

?
Manufacturer substitution
This part replaces 473074. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Bend 471570
#30

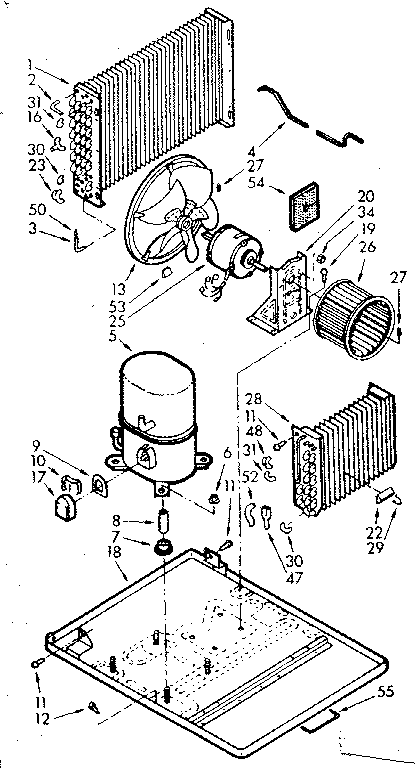

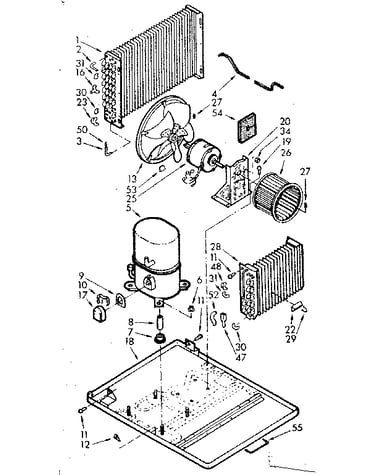

Unit parts diagram

Bend

Part #471570

Replaced by #WP855199

?
Manufacturer substitution
This part replaces 471570. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Washer 487405
#26

Accessory kit parts diagram

Washer

Part #487405

Replaced by #90315

?
Manufacturer substitution
This part replaces 487405. Substitute parts can look different from the original.
This item is not returnable
$3.40
