Model # 10082696 Official Kenmore coffee maker

Here are the diagrams and repair parts for Official Kenmore 10082696 coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 9 of 9 parts |

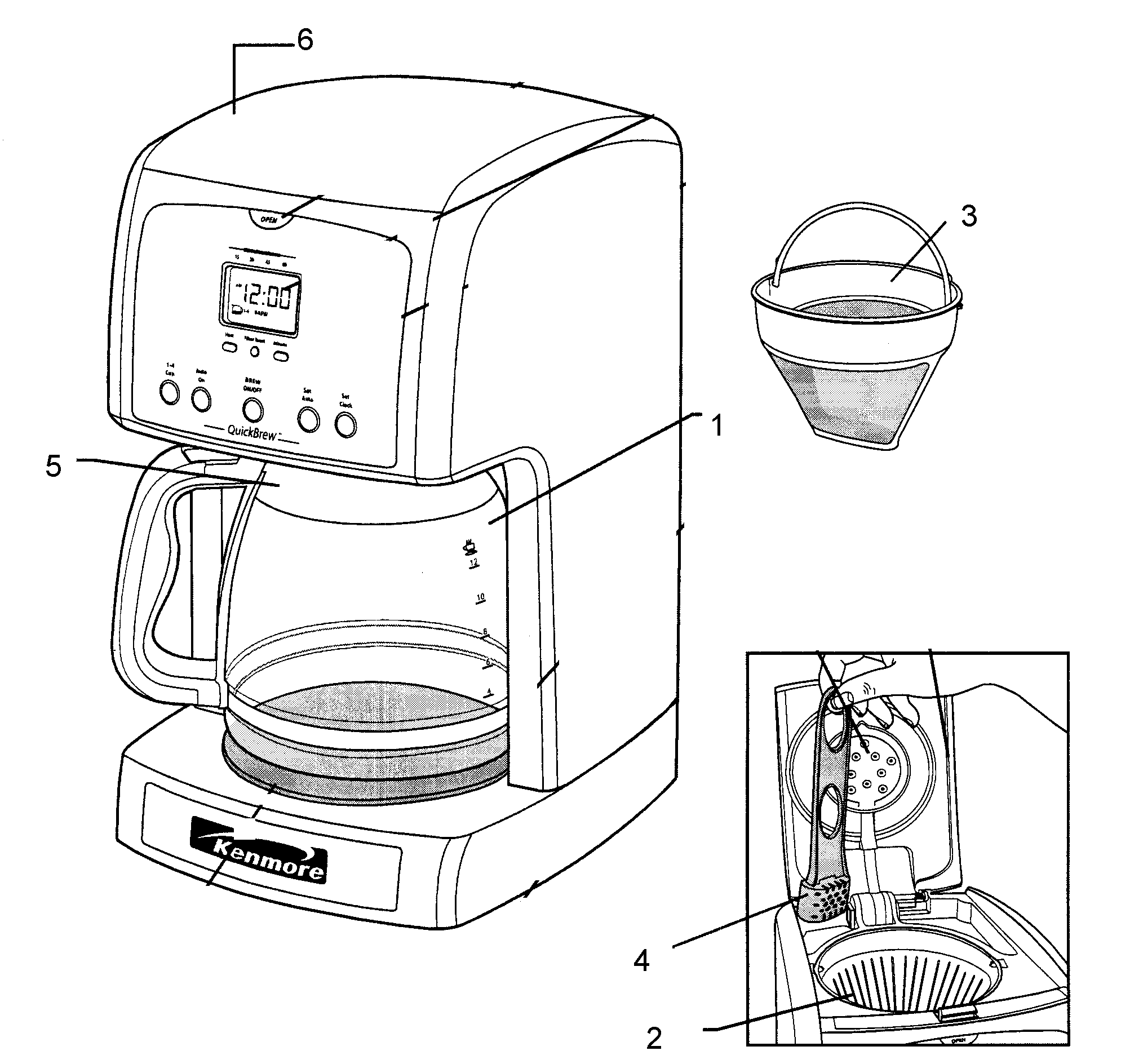

Coffee maker diagram

Coffee maker filter holder (red)

Part #7065-9010RED

The manufacturer no longer makes this part, and there's no substitute part

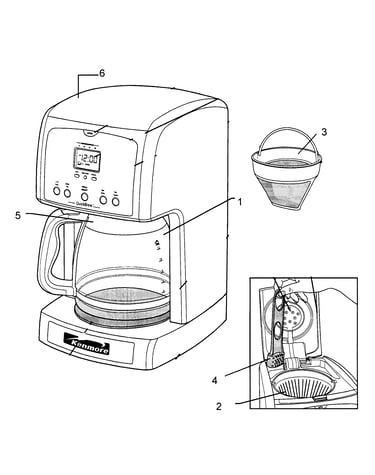

Coffee maker diagram

Kenmore basket (red)

Part #7562-3010

The manufacturer no longer makes this part, and there's no substitute part

Coffee maker diagram

Kenmore coffee maker golden basket (red)

Part #5519-3205RED

The manufacturer no longer makes this part, and there's no substitute part

#NI

Coffee maker diagram

Kenmore valve,red

Part #7039-3010

The manufacturer no longer makes this part, and there's no substitute part

Coffee maker diagram

Kenmore top cover

Part #7069-3013

The manufacturer no longer makes this part, and there's no substitute part

#NI

Coffee maker diagram

Carbon bag

Part #5519-3056

The manufacturer no longer makes this part, and there's no substitute part

Coffee maker diagram

Carafe red

Part #6320-0142RED

The manufacturer no longer makes this part, and there's no substitute part

Coffee maker diagram

Lid,red

Part #7069-6010

The manufacturer no longer makes this part, and there's no substitute part

#NI

Coffee maker diagram

Owner's manual

Part #3323-1686RED

The manufacturer no longer makes this part, and there's no substitute part
