Model # GT5250-WK-2 Official Devilbiss generator

Here are the diagrams and repair parts for Official Devilbiss GT5250-WK-2 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

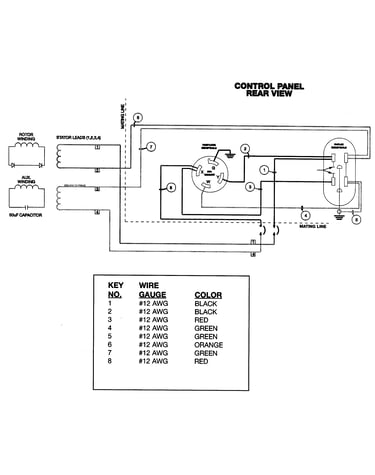

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Spacer GS-0746
#12

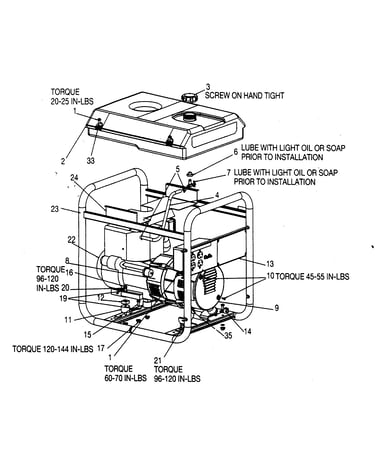

Generator diagram

Spacer

Part #GS-0746

The manufacturer no longer makes this part, and there's no substitute part

Devilbiss Panel GS-0754
#1

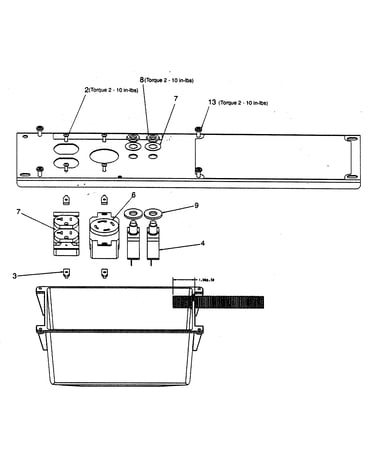

Control panel diagram

Devilbiss panel

Part #GS-0754

The manufacturer no longer makes this part, and there's no substitute part

Screw SS-12-CD
#15

Generator diagram

Screw

Part #SS-12-CD

The manufacturer no longer makes this part, and there's no substitute part

Washer SS-1525-CD
#9

Control panel diagram

Washer

Part #SS-1525-CD

The manufacturer no longer makes this part, and there's no substitute part

Devilbiss Circuit Breaker Z-D21508
#4

Control panel diagram

Devilbiss circuit breaker

Part #Z-D21508

The manufacturer no longer makes this part, and there's no substitute part

Clamp GS-0227
#5

Generator diagram

Clamp

Part #GS-0227

The manufacturer no longer makes this part, and there's no substitute part

Washer SSN-632
#33

Generator diagram

Washer

Part #SSN-632

The manufacturer no longer makes this part, and there's no substitute part

Devilbiss Cover D25706
#10

Control panel diagram

Devilbiss cover

Part #D25706

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Speed Nut SSF-584
#3

Control panel diagram

Porter cable speed nut

Part #SSF-584

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Air Compressor Shroud Screw SSF-3156
#13

Control panel diagram

Porter cable air compressor shroud screw

Part #SSF-3156

The manufacturer no longer makes this part, and there's no substitute part
