Amana
Wall Oven/Microwave Combo

Model # 876.A Official Amana microwave

Here are the diagrams and repair parts for Official Amana 876A microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

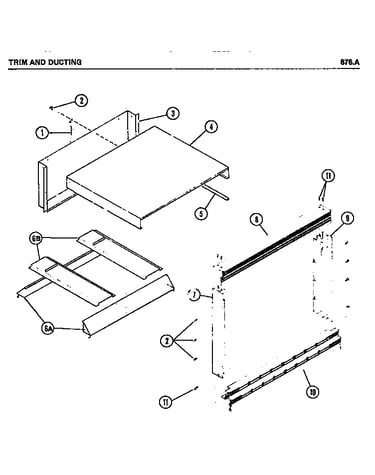

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 225 parts  |
Latch, Door (includes Pushnuts) M11D87
#29A

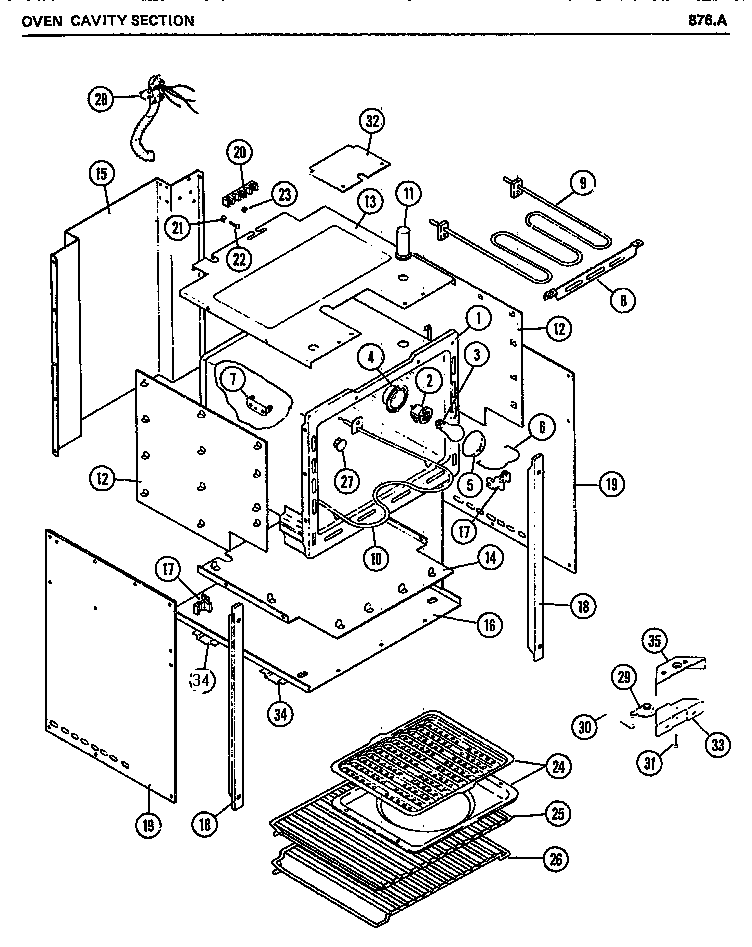

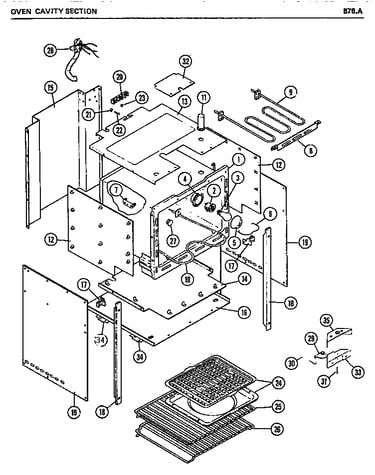

Oven cavity section diagram

Latch, door (includes pushnuts)

Part #M11D87

The manufacturer no longer makes this part, and there's no substitute part

Electronic Circuit Board M32R54
#47

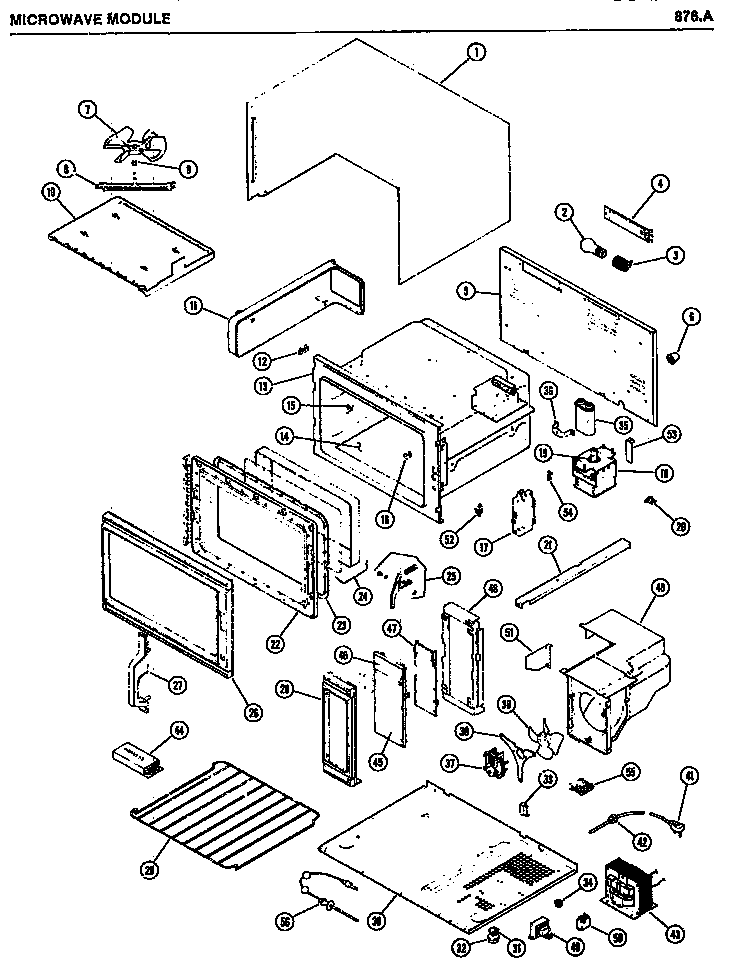

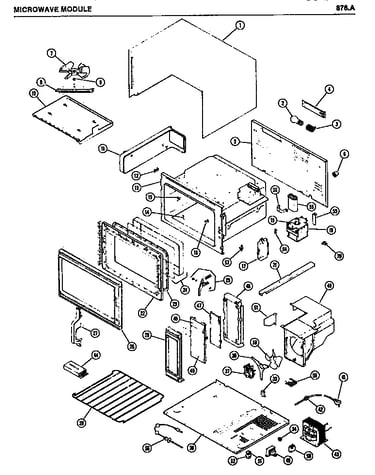

Microwave module diagram

Electronic circuit board

Part #M32R54

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin M1D689
#21

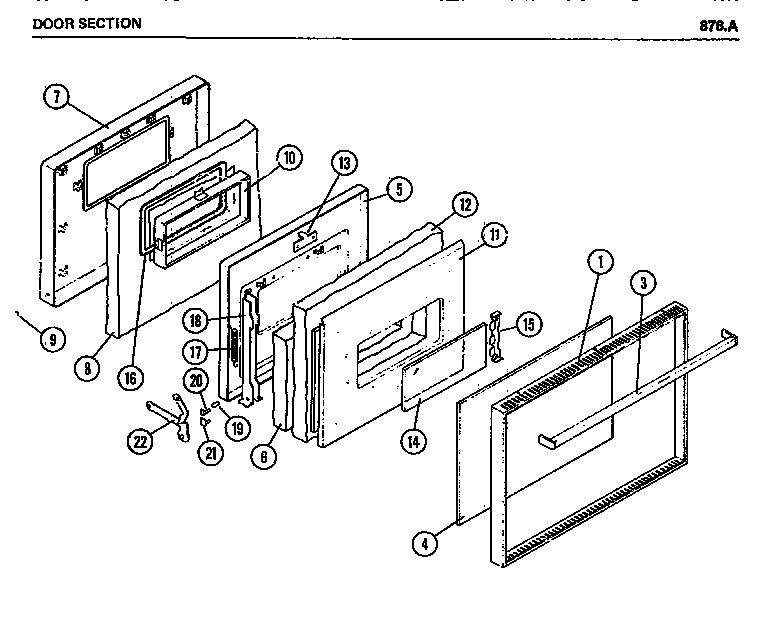

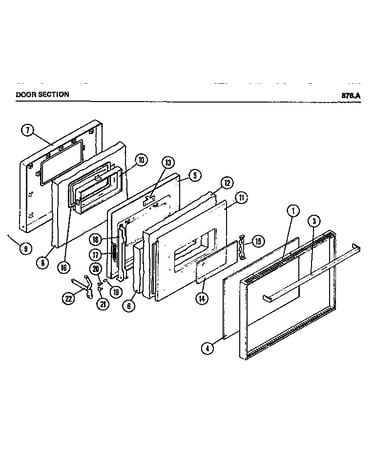

Door section diagram

Hinge pin

Part #M1D689

The manufacturer no longer makes this part, and there's no substitute part

Back Panel M82D209
#5A

Microwave module diagram

Back panel

Part #M82D209

The manufacturer no longer makes this part, and there's no substitute part

Screw, Cord Grounding M1D888
Screw, cord grounding

Part #M1D888

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Support Bracket M20D114
#6A

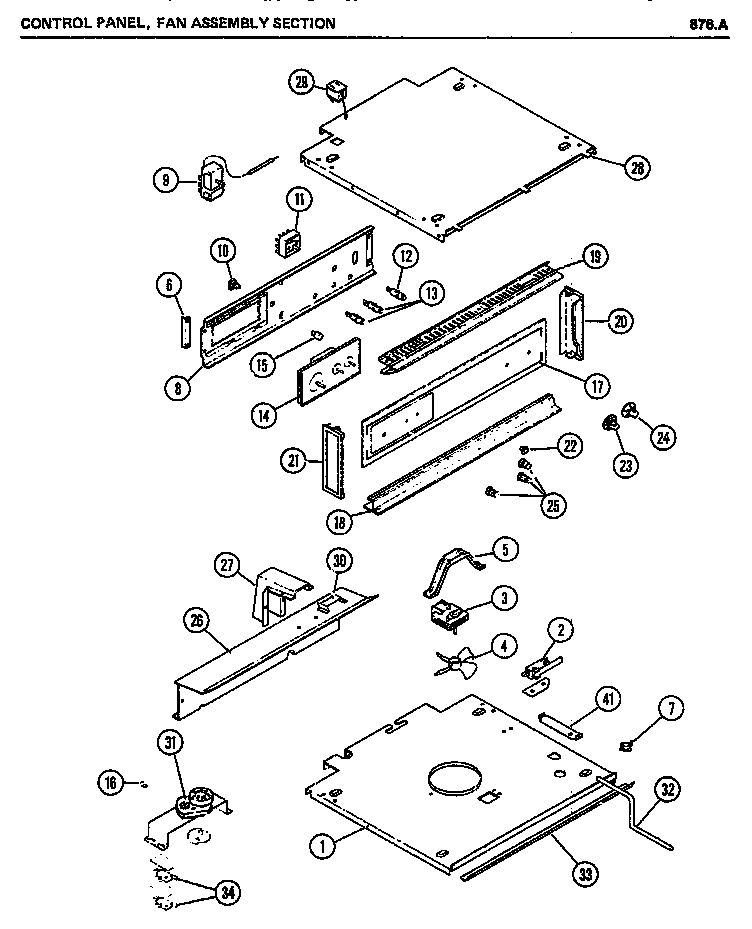

Control panel diagram

Control panel support bracket

Part #M20D114

The manufacturer no longer makes this part, and there's no substitute part

Door Interlock Switch M14D193
#2A

Control panel diagram

Door interlock switch

Part #M14D193

The manufacturer no longer makes this part, and there's no substitute part

Screw, Relay Mounting M1D668
Screw, relay mounting

Part #M1D668

The manufacturer no longer makes this part, and there's no substitute part

Linkage Arm Lock (includes Pushnuts) M8D350
#30A

Oven cavity section diagram

Linkage arm lock (includes pushnuts)

Part #M8D350

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade M35D40
#39

Microwave module diagram

Fan blade

Part #M35D40

The manufacturer no longer makes this part, and there's no substitute part
