Whirlpool
Bottom-Mount Refrigerator

Model # WRFF5333PB02 Official Whirlpool bottom-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRFF5333PB02 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

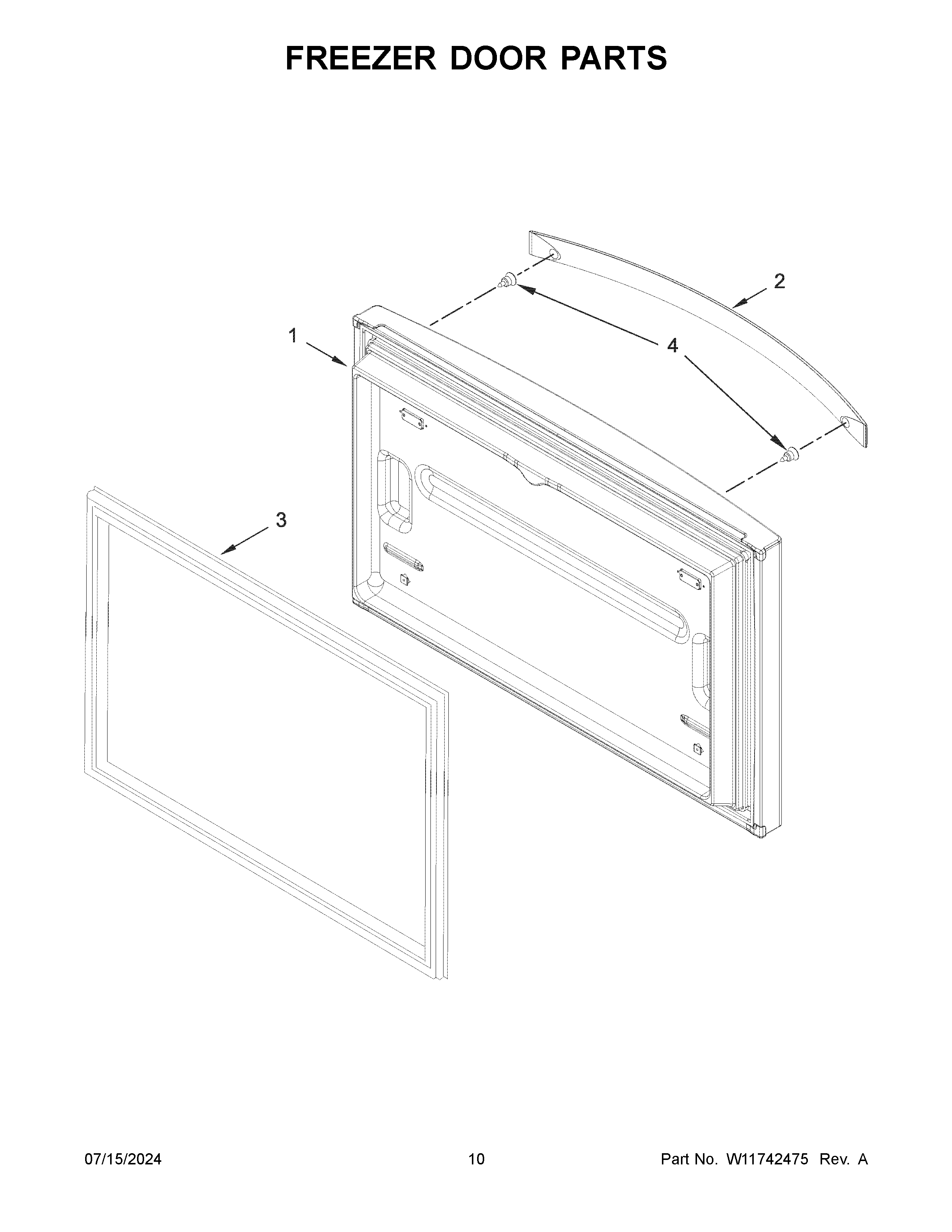

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 225 parts  |

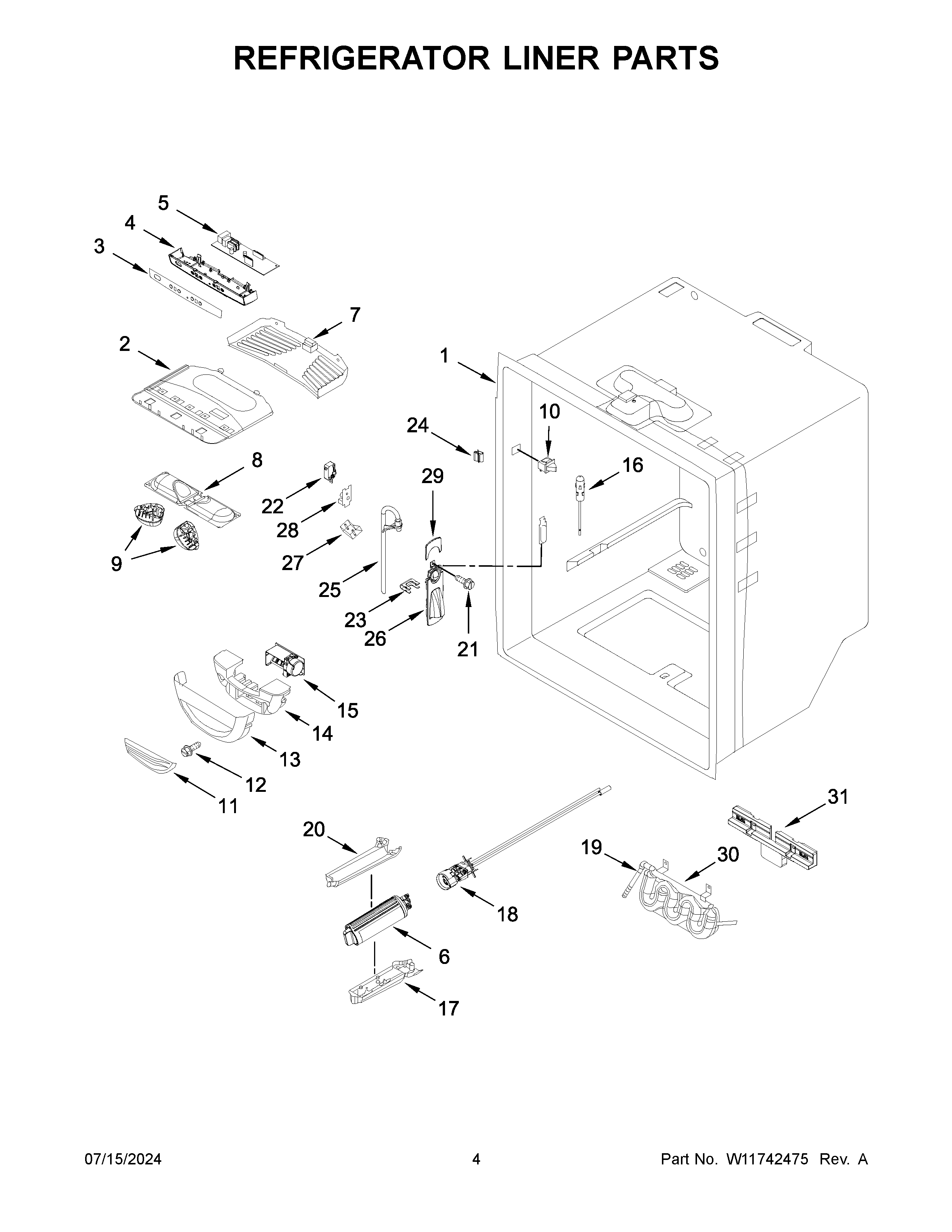

Refrigerator Thermistor 12791419SP
#17

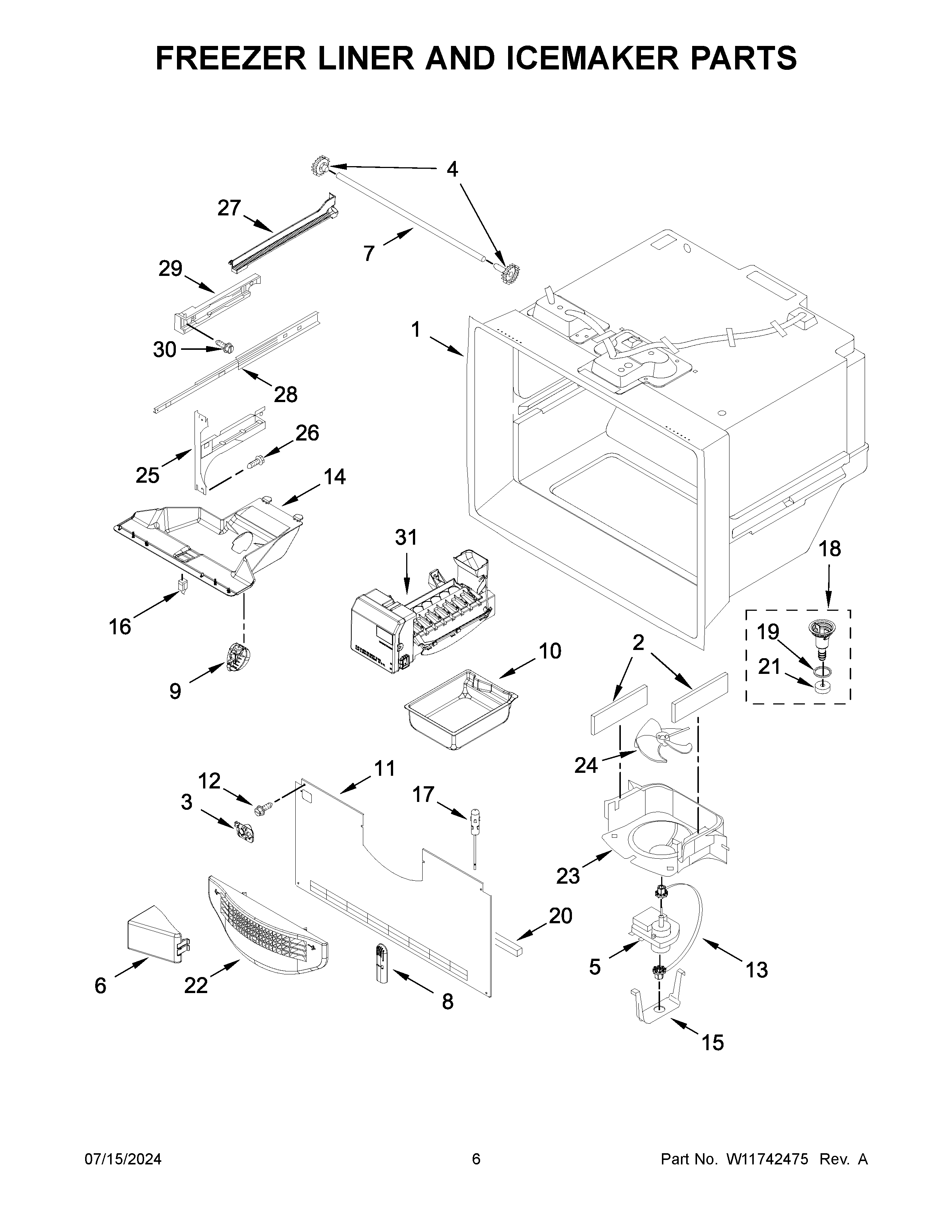

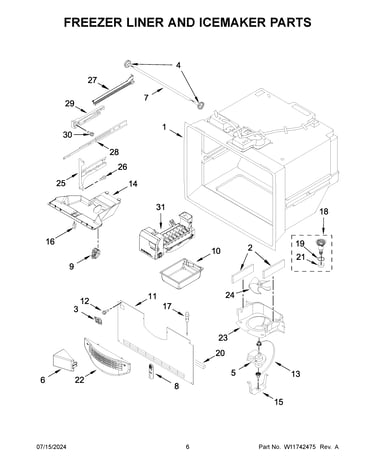

Freezer liner and icemaker parts diagram

Refrigerator thermistor

Part #12791419SP

Replaced by #W10316760

?
Manufacturer substitution
This part replaces 12791419SP. Substitute parts can look different from the original.
BEST SELLER
$47.88 |
11% OFF Phone Price : $53.88
In Stock
Whirlpool Refrigerator Door Gasket, Right (gray) (replaces W10571956) W10830162
#19

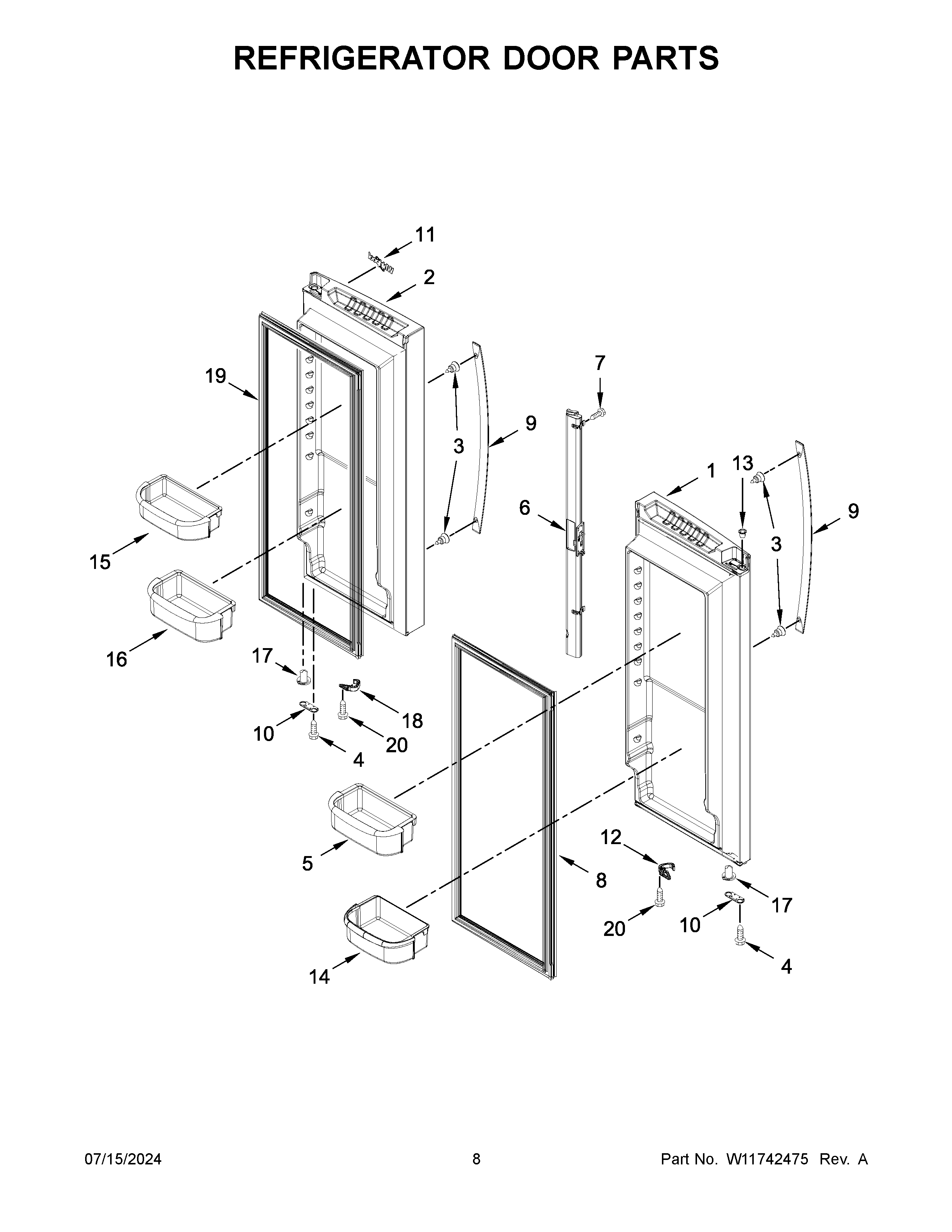

Refrigerator door parts diagram

Whirlpool refrigerator door gasket, right (gray) (replaces w10571956)

Part #W10830162

BEST SELLER
$109.73 |
10% OFF Phone Price : $121.73
In Stock
Drier-11g,lo W11353156
#27

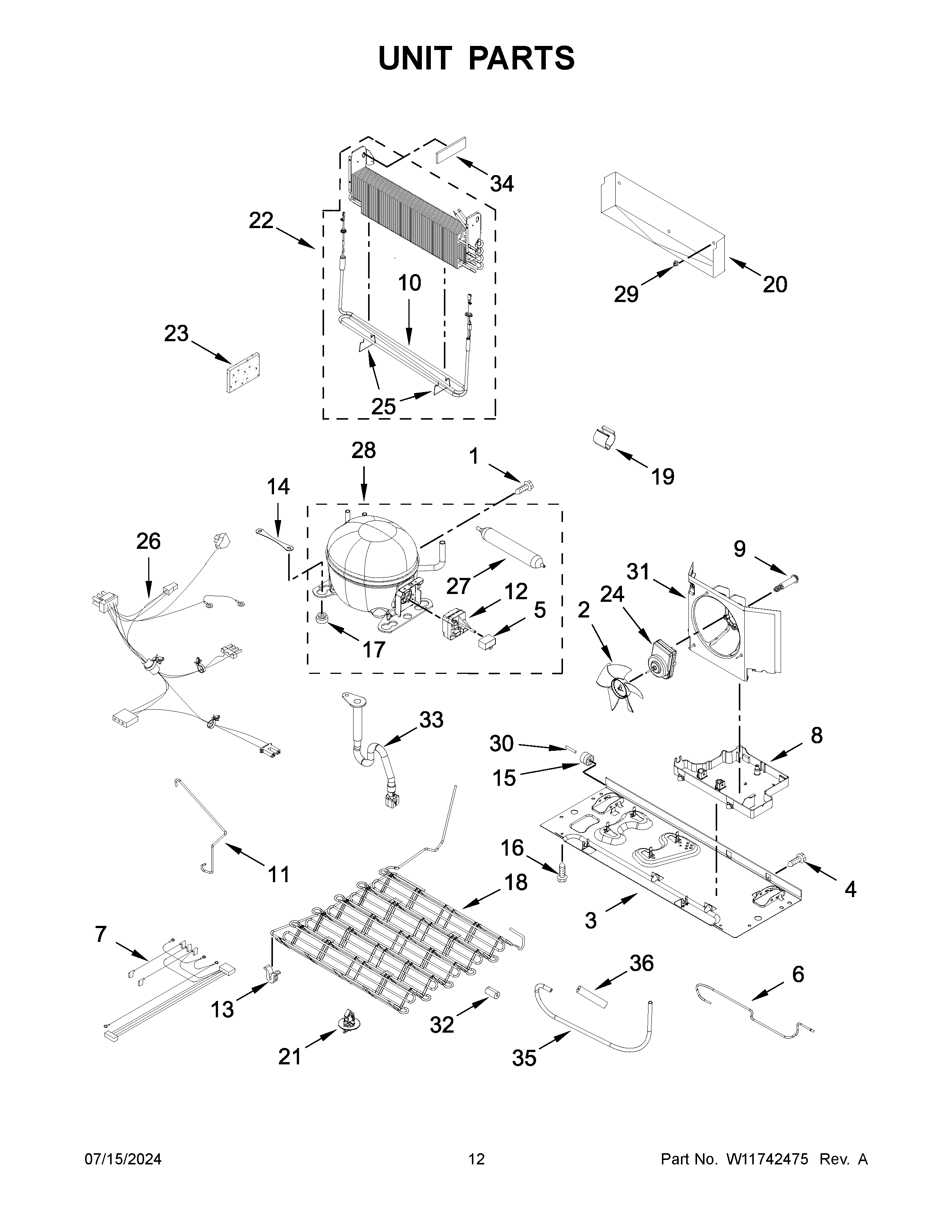

Unit parts diagram

Drier-11g,lo

Part #W11353156

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W11353156. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
20% OFF Phone Price : $30.38
In Stock
Refrigerator Drawer Cover 12656823
#31

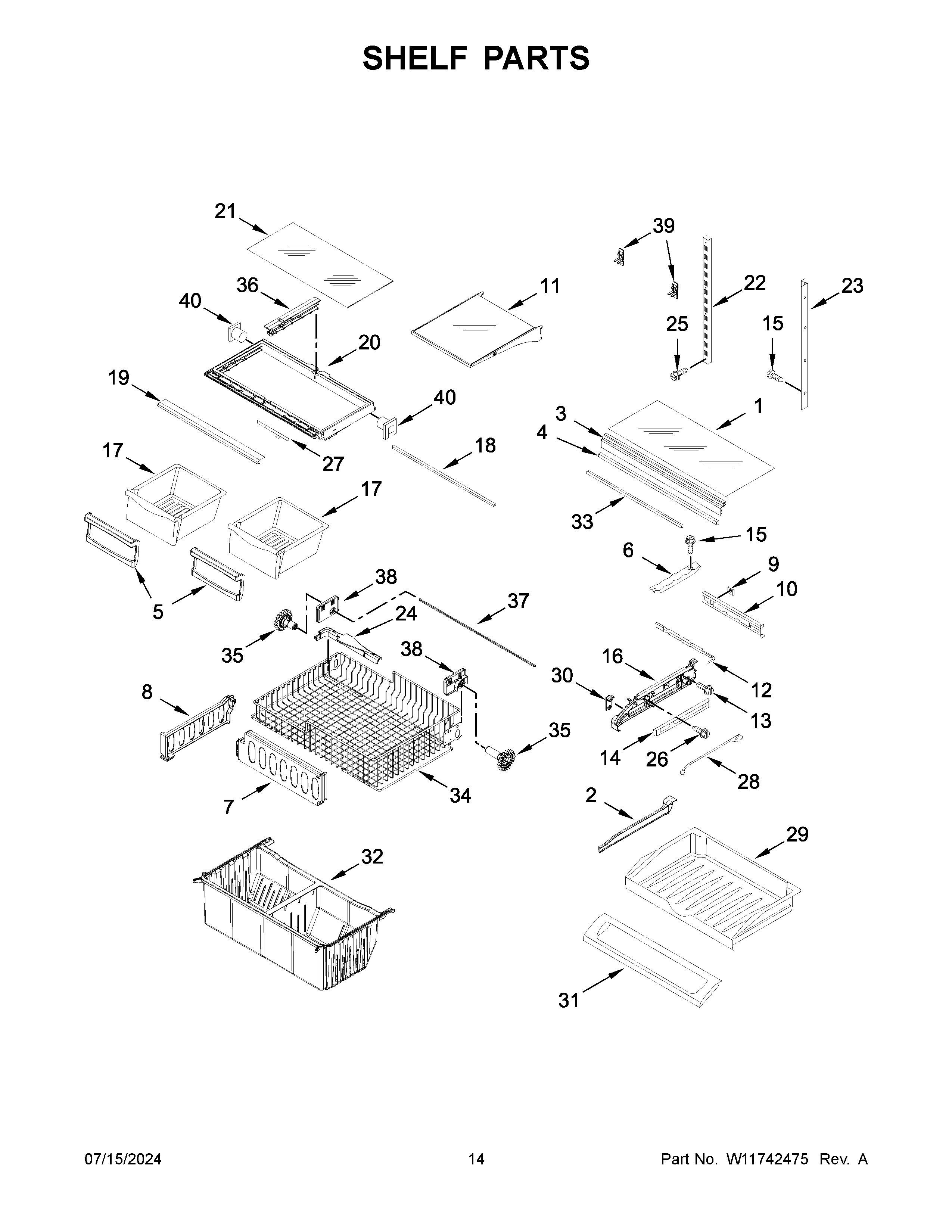

Shelf parts diagram

Refrigerator drawer cover

Part #12656823

Replaced by #W10827914

?
Manufacturer substitution
This part replaces 12656823. Substitute parts can look different from the original.
BEST SELLER
$98.28 |
11% OFF Phone Price : $110.28
In Stock
Whirlpool Refrigerator Door Gasket, Left (gray) (replaces W10443269) W10830283
#8

Refrigerator door parts diagram

Whirlpool refrigerator door gasket, left (gray) (replaces w10443269)

Part #W10830283

BEST SELLER
$95.20 |
11% OFF Phone Price : $107.20
In Stock
Refrigerator Door Gallon Bin W10289497
#15

Refrigerator door parts diagram

Refrigerator door gallon bin

Part #W10289497

Replaced by #WPW10289497

?
Manufacturer substitution
This part replaces W10289497. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$39.80 |
13% OFF Phone Price : $45.80
In Stock
Refrigerator Freezer Drawer Gear 12002497
#4

Freezer liner and icemaker parts diagram

Refrigerator freezer drawer gear

Part #12002497

BEST SELLER
This item is not returnable
$15.49 |
11% OFF Phone Price : $17.49
In Stock
6 Mm Chargin W11506635
#28D

Unit parts diagram

6 mm chargin

Part #W11506635

$32.05
In Stock
Touch Up Kit 72032
#NI

Optional parts diagram

Touch up kit

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Brake Lower Foot W10141622
#6

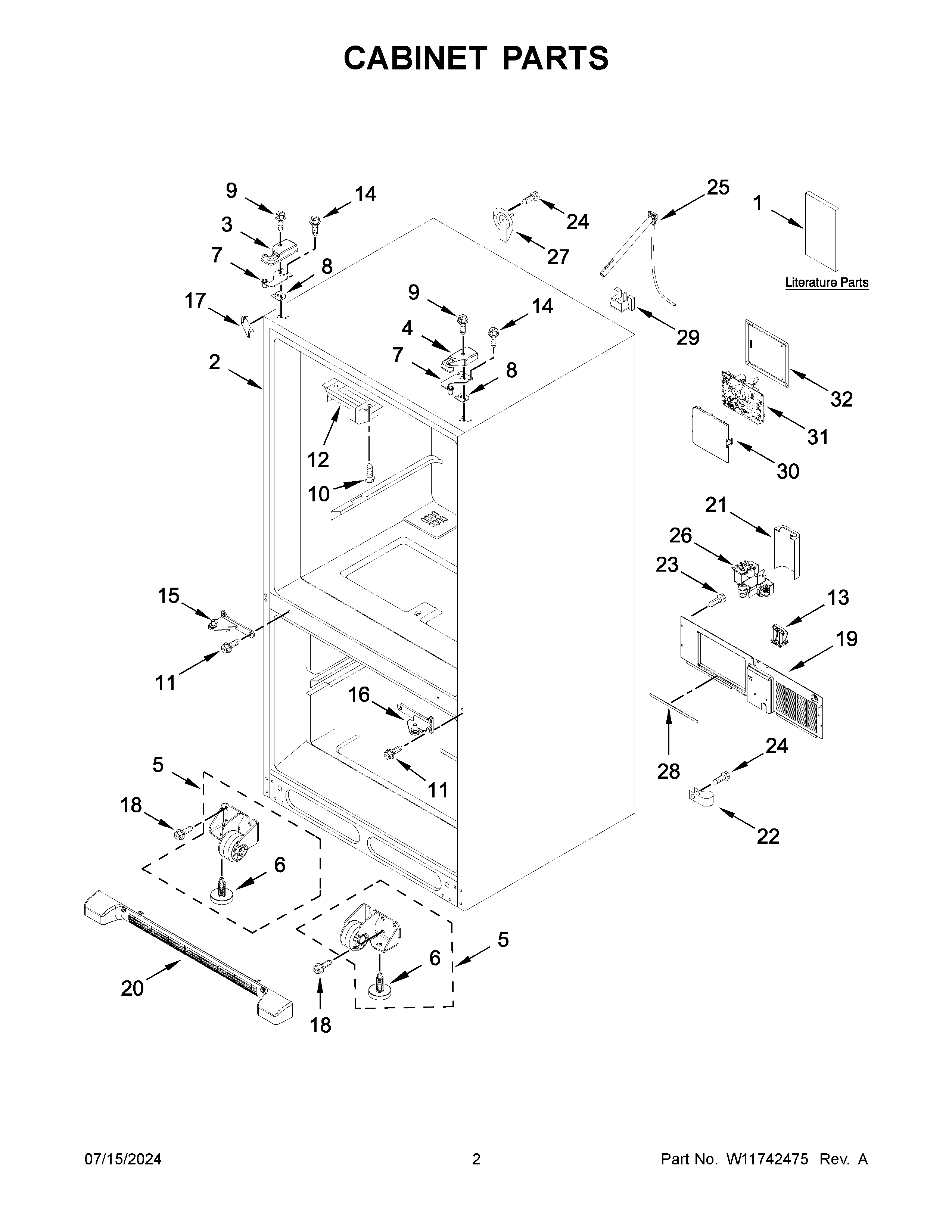

Cabinet parts diagram

Brake lower foot

Part #W10141622

Replaced by #WPW10141622

?
Manufacturer substitution
This part replaces W10141622. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
