Here are the diagrams and repair parts for Official Kenmore Elite 66514819N611 dishwasher, as well as links to manuals and error code tables, if available.

Owner’s manual

By Schematic

By Part

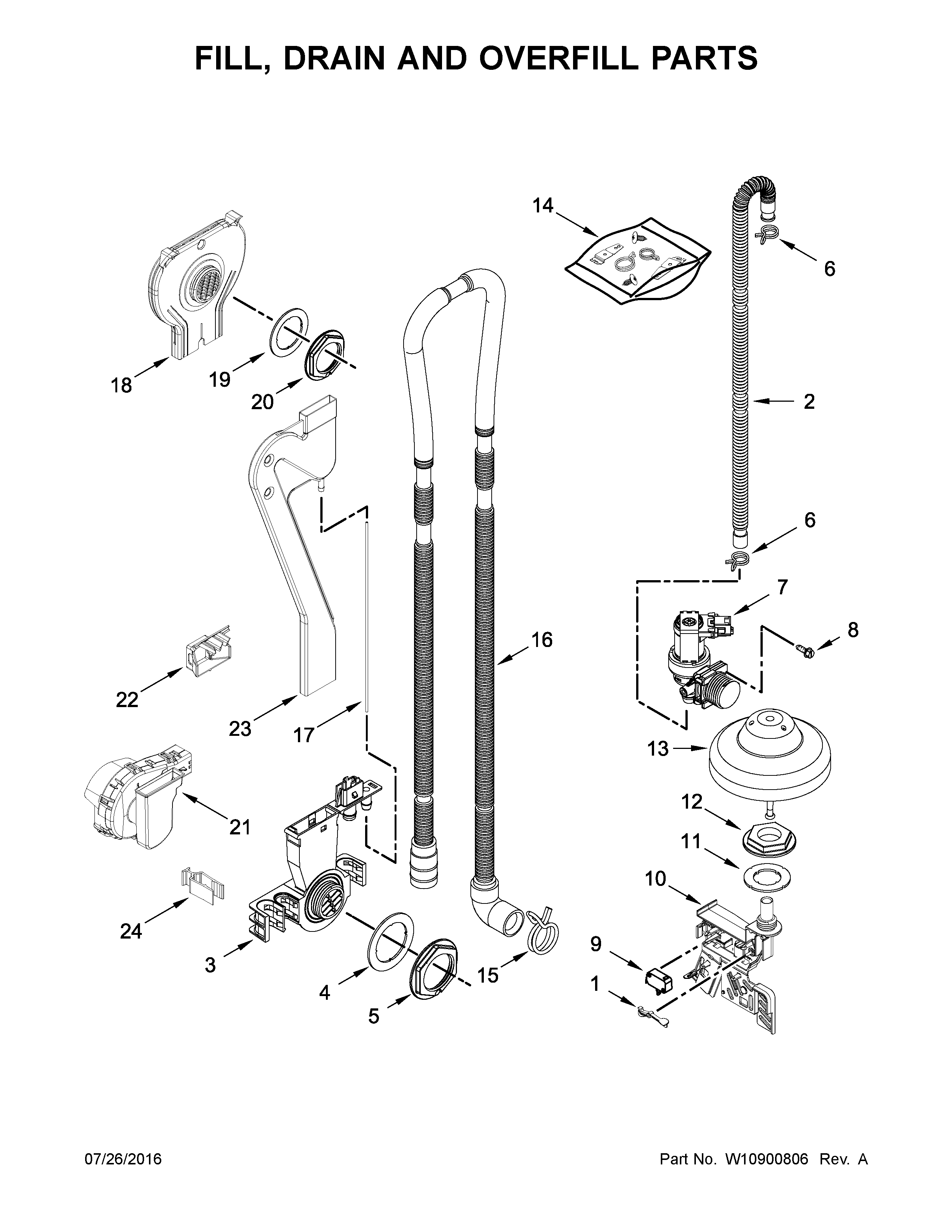

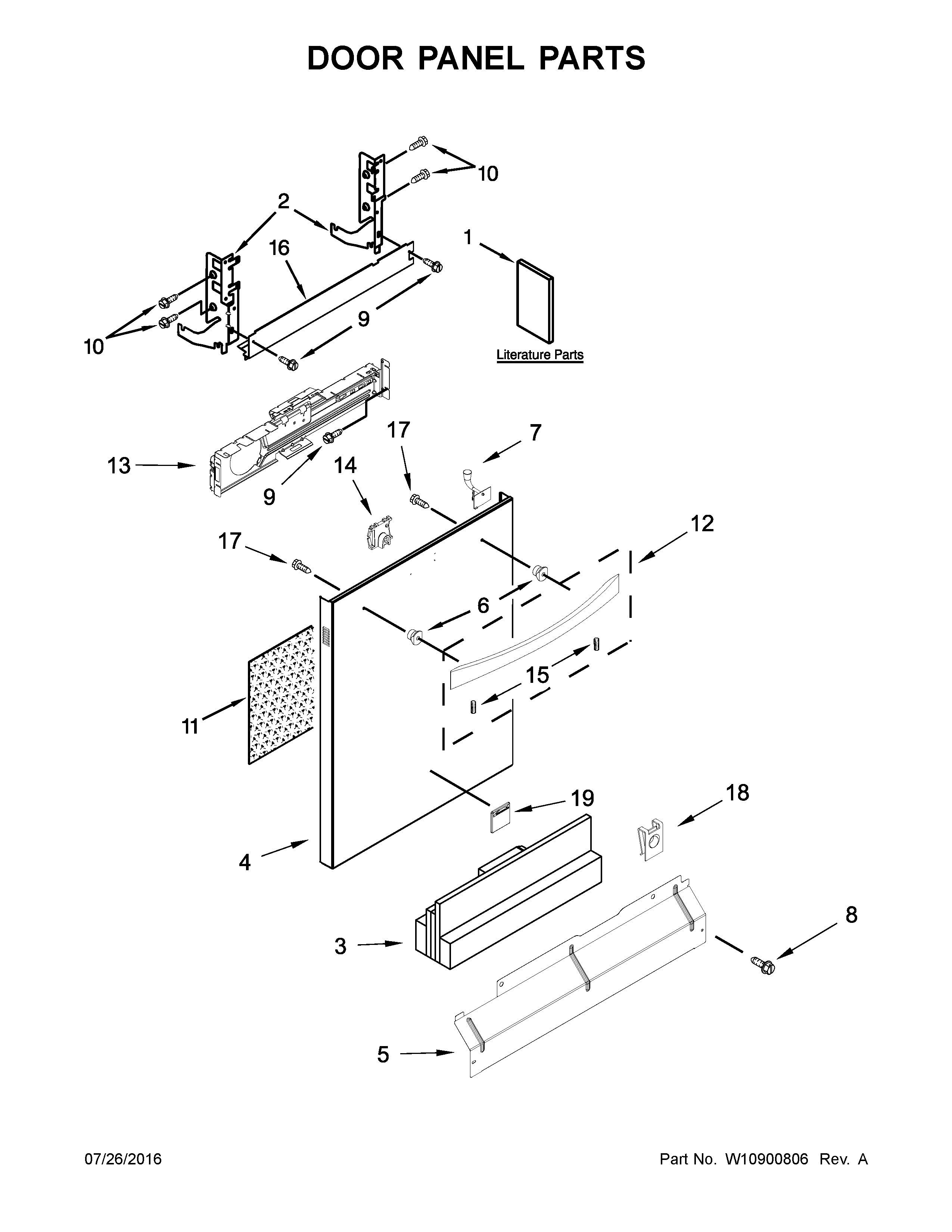

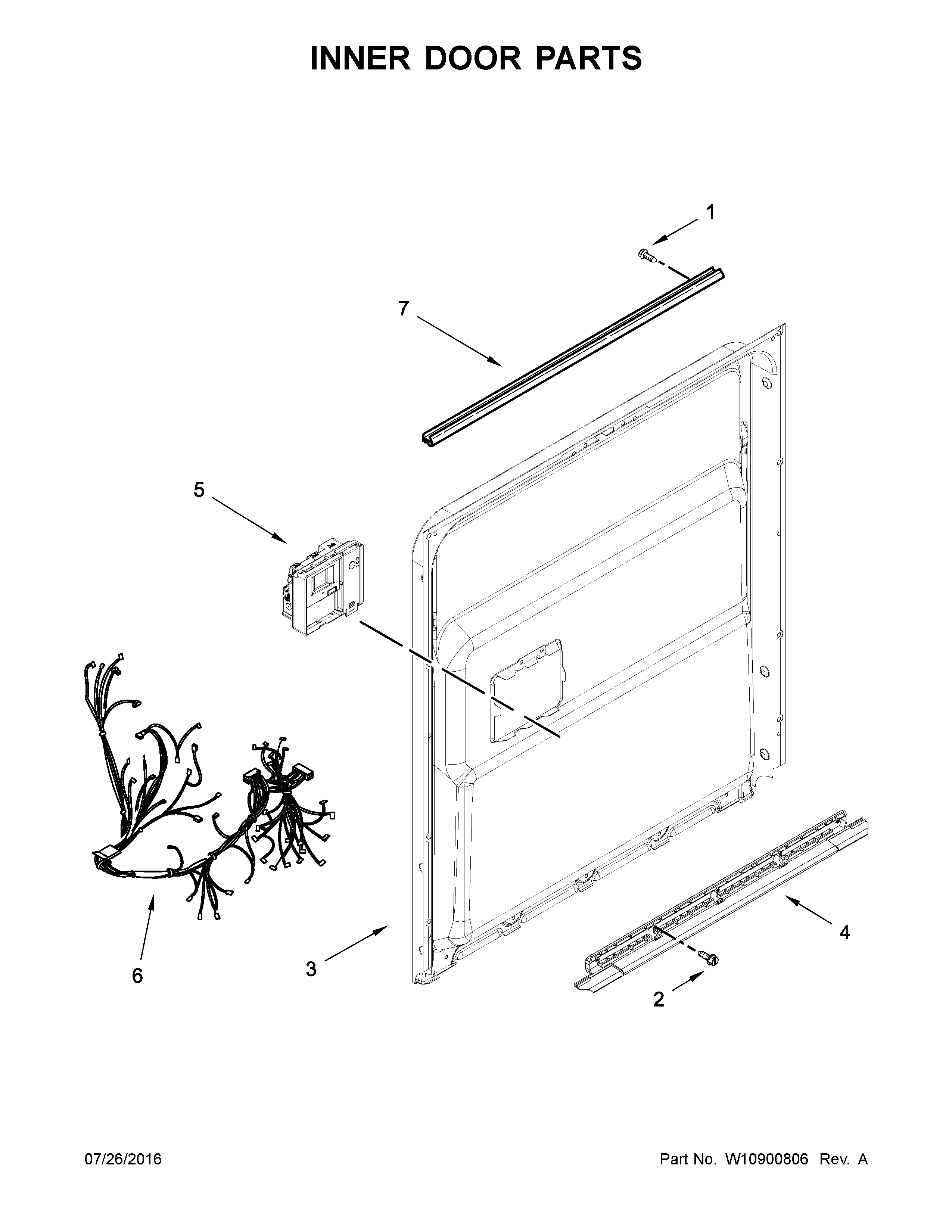

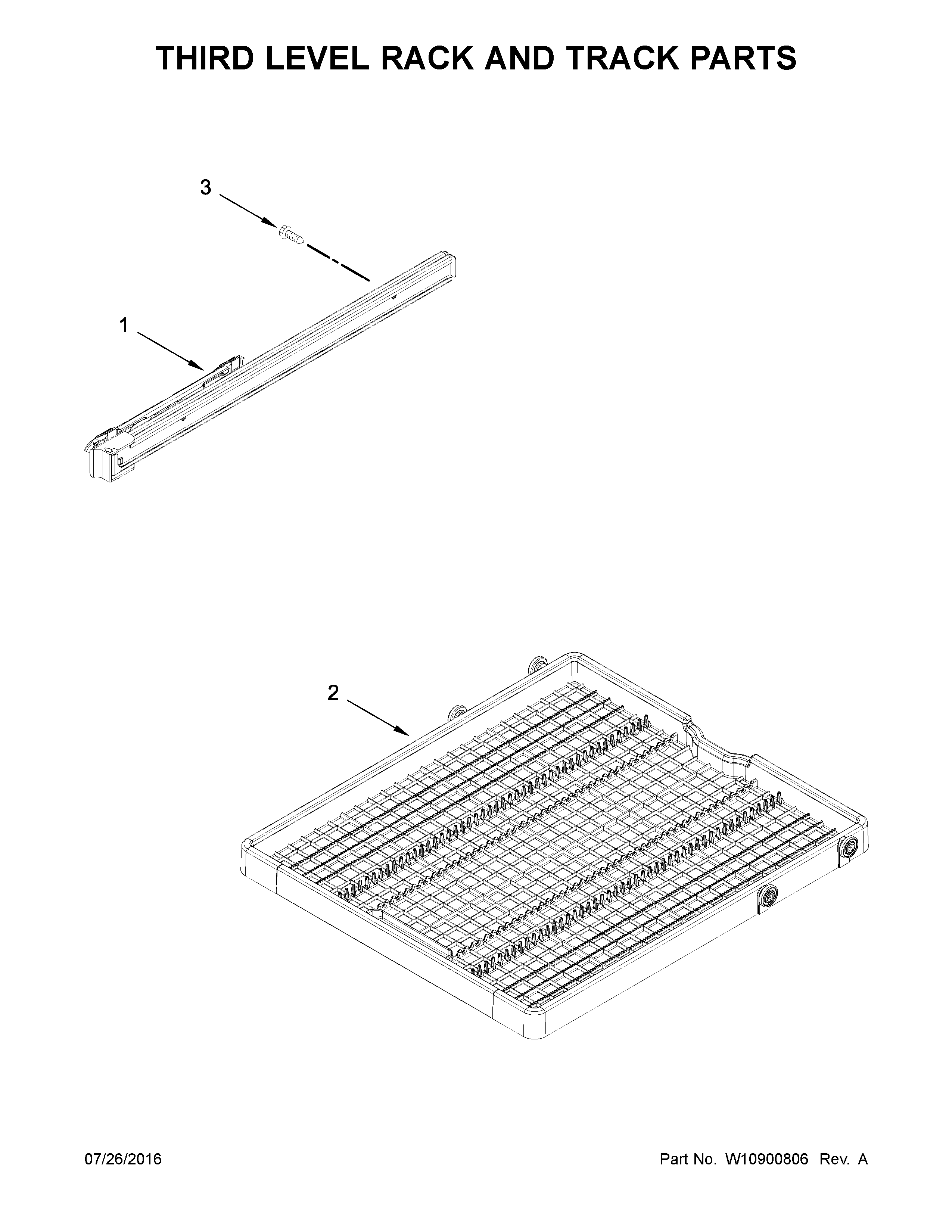

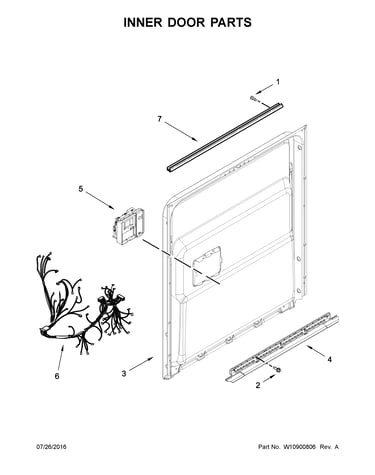

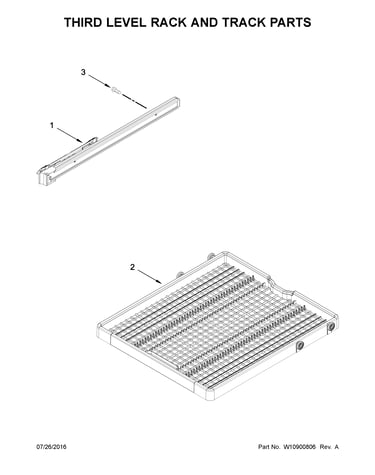

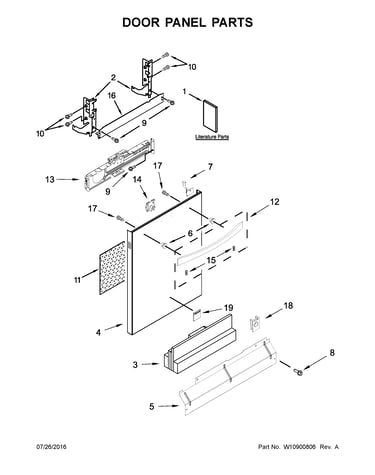

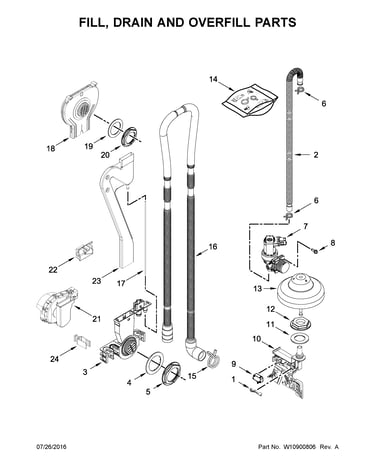

SELECT DIAGRAM

Browse Parts for66514819N611 Dishwasher

#2

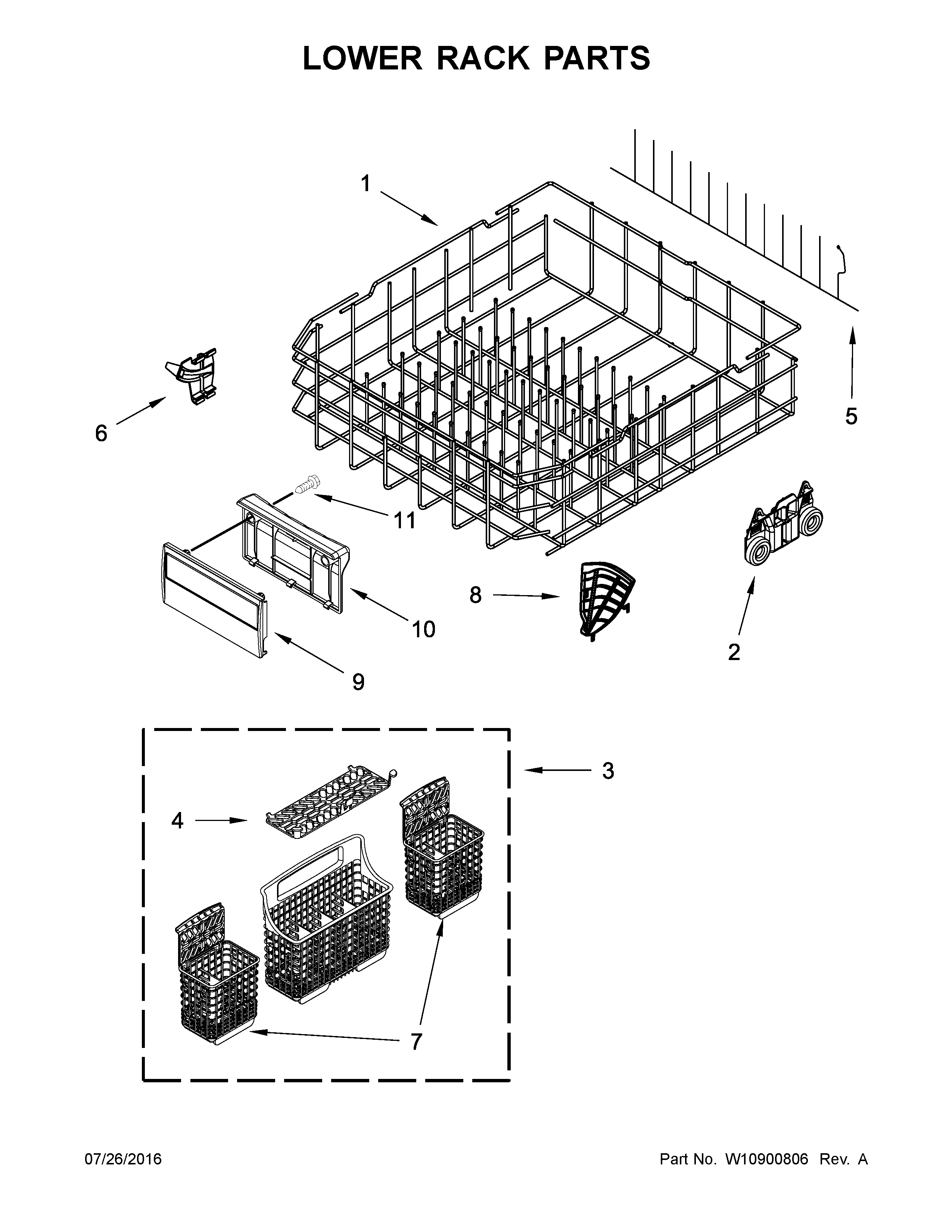

Lower rack parts diagram
Dishwasher dishrack roller assembly, lower
Part #W10195417
Replaced by #WPW10195417
?
Manufacturer substitution
This part replaces W10195417. Substitute parts can look different from the original.
4.1 (332)
$31.75 |
16% OFF Phone Price : $37.75
In Stock
Qty
#6

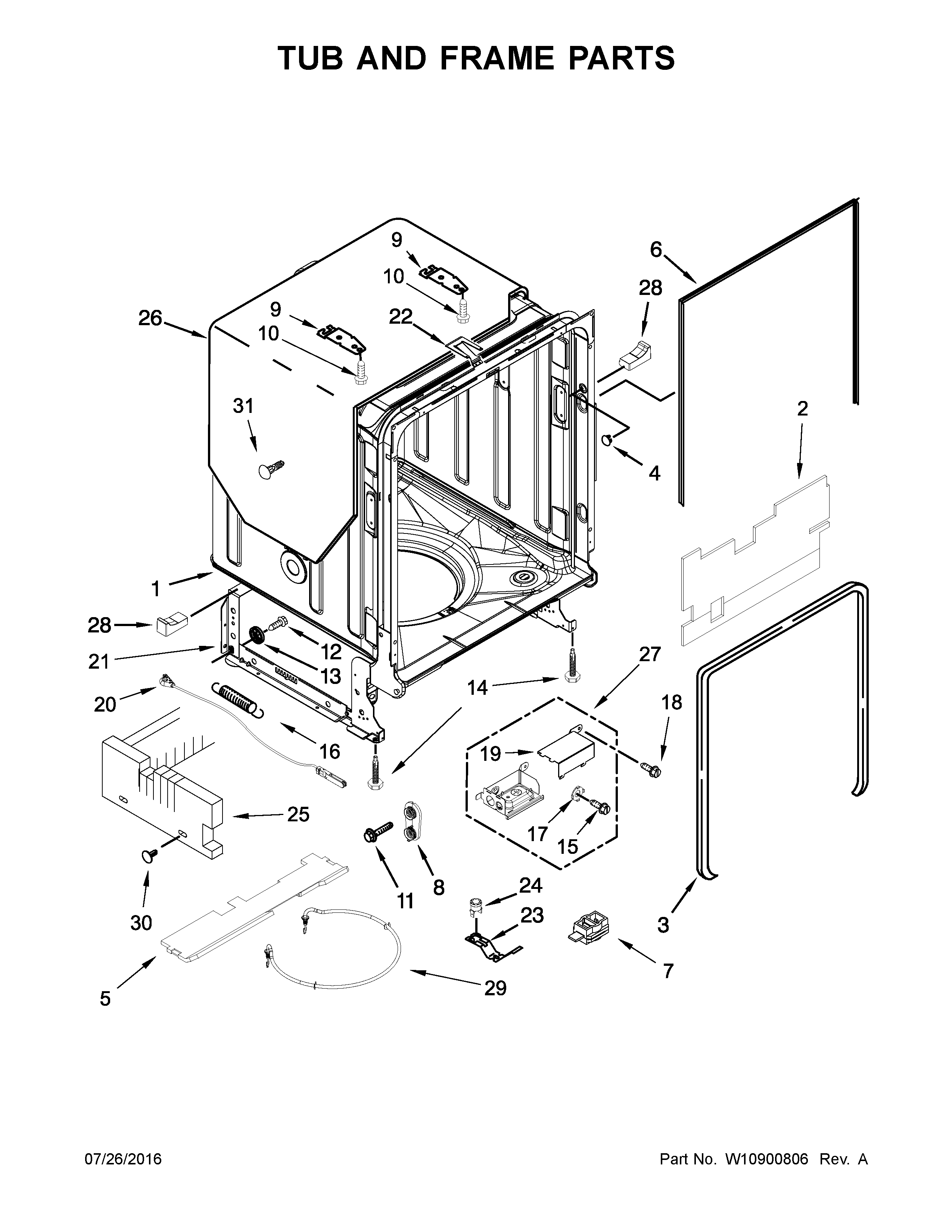

Tub and frame parts diagram
Dishwasher door seal
Part #W10300924
Replaced by #W11177741
?
Manufacturer substitution
This part replaces W10300924. Substitute parts can look different from the original.
3.5 (25)
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Qty
#10

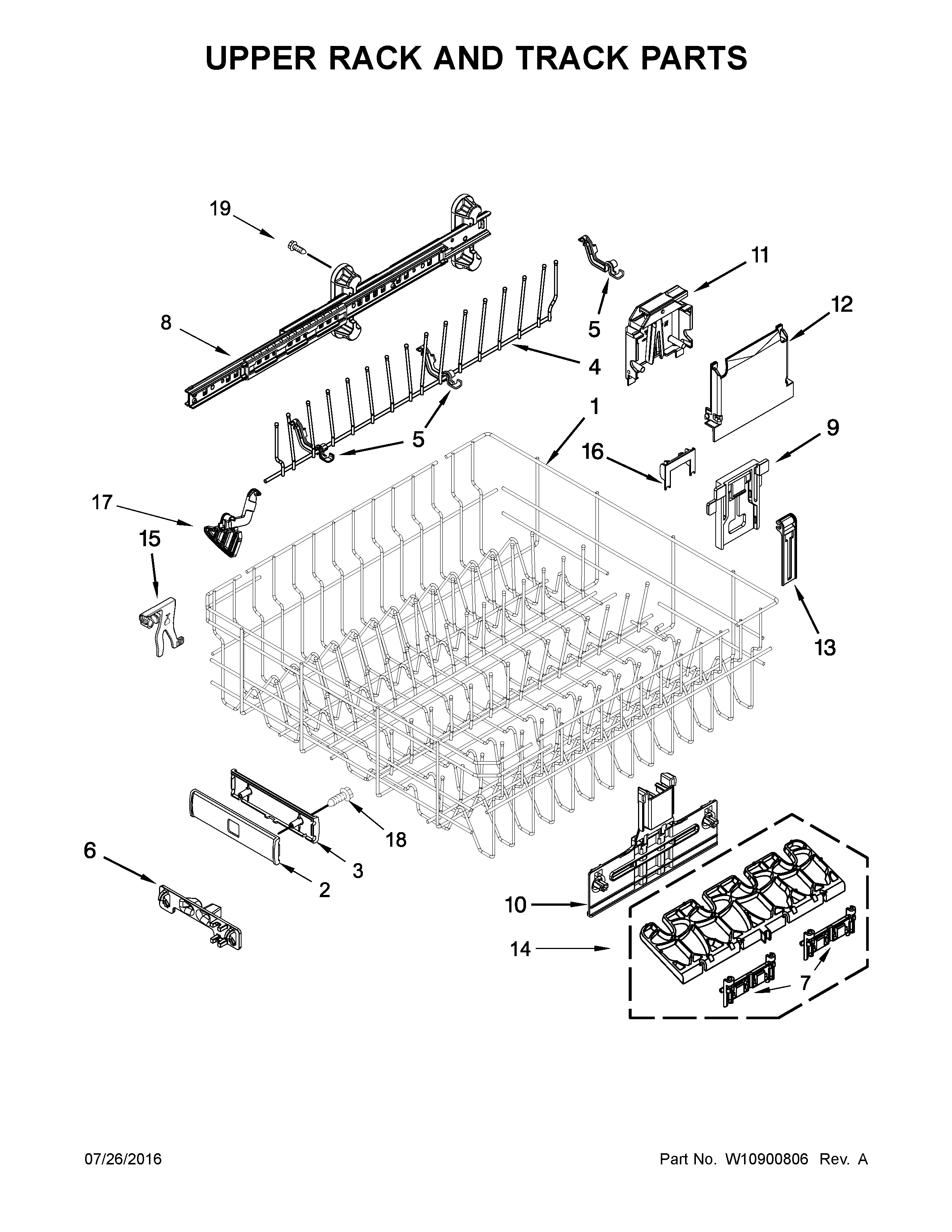

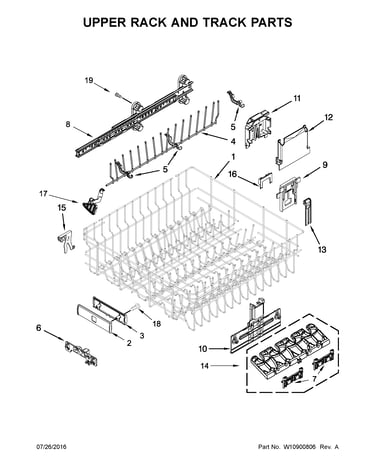

Upper rack and track parts diagram
Dishwasher dishrack adjuster
Part #W10546503
Replaced by #WPW10546503
?
Manufacturer substitution
This part replaces W10546503. Substitute parts can look different from the original.
4 (60)
$22.69 |
21% OFF Phone Price : $28.69
In Stock
Qty
#20
Tub and frame parts diagram
Dishwasher door balance link
Part #W10158291
Replaced by #8194001
?
Manufacturer substitution
This part replaces W10158291. Substitute parts can look different from the original.
4.7 (71)
$25.43 |
19% OFF Phone Price : $31.43
In Stock
Qty
#14

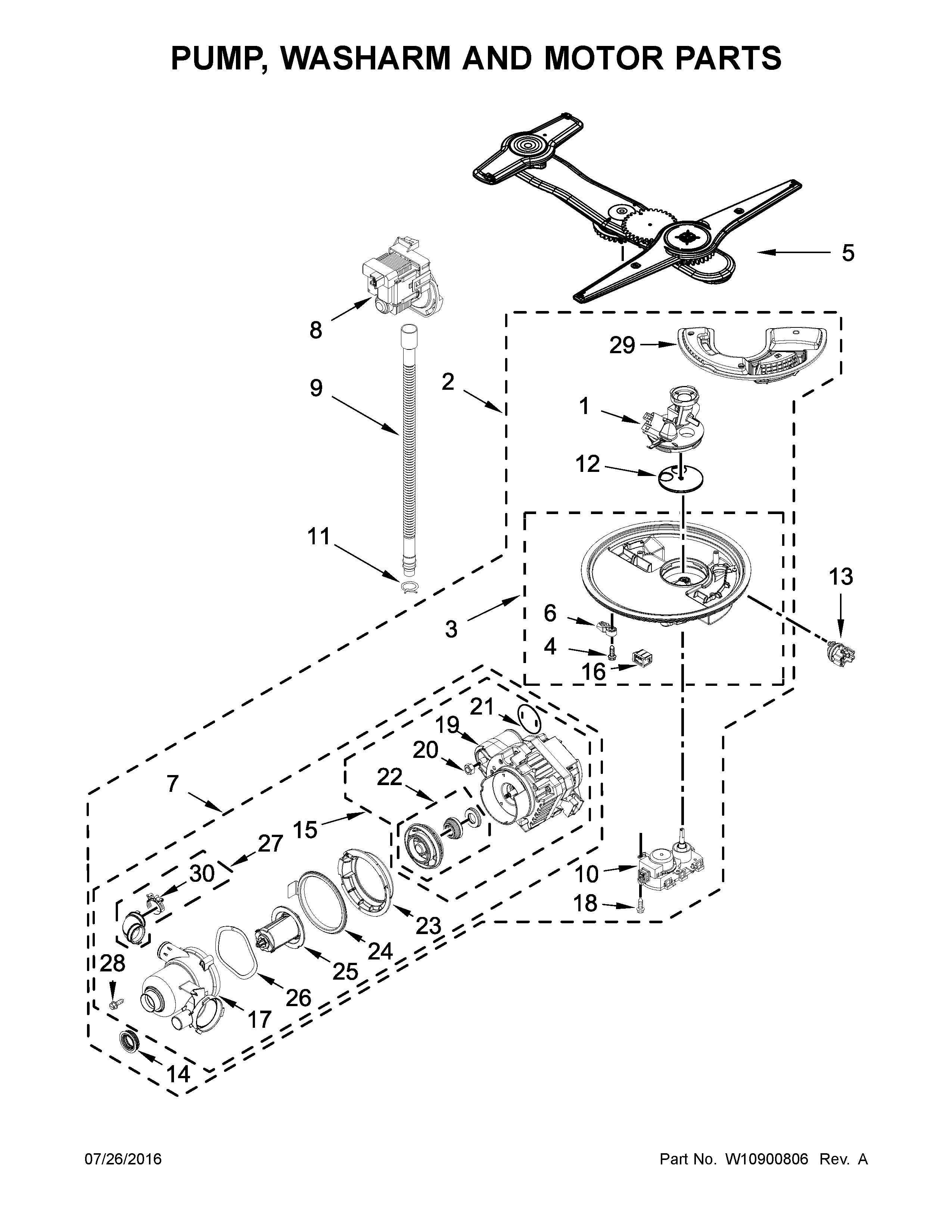

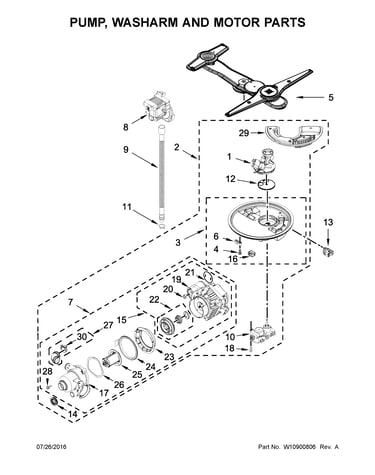

Pump, washarm and motor parts diagram
Dishwasher pump grommet
Part #W10538166
Replaced by #WPW10538166
?
Manufacturer substitution
This part replaces W10538166. Substitute parts can look different from the original.
3.6 (13)
$19.29 |
9% OFF Phone Price : $21.29
In Stock
Qty
#29
Tub and frame parts diagram
Element assembly
Part #W10696509
Replaced by #W10703867
?
Manufacturer substitution
This part replaces W10696509. Substitute parts can look different from the original.
3.9 (40)
$64.44 |
9% OFF Phone Price : $70.44
In Stock
Qty
#3
Lower rack parts diagram
Basket asm,s
Part #W10756125
Replaced by #W10807920
?
Manufacturer substitution
This part replaces W10756125. Substitute parts can look different from the original.
4.6 (251)
$42.30 |
12% OFF Phone Price : $48.30
In Stock
Qty
#5
Upper rack and track parts diagram
Dishwasher tine pivot clip
Part #W10082853
Replaced by #WPW10082853
?
Manufacturer substitution
This part replaces W10082853. Substitute parts can look different from the original.
4.6 (45)
This item is not returnable
$5.54 |
15% OFF Phone Price : $6.54
In Stock
Qty
#5

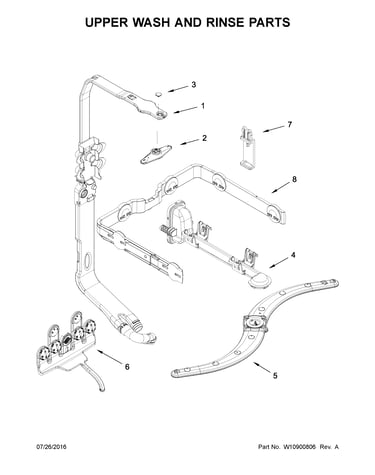

Upper wash and rinse parts diagram
Dishwasher spray arm
Part #W10376692
Replaced by #WPW10498900
?
Manufacturer substitution
This part replaces W10376692. Substitute parts can look different from the original.
5 (3)
$31.25 |
16% OFF Phone Price : $37.25
In Stock
Qty
#2

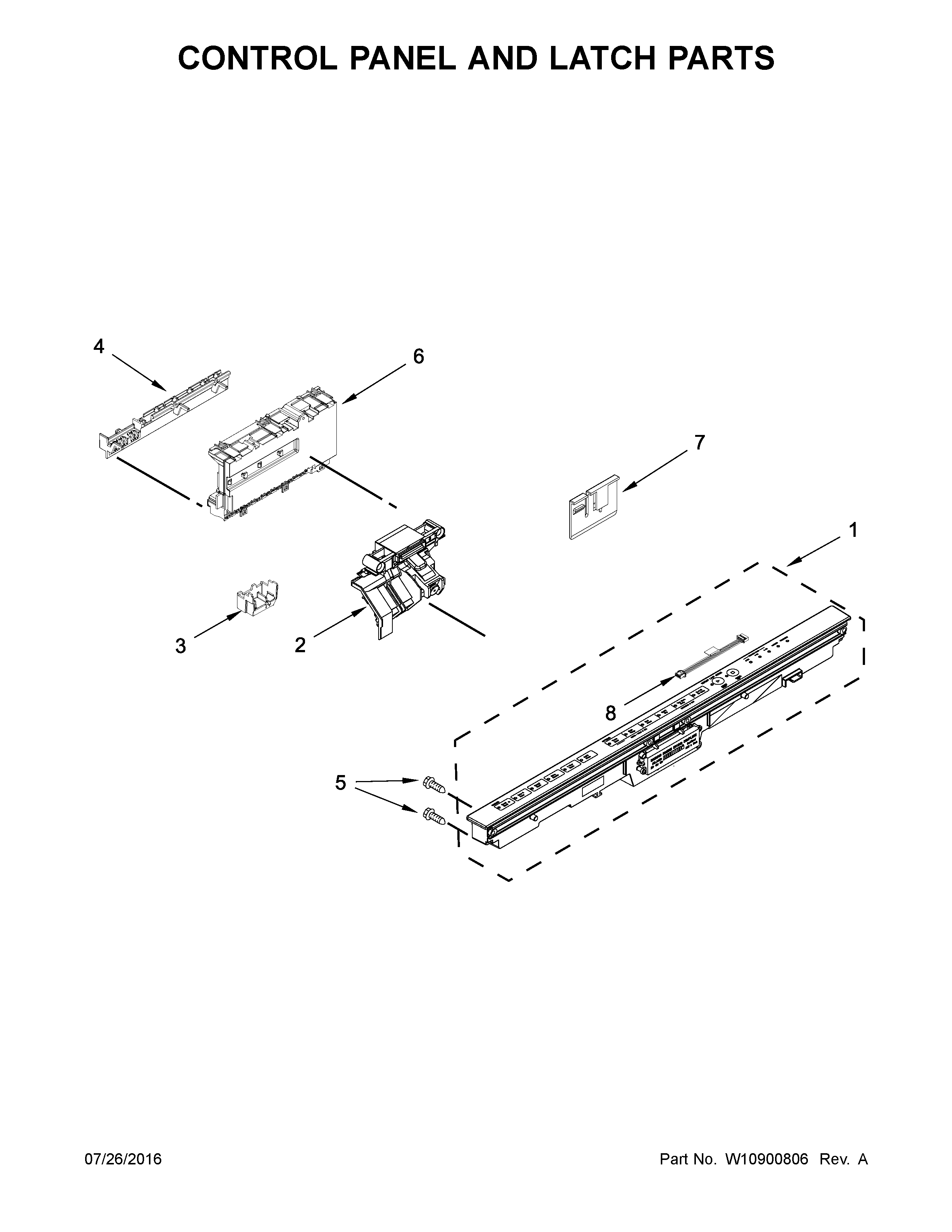

Control panel and latch parts diagram
Dishwasher door latch
Part #W10653840
Replaced by #WPW10653840
?
Manufacturer substitution
This part replaces W10653840. Substitute parts can look different from the original.
4.1 (12)
$21.03 |
22% OFF Phone Price : $27.03
In Stock
Qty
