KitchenAid
Bottom-Mount Refrigerator

Model # KBBX104EPA03 Official KitchenAid bottom-mount refrigerator

Here are the diagrams and repair parts for Official KitchenAid KBBX104EPA03 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

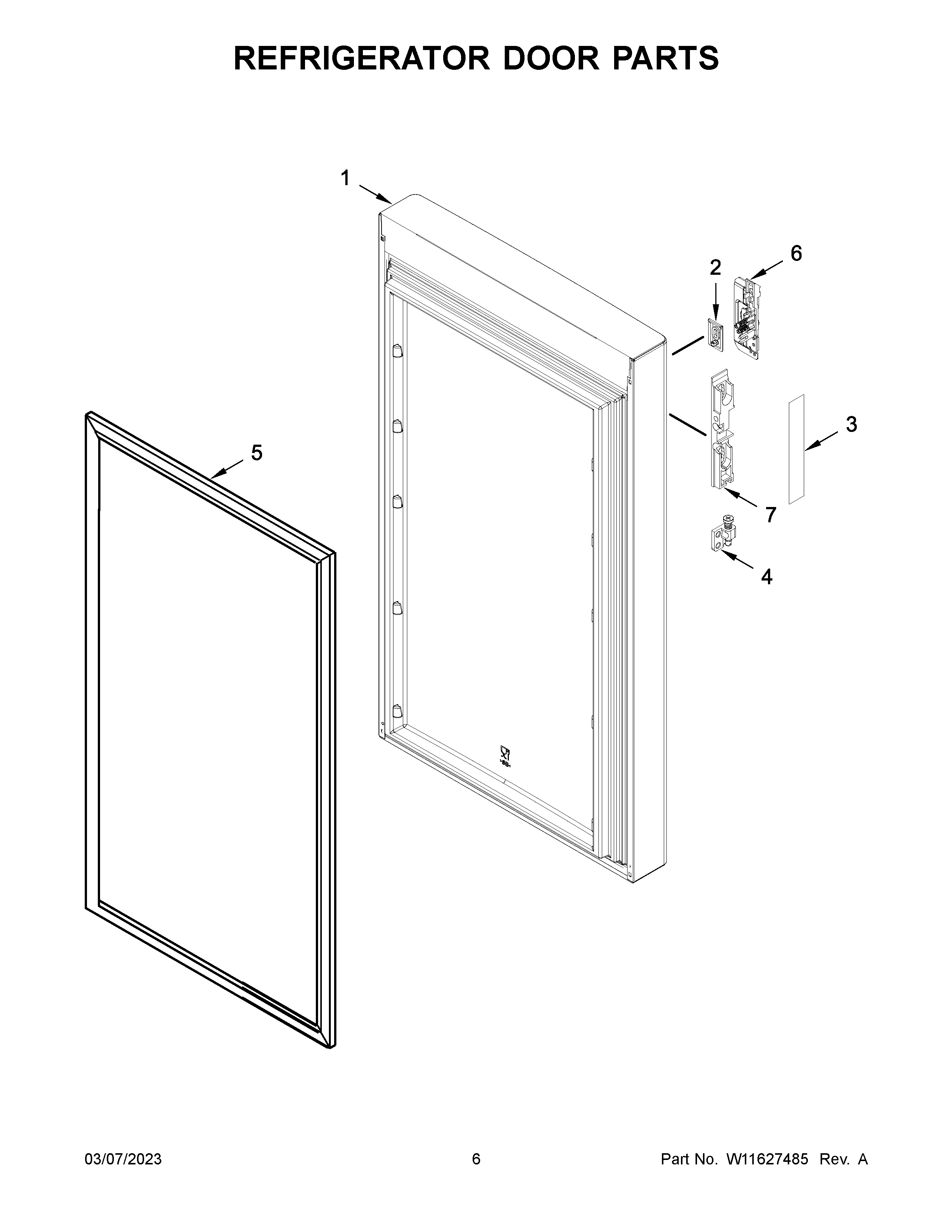

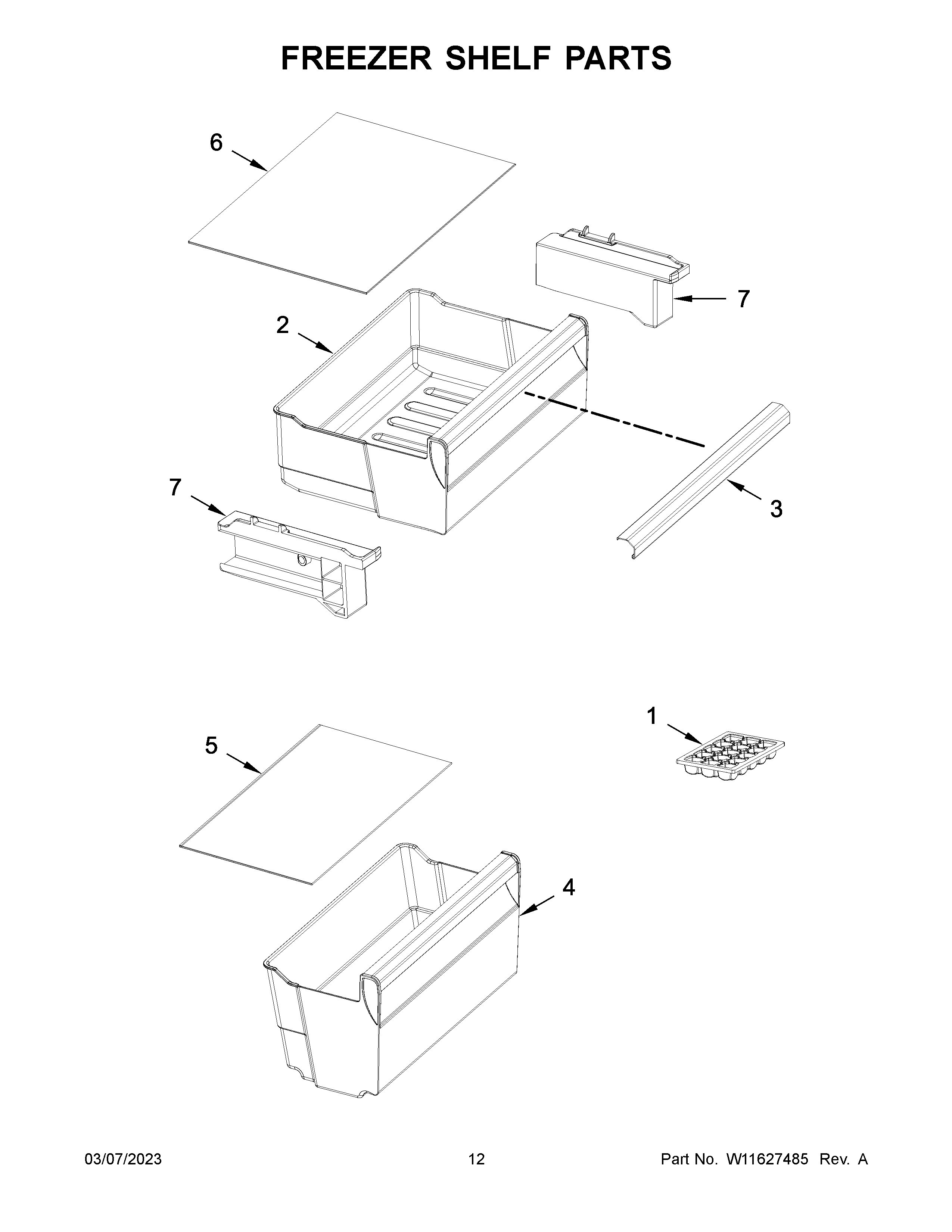

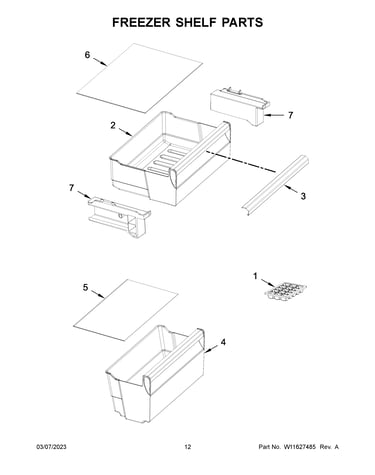

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Jenn-air Refrigerator Freezer Door W10753820
#1

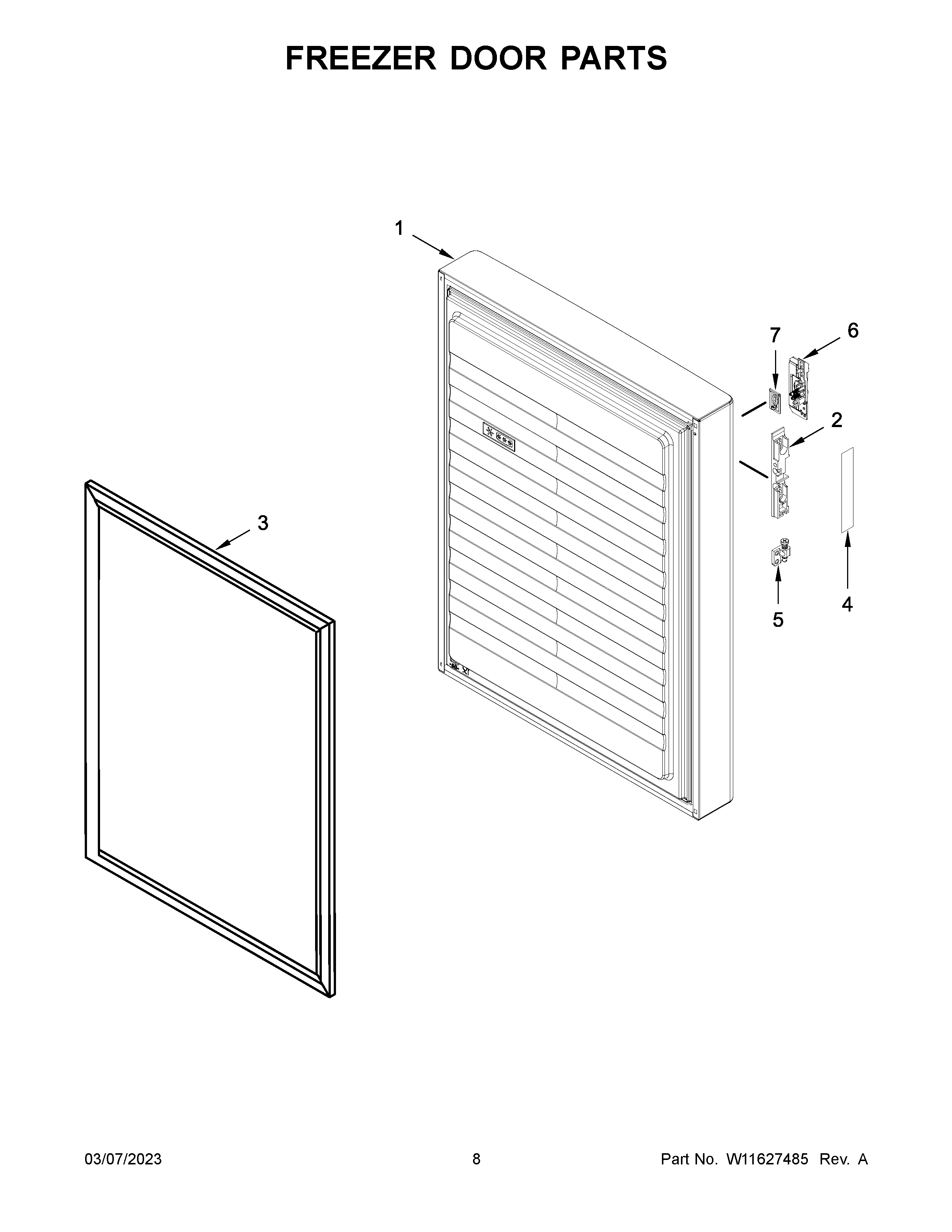

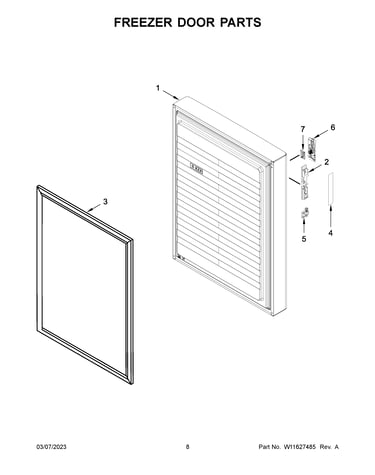

Freezer door parts diagram

Jenn-air refrigerator freezer door

Part #W10753820

$314.86
In Stock
Jenn-air Shelf, Bottle W11387299
#6

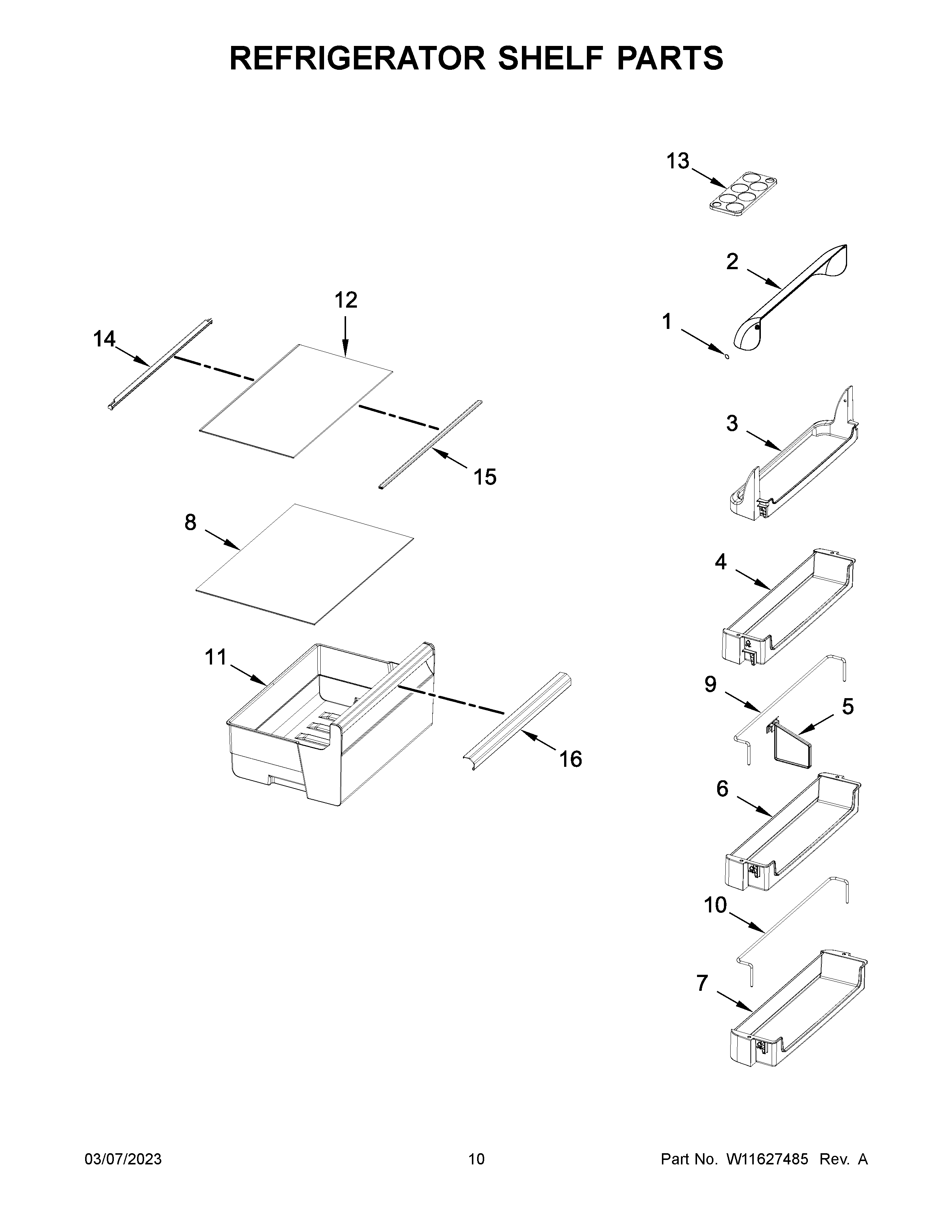

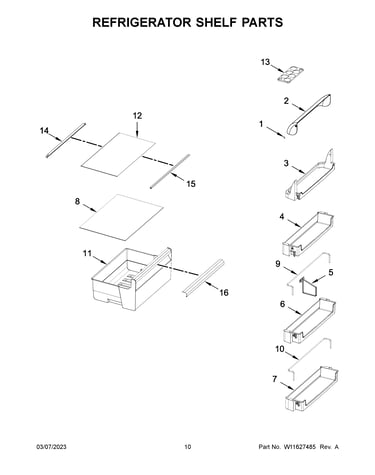

Refrigerator shelf parts diagram

Jenn-air shelf, bottle

Part #W11387299

$105.04
In Stock
Jenn-air Valve Assemb W11381660
#3

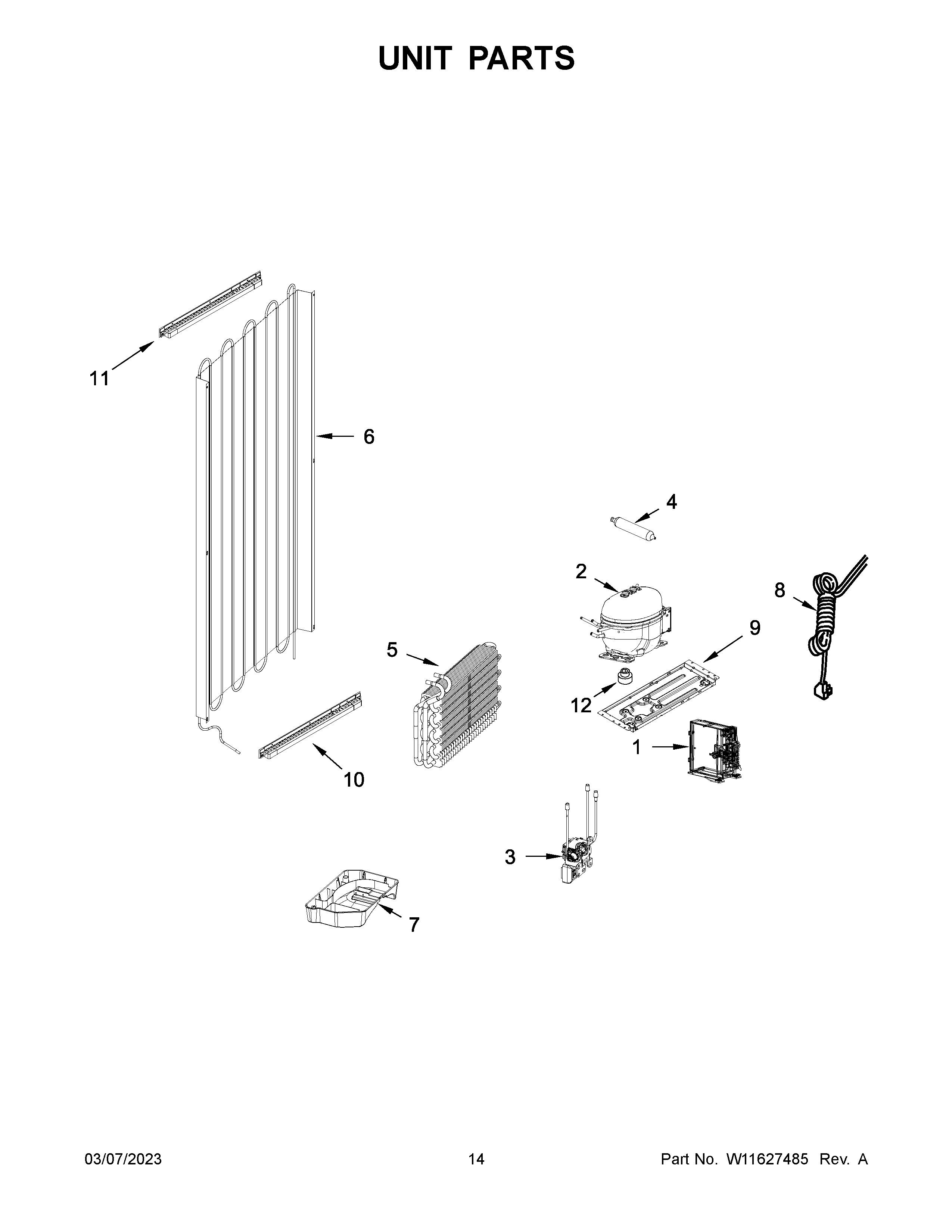

Unit parts diagram

Jenn-air valve assemb

Part #W11381660

$104.40
In Stock
Jenn-air Refrigerator Air Conveyor W10762427
#12

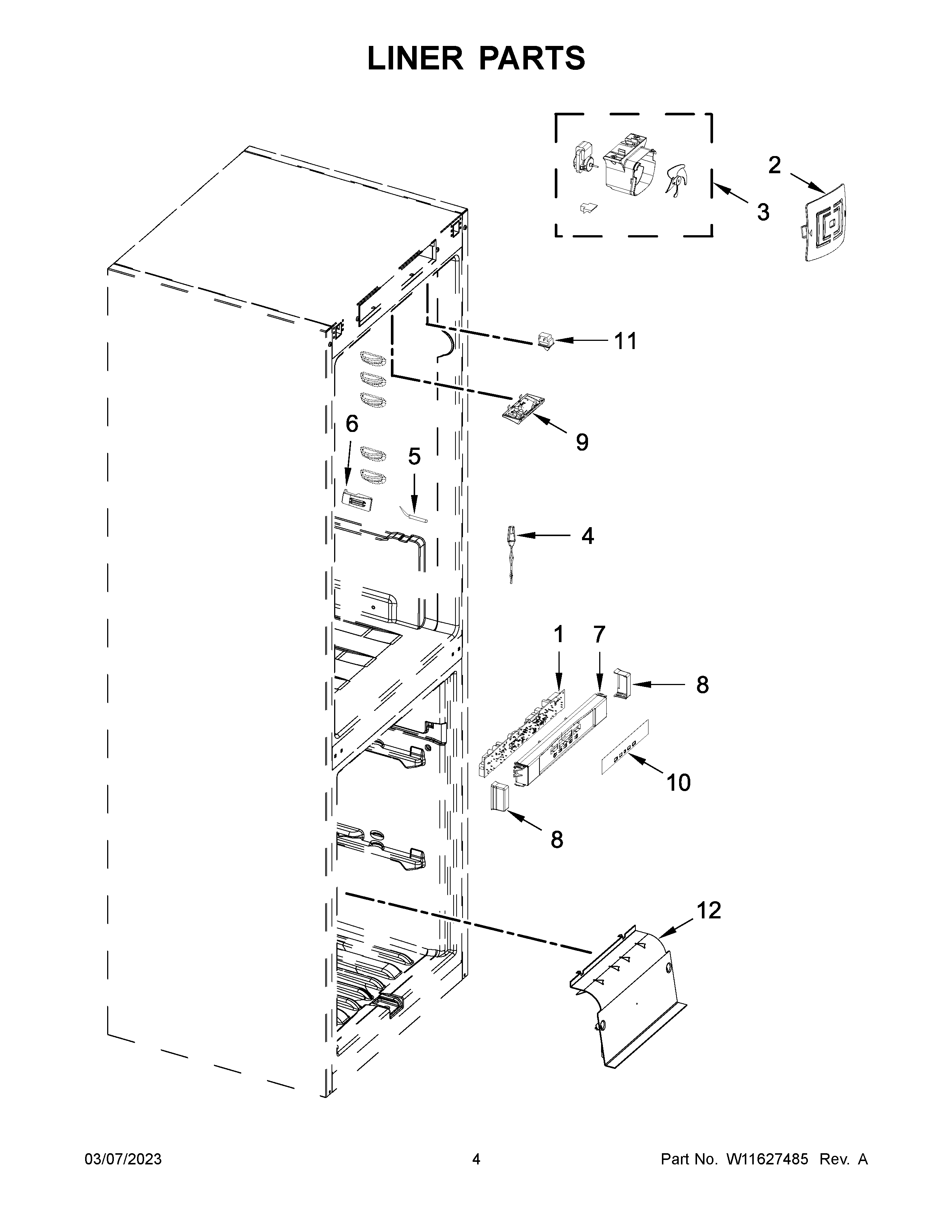

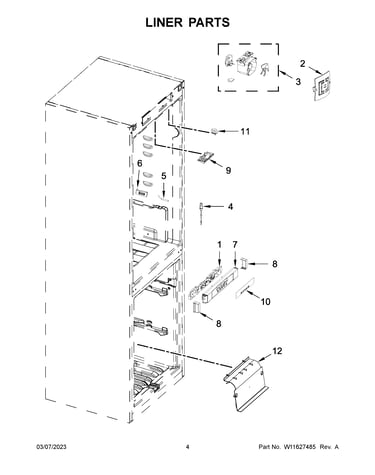

Liner parts diagram

Jenn-air refrigerator air conveyor

Part #W10762427

$41.36
In Stock
Jenn-air Refrigerator Cover Screw W10804407
#7

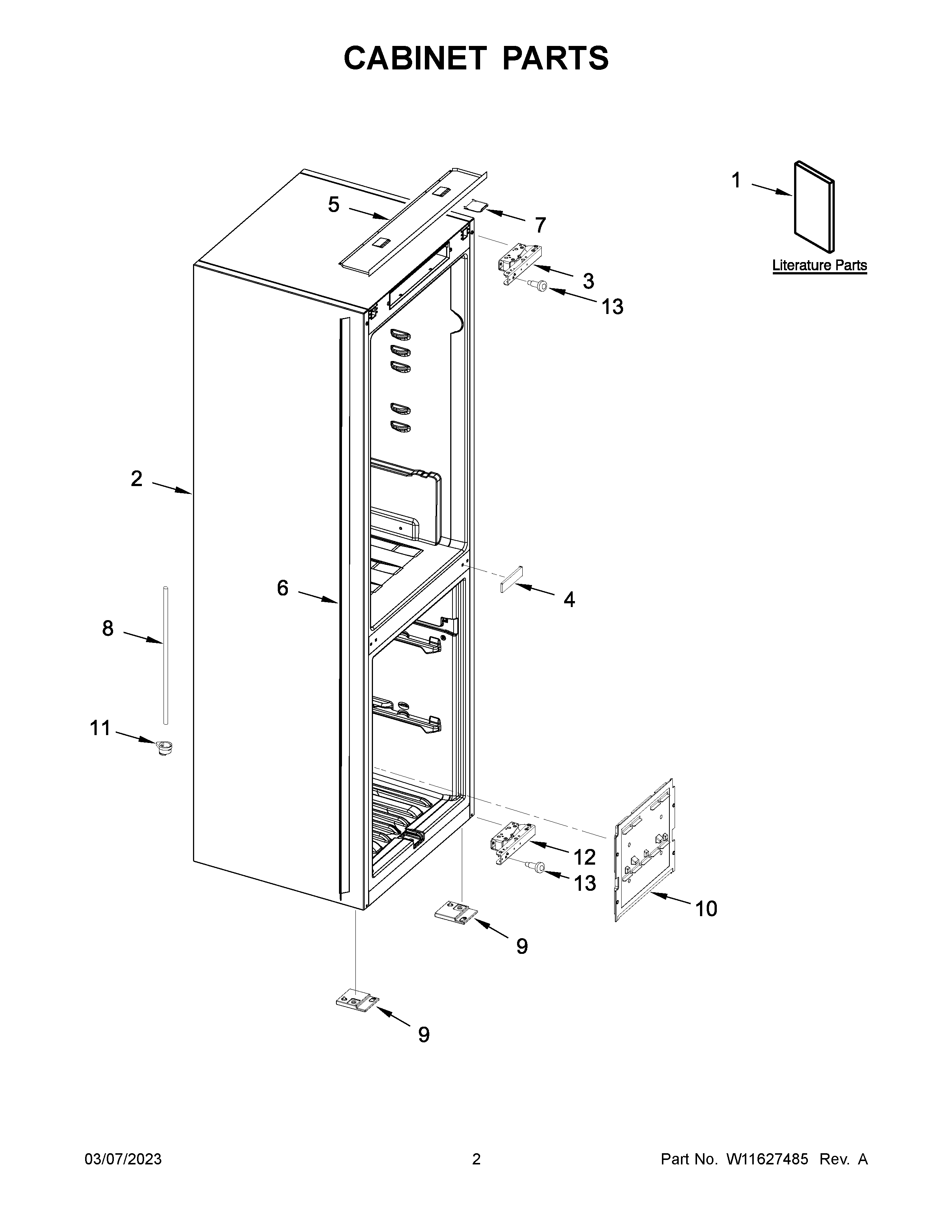

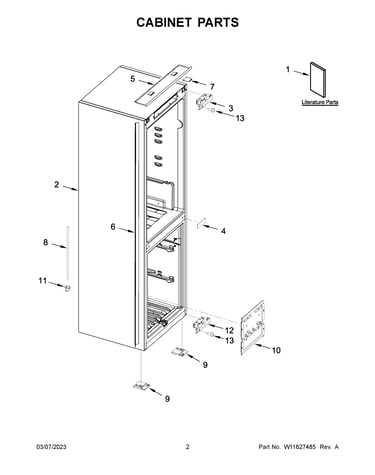

Cabinet parts diagram

Jenn-air refrigerator cover screw

Part #W10804407

$18.00
In Stock
Jenn-air Divider, Door Bin W10804390
#5

Refrigerator shelf parts diagram

Jenn-air divider, door bin

Part #W10804390

$19.43
In Stock
Jenn-air Refrigerator Led Assembly W10398001
#9

Liner parts diagram

Jenn-air refrigerator led assembly

Part #W10398001

$48.31
In Stock
Jenn-air Tray, Evaporation W10756248
#7

Unit parts diagram

Jenn-air tray, evaporation

Part #W10756248

$31.22
In Stock
Jenn-air Kit, Service Sensor W10804410
#5

Liner parts diagram

Jenn-air kit, service sensor

Part #W10804410

$46.62
In Stock
Jenn-air Refrigerator Crisper Trim W10804394
#16

Refrigerator shelf parts diagram

Jenn-air refrigerator crisper trim

Part #W10804394

$29.13
In Stock
