Model # FV4000XS1 Official Whirlpool upright vacuum
Here are the diagrams and repair parts for Official Whirlpool FV4000XS1 upright vacuum, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

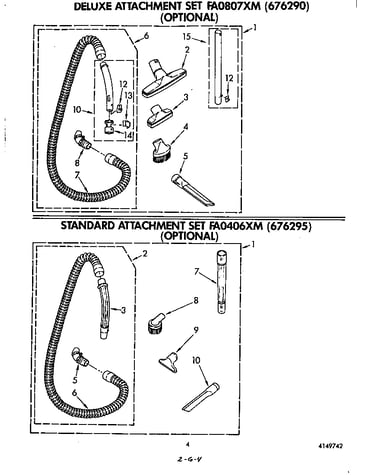

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 119 parts |
#17

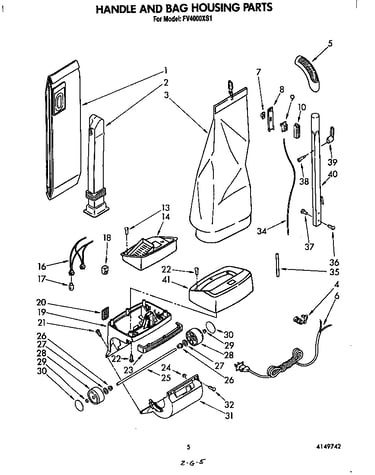

Handle and bag housing diagram
Light bulb
Part #745362
Replaced by #5248
?
Manufacturer substitution
This part replaces 745362. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
#5

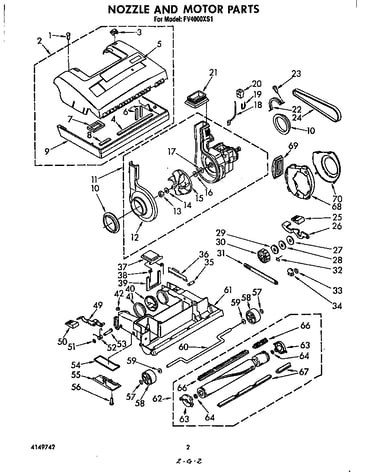

Nozzle and motor diagram
Nameplate
Part #4148913
The manufacturer no longer makes this part, and there's no substitute part
#52
Nozzle and motor diagram
Spring
Part #4147993
The manufacturer no longer makes this part, and there's no substitute part
#16
Handle and bag housing diagram
Bulb skt asy
Part #745132
The manufacturer no longer makes this part, and there's no substitute part
#61
Nozzle and motor diagram
Nozzle base
Part #4148216
The manufacturer no longer makes this part, and there's no substitute part
#34
Nozzle and motor diagram
Rocker
Part #744648
The manufacturer no longer makes this part, and there's no substitute part
#34B
Handle and bag housing diagram
Lead wire
Part #745101
The manufacturer no longer makes this part, and there's no substitute part
#41
Handle and bag housing diagram
Support
Part #744593
The manufacturer no longer makes this part, and there's no substitute part
Clip
Part #681689
The manufacturer no longer makes this part, and there's no substitute part
#37
Nozzle and motor diagram
Door port
Part #744742
The manufacturer no longer makes this part, and there's no substitute part
