Eureka
Upright Vacuum

Model # 4352ET Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4352ET upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

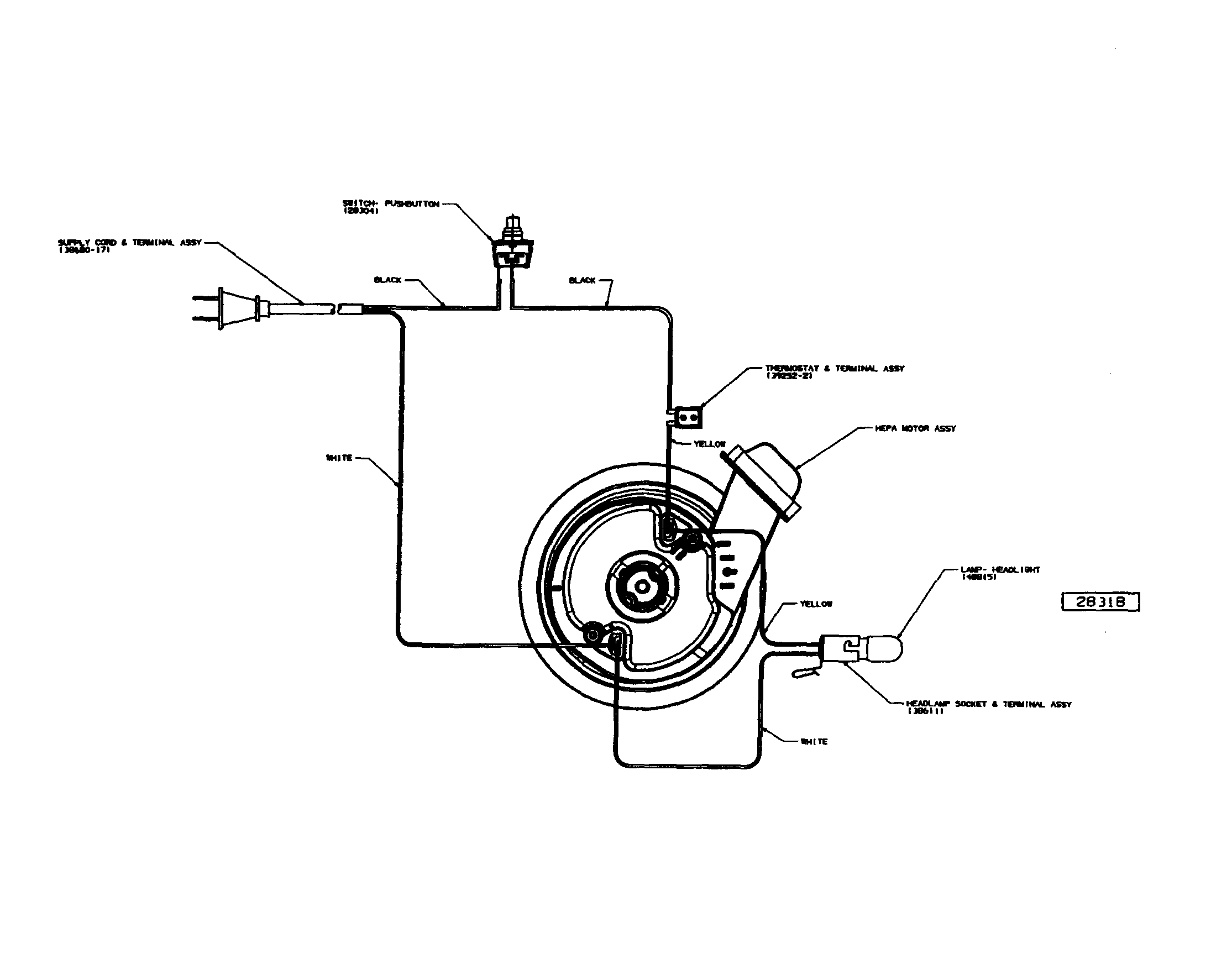

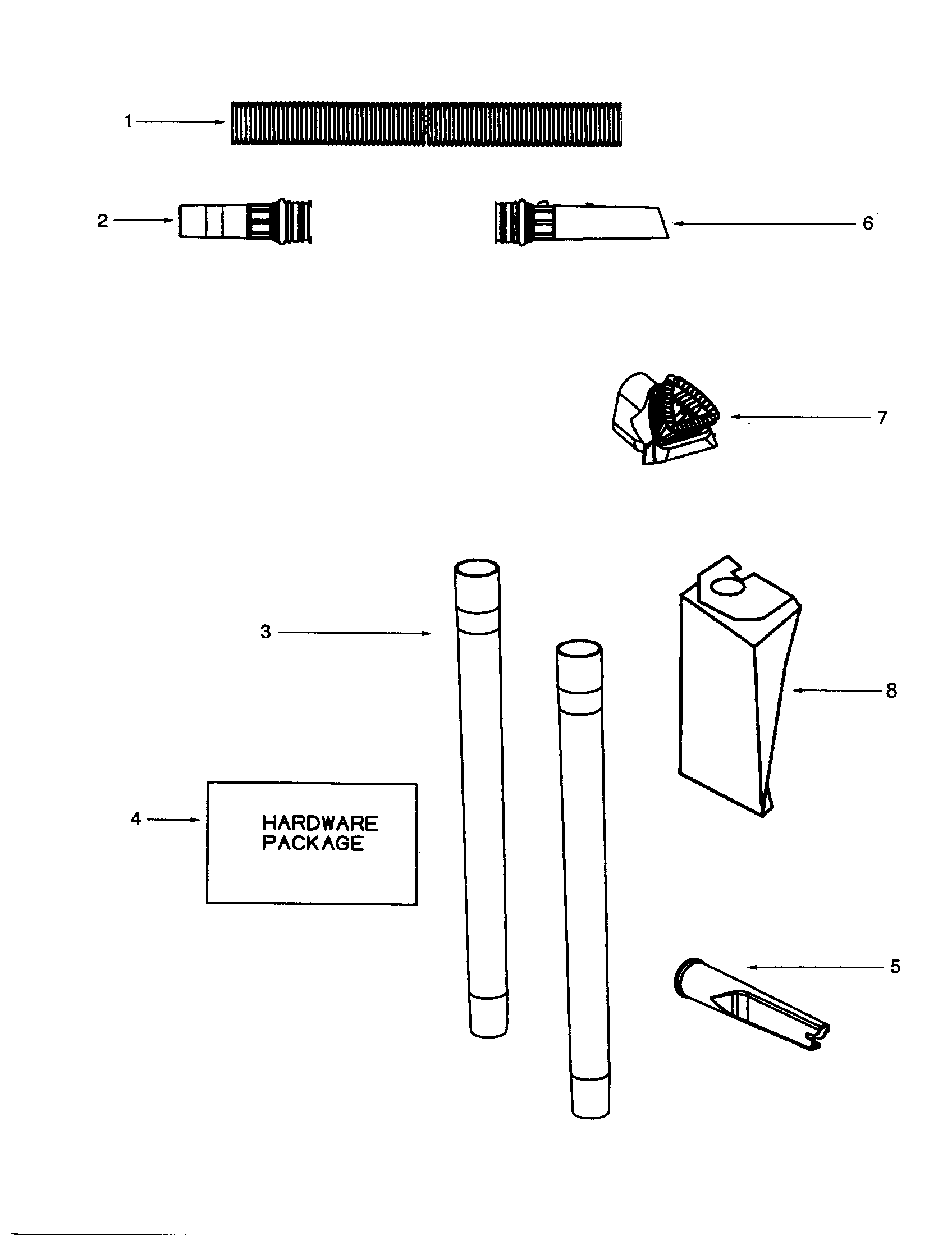

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |

Gasket 58506-1
#5

Hood assembly diagram

Gasket

Part #58506-1

The manufacturer no longer makes this part, and there's no substitute part

Lens 15072-313N
#12

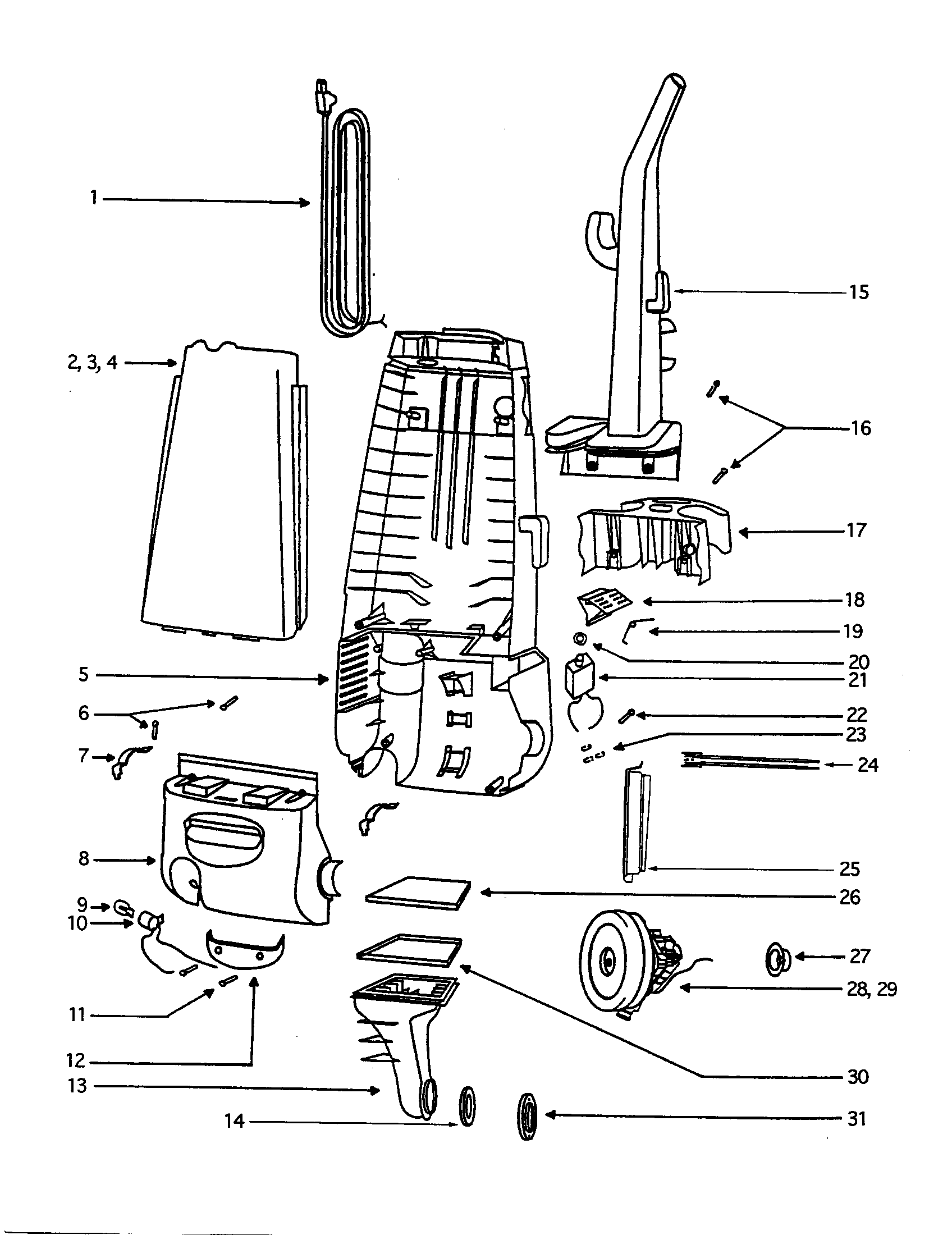

Bag cover assembly diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw, 10-pack 53197-1
Carpet cleaner screw, 10-pack

Part #53197-1

The manufacturer no longer makes this part, and there's no substitute part

Motor Shield 38688
#28C

Bag cover assembly diagram

Motor shield

Part #38688

The manufacturer no longer makes this part, and there's no substitute part

Gasket 38613
#4

Bag cover assembly diagram

Gasket

Part #38613

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27962
#28A

Bag cover assembly diagram

Gasket

Part #27962

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 60068-2
#11

Bag cover assembly diagram

Vacuum screw, 10-pack

Part #60068-2

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 39252-2
#24

Bag cover assembly diagram

Thermostat

Part #39252-2

The manufacturer no longer makes this part, and there's no substitute part

Eureka Cover Bag 54936-53
#2

Bag cover assembly diagram

Eureka cover bag

Part #54936-53

The manufacturer no longer makes this part, and there's no substitute part

Shield 38696
#10A

Bag cover assembly diagram

Shield

Part #38696

The manufacturer no longer makes this part, and there's no substitute part
