Model # CL700-4 Official InSinkErator dishwasher

Here are the diagrams and repair parts for Official InSinkErator CL700-4 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

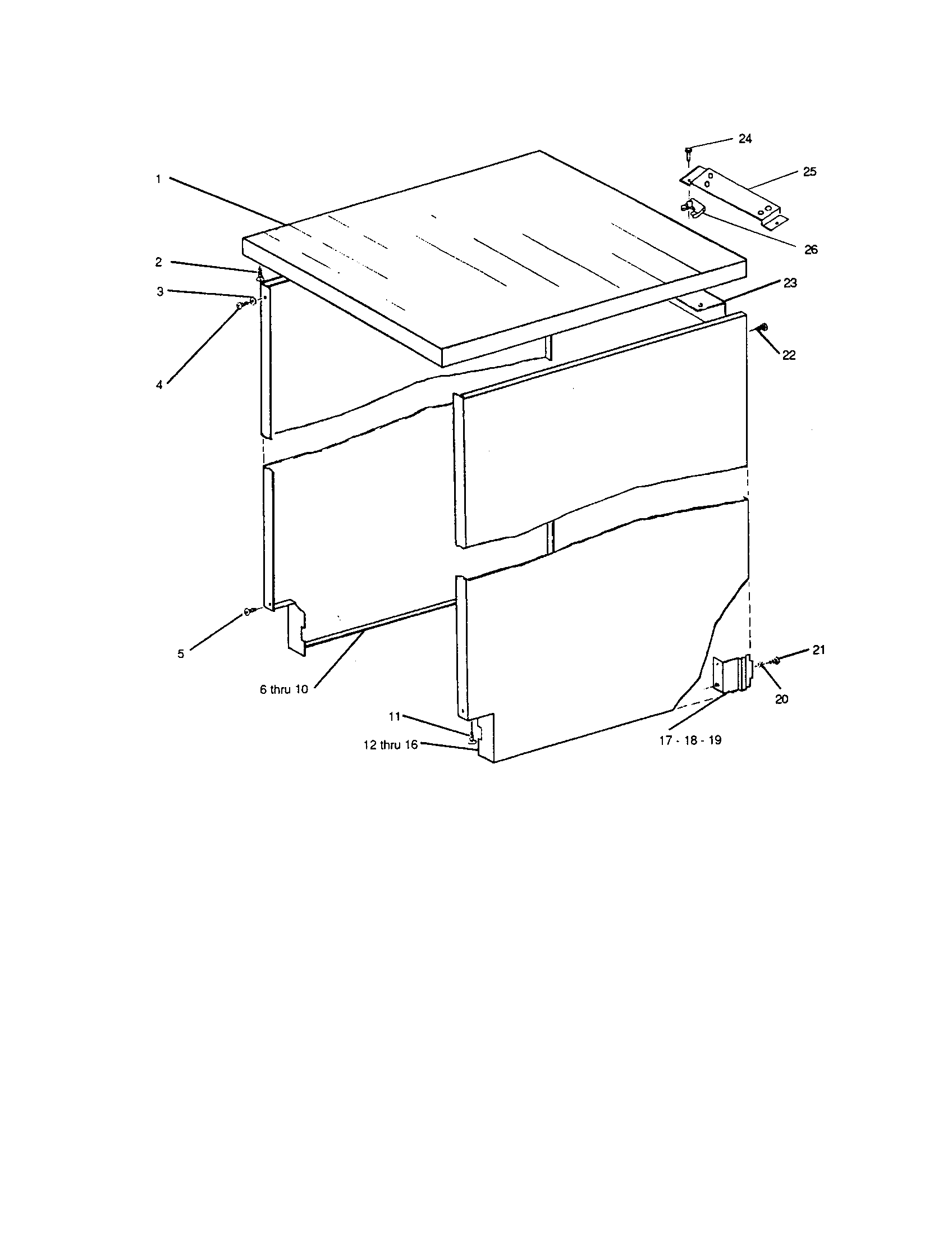

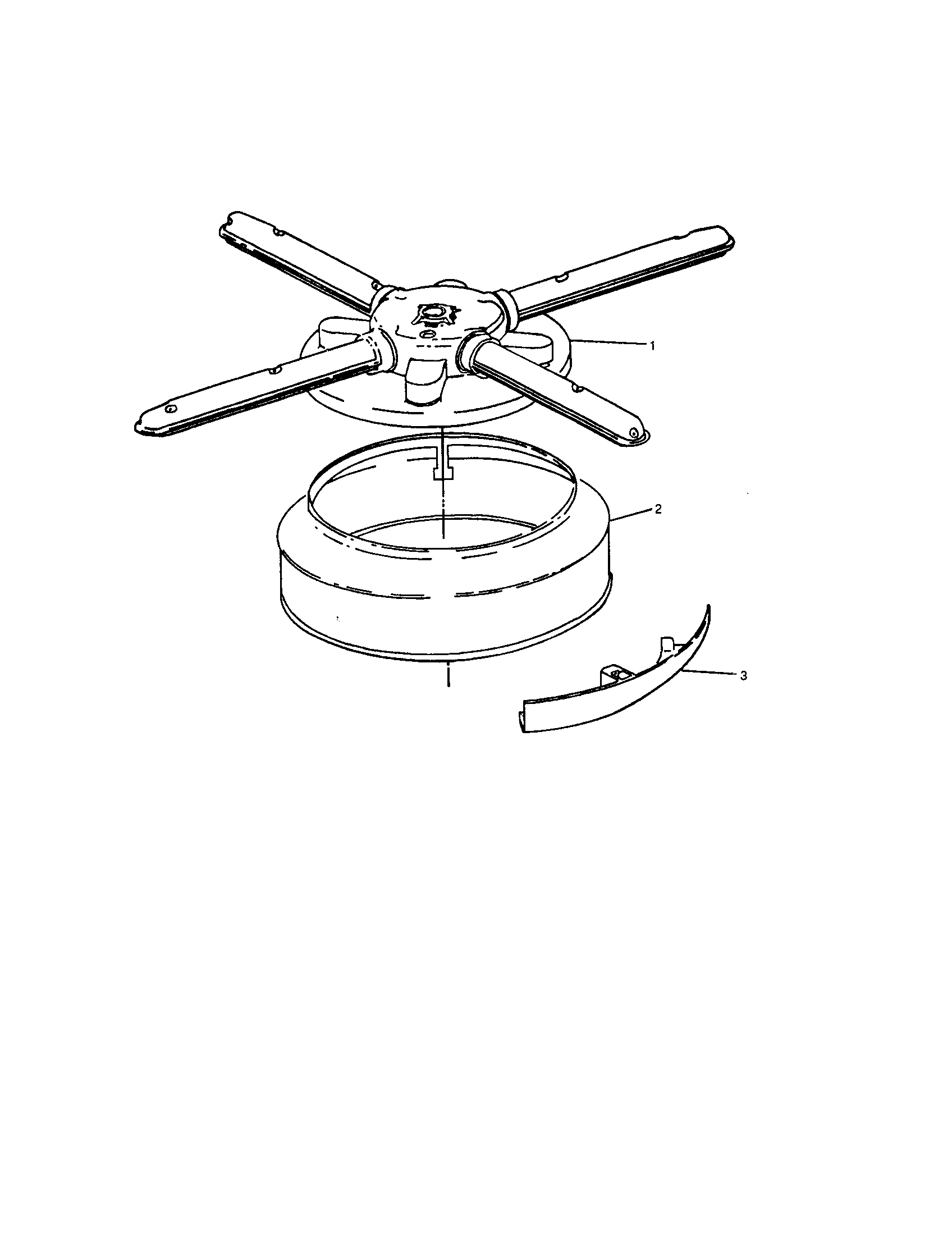

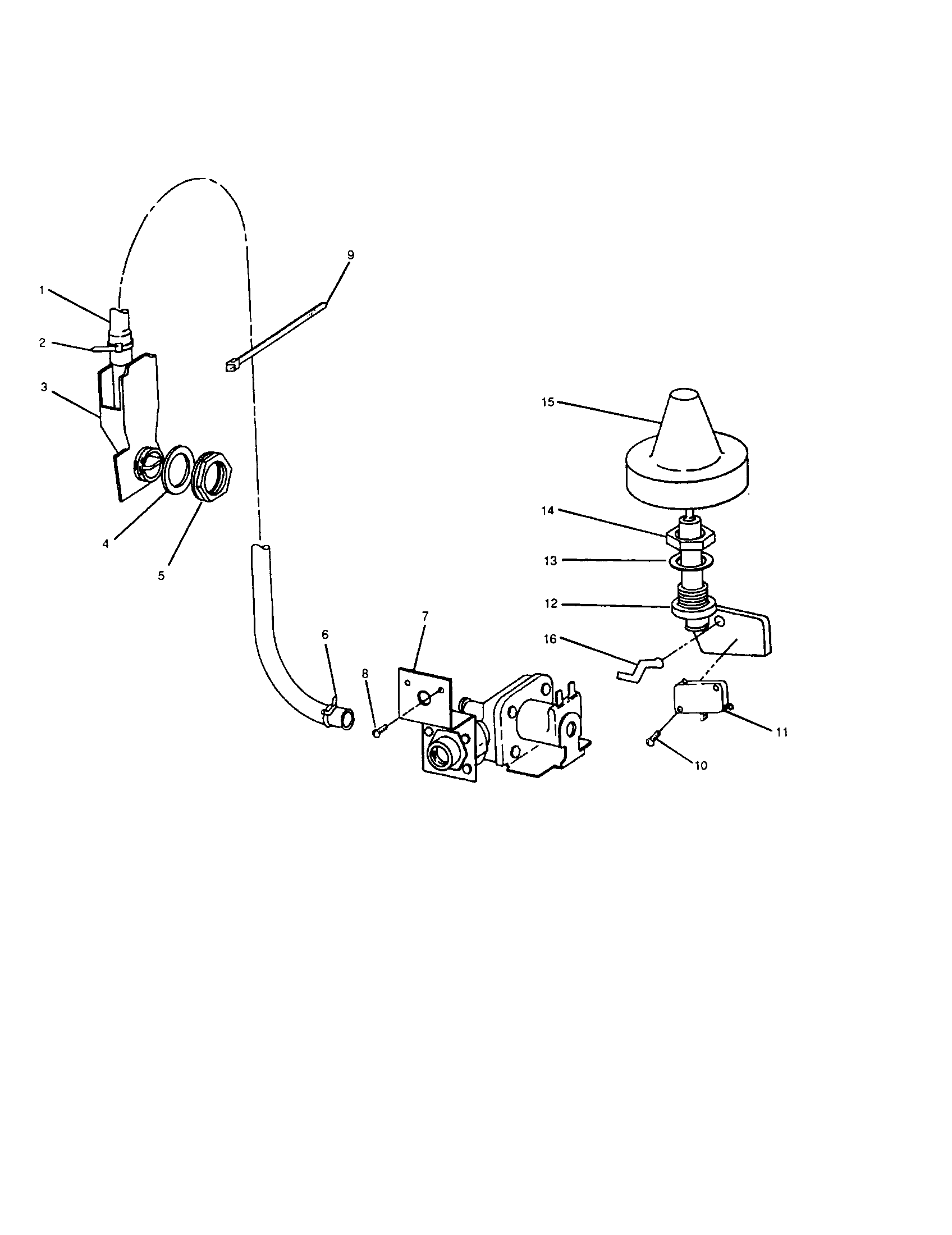

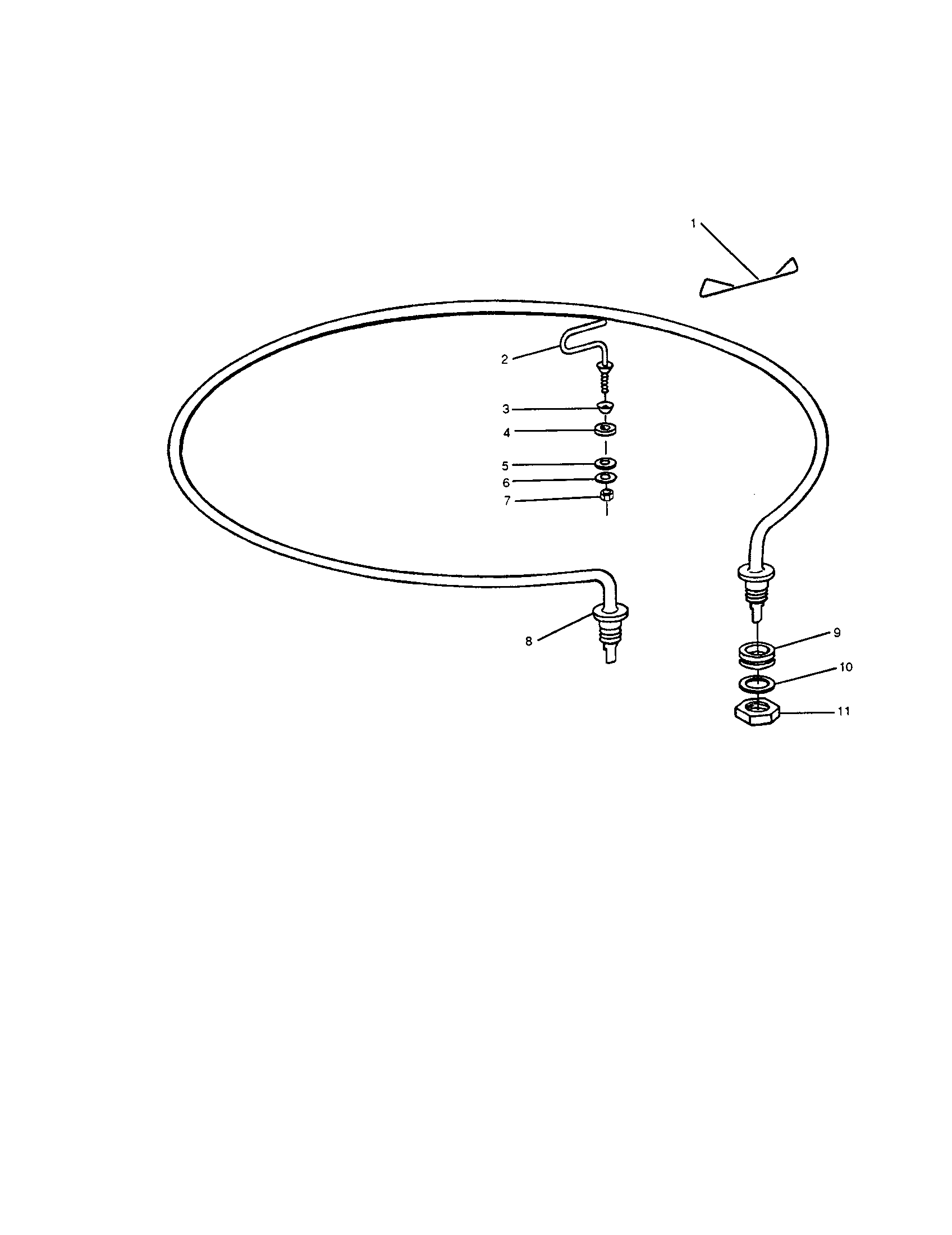

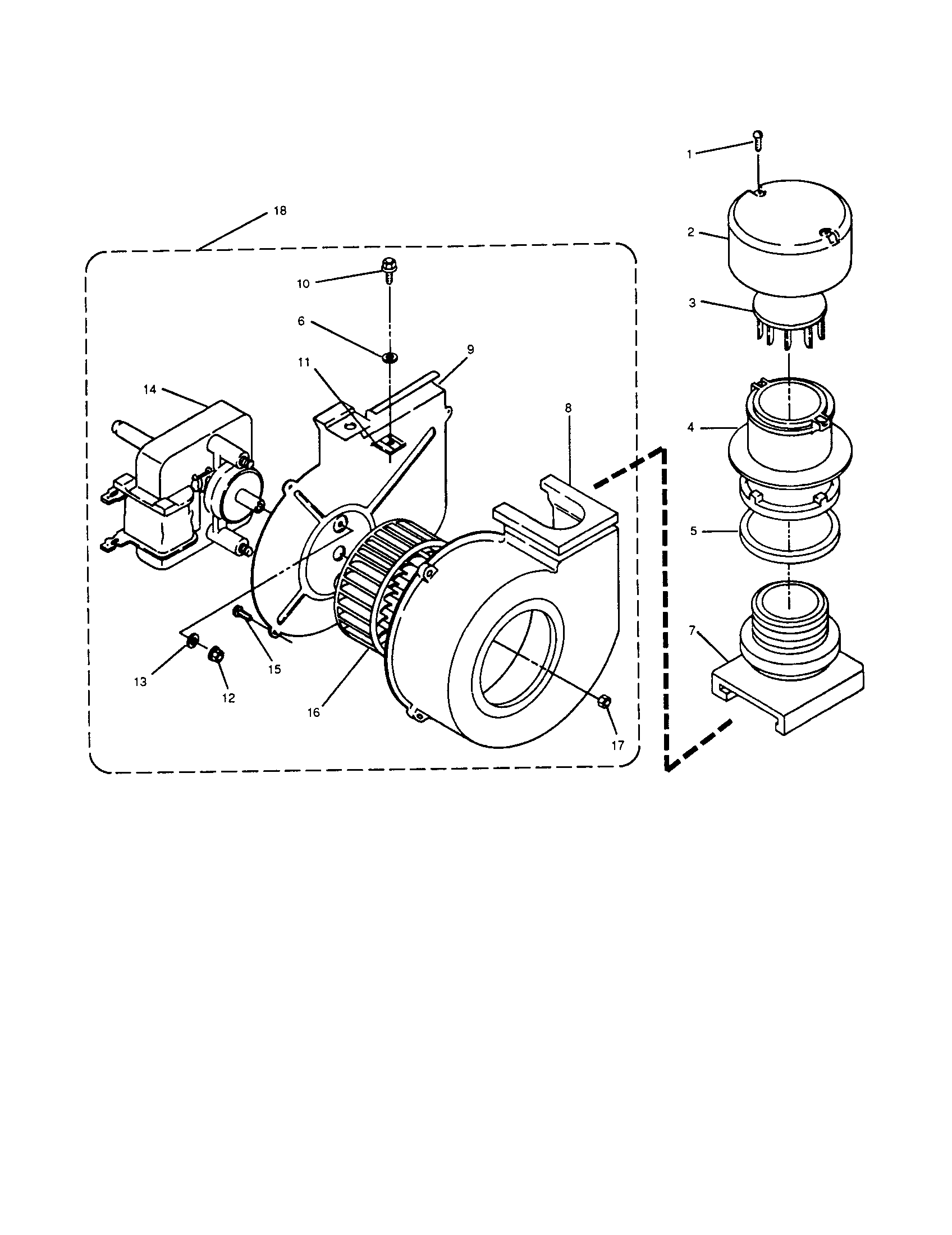

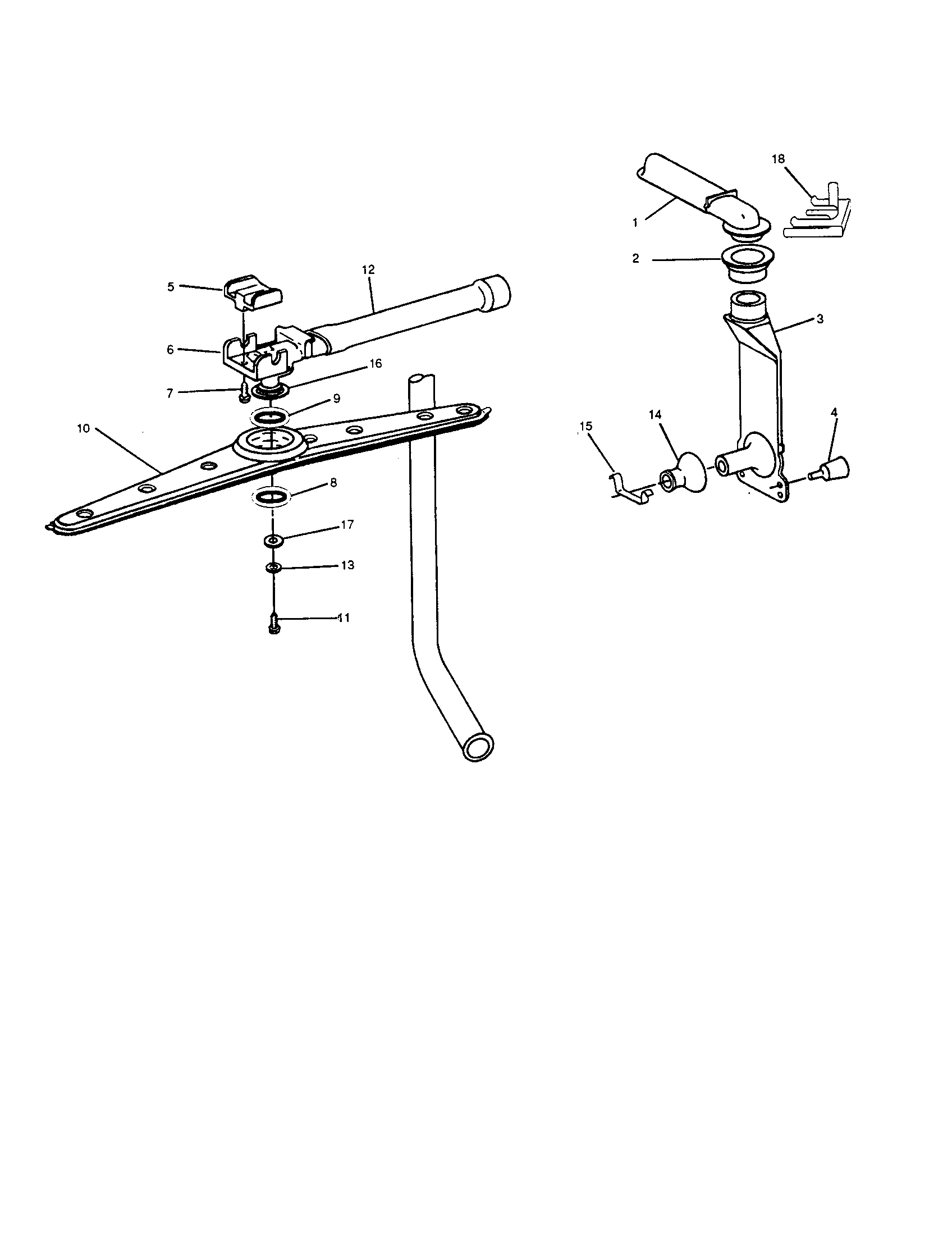

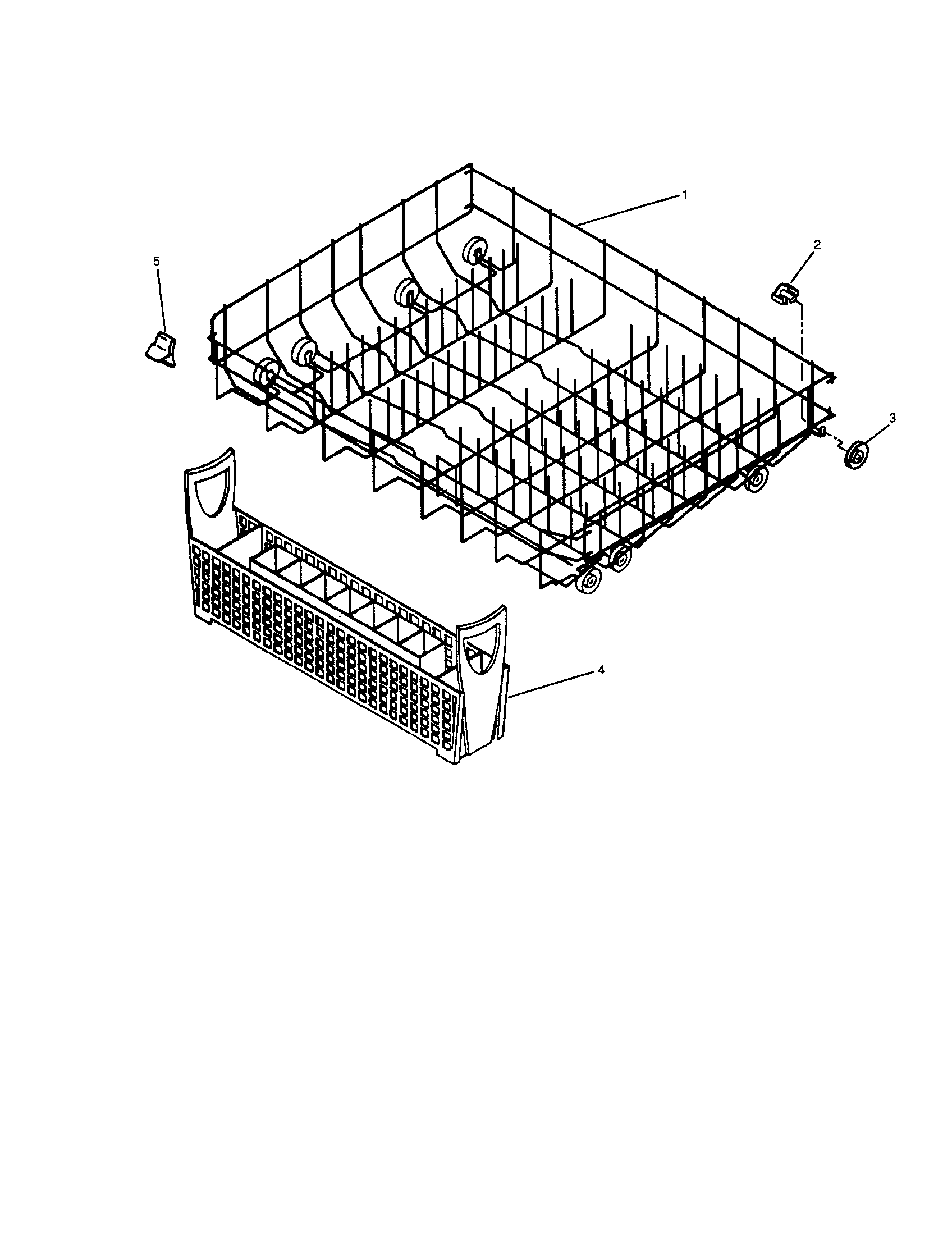

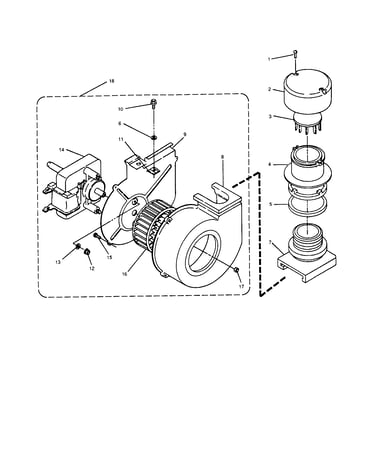

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |
Lift-receiver (l.h.) (not Shown) 51209
#9

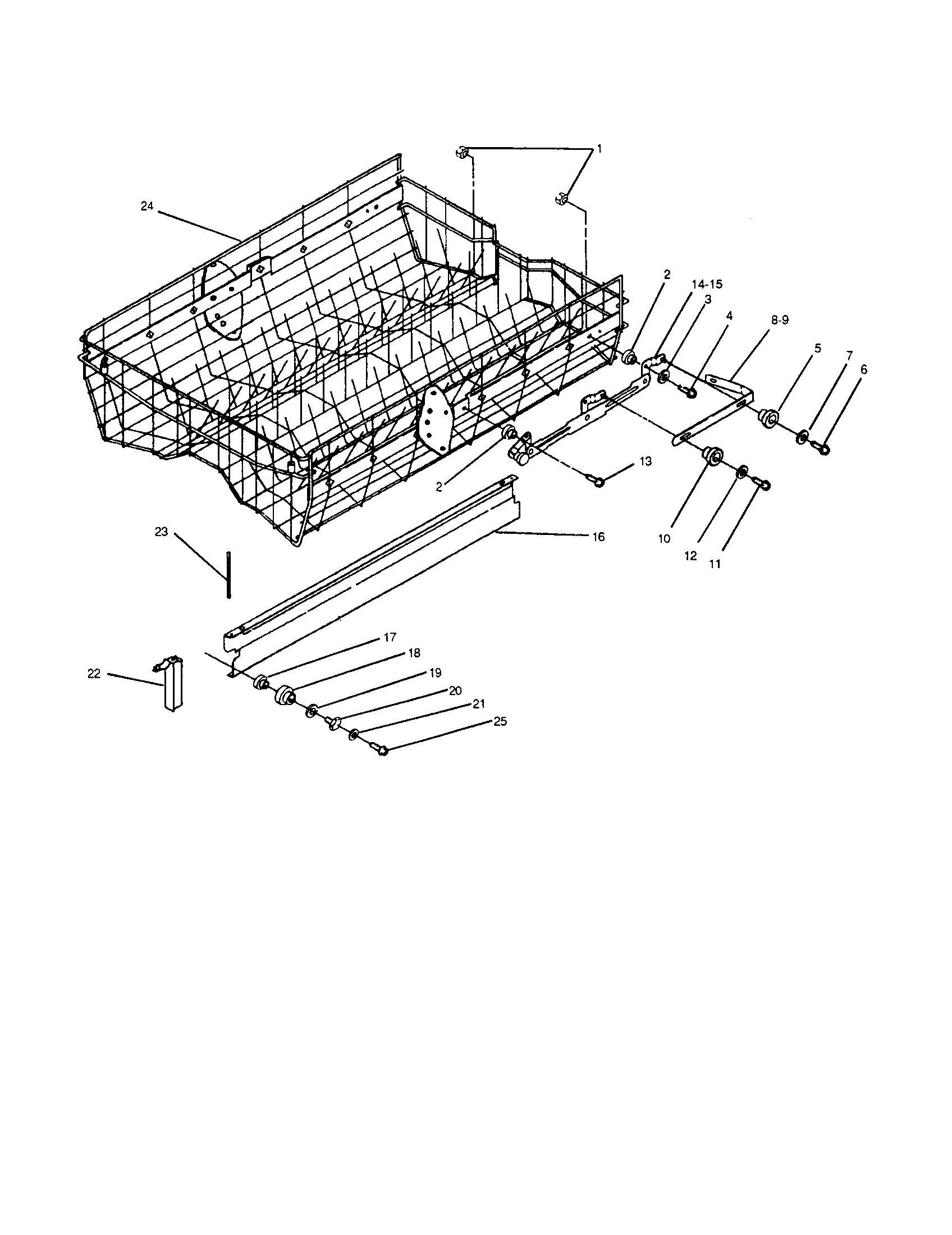

Upper rack and track diagram

Lift-receiver (l.h.) (not shown)

Part #51209

The manufacturer no longer makes this part, and there's no substitute part

Screw-special 10-32 51075
#4

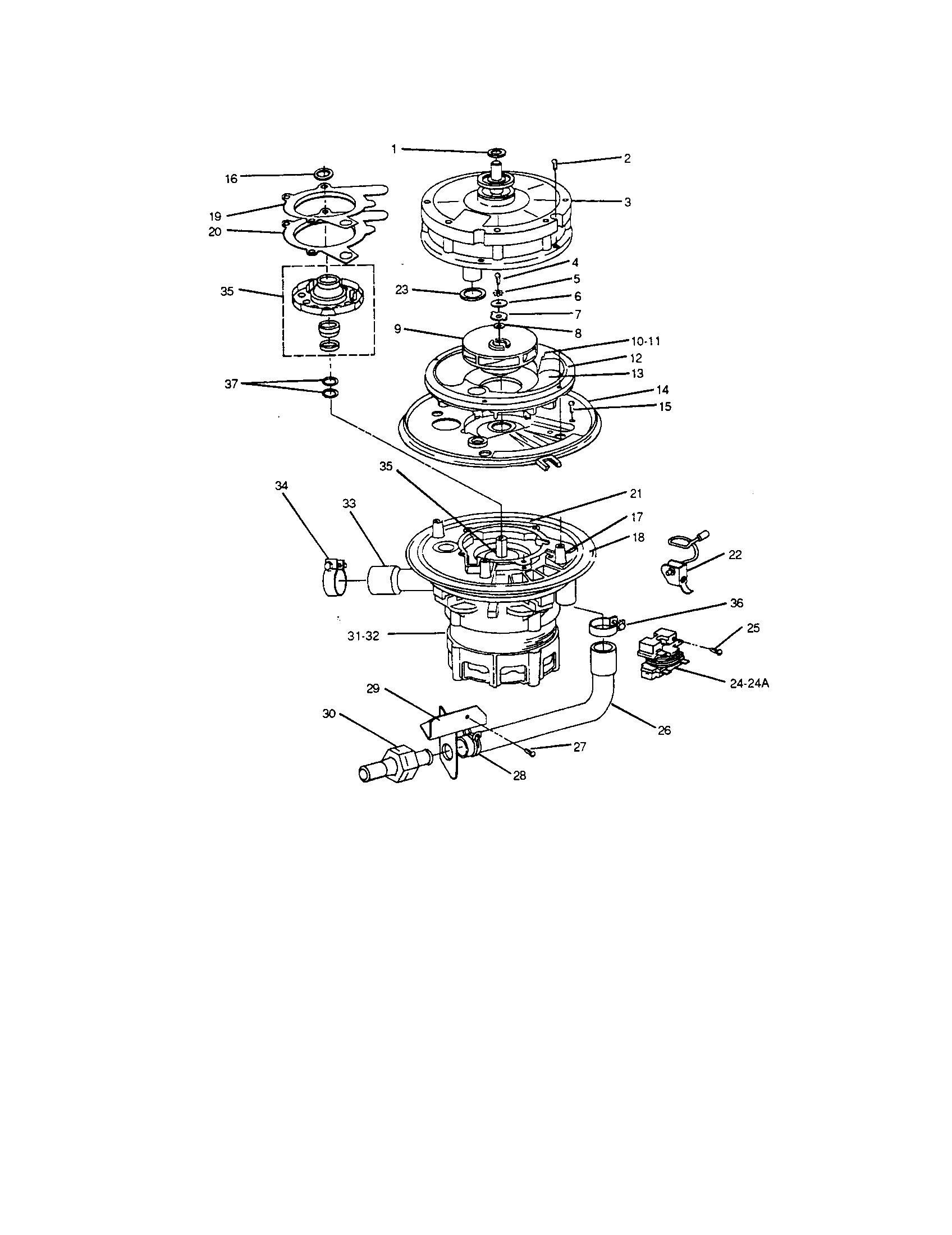

Wash and disposer/drain pump diagram

Screw-special 10-32

Part #51075

The manufacturer no longer makes this part, and there's no substitute part

"o" Ring 51078
#8

Wash and disposer/drain pump diagram

"o" ring

Part #51078

The manufacturer no longer makes this part, and there's no substitute part

Pump Cover 51074
#3

Wash and disposer/drain pump diagram

Pump cover

Part #51074

The manufacturer no longer makes this part, and there's no substitute part

Kit-front Panels Screws (includes Items 1, 4, 7, 10, 11 And 20) 51010
#0

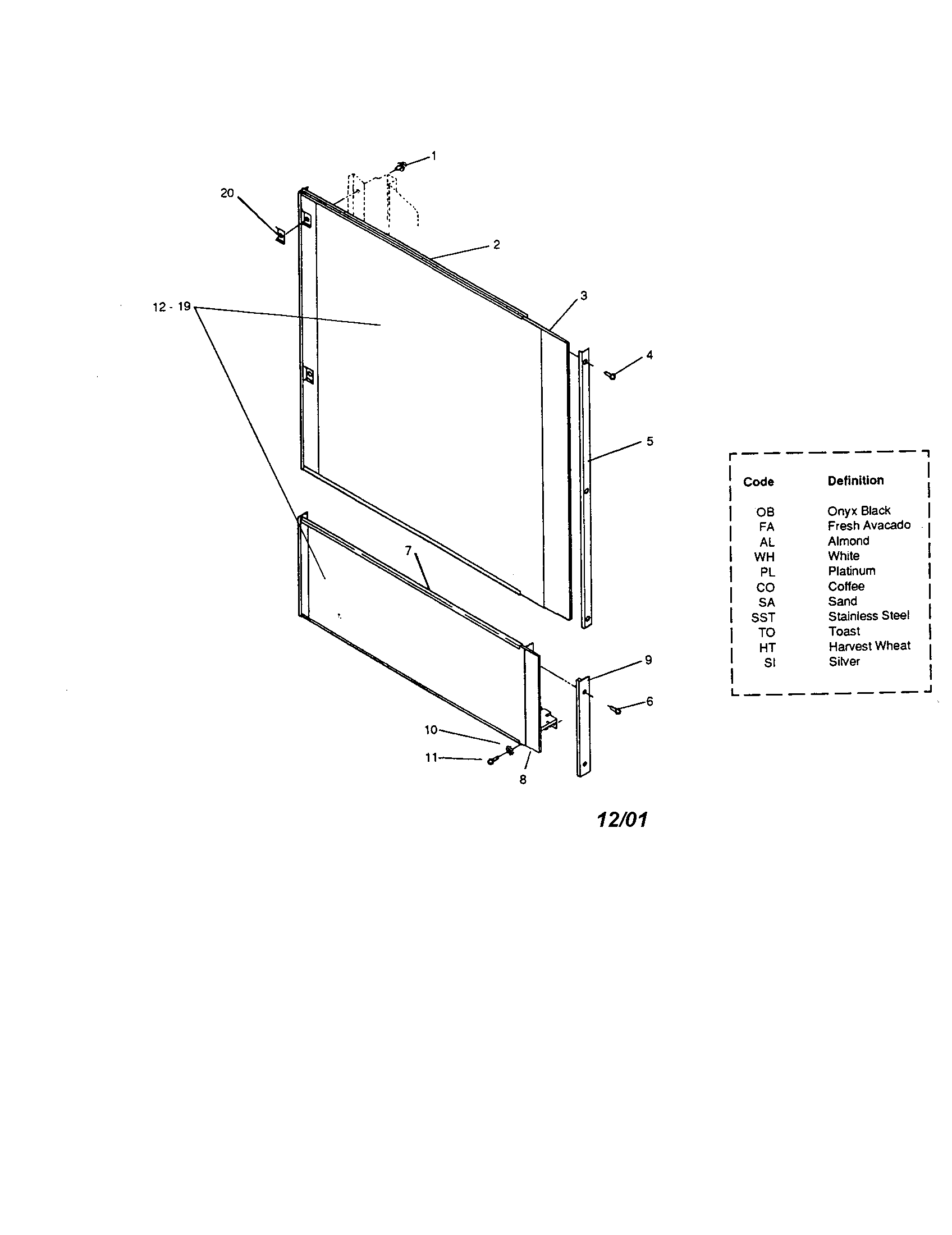

Front panel unit diagram

Kit-front panels screws (includes items 1, 4, 7, 10, 11 and 20)

Part #51010

The manufacturer no longer makes this part, and there's no substitute part

Mechanism 51330
#4

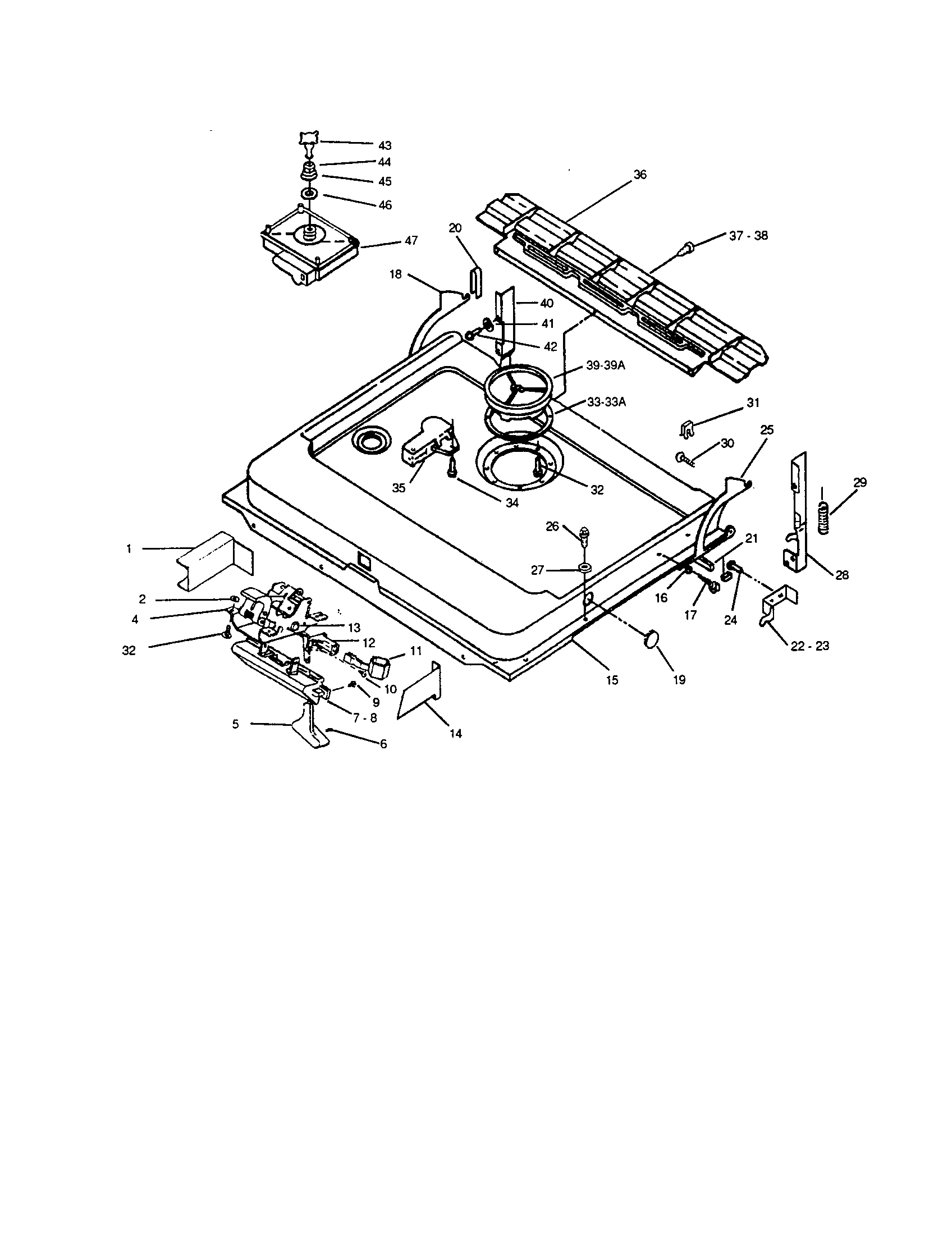

Door and latch unit diagram

Mechanism

Part #51330

The manufacturer no longer makes this part, and there's no substitute part

Self-tapping Screw (4) 51250
#1

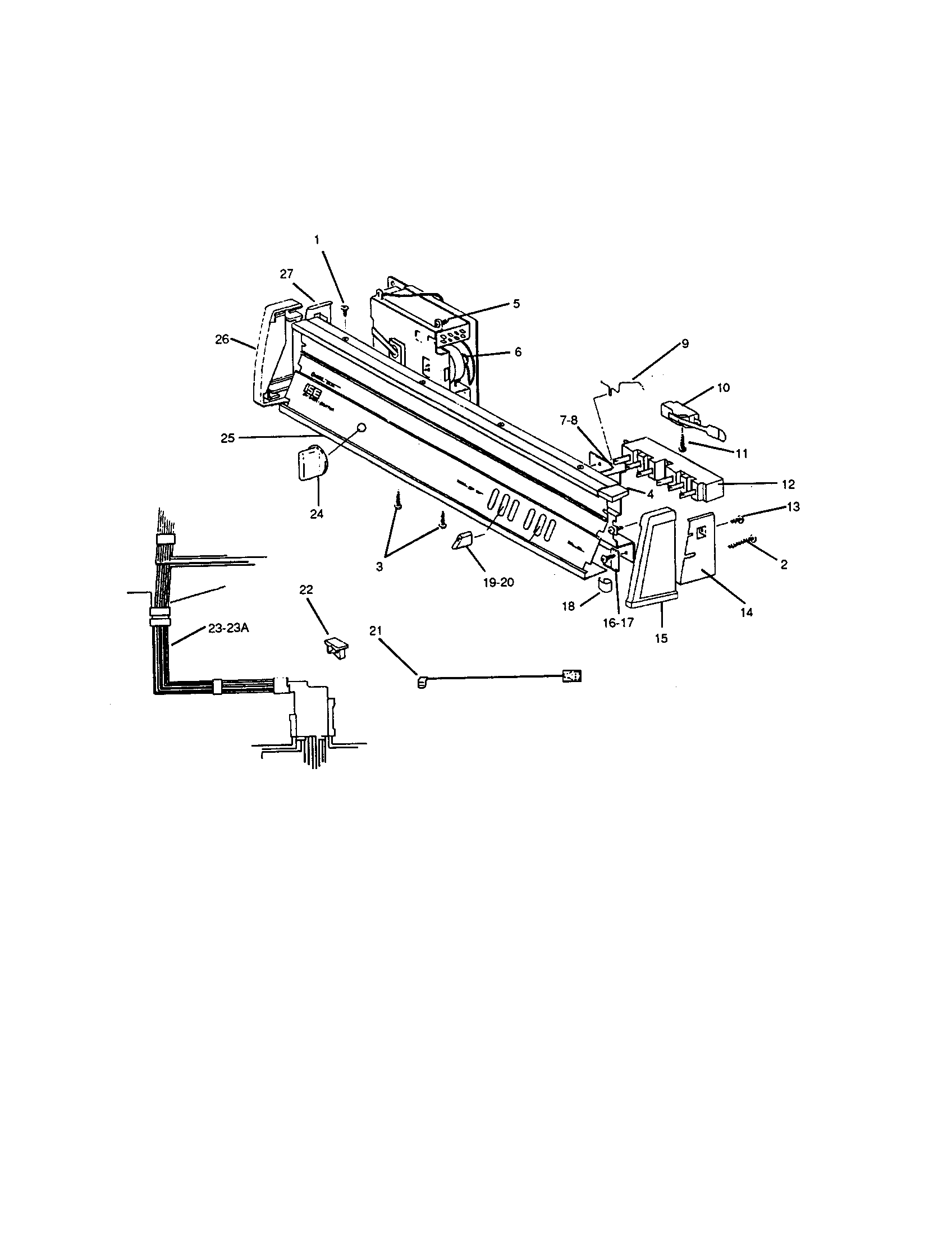

Control panel unit diagram

Self-tapping screw (4)

Part #51250

The manufacturer no longer makes this part, and there's no substitute part

Protector, Edge (2) 51473
#27

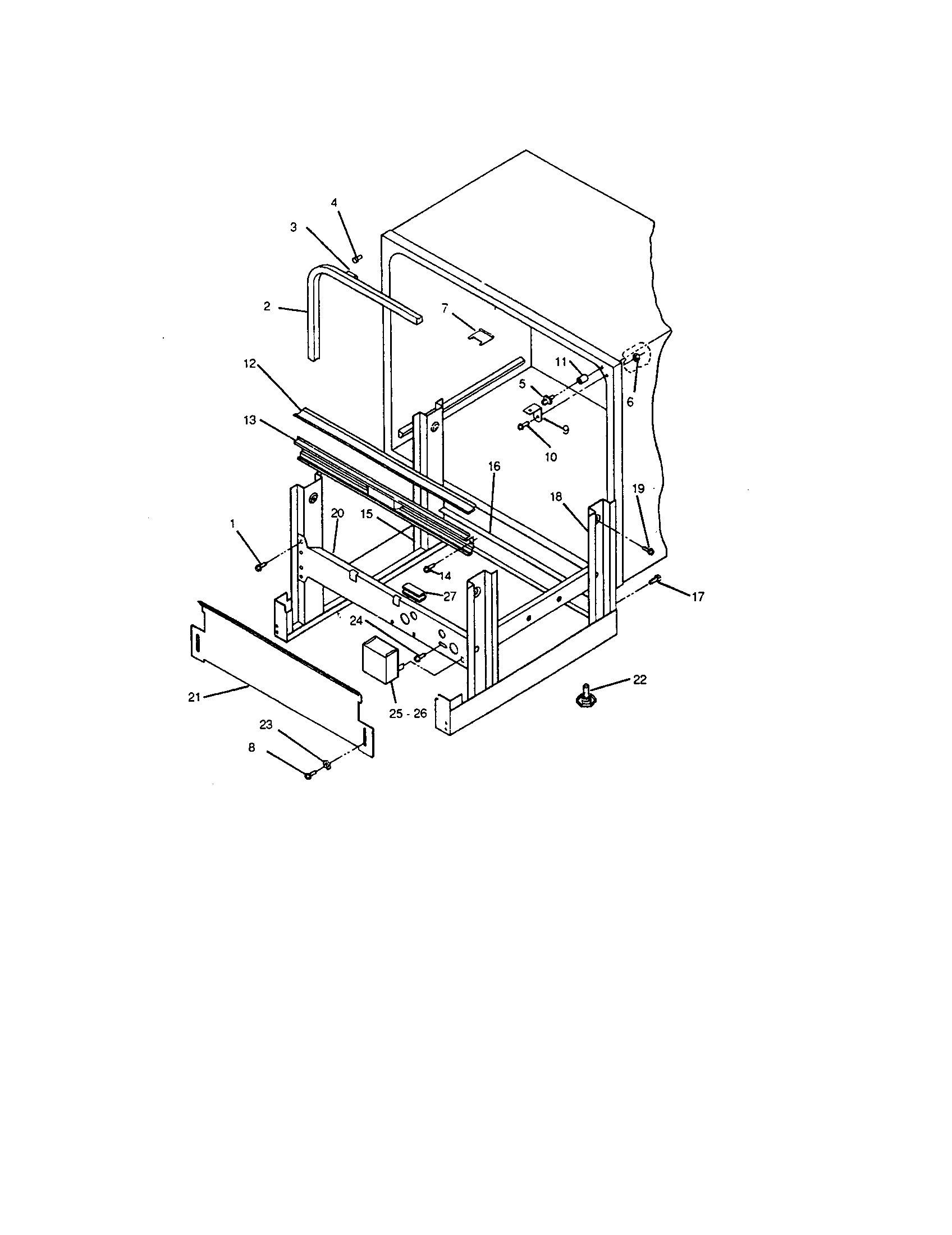

Frame and misc. diagram

Protector, edge (2)

Part #51473

The manufacturer no longer makes this part, and there's no substitute part

Plug 51158
#43

Door and latch unit diagram

Plug

Part #51158

The manufacturer no longer makes this part, and there's no substitute part

Reinforcement-end Cap (l.h.) 51329
#27

Control panel unit diagram

Reinforcement-end cap (l.h.)

Part #51329

The manufacturer no longer makes this part, and there's no substitute part
