Model # 79641392511 Official Kenmore washing machine

Here are the diagrams and repair parts for Official Kenmore 79641392511 washing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Washer Single-solenoid Water Inlet Valve (replaces 5220fr1280f, 5220fr2006l) 5220FR2006H
#F170

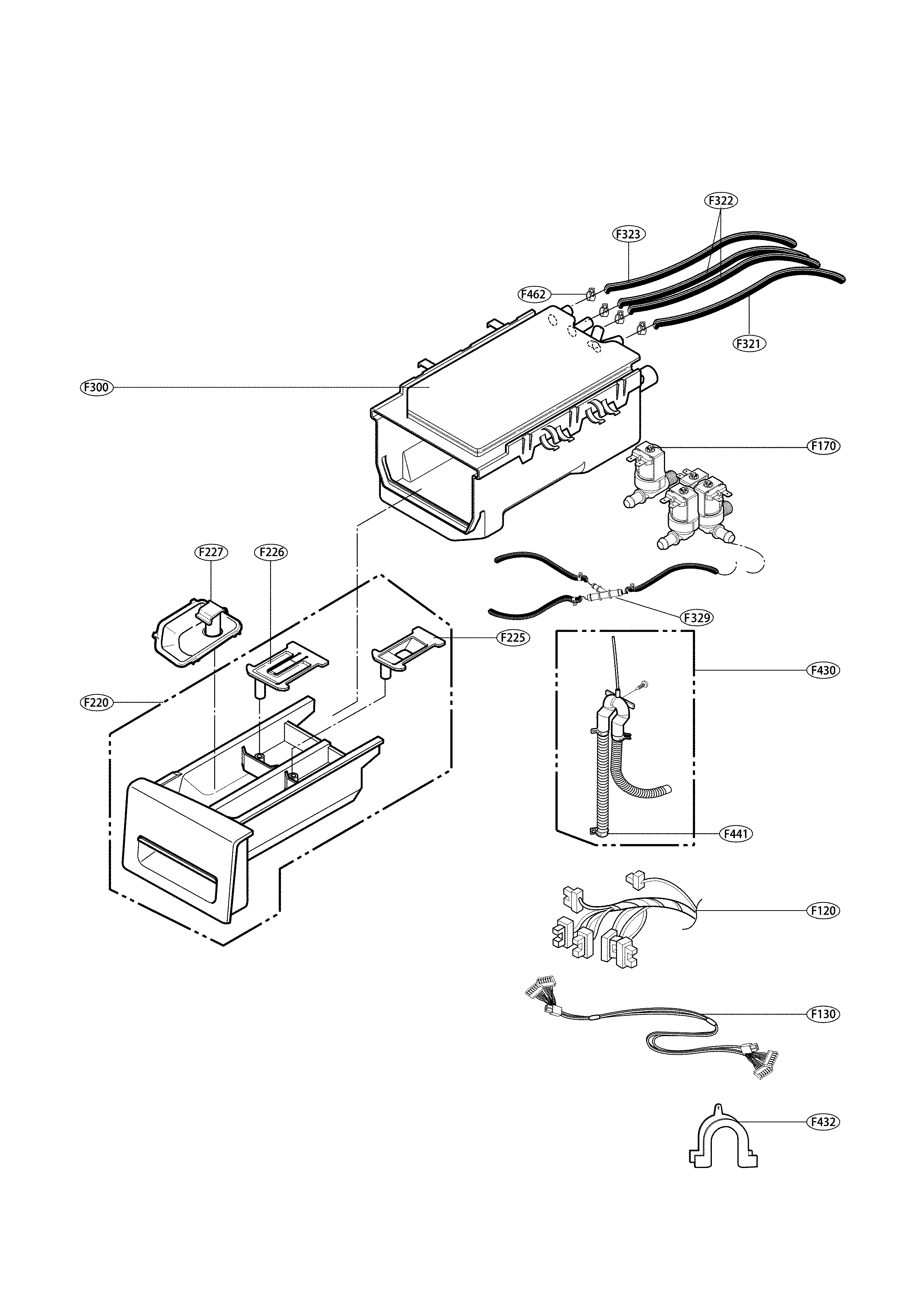

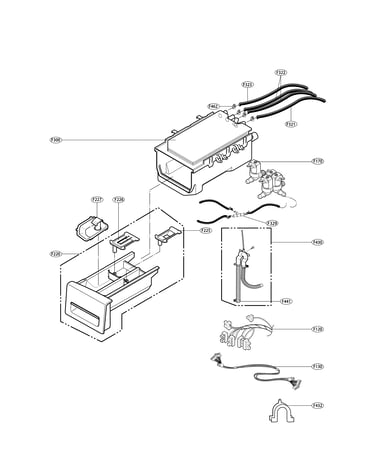

Dispenser parts diagram

Washer single-solenoid water inlet valve (replaces 5220fr1280f, 5220fr2006l)

Part #5220FR2006H

BEST SELLER
$20.53 |
23% OFF Phone Price : $26.53
In Stock
Washer Door Lock EBF61315802
#A440

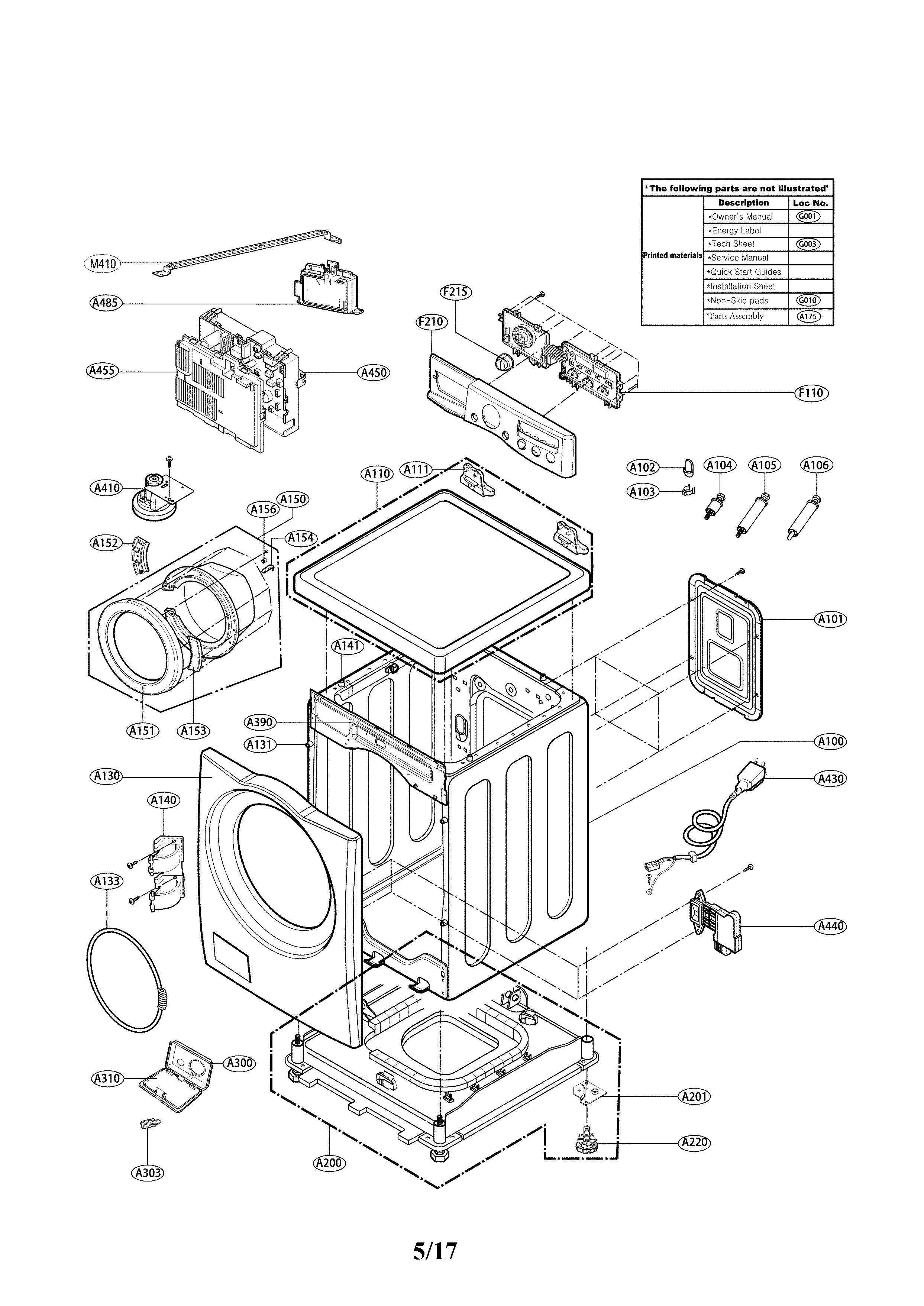

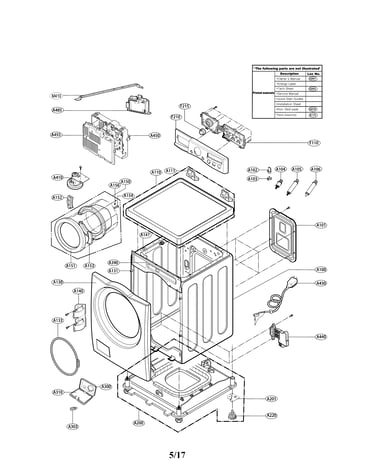

Cabinet and contorl panel parts diagram

Washer door lock

Part #EBF61315802

BEST SELLER
$92.28 |
6% OFF Was : $98.17
In Stock
Washer Magnetic Door Plunger (replaces Meg61961401) AGM73610701
Washer magnetic door plunger (replaces meg61961401)

Part #AGM73610701

BEST SELLER
$23.70 |
20% OFF Phone Price : $29.70
In Stock
Washer Door Lock Spring Holder MEG61961401
#A156

Cabinet and contorl panel parts diagram

Washer door lock spring holder

Part #MEG61961401

Replaced by #AGM73610701

?
Manufacturer substitution
This part replaces MEG61961401. Substitute parts can look different from the original.
BEST SELLER
$23.70 |
20% OFF Phone Price : $29.70
In Stock
Washer Shock Absorber (replaces Acv72909501) ACV72909503
#K610

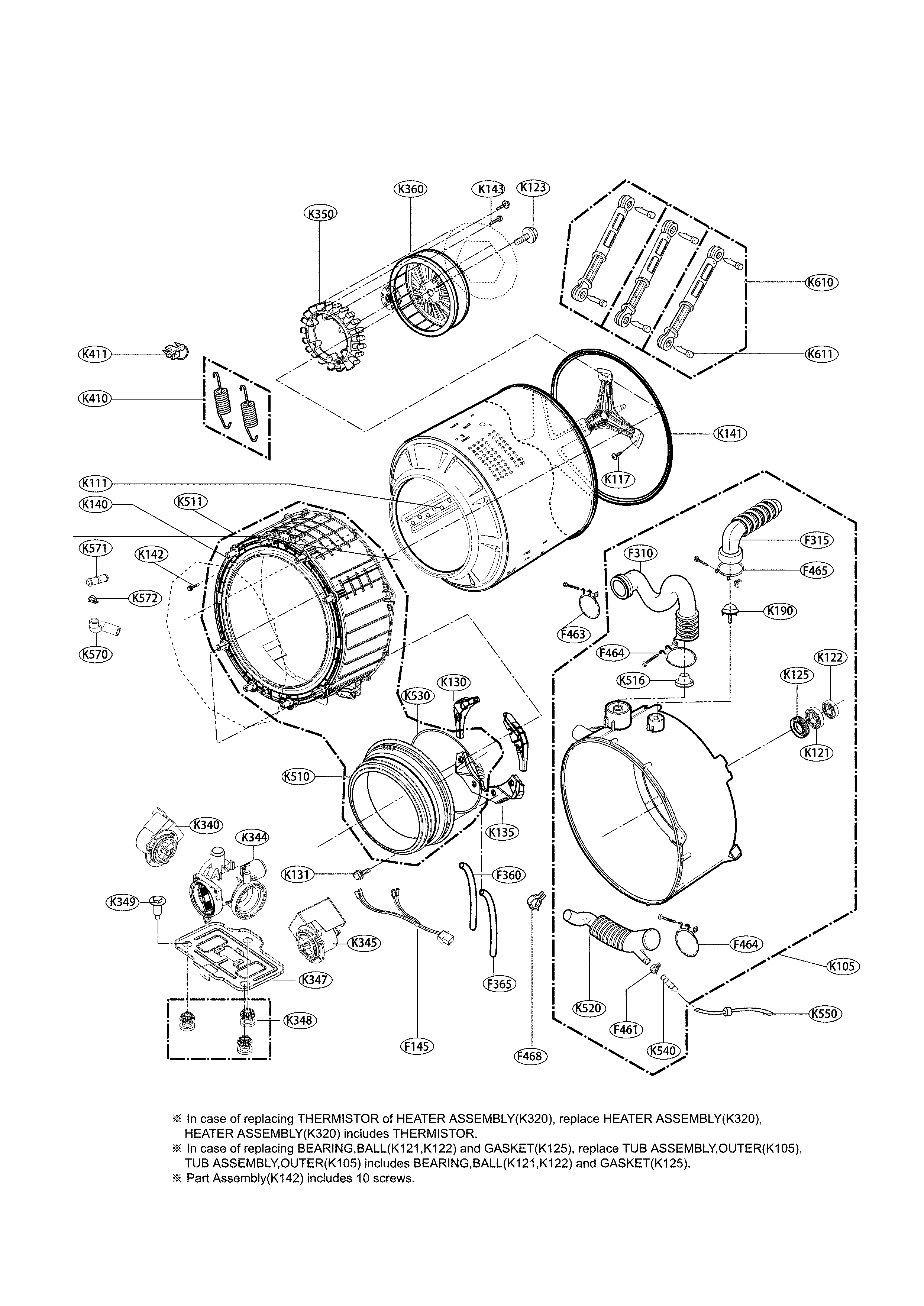

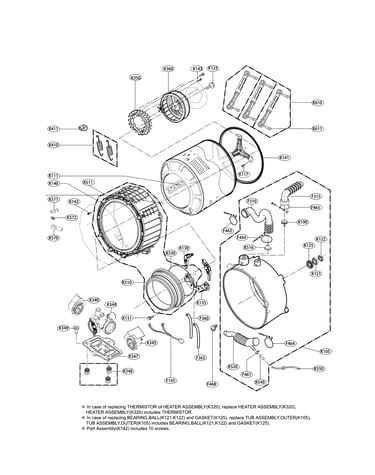

Drum and tub parts diagram

Washer shock absorber (replaces acv72909501)

Part #ACV72909503

BEST SELLER
$31.86 |
16% OFF Phone Price : $37.86
In Stock
Washer Door Lock Strike MFG63099101
#A154

Cabinet and contorl panel parts diagram

Washer door lock strike

Part #MFG63099101

BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Washer Door Boot Spring Clamp, Outer (replaces 4861en3004j) 4861ER2001J
#K530

Drum and tub parts diagram

Washer door boot spring clamp, outer (replaces 4861en3004j)

Part #4861ER2001J

BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Clamp Assembly 4861EN3004L
#A133

Cabinet and contorl panel parts diagram

Clamp assembly

Part #4861EN3004L

Replaced by #ACA56078801

?
Manufacturer substitution
This part replaces 4861EN3004L. Substitute parts can look different from the original.
BEST SELLER
$17.25 |
10% OFF Phone Price : $19.25
In Stock
Washer Dispenser Hose 4738ER1004B
#F310

Drum and tub parts diagram

Washer dispenser hose

Part #4738ER1004B

BEST SELLER
$29.54 |
17% OFF Phone Price : $35.54
In Stock
Washer Drain Hose Assembly AEM73773301
#F430

Dispenser parts diagram

Washer drain hose assembly

Part #AEM73773301

Replaced by #5215ER2002G

?
Manufacturer substitution
This part replaces AEM73773301. Substitute parts can look different from the original.
BEST SELLER
$37.31 |
14% OFF Phone Price : $43.31
In Stock
