Model # ZHU36RDT1BB Official GE electric cooktop

Here are the diagrams and repair parts for Official GE ZHU36RDT1BB electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

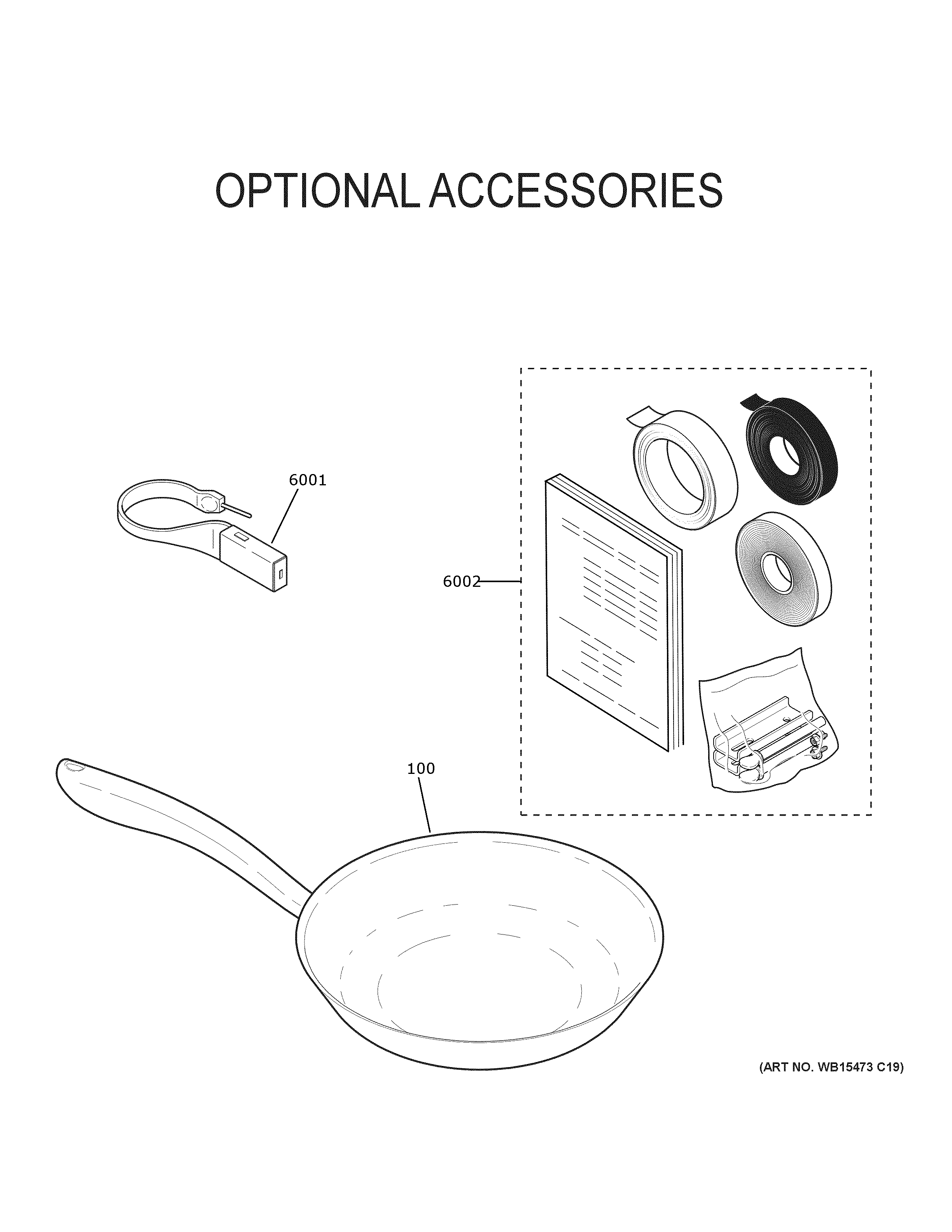

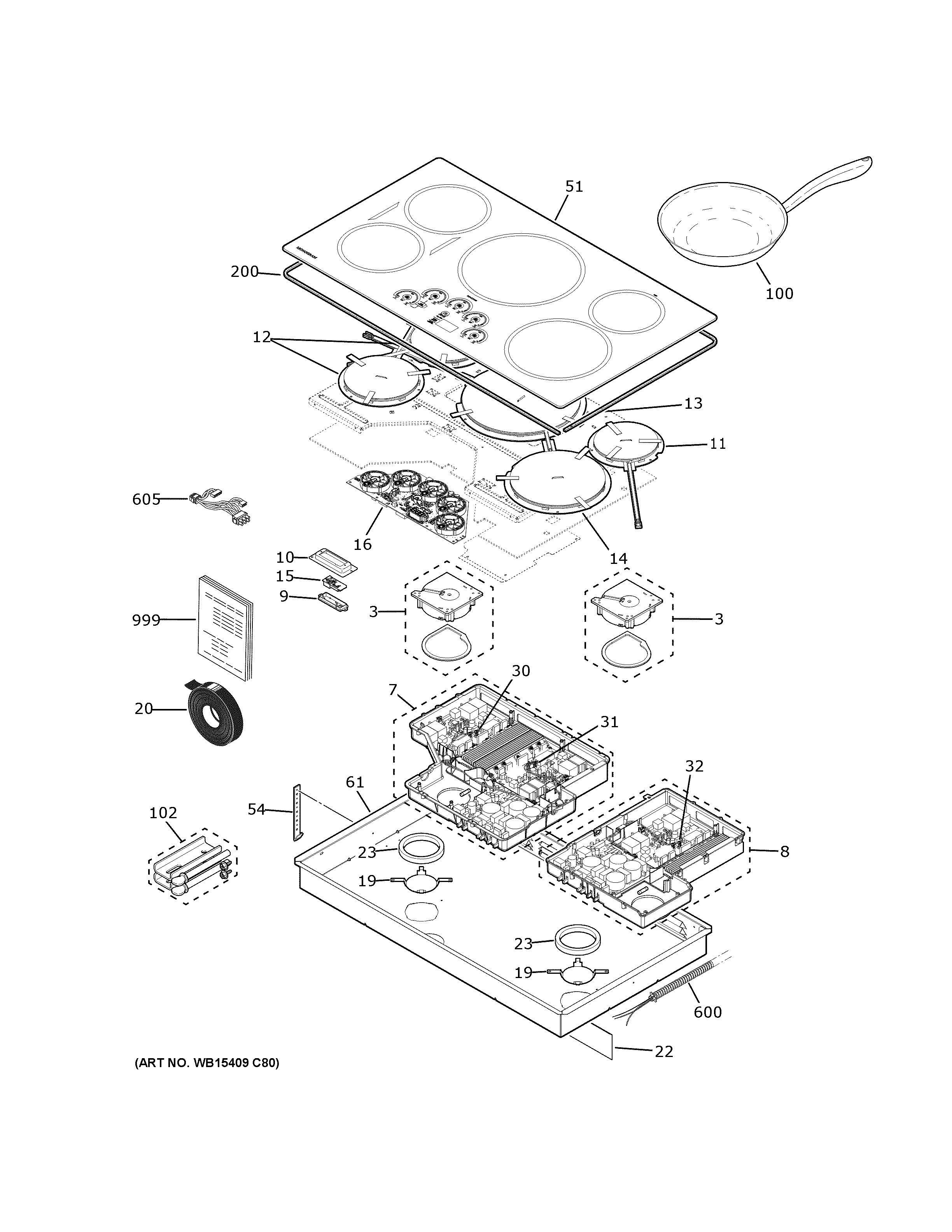

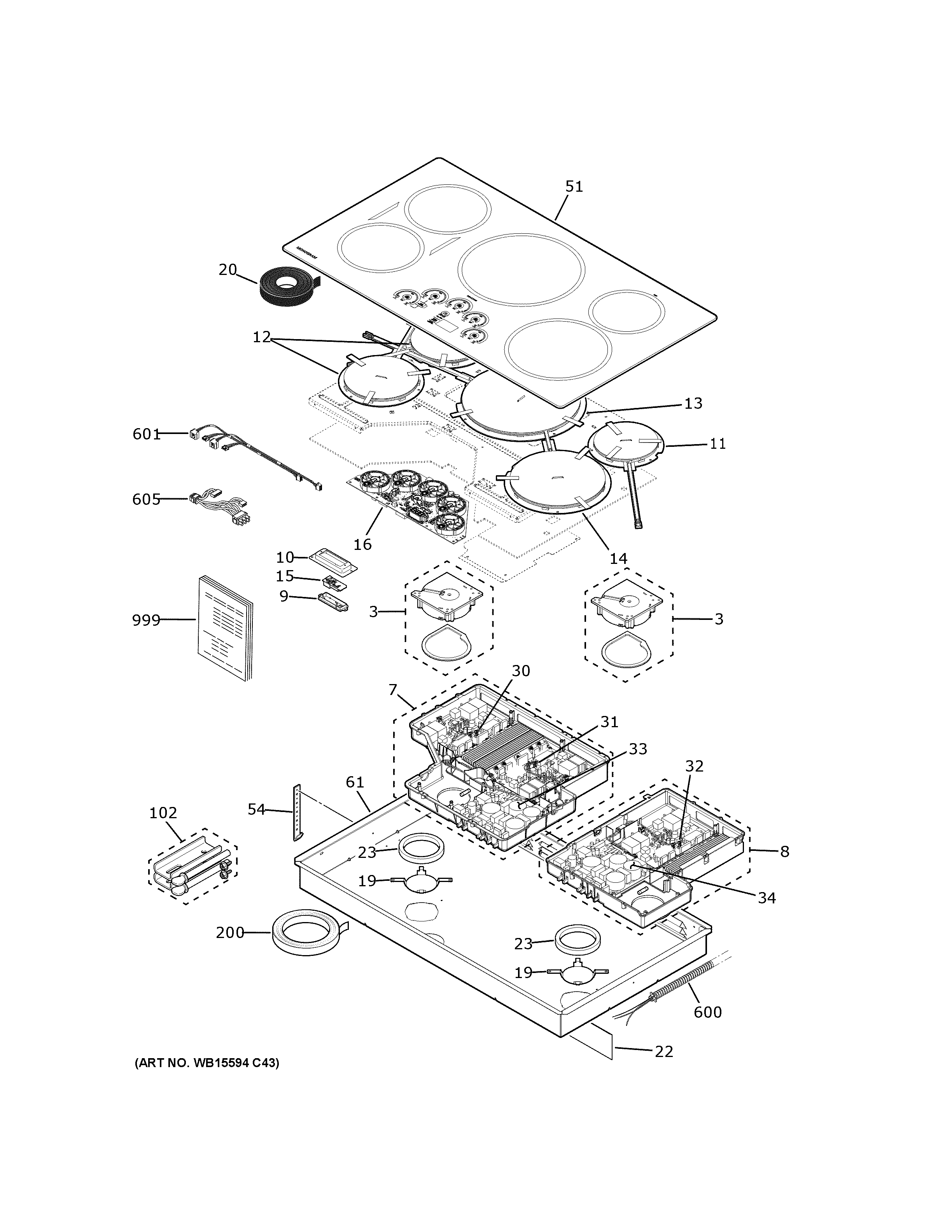

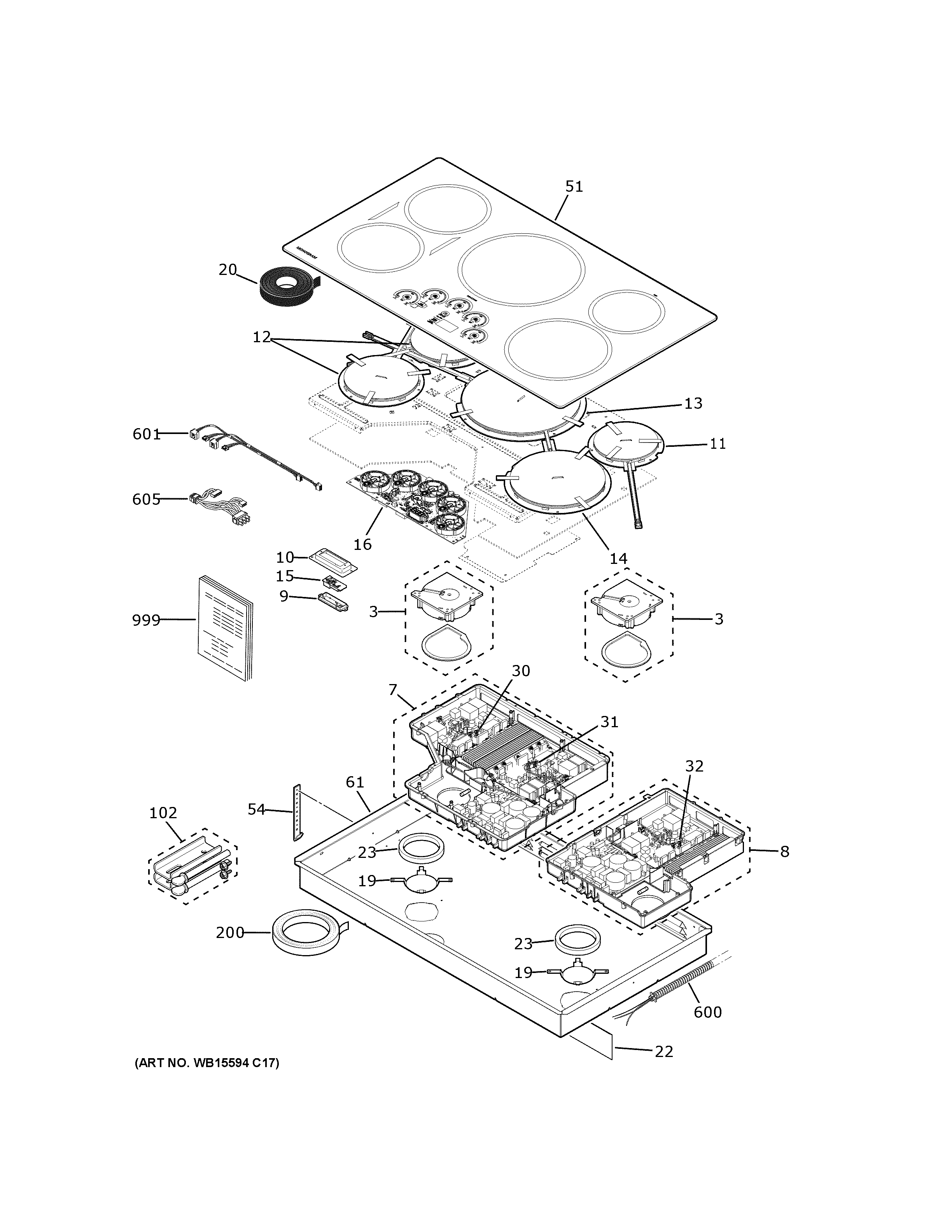

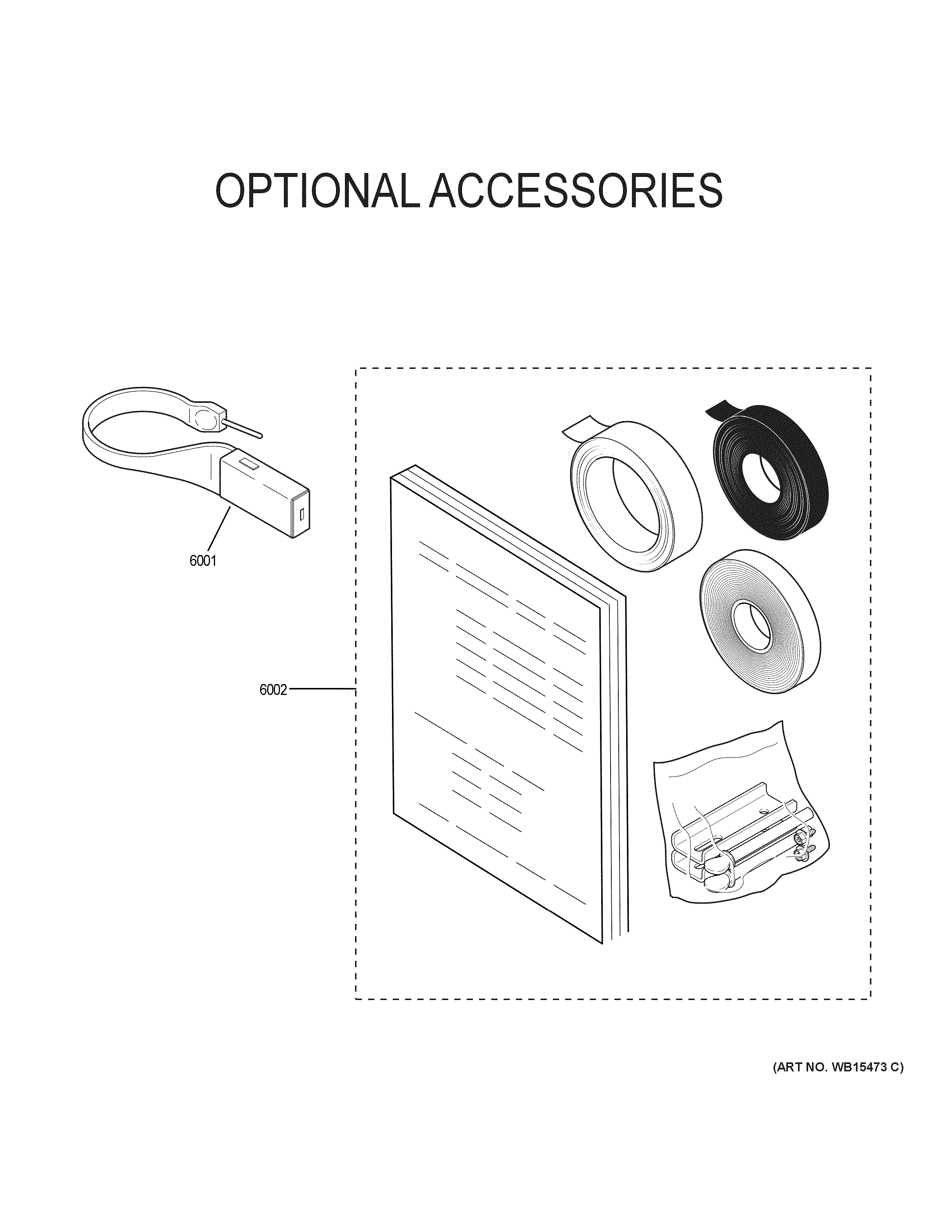

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Element Induction 3700w WB30X38227
Element induction 3700w

Part #WB30X38227

$111.10
In Stock
Cooktop Gas Blower WB26X24235
Cooktop gas blower

Part #WB26X24235

$100.15 |
11% OFF Phone Price : $112.15
In Stock
Tub Insulation WB35X24125
Tub insulation

Part #WB35X24125

$28.89 |
17% OFF Phone Price : $34.89
In Stock
Baffle WB02X26802
Baffle

Part #WB02X26802

$58.85 |
9% OFF Phone Price : $64.85
In Stock
Wifi/ble Combo Board WB27X45808
Wifi/ble combo board

Part #WB27X45808

$42.22
In Stock
Fan WB02X24262
Fan

Part #WB02X24262

$8.71
In Stock
Wifi Board H WB02X30390
Wifi board h

Part #WB02X30390

$10.51
In Stock
Induction Assembly WB27X44888
Induction assembly

Part #WB27X44888

$606.03
In Stock
Right Generator Board WB27X44893
Right generator board

Part #WB27X44893

$239.02
In Stock
Wifi Housing Bracket WB34X44578
Wifi housing bracket

Part #WB34X44578

$11.11
In Stock
