Model # 917259930 Official Craftsman lawn tractor
Here are the diagrams and repair parts for Official Craftsman 917259930 lawn tractor, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

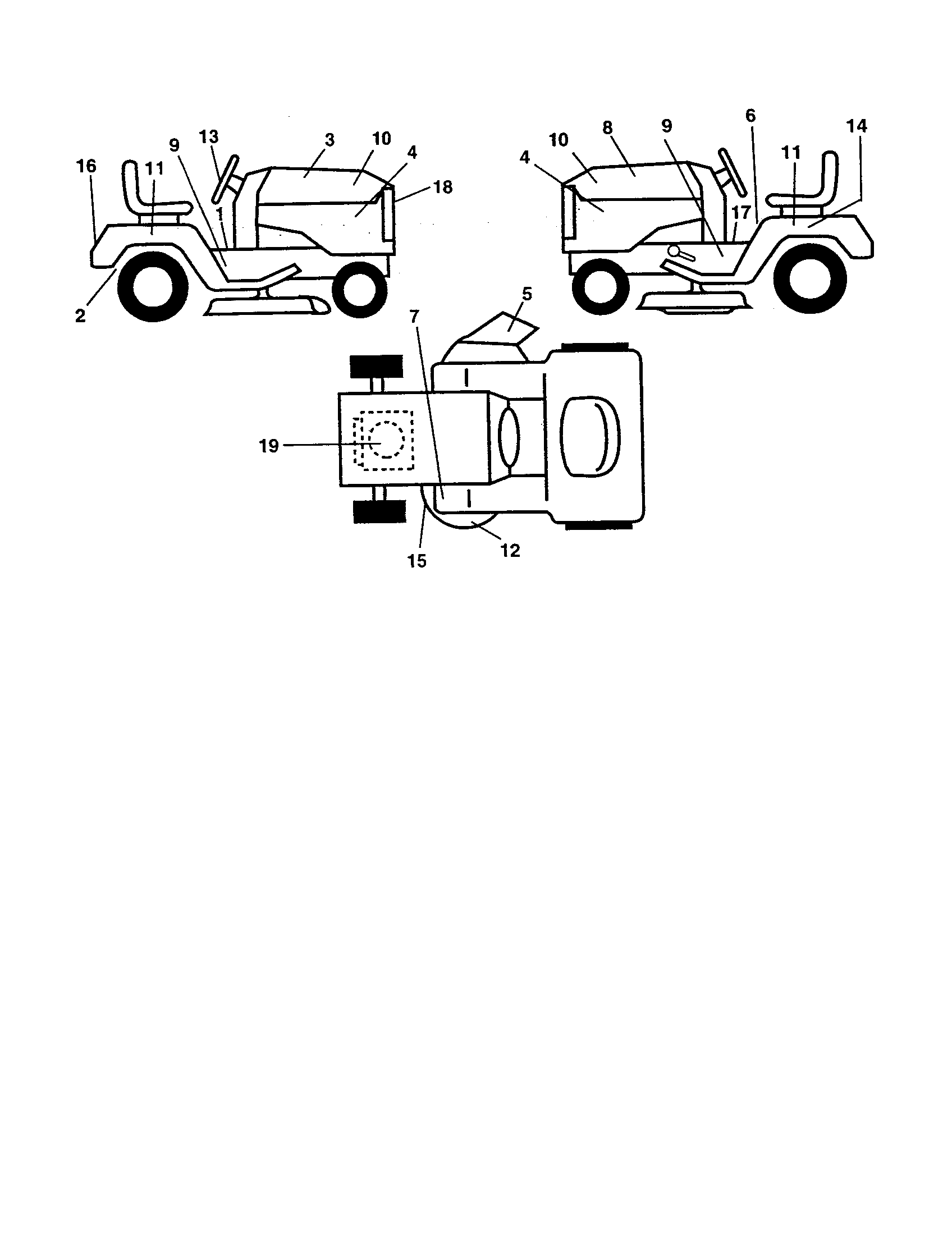

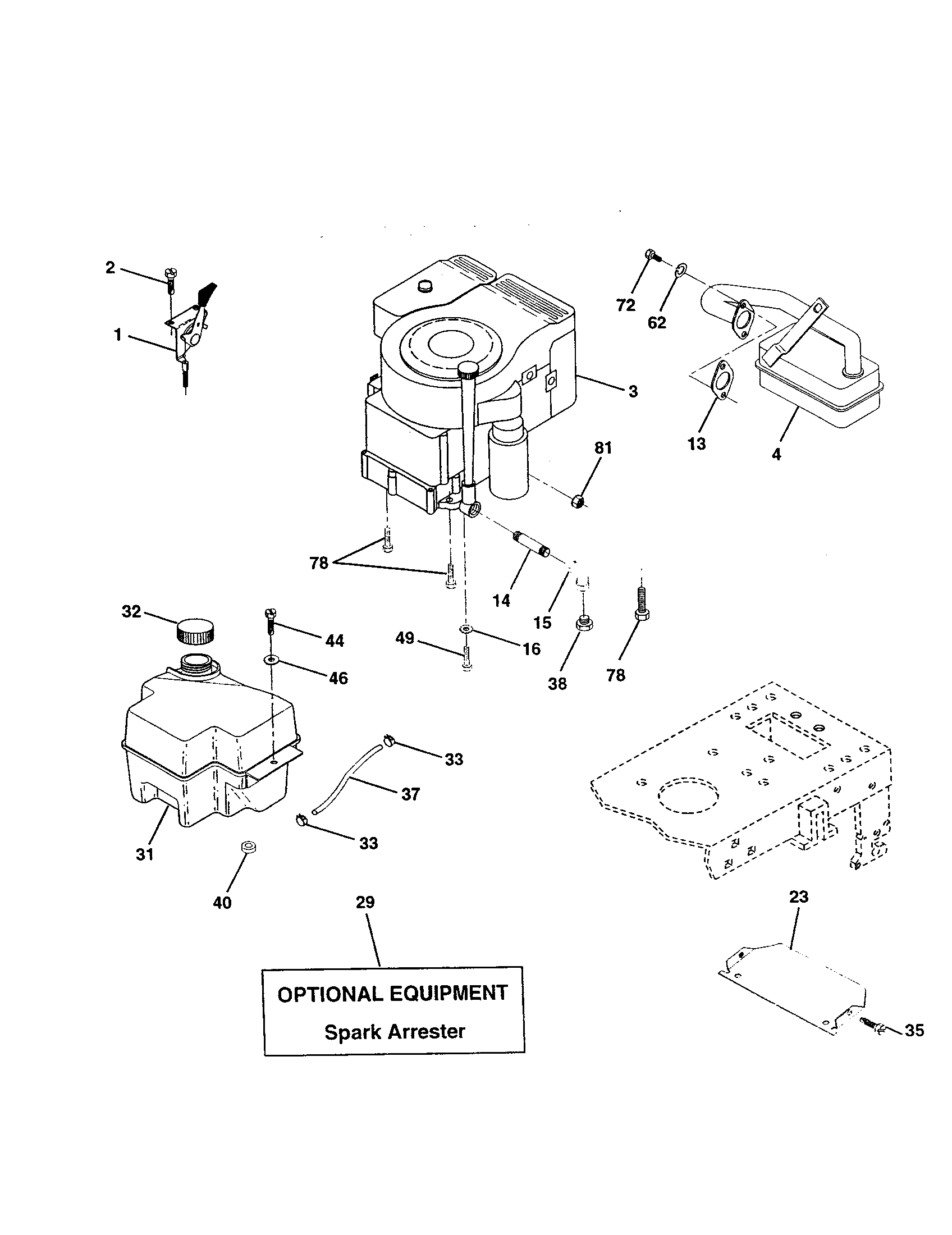

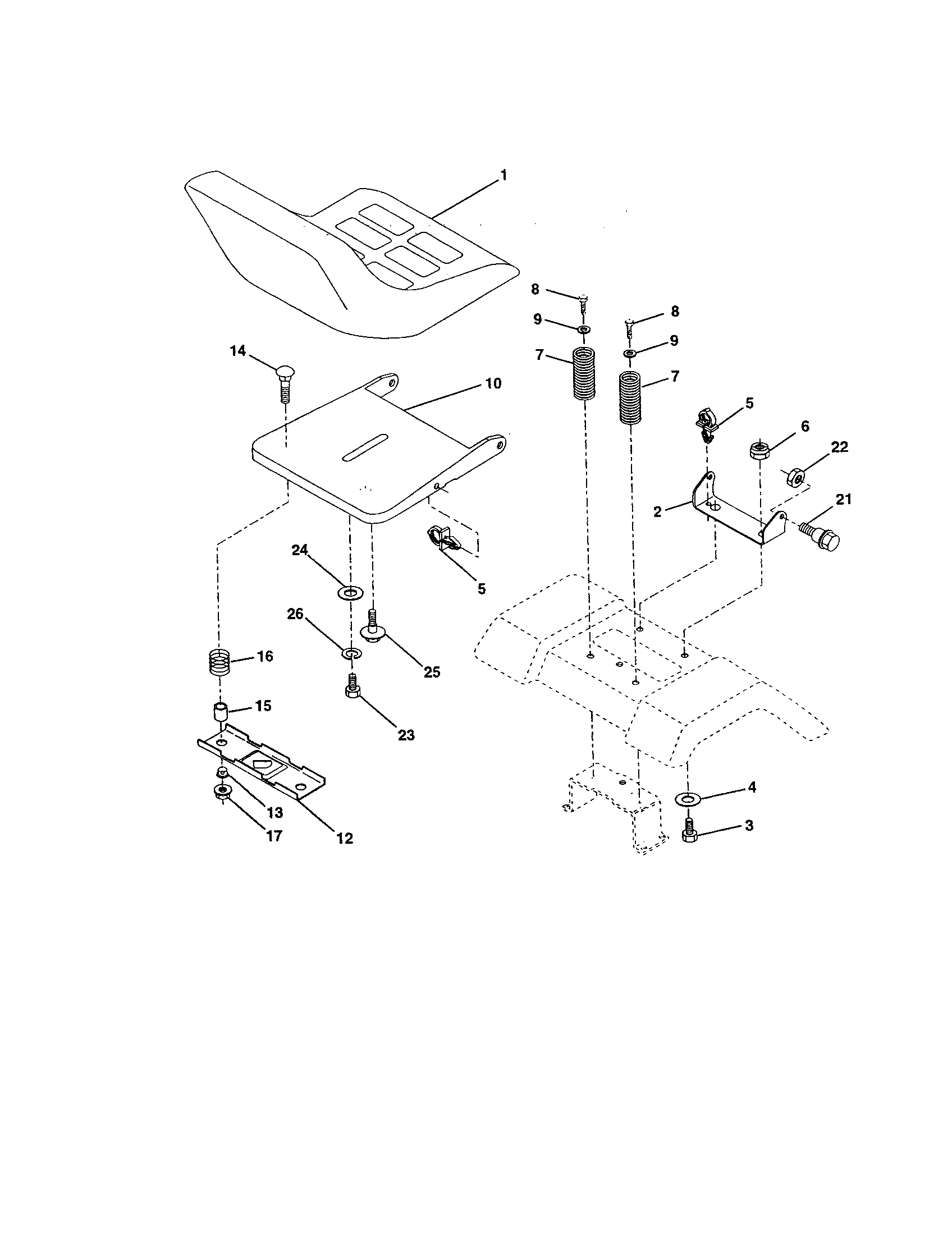

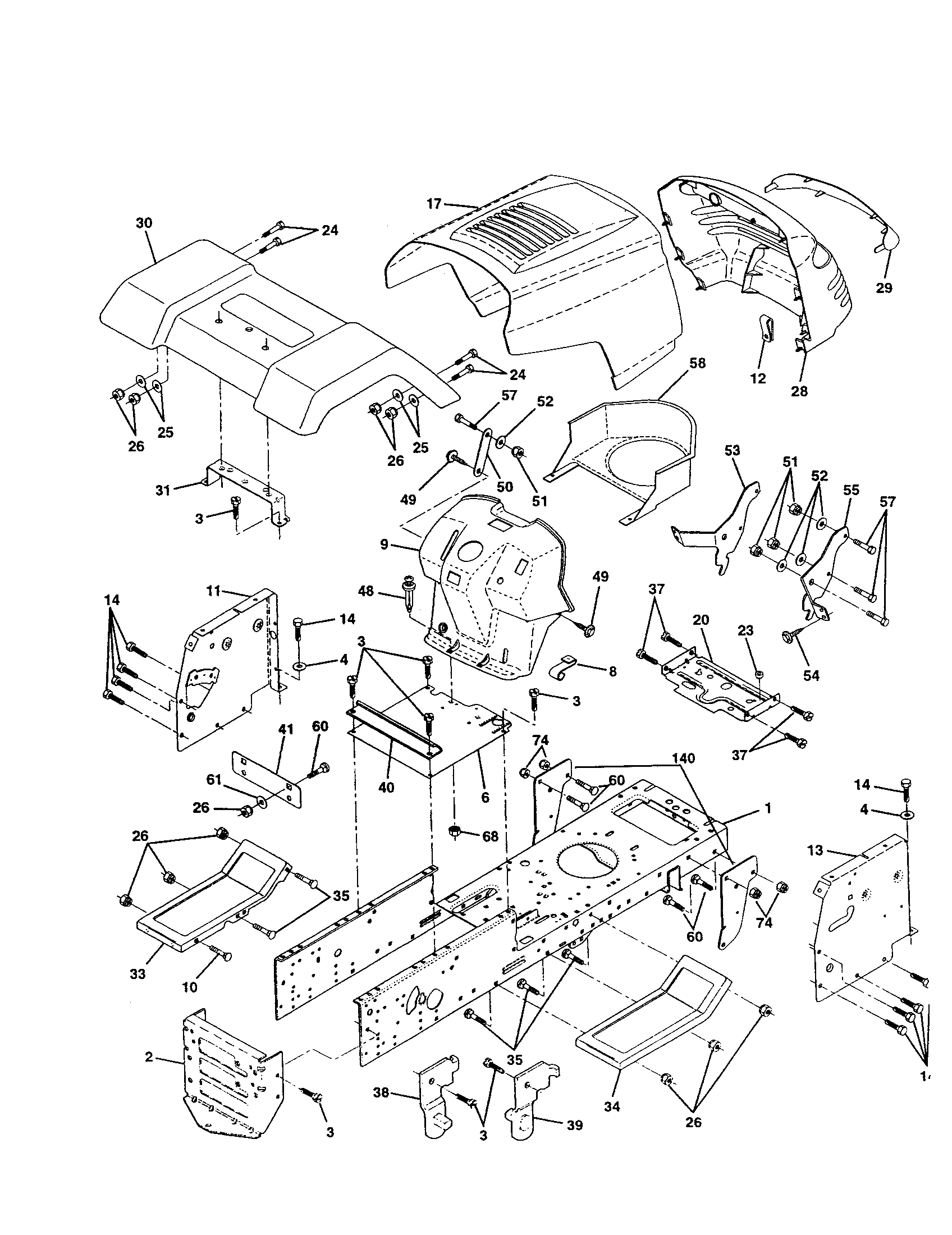

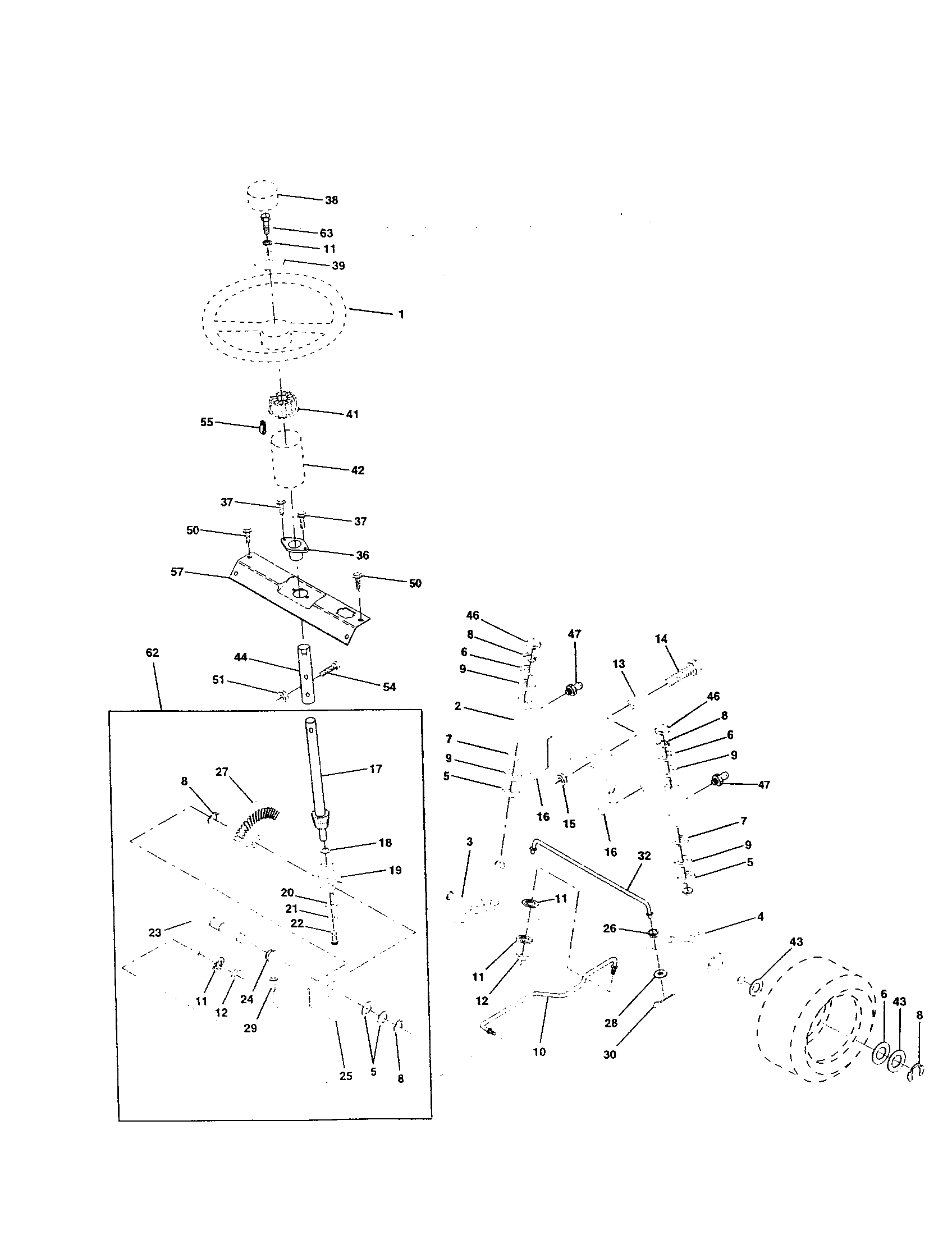

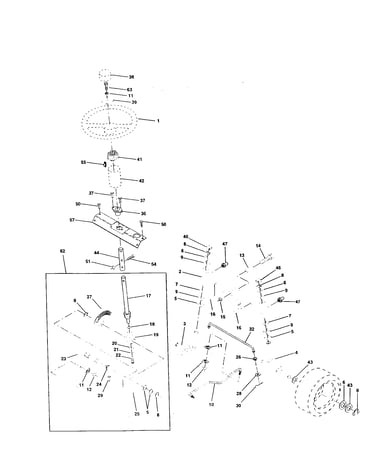

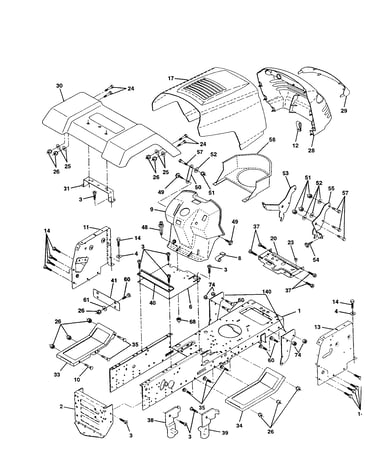

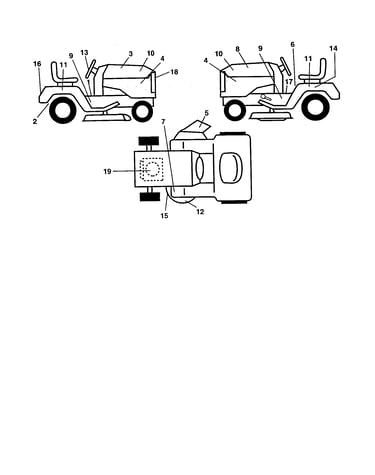

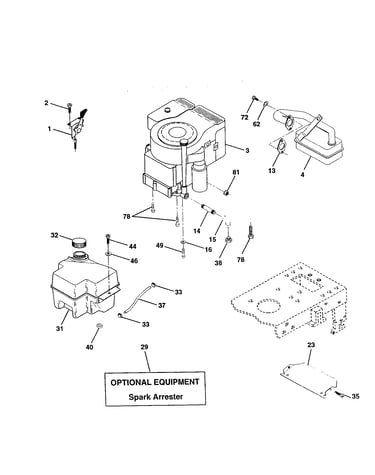

SELECT DIAGRAM
Browse Parts for
917259930 Riding Mowers & Tractors
#11

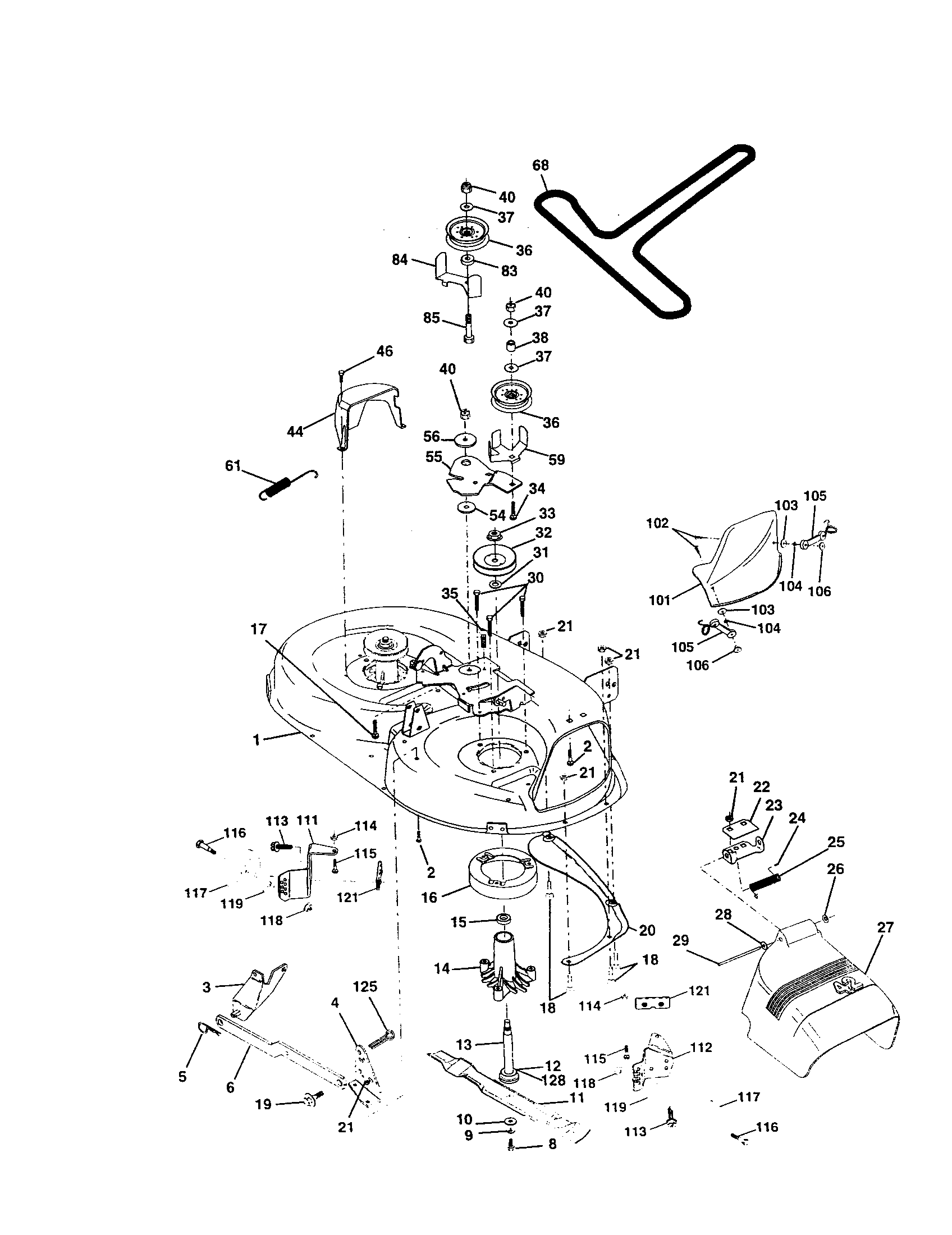

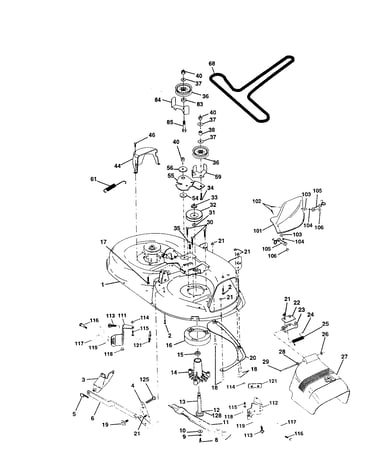

Mower deck diagram
Lawn tractor mulching blade
Part #134149
Replaced by #532134149
?
Manufacturer substitution
This part replaces 134149. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$26.64 |
18% OFF Phone Price : $32.64
In Stock
#11
Wheels and tires diagram
Hub cap
Part #104757X
Replaced by #532104757
?
Manufacturer substitution
This part replaces 104757X. Substitute parts can look different from the original.
This item is not returnable
$6.18 |
14% OFF Phone Price : $7.18
In Stock
#49

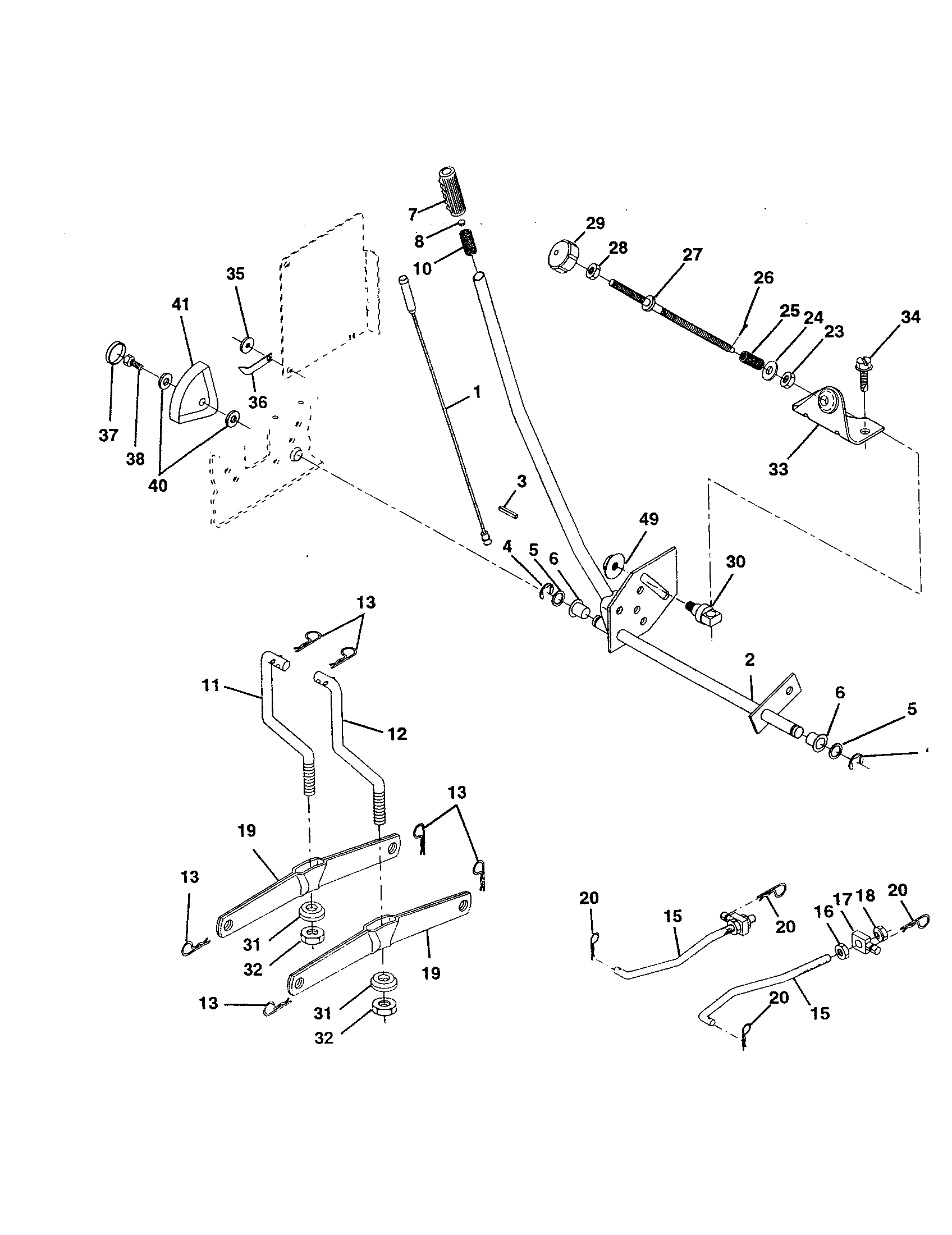

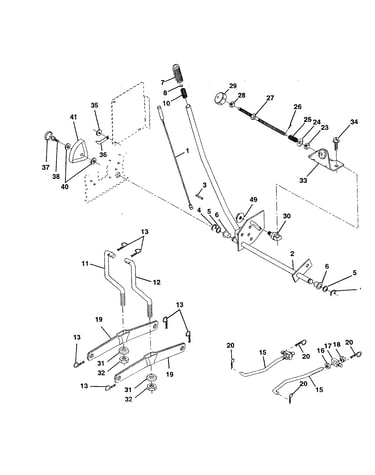

Lift diagram
Hex flange lock nut
Part #145212
Replaced by #532409149
?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
This item is not returnable
$6.11 |
14% OFF Phone Price : $7.11
In Stock
#30
Mower deck diagram
Screw
Part #138776
Replaced by #584953901
?
Manufacturer substitution
This part replaces 138776. Substitute parts can look different from the original.
This item is not returnable
$4.36 |
19% OFF Phone Price : $5.36
In Stock
#57

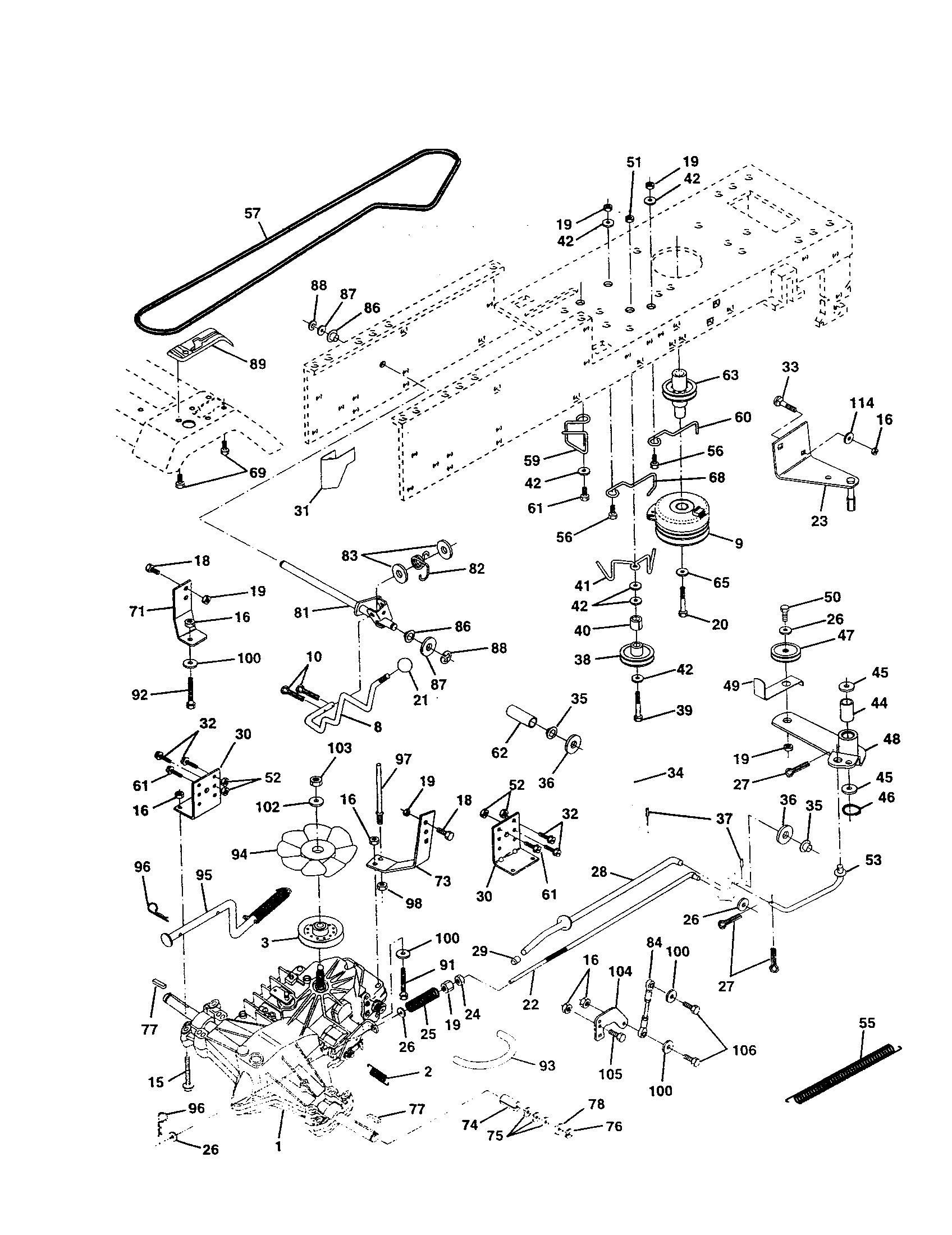

Drive diagram
Lawn tractor ground drive belt, 1/2 x 82-in
Part #140294
Replaced by #532140294
?
Manufacturer substitution
This part replaces 140294. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$37.98 |
14% OFF Phone Price : $43.98
In Stock
#43

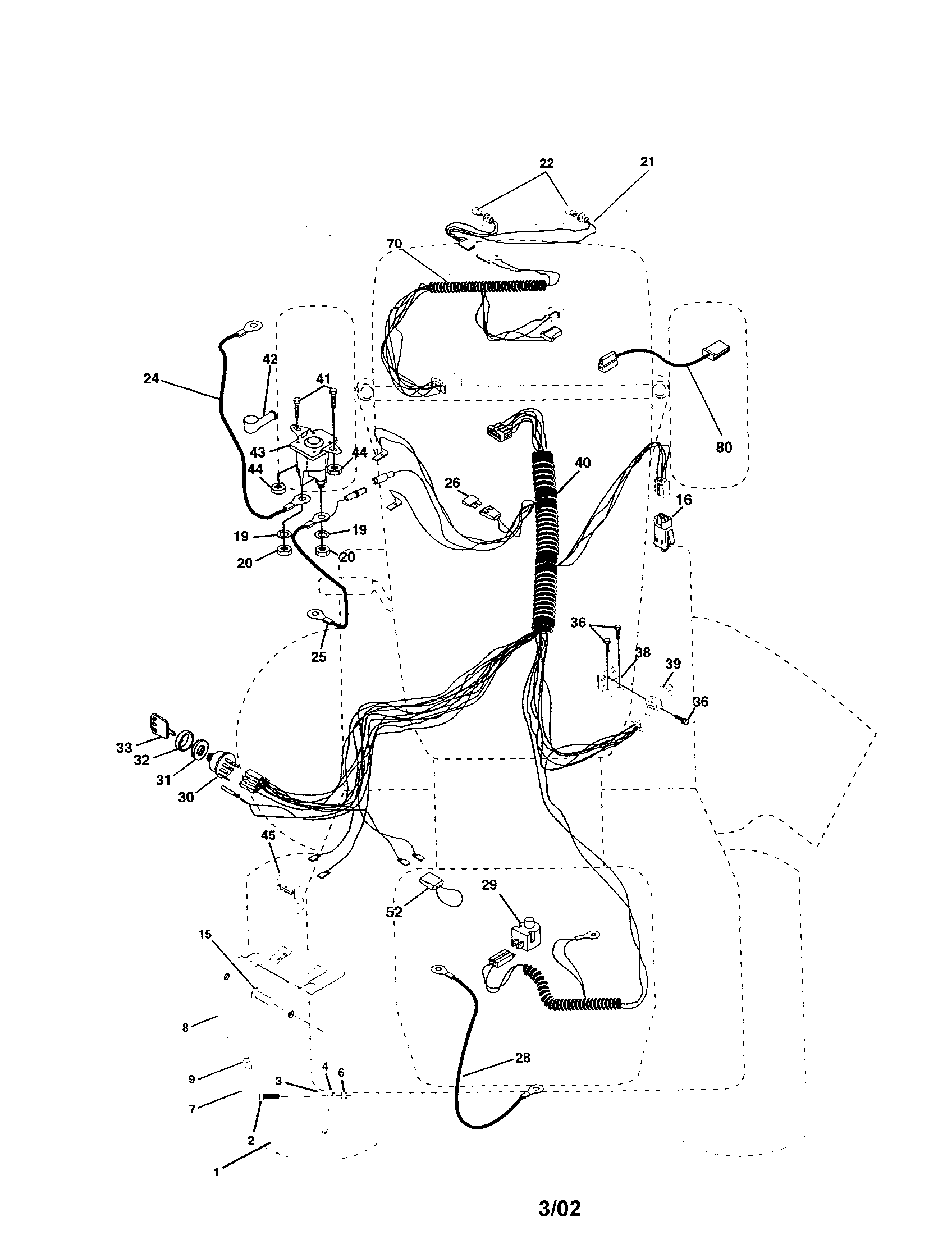

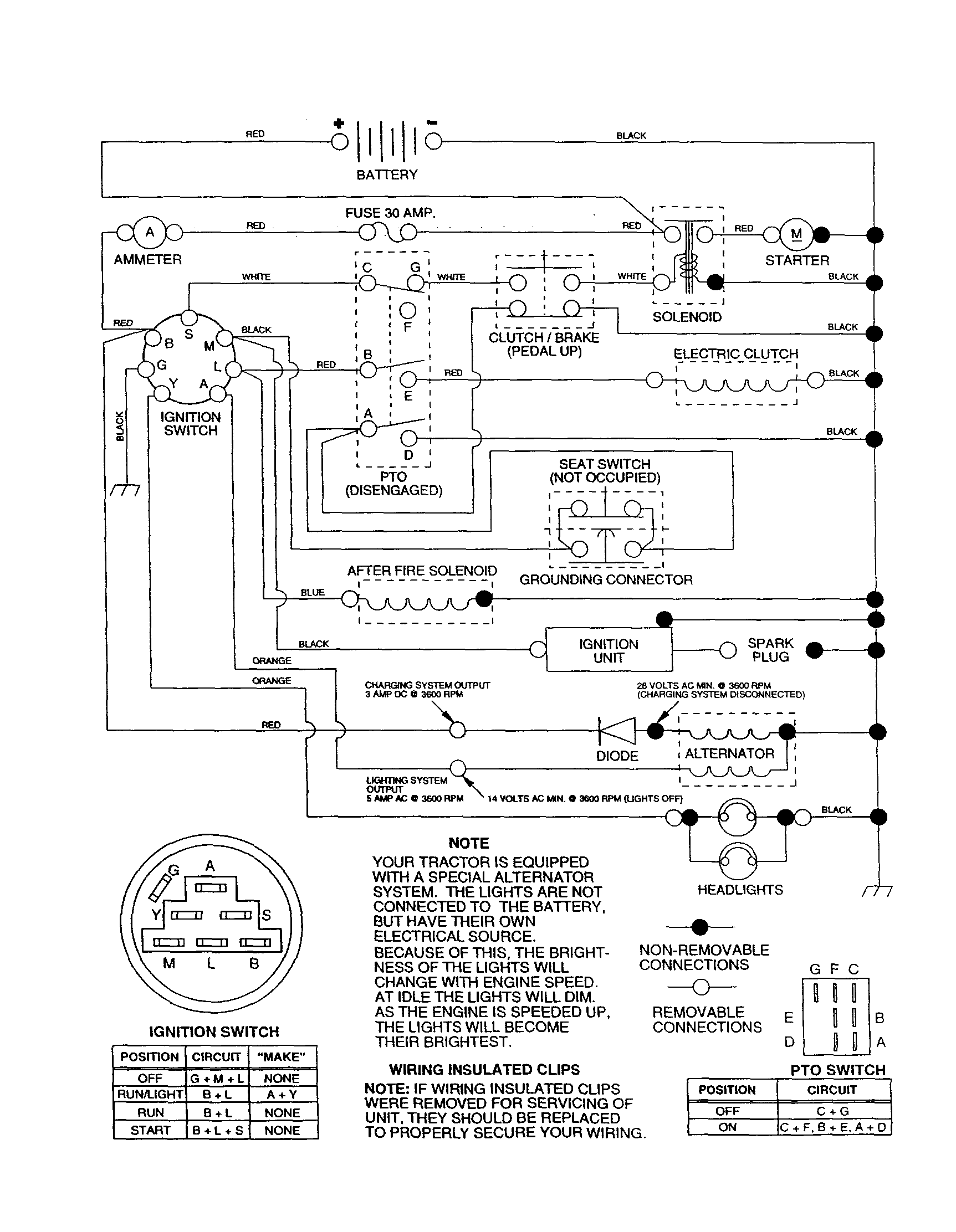

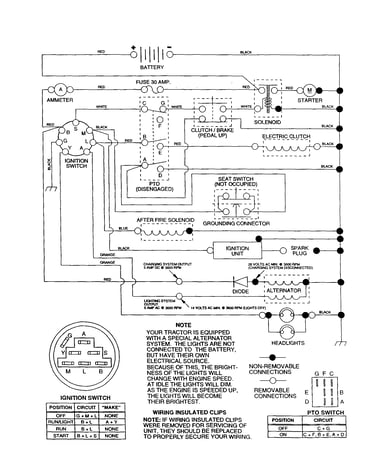

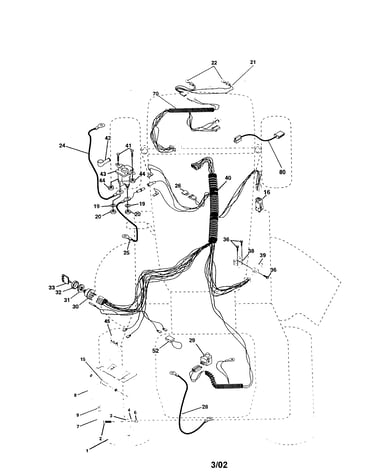

Electrical diagram
Solenoid
Part #145673
Replaced by #532146154
?
Manufacturer substitution
This part replaces 145673. Substitute parts can look different from the original.
$28.30 |
17% OFF Phone Price : $34.30
In Stock
#105
Mower deck diagram
Latch assembly
Part #130758
Replaced by #597000601
?
Manufacturer substitution
This part replaces 130758. Substitute parts can look different from the original.
$8.76 |
10% OFF Phone Price : $9.76
In Stock
#68
Mower deck diagram
Lawn tractor drive belt
Part #144200
Replaced by #532144200
?
Manufacturer substitution
This part replaces 144200. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$44.98 |
12% OFF Phone Price : $50.98
In Stock
#50
Electrical diagram
Switch
Part #140404
Replaced by #582107601
?
Manufacturer substitution
This part replaces 140404. Substitute parts can look different from the original.
$34.60 |
15% OFF Phone Price : $40.60
In Stock
#116
Mower deck diagram
Shoulder bolt
Part #137644
Replaced by #596434404
?
Manufacturer substitution
This part replaces 137644. Substitute parts can look different from the original.
$7.64 |
12% OFF Phone Price : $8.64
In Stock
