Model # 303937800 Official Kenmore central system humidifier - 78

Here are the diagrams and repair parts for Official Kenmore 303937800 central system humidifier - 78, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Media Pad 355690-01
#47

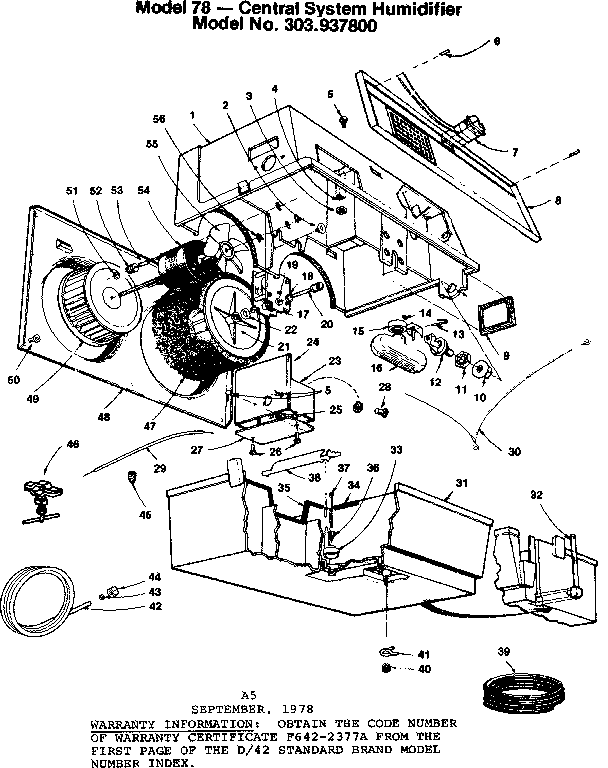

Replacement parts diagram

Media pad

Part #355690-01

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 280149-02
#45

Replacement parts diagram

Twist-on wire connector

Part #280149-02

The manufacturer no longer makes this part, and there's no substitute part

Warranty F642-2377A

#NI

All parts diagram

Warranty

Part #F642-2377A

The manufacturer no longer makes this part, and there's no substitute part

Drain 355609-02
#35A

Replacement parts diagram

Drain

Part #355609-02

The manufacturer no longer makes this part, and there's no substitute part

Pivot Pin 281102-01
#13

Replacement parts diagram

Pivot pin

Part #281102-01

The manufacturer no longer makes this part, and there's no substitute part

Limit Control 280897-03

#NI

All parts diagram

Limit control

Part #280897-03

The manufacturer no longer makes this part, and there's no substitute part

Valve Button 281101-01
#14

Replacement parts diagram

Valve button

Part #281101-01

The manufacturer no longer makes this part, and there's no substitute part

Case 355602-05
#1

Replacement parts diagram

Case

Part #355602-05

The manufacturer no longer makes this part, and there's no substitute part

Wire 281272-01
#29

Replacement parts diagram

Wire

Part #281272-01

The manufacturer no longer makes this part, and there's no substitute part

Media Motor 355607-02
#17

Replacement parts diagram

Media motor

Part #355607-02

The manufacturer no longer makes this part, and there's no substitute part
