Model # LGA80AL/PLGA80AL Official Amana gas home laundry dryer

Here are the diagrams and repair parts for Official Amana LGA80AL-PLGA80AL gas home laundry dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

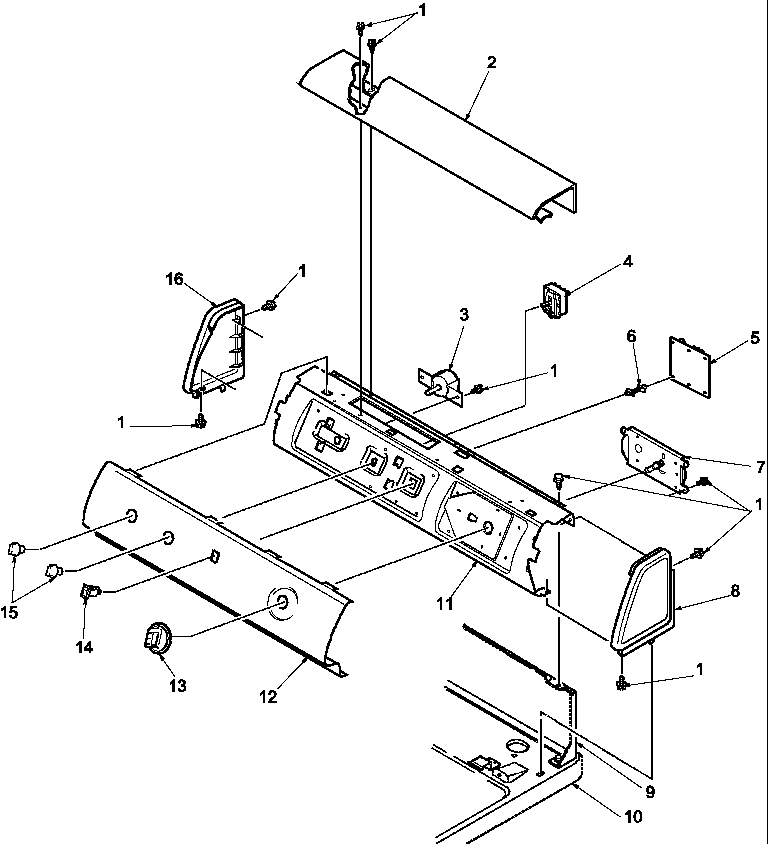

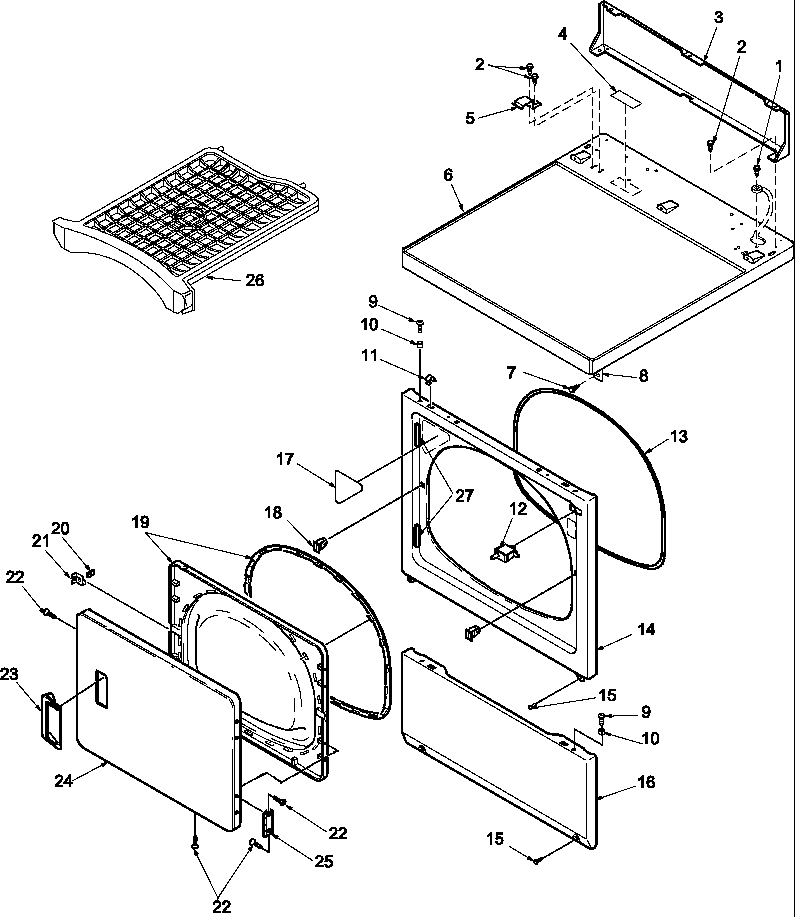

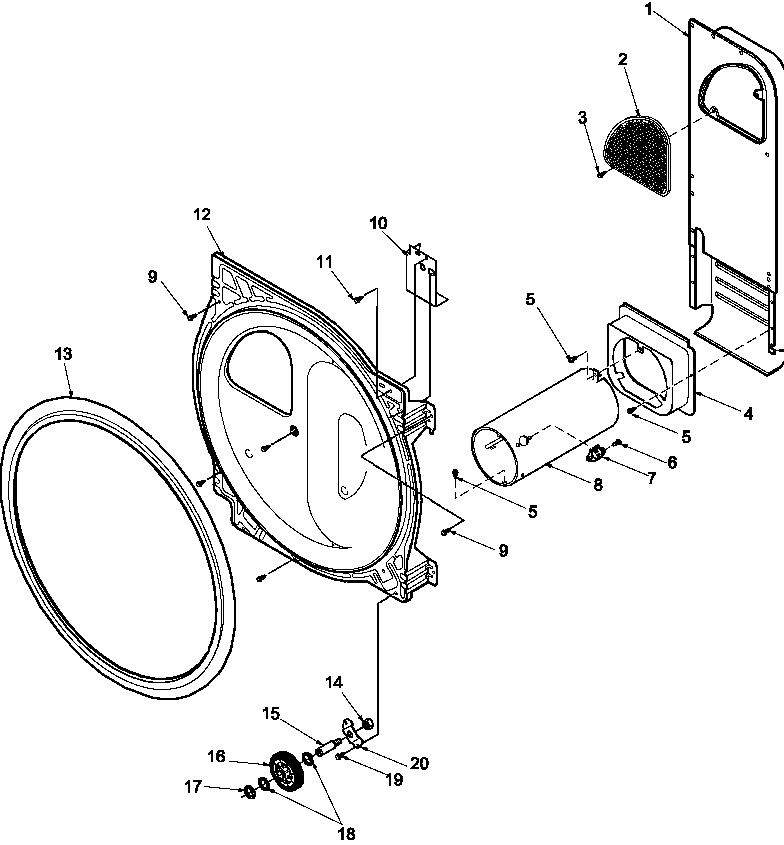

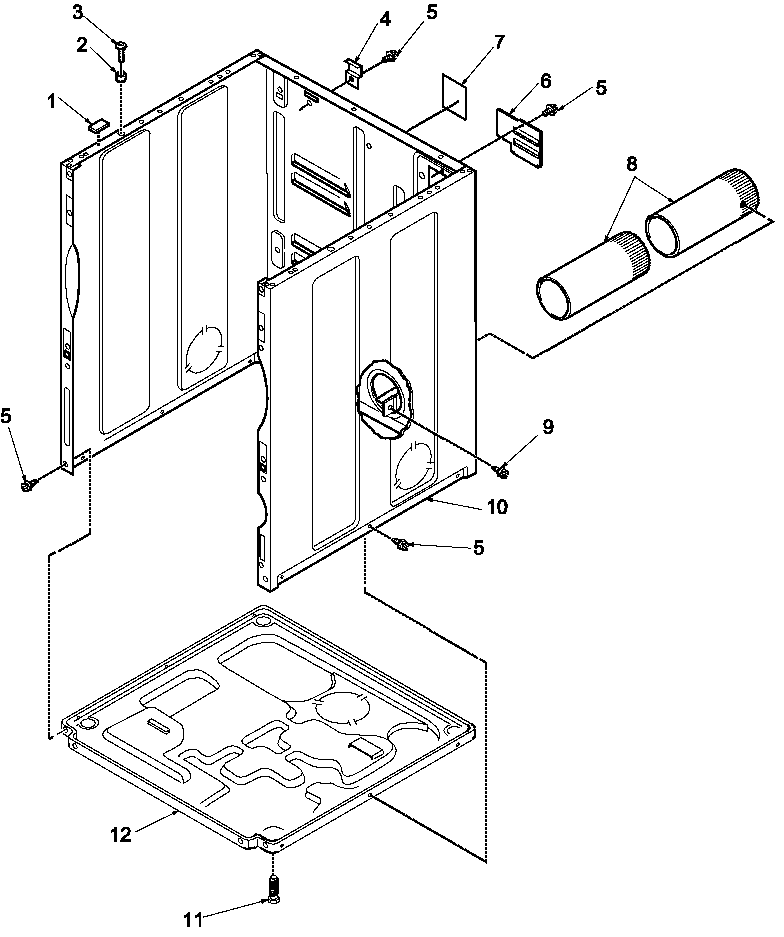

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 185 parts  |
Coil 58804B
#8

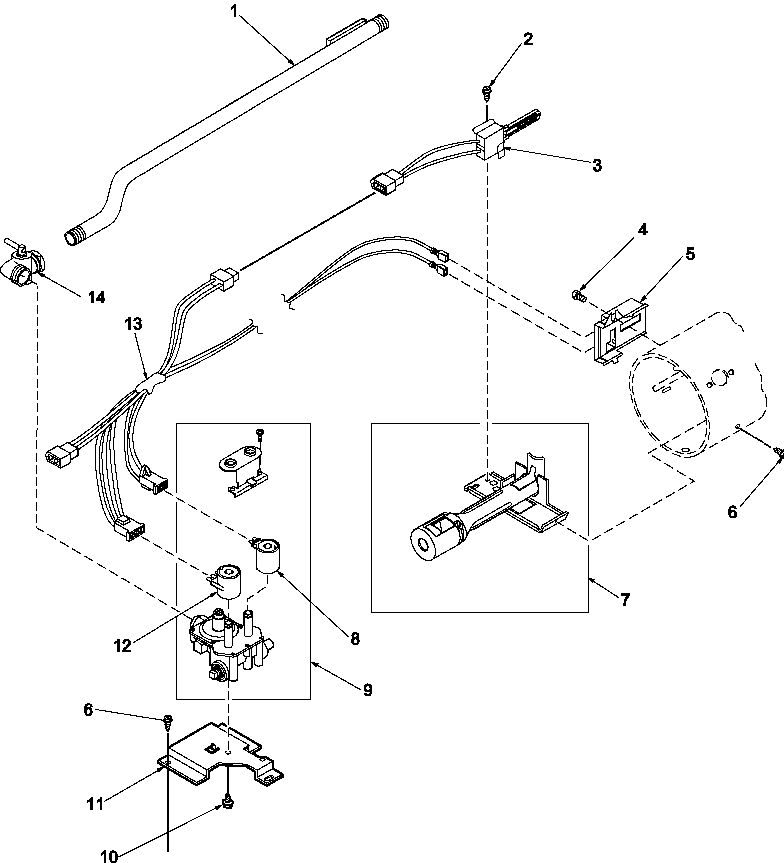

Gas valve, igniter and gas conversion kits diagram

Coil

Part #58804B

The manufacturer no longer makes this part, and there's no substitute part

Coil 58804A
#12

Gas valve, igniter and gas conversion kits diagram

Coil

Part #58804A

Replaced by #279834

?
Manufacturer substitution
This part replaces 58804A. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Sensor 56231
#5

Gas valve, igniter and gas conversion kits diagram

Sensor

Part #56231

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 56231. Substitute parts can look different from the original.
BEST SELLER
$37.66 |
14% OFF Phone Price : $43.66
In Stock
Belt 59174
#1

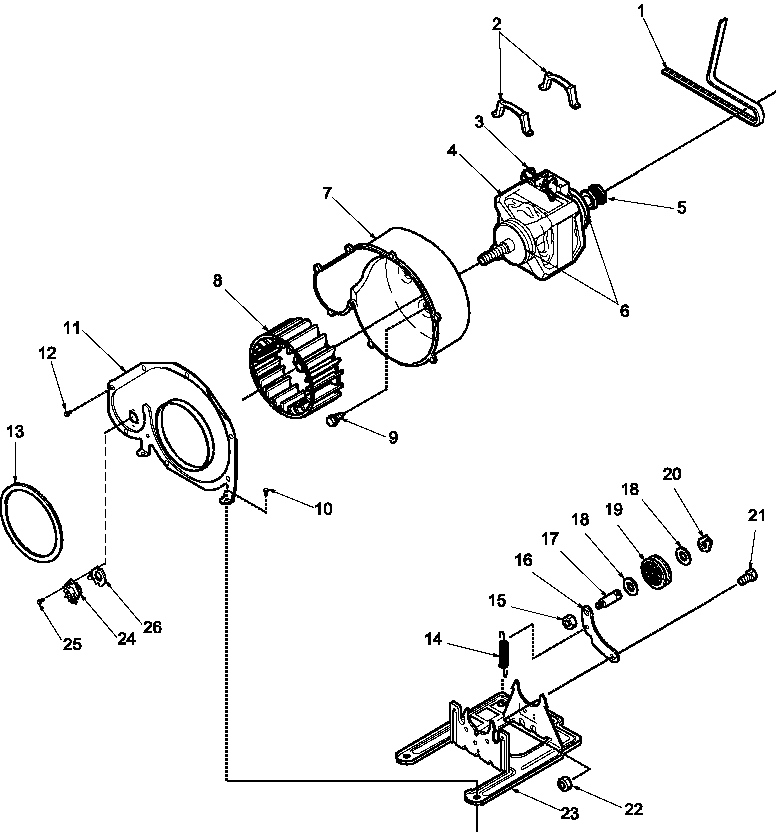

Motor and fan assemblies diagram

Belt

Part #59174

The manufacturer no longer makes this part, and there's no substitute part

Lever 500269
#99

Motor and fan assemblies diagram

Lever

Part #500269

The manufacturer no longer makes this part, and there's no substitute part

Motor 502368
#4

Motor and fan assemblies diagram

Motor

Part #502368

The manufacturer no longer makes this part, and there's no substitute part

Impeller 56000
#8

Motor and fan assemblies diagram

Impeller

Part #56000

Replaced by #56000

?
Manufacturer substitution
This part replaces 56000. Substitute parts can look different from the original.
BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Pulley 54414
#19

Motor and fan assemblies diagram

Pulley

Part #54414

Replaced by #WPY54414

?
Manufacturer substitution
This part replaces 54414. Substitute parts can look different from the original.
BEST SELLER
$18.57 |
10% OFF Phone Price : $20.57
In Stock
Clamp 58047
#2

Motor and fan assemblies diagram

Clamp

Part #58047

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 58047. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Glide 501553
#13

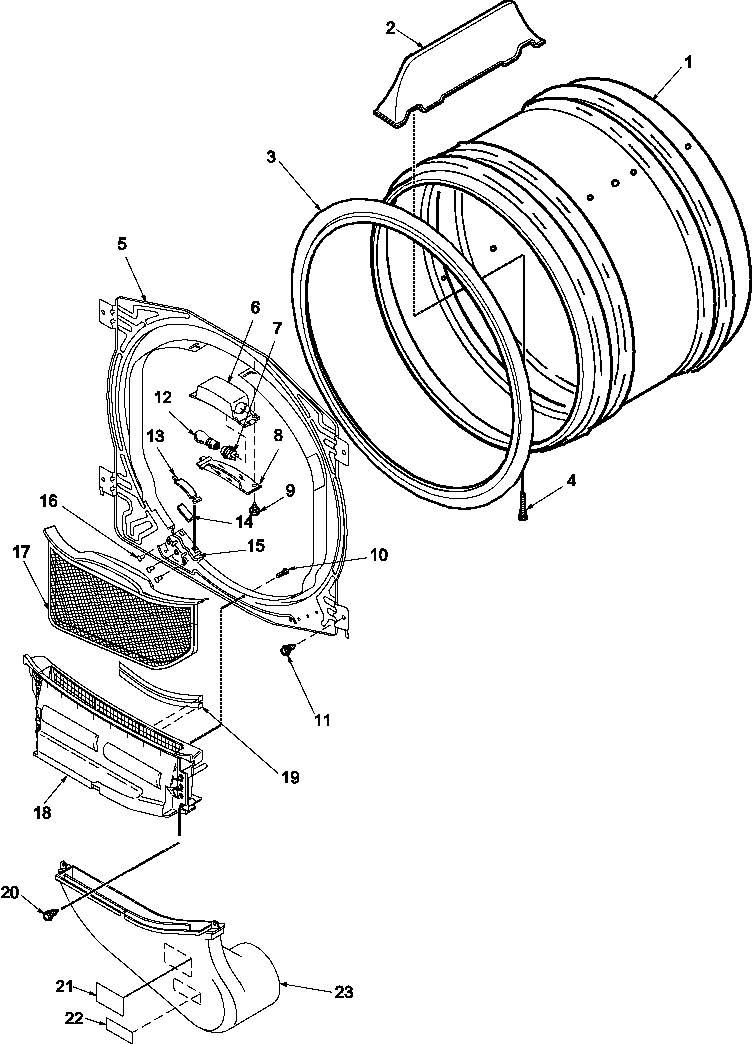

Front bulkhead, air duct, felt seal and cylinder diagram

Glide

Part #501553

The manufacturer no longer makes this part, and there's no substitute part
