Vizio
LCD Television

Model # M470NV Official Vizio led television

Here are the diagrams and repair parts for Official Vizio M470NV led television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Vizio Cover 170121006010
#11

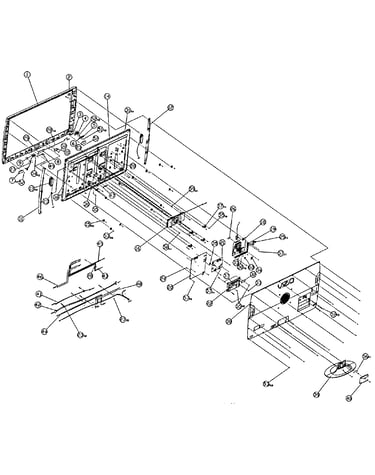

Cabinet parts diagram

Vizio cover

Part #170121006010

The manufacturer no longer makes this part, and there's no substitute part

Screw M4x7 172012040720
#49

Cabinet parts diagram

Screw m4x7

Part #172012040720

The manufacturer no longer makes this part, and there's no substitute part

Vizio Cable 6p 46028060091
#43

Cabinet parts diagram

Vizio cable 6p

Part #46028060091

The manufacturer no longer makes this part, and there's no substitute part

Vizio Television Screw, 4 X 10-mm 172500041020
#56

Cabinet parts diagram

Vizio television screw, 4 x 10-mm

Part #172500041020

The manufacturer no longer makes this part, and there's no substitute part

Television Machine Screw 172500040650
Television machine screw

Part #172500040650

The manufacturer no longer makes this part, and there's no substitute part

Optical Device Manual 192513012150
#NI

Cabinet parts diagram

Optical device manual

Part #192513012150

The manufacturer no longer makes this part, and there's no substitute part

Vizio Cable 8p 46028080042
#44

Cabinet parts diagram

Vizio cable 8p

Part #46028080042

The manufacturer no longer makes this part, and there's no substitute part

Pcb,disply 364201220156
#6

Cabinet parts diagram

Pcb,disply

Part #364201220156

The manufacturer no longer makes this part, and there's no substitute part

Vizio Speaker 15 33515081162
#16

Cabinet parts diagram

Vizio speaker 15

Part #33515081162

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 172540030651
#57

Cabinet parts diagram

Television screw

Part #172540030651

The manufacturer no longer makes this part, and there's no substitute part
