Panasonic
Digital Camcorder

Model # PV-GS120PP Official Panasonic digital video camcorder

Here are the diagrams and repair parts for Official Panasonic PV-GS120PP digital video camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Hood Strap VGQ7270
#609A

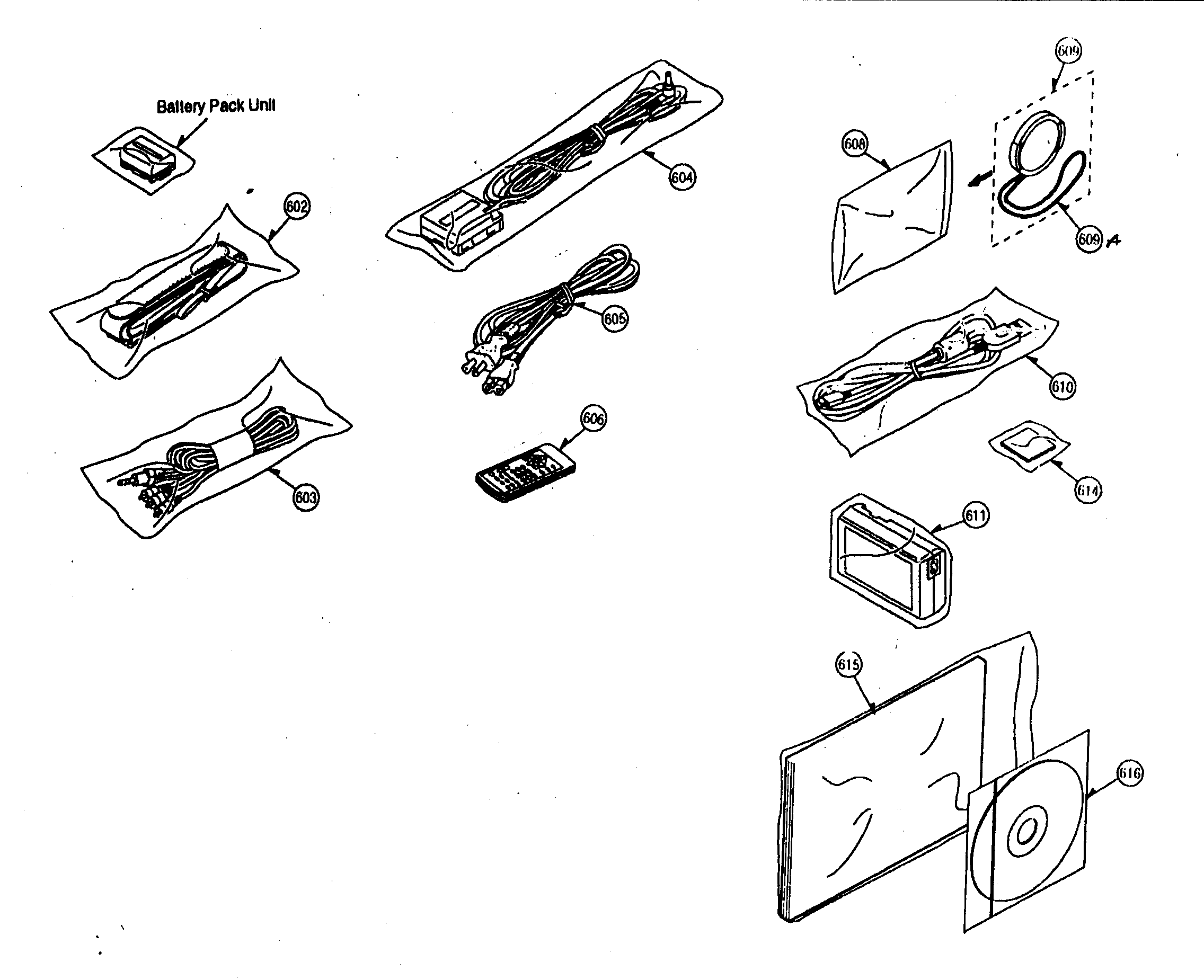

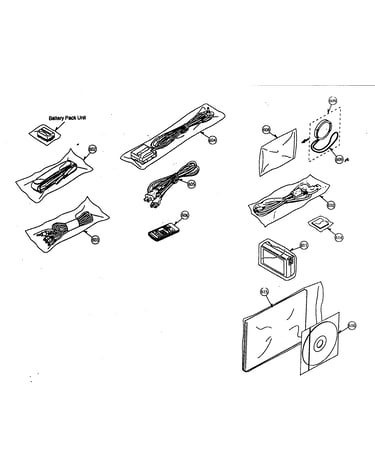

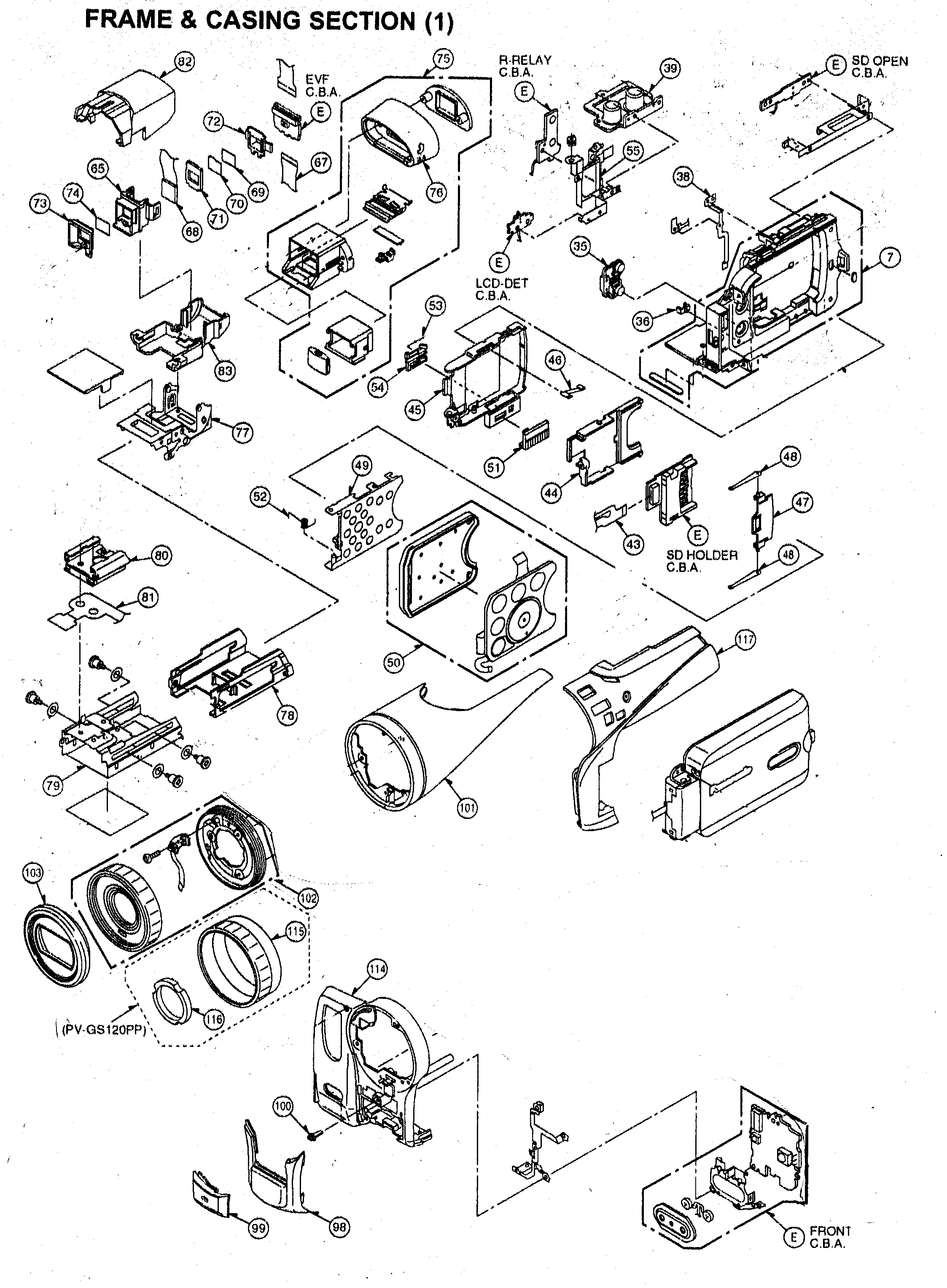

Accessorys diagram

Hood strap

Part #VGQ7270

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Front Case VYK1E21
#98

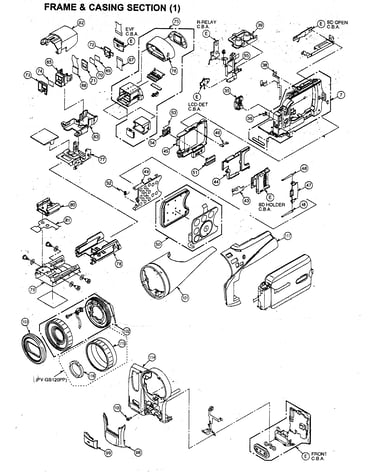

Frame/casing 1 diagram

Panasonic front case

Part #VYK1E21

The manufacturer no longer makes this part, and there's no substitute part

Home Electronics Power Cord K2CA2EA00005
#605

Accessorys diagram

Home electronics power cord

Part #K2CA2EA00005

The manufacturer no longer makes this part, and there's no substitute part

Dc Cable K2GJ2DZ00017
#604

Accessorys diagram

Dc cable

Part #K2GJ2DZ00017

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly VEP001G3A
#NI

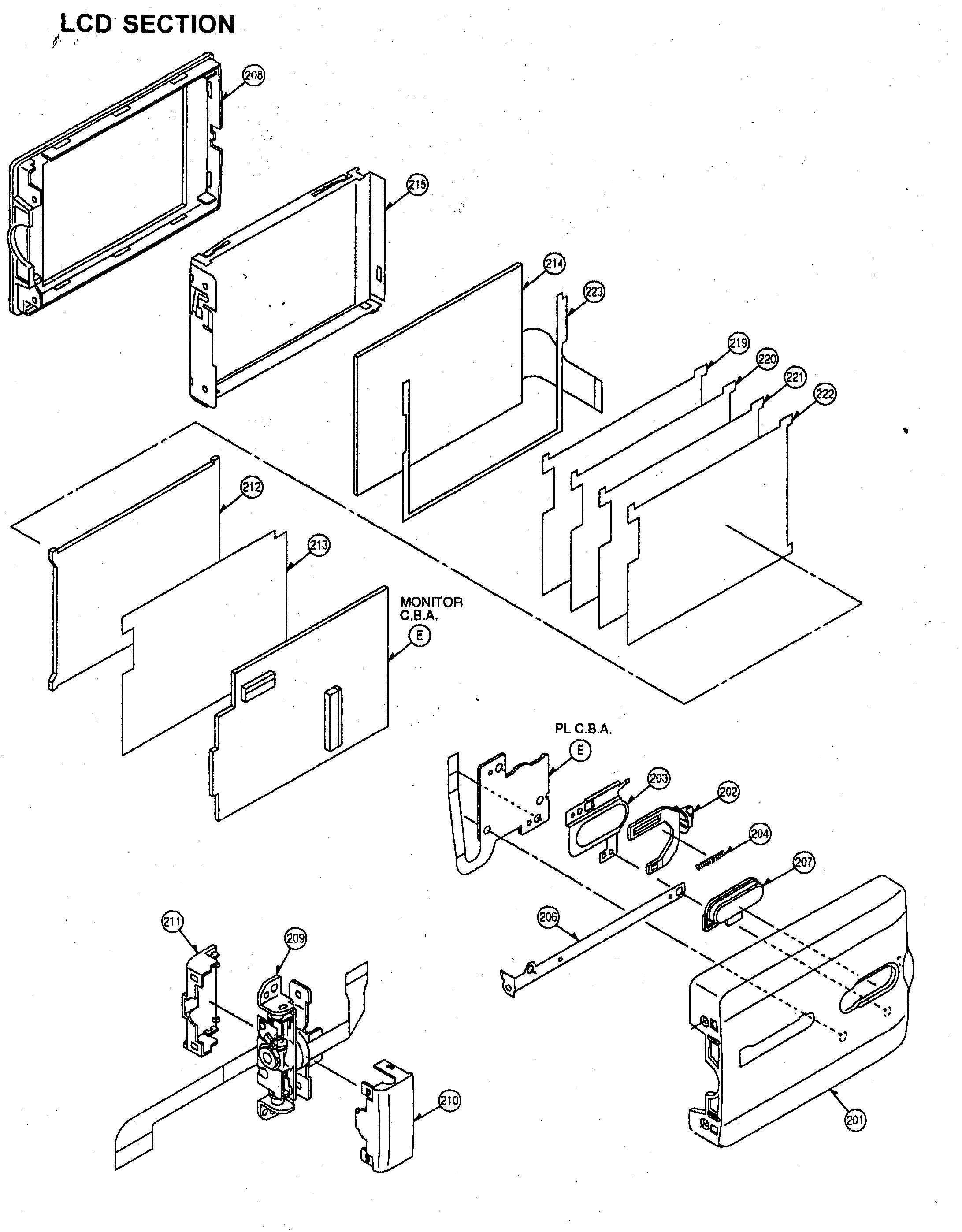

Lcd parts diagram

Pcb assembly

Part #VEP001G3A

The manufacturer no longer makes this part, and there's no substitute part

Lcd Panel L5BDDXH00016
#68

Frame/casing 1 diagram

Lcd panel

Part #L5BDDXH00016

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Pcb Assembly VEP04854B
#NI

Frame/casing 1 diagram

Panasonic pcb assembly

Part #VEP04854B

The manufacturer no longer makes this part, and there's no substitute part

Absorber VRT0158
#NI

Frame/casing 1 diagram

Absorber

Part #VRT0158

The manufacturer no longer makes this part, and there's no substitute part

Evf Case VKM6560
#82

Frame/casing 1 diagram

Evf case

Part #VKM6560

The manufacturer no longer makes this part, and there's no substitute part

Side Case VKM6471
#8

Frame/casing 2 diagram

Side case

Part #VKM6471

The manufacturer no longer makes this part, and there's no substitute part
