Kenmore
Electric Water Heater

Model # 153329260 Official Kenmore water heater

Here are the diagrams and repair parts for Official Kenmore 153329260 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Thermostat 31917
#17

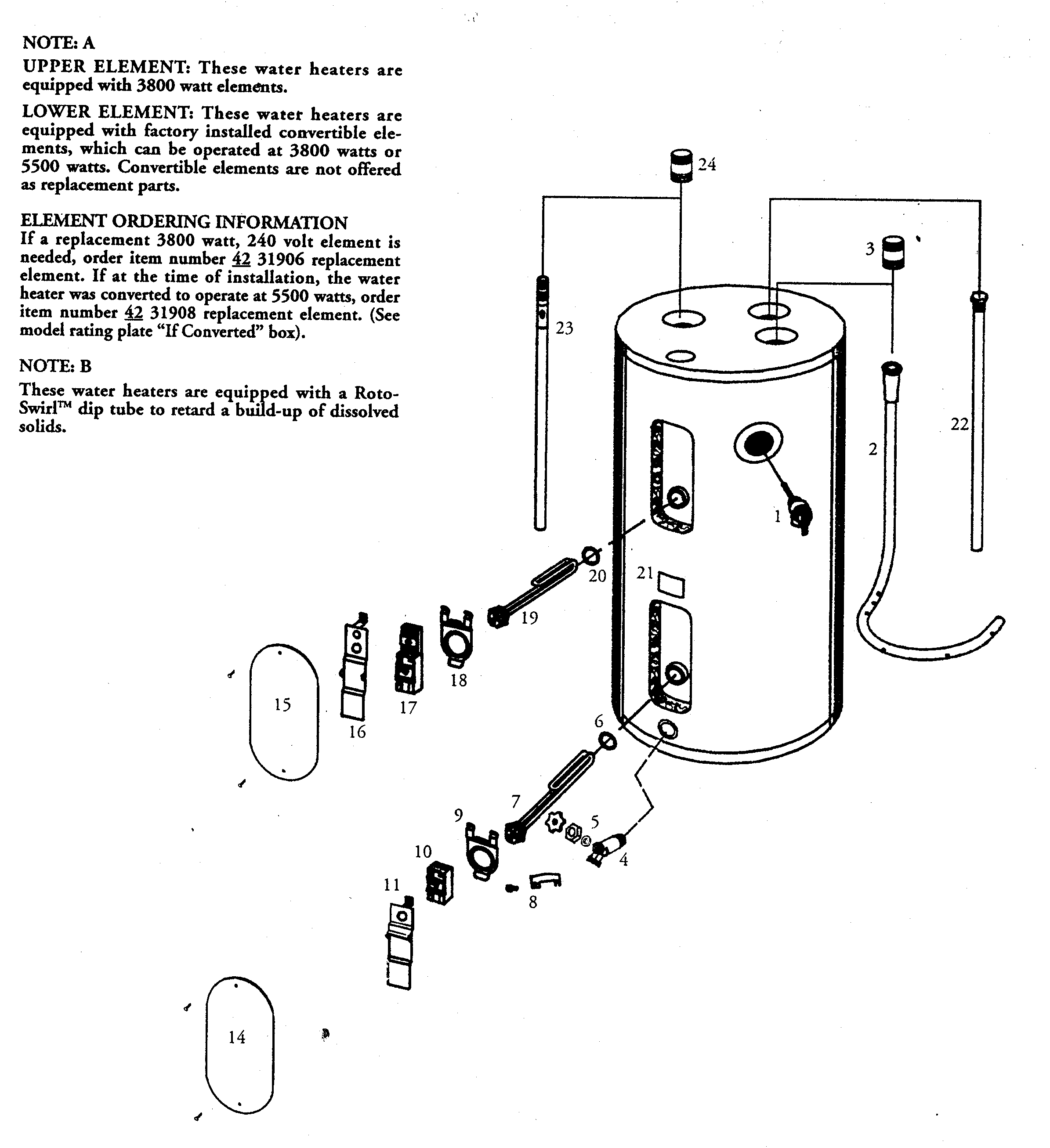

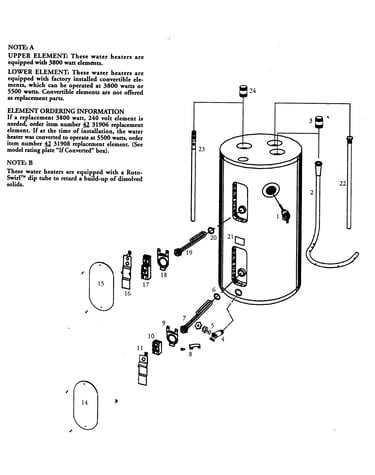

Water heater diagram

Thermostat

Part #31917

Replaced by #9001954015

?
Manufacturer substitution
This part replaces 31917. Substitute parts can look different from the original.
BEST SELLER
$28.93 |
17% OFF Phone Price : $34.93
Back Order
Element 5500 9000396
#7A

Water heater diagram

Element 5500

Part #9000396

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Heating Element Gasket 9000308
Water heater heating element gasket

Part #9000308

Replaced by #9000308005

?
Manufacturer substitution
This part replaces 9000308. Substitute parts can look different from the original.
$30.62 |
16% OFF Phone Price : $36.62
In Stock
Kenmore Elite Water Heater Thermostat Cover (replaces 183529-000) 9002276
#11

Water heater diagram

Kenmore elite water heater thermostat cover (replaces 183529-000)

Part #9002276

This item is not returnable
$17.69 |
10% OFF Phone Price : $19.69
In Stock
Element 31906
Element

Part #31906

The manufacturer no longer makes this part, and there's no substitute part

Nipple 9003931
Nipple

Part #9003931

Replaced by #100300397

?
Manufacturer substitution
This part replaces 9003931. Substitute parts can look different from the original.
$55.38 |
10% OFF Phone Price : $61.38
In Stock
Tube-dip 9001986
#2

Water heater diagram

Tube-dip

Part #9001986

$20.49
In Stock
Thermostat 31919
#10

Water heater diagram

Thermostat

Part #31919

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Thermostat Bracket (replaces 0110238, 0110238-01, 0110322, 9000309015) 9000309
Water heater thermostat bracket (replaces 0110238, 0110238-01, 0110322, 9000309015)

Part #9000309

Replaced by #100108380

?
Manufacturer substitution
This part replaces 9000309. Substitute parts can look different from the original.
$27.78
In Stock
Valve 9003464
#4

Water heater diagram

Valve

Part #9003464

Replaced by #100108269

?
Manufacturer substitution
This part replaces 9003464. Substitute parts can look different from the original.
$18.57
In Stock
