Model # DW3200PW1 Official Frigidaire 24" built-in dishwasher - 5995209011

Here are the diagrams and repair parts for Official Frigidaire DW3200PW1 24" built-in dishwasher - 5995209011, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

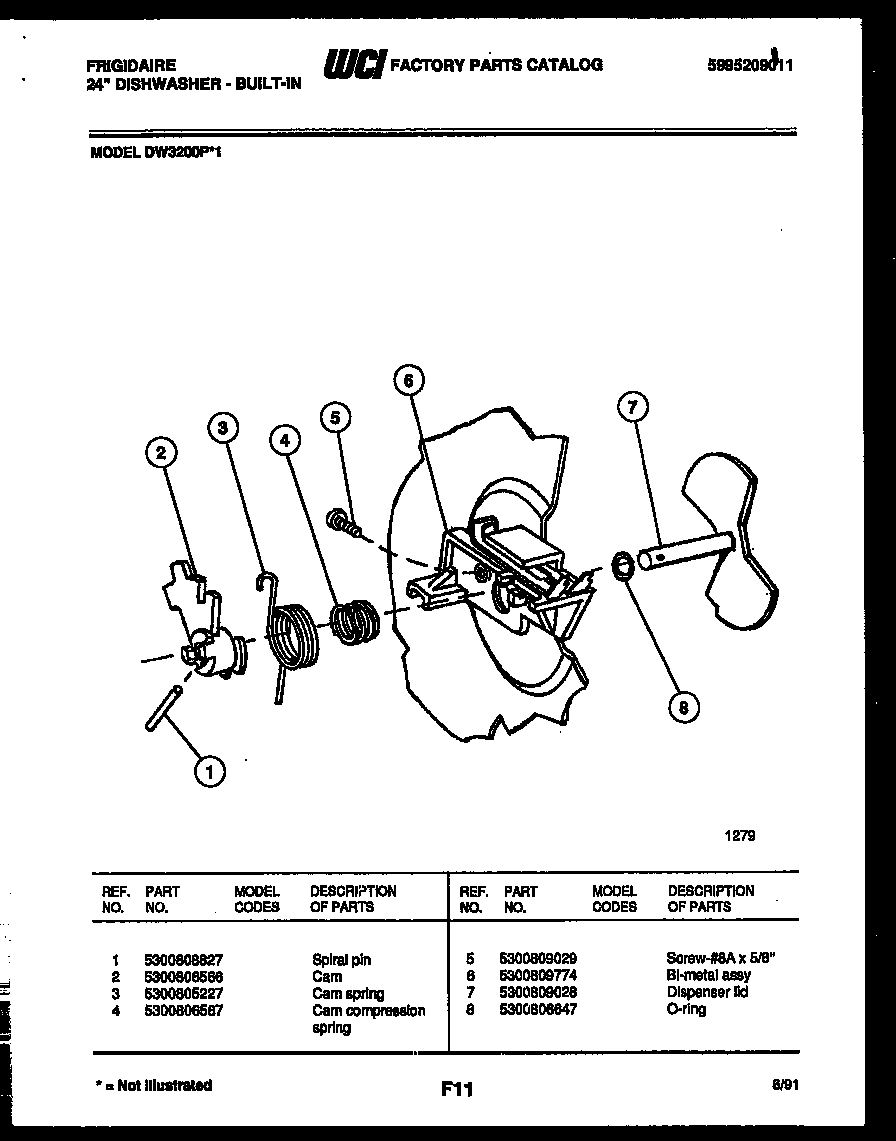

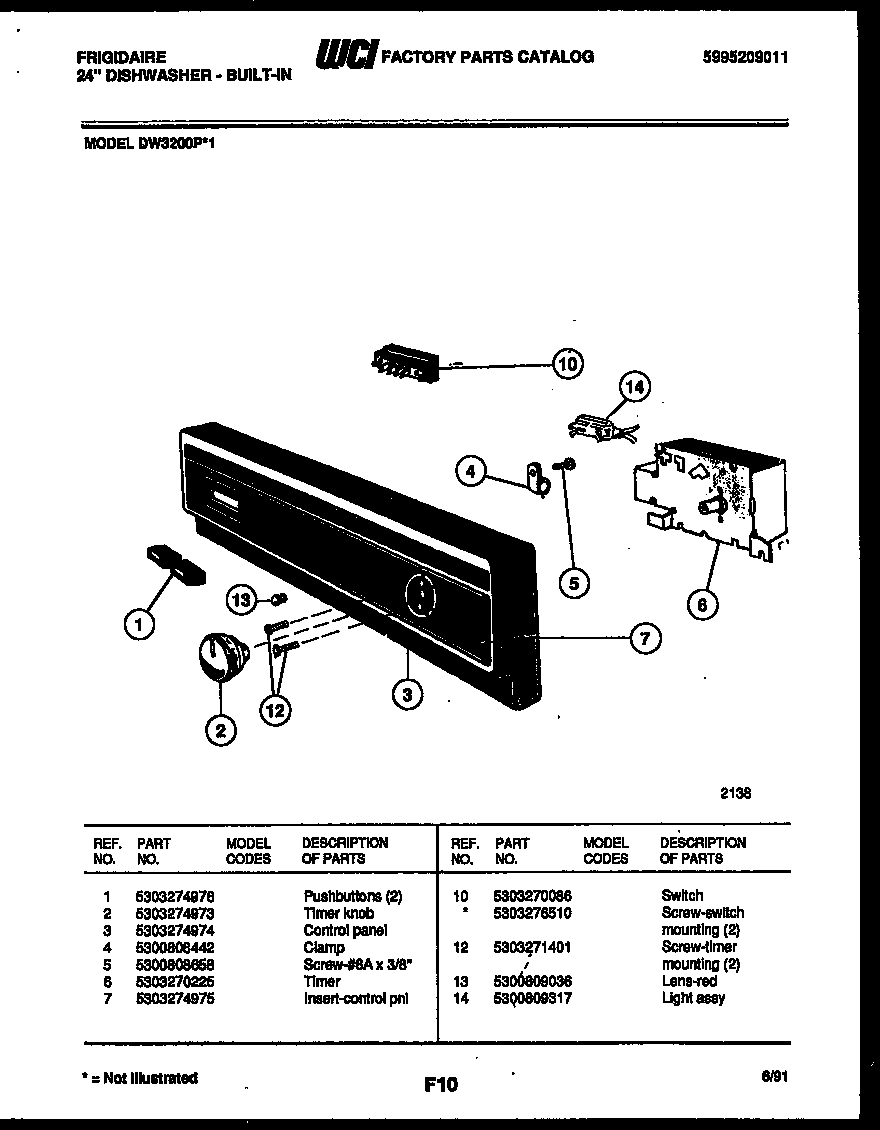

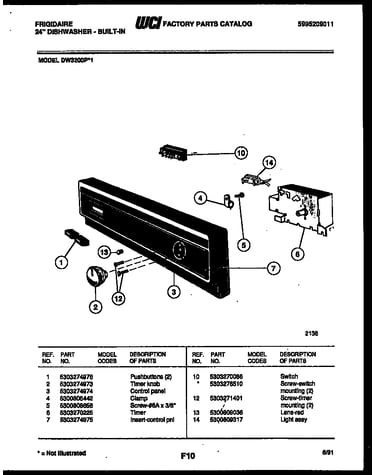

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |
Dishwasher Dishrack Roller, Lower 5300809640
#7

Racks and trays diagram

Dishwasher dishrack roller, lower

Part #5300809640

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 5300809640. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.88 |
17% OFF Phone Price : $5.88
In Stock
Nut 5300806834
#22

Motor pump parts diagram

Nut

Part #5300806834

Replaced by #154106202

?
Manufacturer substitution
This part replaces 5300806834. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Basket 5303270096
#2

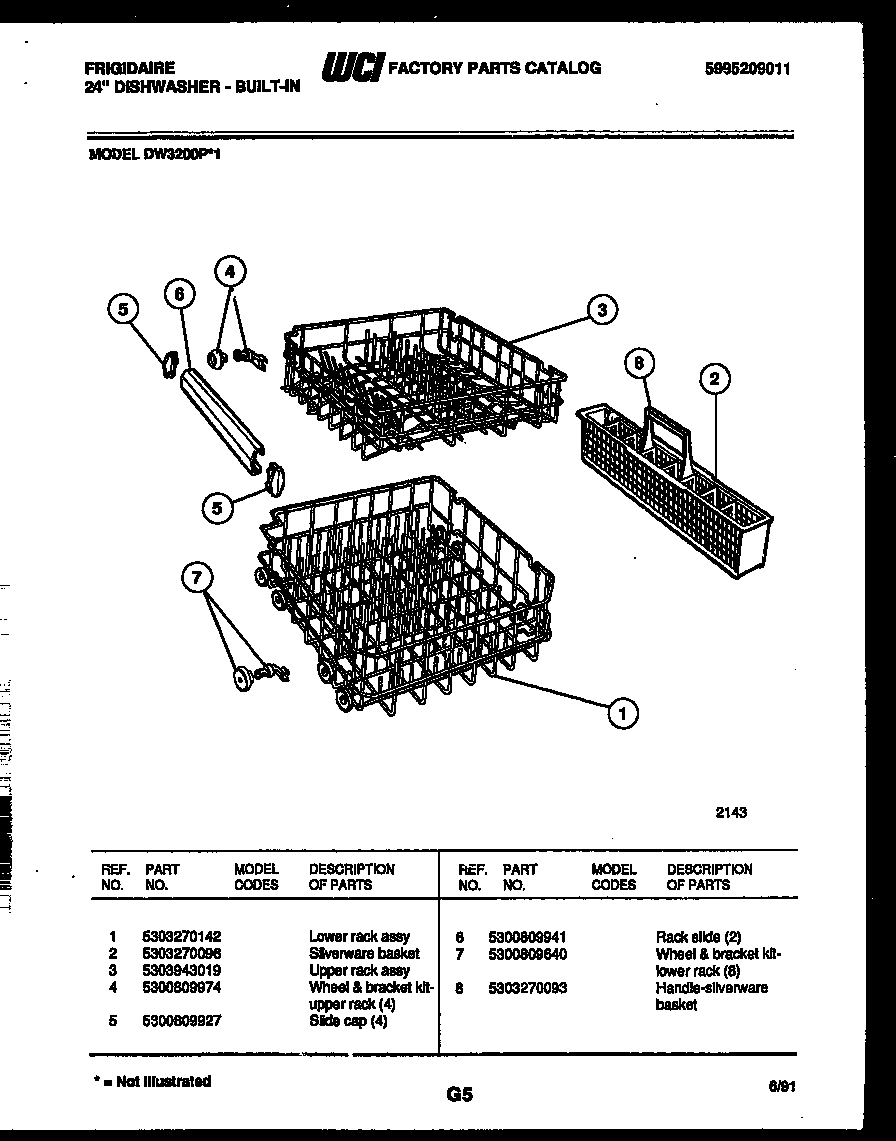

Racks and trays diagram

Basket

Part #5303270096

Replaced by #5304509753

?
Manufacturer substitution
This part replaces 5303270096. Substitute parts can look different from the original.
This item is not returnable
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Screw 5300809978
#2

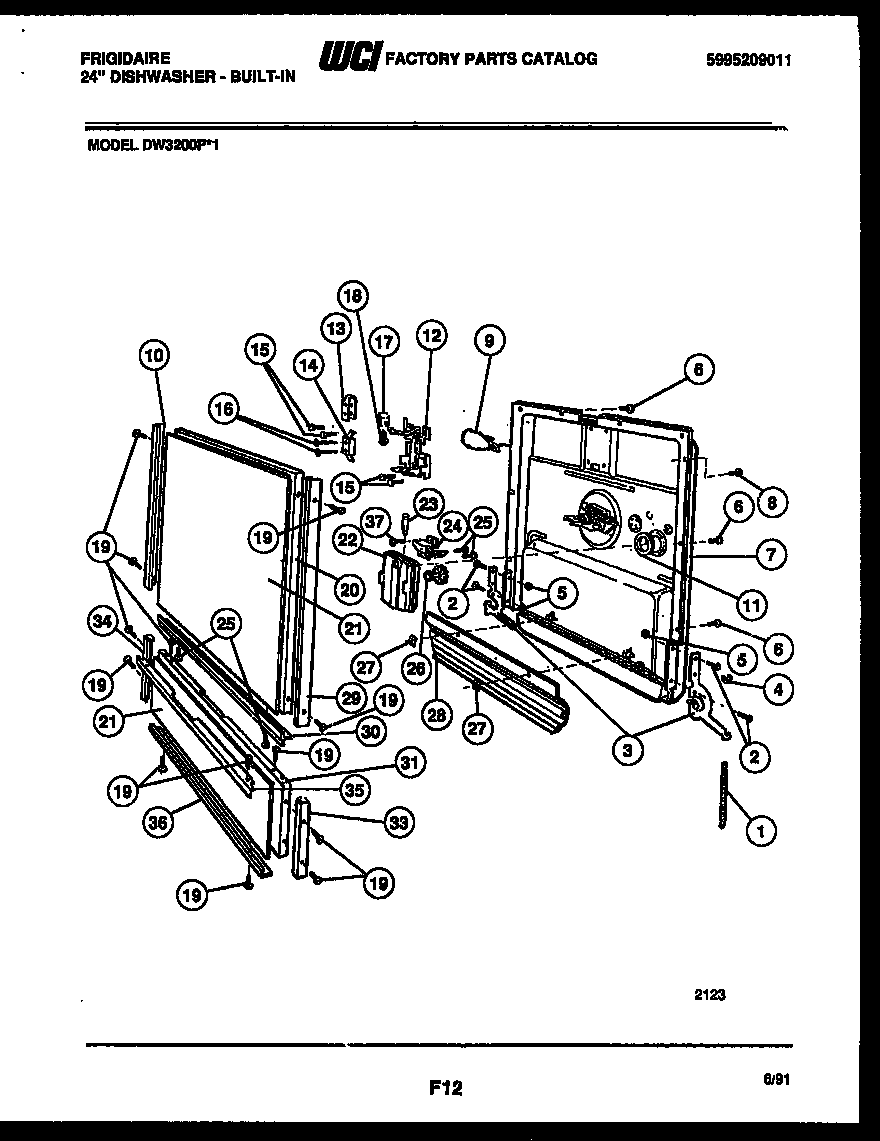

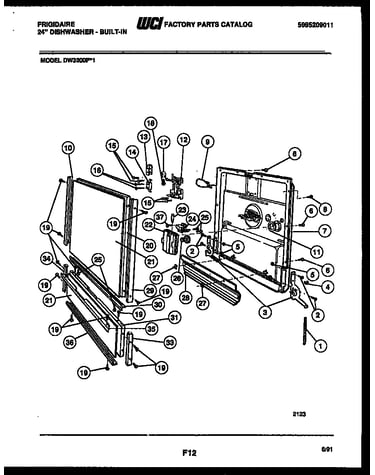

Door parts diagram

Screw

Part #5300809978

Replaced by #154093301

?
Manufacturer substitution
This part replaces 5300809978. Substitute parts can look different from the original.
This item is not returnable
$2.31
In Stock
Tub Roller 5300809917
#6

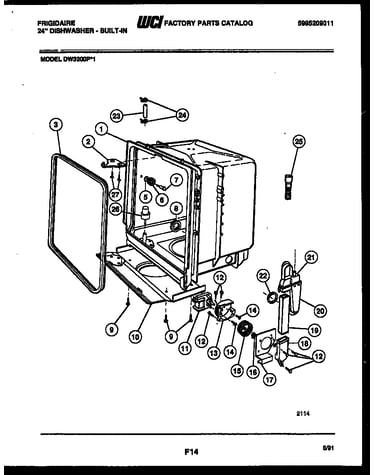

Tub and frame parts diagram

Tub roller

Part #5300809917

Replaced by #5304507405

?
Manufacturer substitution
This part replaces 5300809917. Substitute parts can look different from the original.
This item is not returnable
$16.71
In Stock
Dishwasher Drain Pump Housing 5300809589
#14

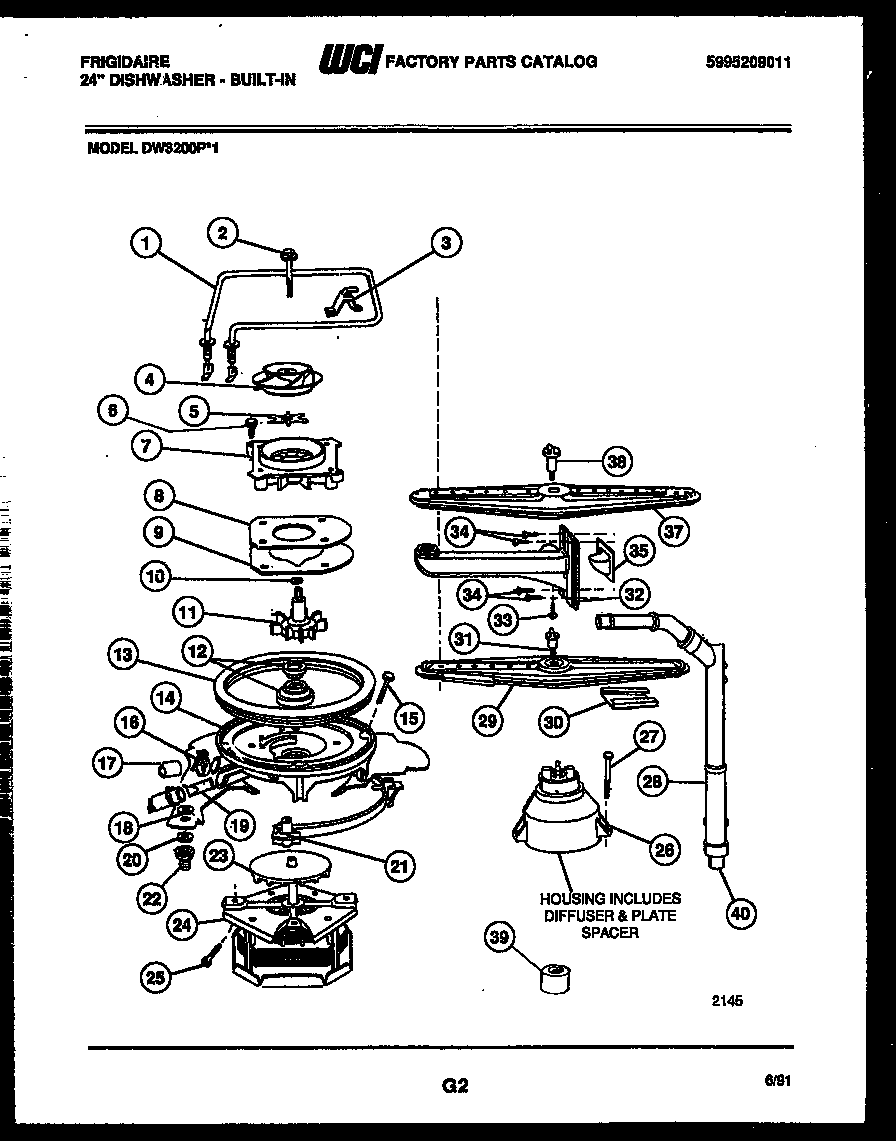

Motor pump parts diagram

Dishwasher drain pump housing

Part #5300809589

$36.07
In Stock
Crosley Washer 5300807373
#18

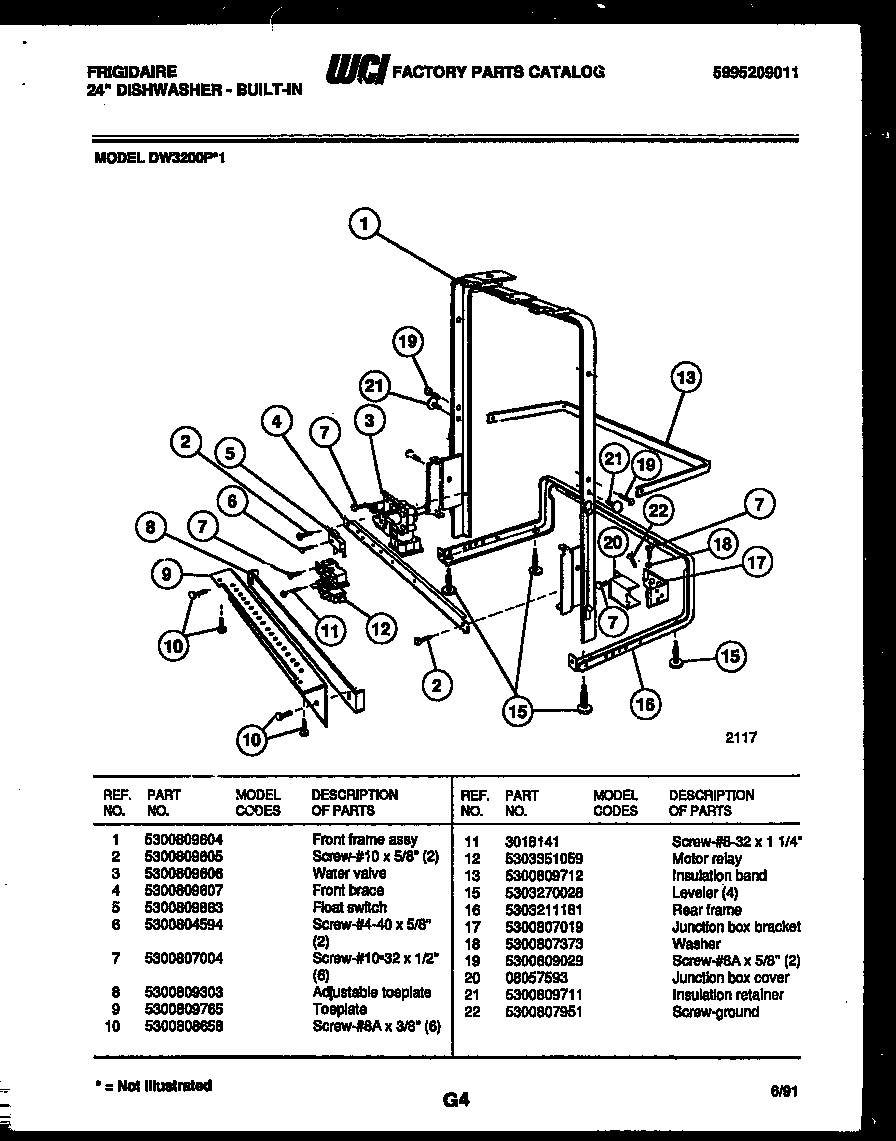

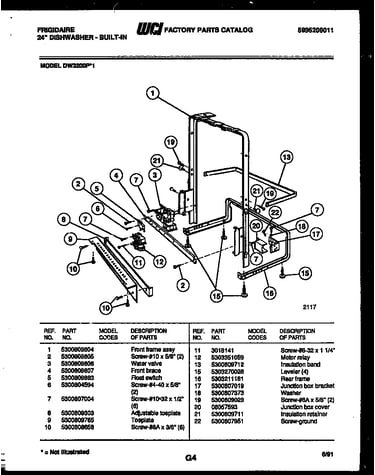

Power dry and motor parts diagram

Crosley washer

Part #5300807373

This item is not returnable
$7.49
In Stock
Dishwasher Dishrack Slide Rail Stop (replaces 809927) 5300809927
#5

Racks and trays diagram

Dishwasher dishrack slide rail stop (replaces 809927)

Part #5300809927

This item is not returnable
$34.59 |
15% OFF Phone Price : $40.59
In Stock
Dishwasher O-ring 5300806521
#10

Motor pump parts diagram

Dishwasher o-ring

Part #5300806521

$24.89
In Stock
Dishwasher Drain Hose 3100021801
#25

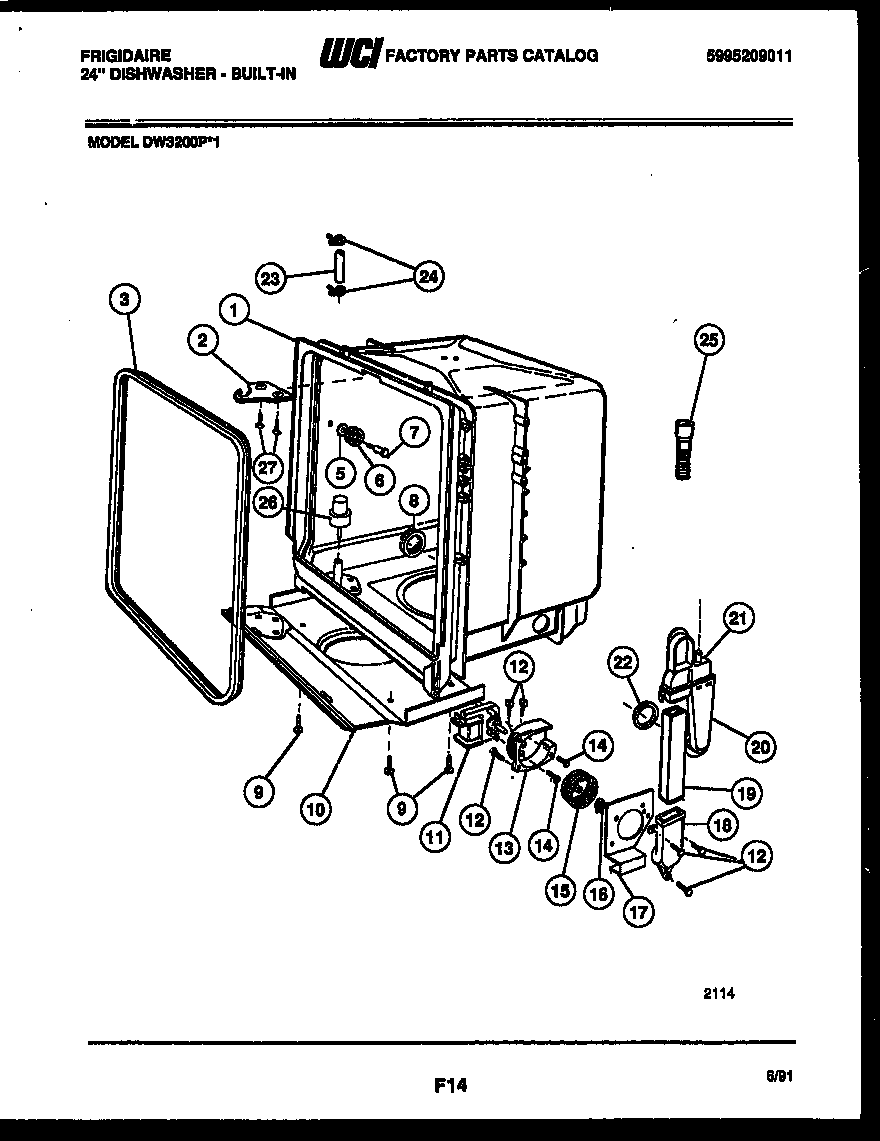

Tub and frame parts diagram

Dishwasher drain hose

Part #3100021801

$59.93
In Stock
