Electric Range

Model # JE3842VRV Official Jenn-Air electric freestanding range

Here are the diagrams and repair parts for Official Jenn-Air JE3842VRV electric freestanding range, as well as links to manuals and error code tables, if available.

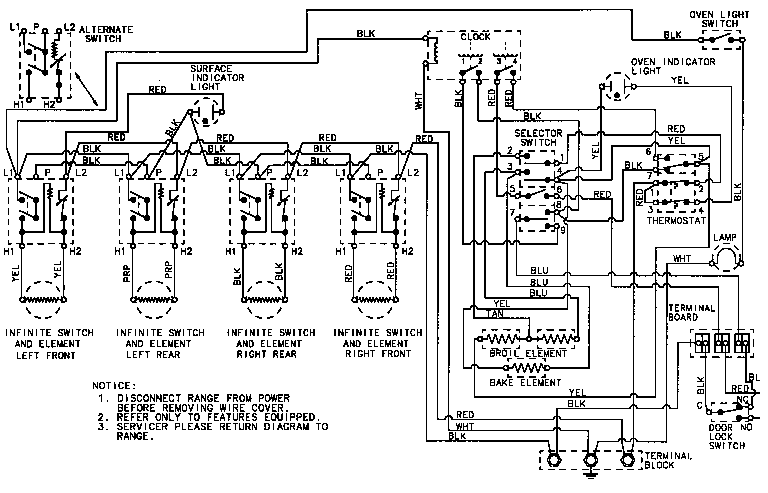

By Schematic
By Part

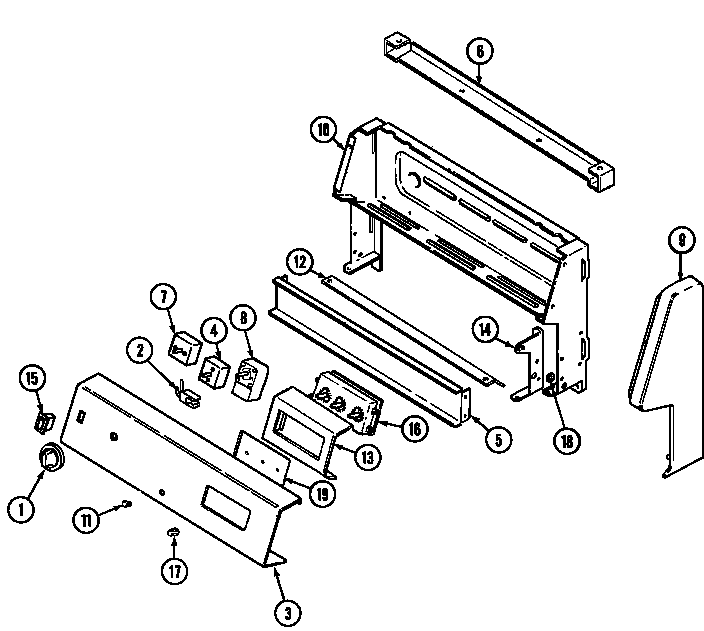

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJE3842VRV Ranges

  • Bake Element 04000058
    #3

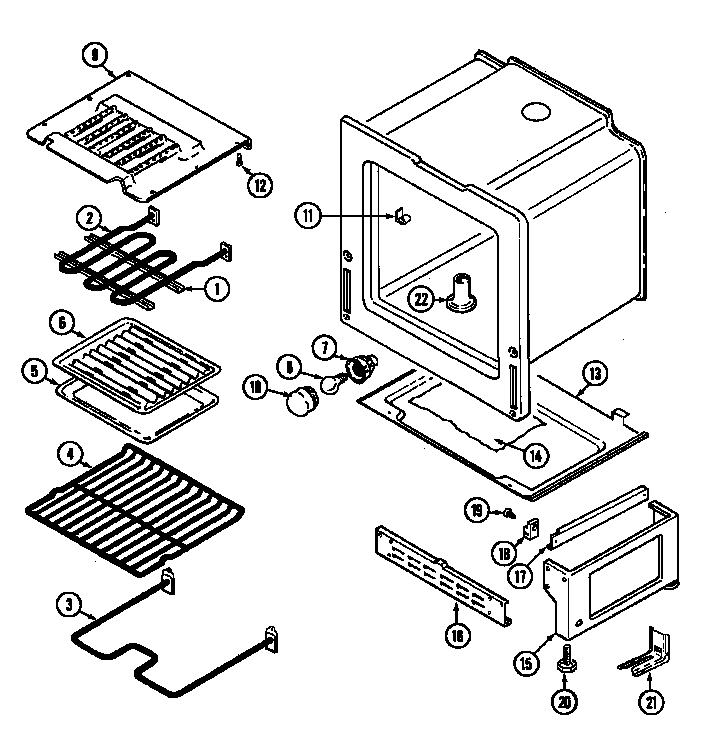

    Oven/base diagram

    Bake element

    Part #04000058

    Replaced by #WP74003019

    ?
    Manufacturer substitution
    This part replaces 04000058. Substitute parts can look different from the original.
    BEST SELLER
    $42.65
    12% OFF Phone Price : $48.65
    In Stock
  • Door Gasket 7201P046-60
    #1

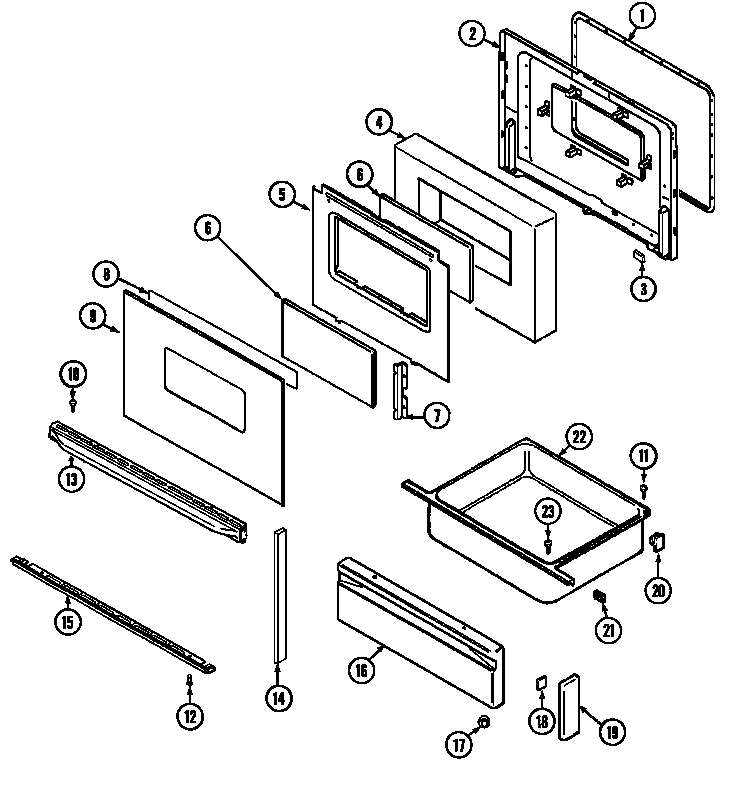

    Door/drawer diagram

    Door gasket

    Part #7201P046-60

    Replaced by #WPW10162384

    ?
    Manufacturer substitution
    This part replaces 7201P046-60. Substitute parts can look different from the original.
    $69.42
    8% OFF Phone Price : $75.42
    In Stock
  • Oven Bulb 7407P103-60
    #8

    Oven/base diagram

    Oven bulb

    Part #7407P103-60

    Replaced by #8009

    ?
    Manufacturer substitution
    This part replaces 7407P103-60. Substitute parts can look different from the original.
    This item is not returnable
    $12.57
    14% OFF Phone Price : $14.57
    In Stock
  • Bracket Screw 7101P040-60
    #10

    Door/drawer diagram

    Bracket screw

    Part #7101P040-60

    Replaced by #WP98008545

    ?
    Manufacturer substitution
    This part replaces 7101P040-60. Substitute parts can look different from the original.
    This item is not returnable
    $4.67
    18% OFF Phone Price : $5.67
    In Stock
  • Element Kit 12001231
    #4

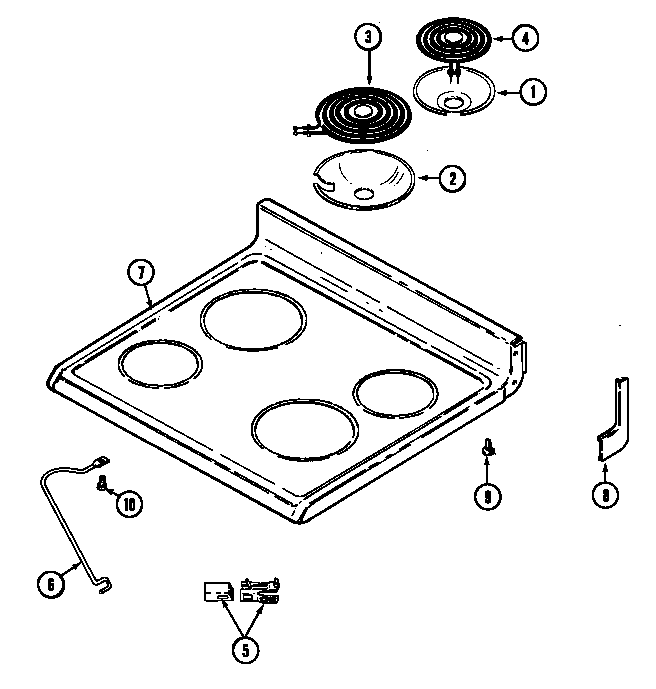

    Top assembly diagram

    Element kit

    Part #12001231

    Replaced by #WPW10259868

    ?
    Manufacturer substitution
    This part replaces 12001231. Substitute parts can look different from the original.
    $78.60
    7% OFF Phone Price : $84.60
    In Stock
  • Lever Screw 7101P230-60
    Lever screw

    Part #7101P230-60

    Replaced by #WP4159193

    ?
    Manufacturer substitution
    This part replaces 7101P230-60. Substitute parts can look different from the original.
    This item is not returnable
    $5.29
    16% OFF Phone Price : $6.29
    In Stock
  • Oven Rack 74001757
    #4

    Oven/base diagram

    Oven rack

    Part #74001757

    Replaced by #WPW10282492

    ?
    Manufacturer substitution
    This part replaces 74001757. Substitute parts can look different from the original.
    $56.89
    10% OFF Phone Price : $62.89
    In Stock
  • Hinge Screw 7101P017-60
    #25A

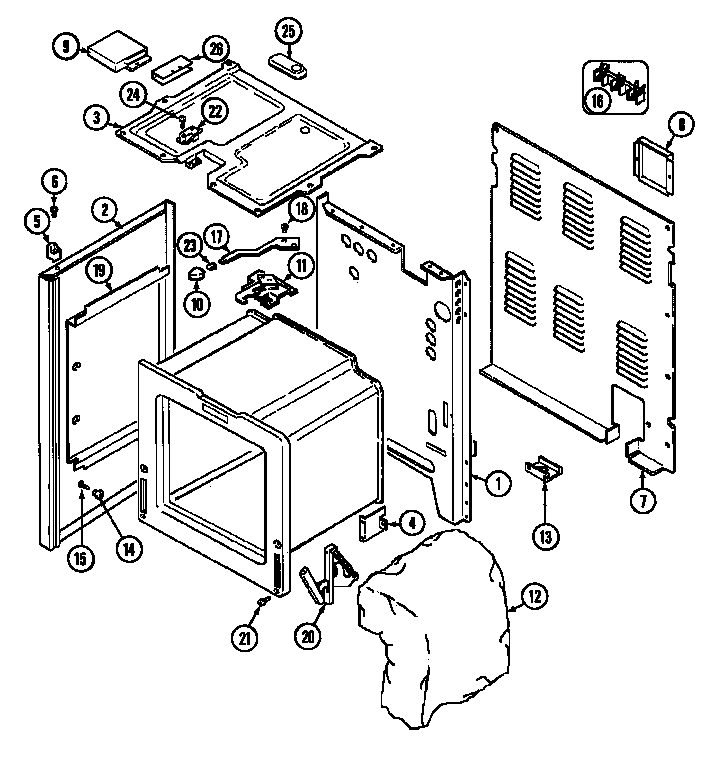

    Body diagram

    Hinge screw

    Part #7101P017-60

    Replaced by #WP4159193

    ?
    Manufacturer substitution
    This part replaces 7101P017-60. Substitute parts can look different from the original.
    This item is not returnable
    $5.29
    16% OFF Phone Price : $6.29
    In Stock
  • Cover Bulb 7724P047-60
    #10

    Oven/base diagram

    Cover bulb

    Part #7724P047-60

    Replaced by #WP9781049

    ?
    Manufacturer substitution
    This part replaces 7724P047-60. Substitute parts can look different from the original.
    $49.49
    11% OFF Phone Price : $55.49
    In Stock
  • Drip Bowl 74001520
    #1B

    Top assembly diagram

    Drip bowl

    Part #74001520

    Replaced by #W10291024

    ?
    Manufacturer substitution
    This part replaces 74001520. Substitute parts can look different from the original.
    $46.11
    12% OFF Phone Price : $52.11
    In Stock
