Model # 58MSA08012116 Official Carrier furnace

Here are the diagrams and repair parts for Official Carrier 58MSA08012116 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

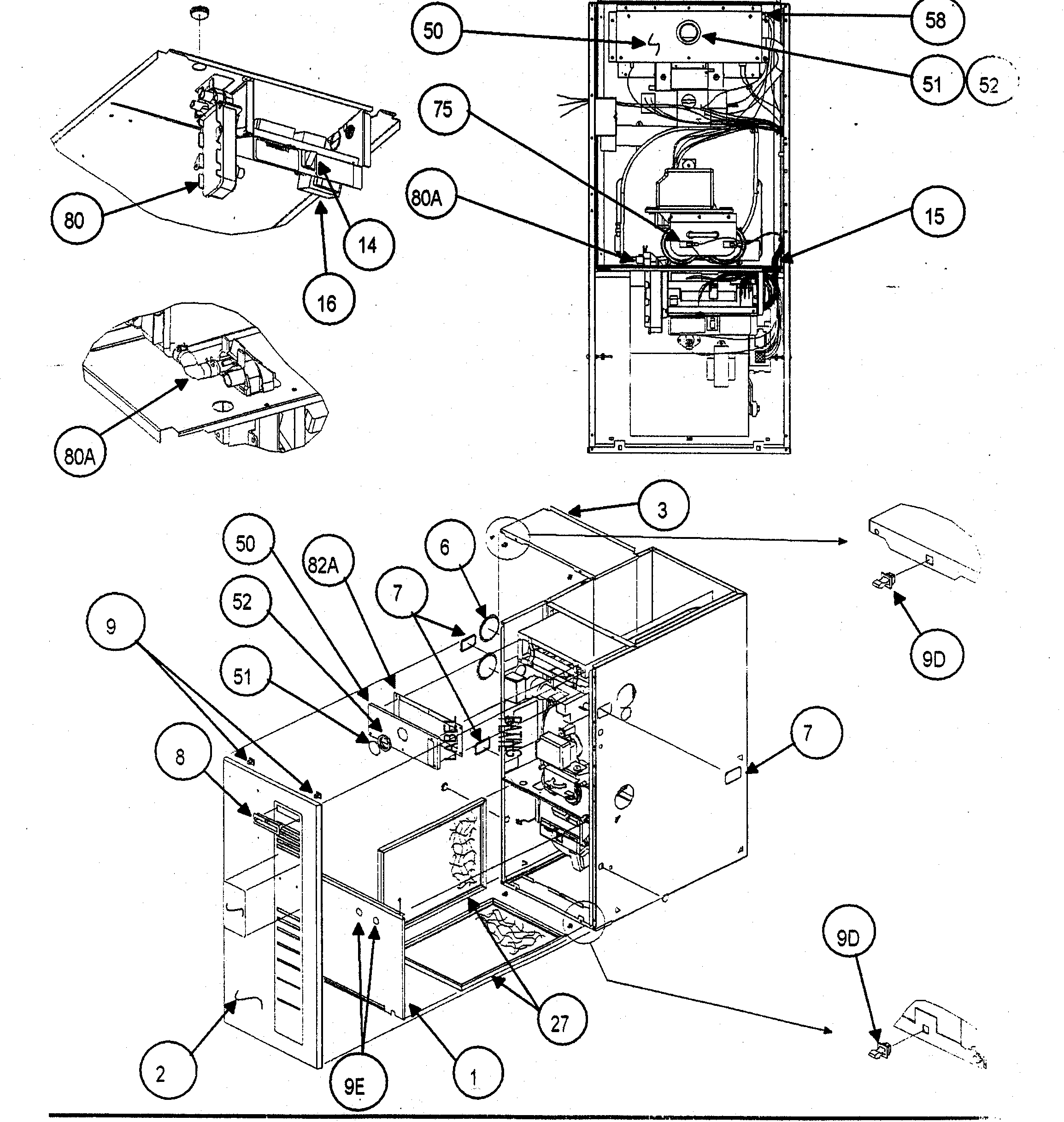

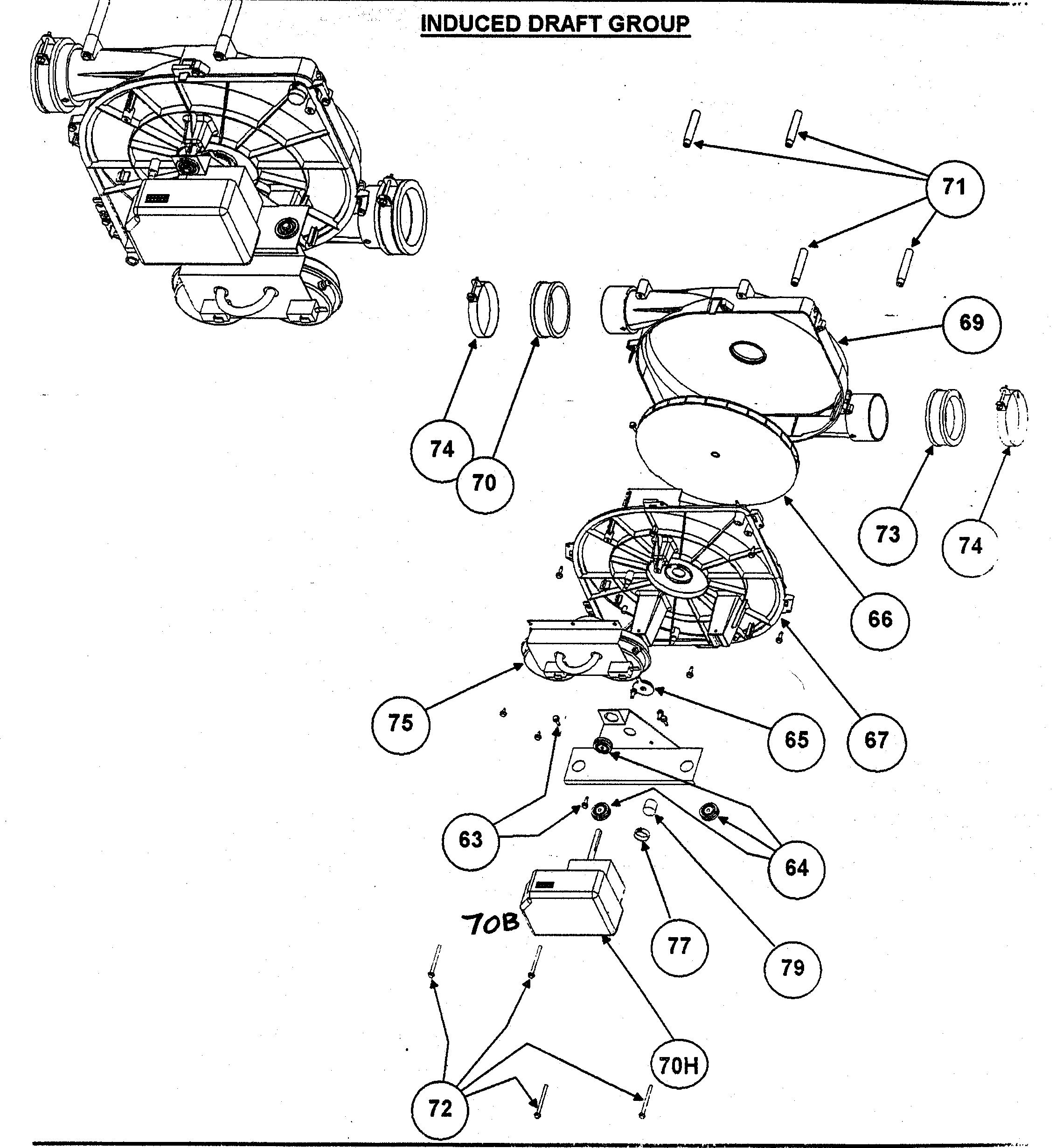

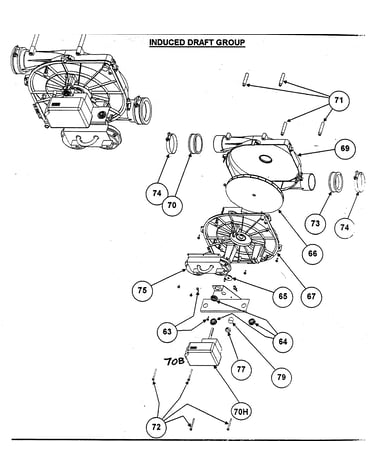

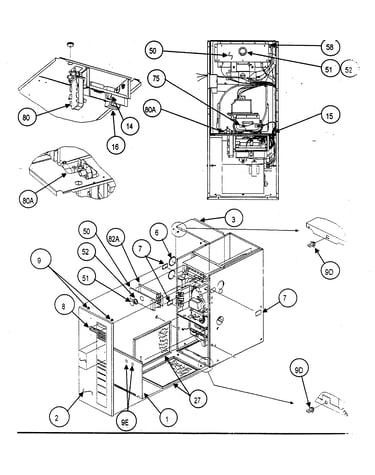

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Capactr Run P291-1003
#25A

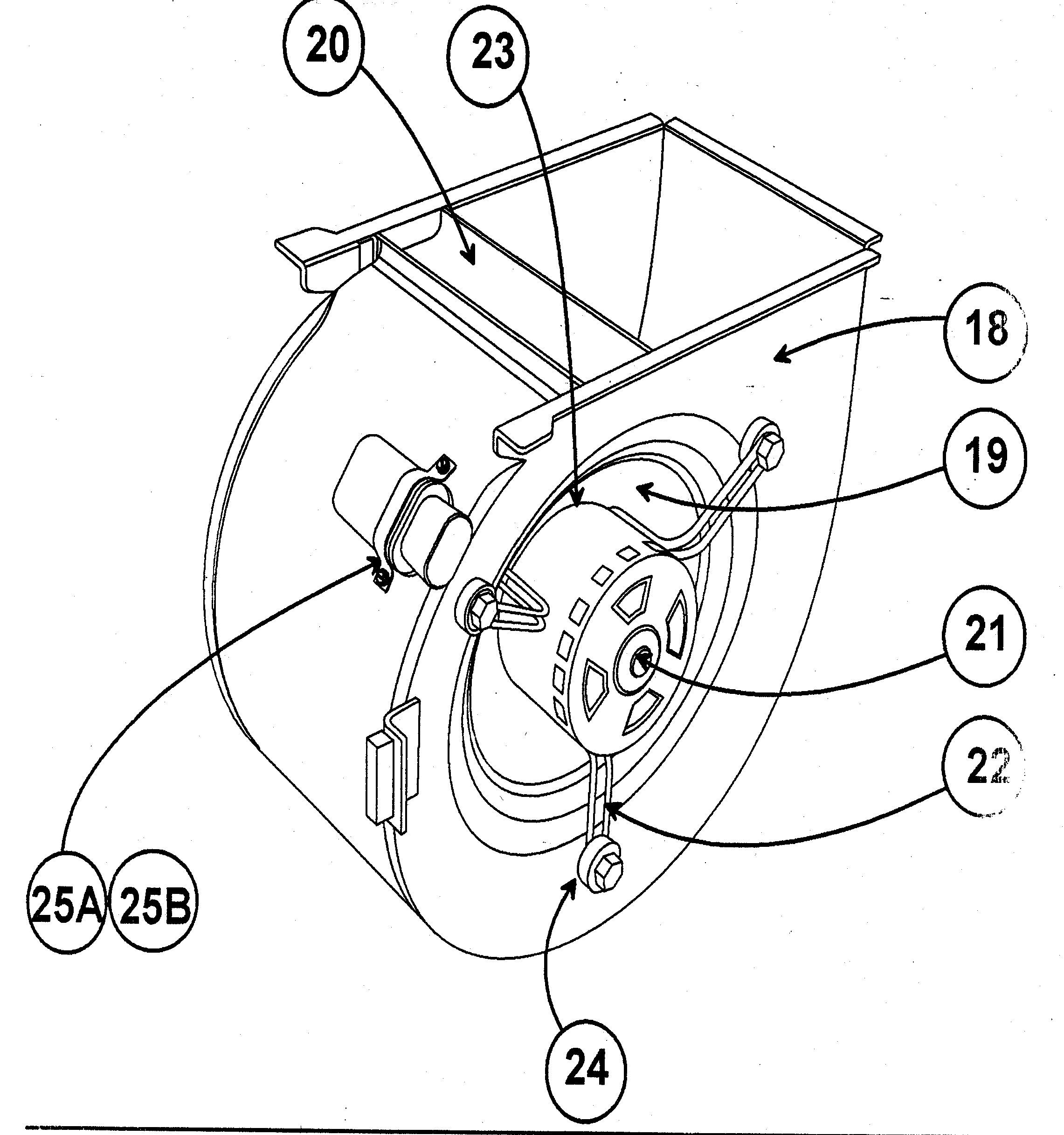

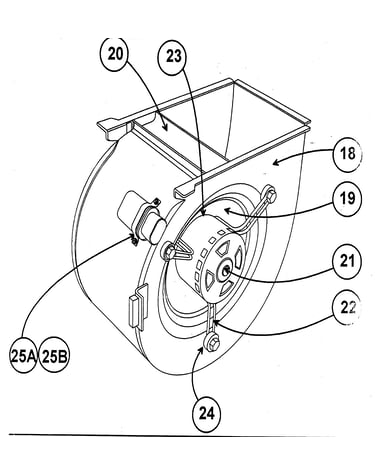

Blower assy diagram

Capactr run

Part #P291-1003

Replaced by #12908

?
Manufacturer substitution
This part replaces P291-1003. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
Back Order
Furnace Burner Igniter (replaces 331930-751, 41-403) LH33ZS004
#54

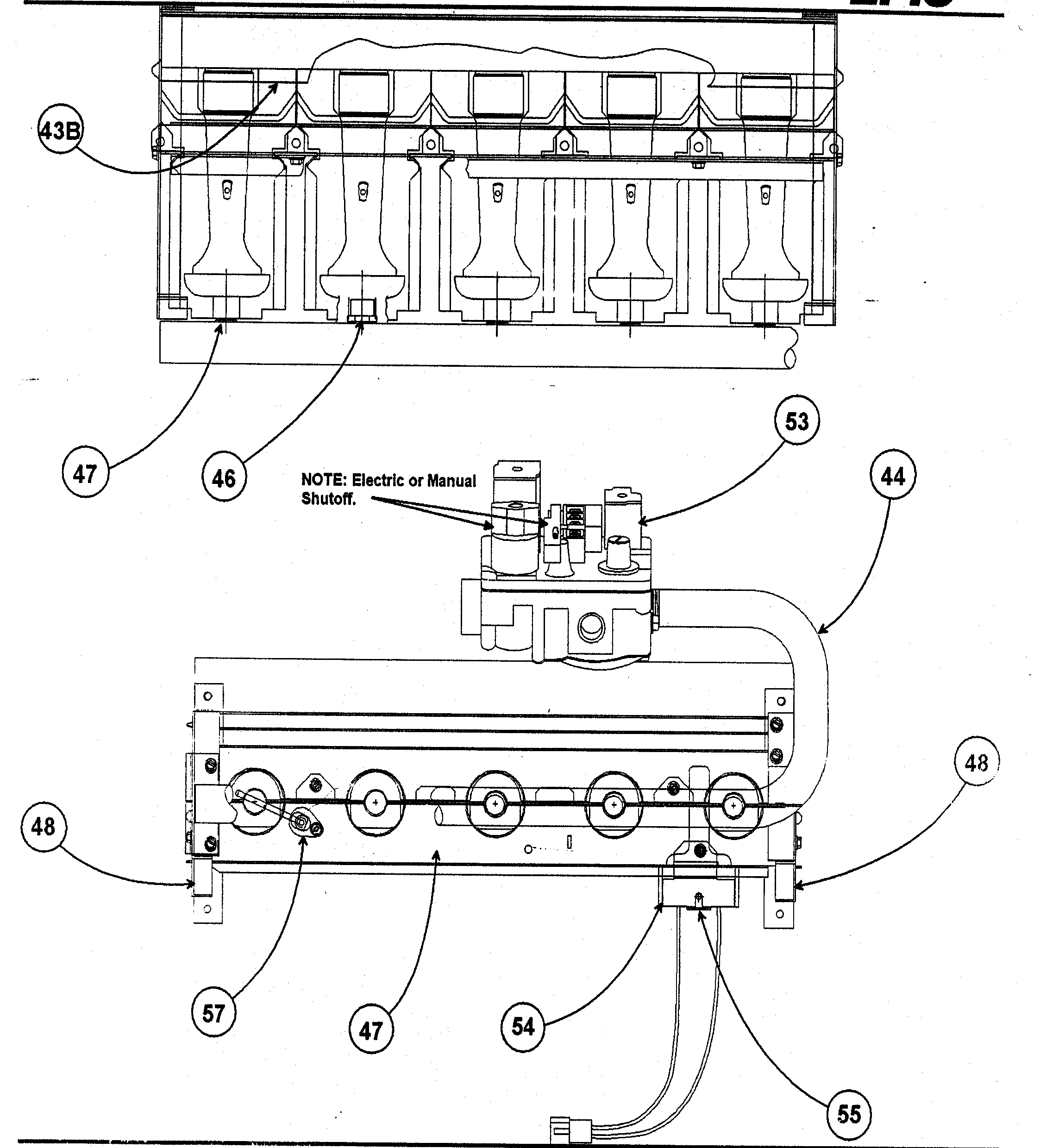

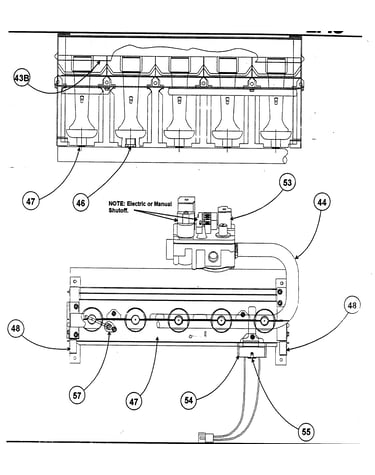

Burner assy diagram

Furnace burner igniter (replaces 331930-751, 41-403)

Part #LH33ZS004

$47.08 |
11% OFF Phone Price : $53.08
In Stock
Circ.board HK42FZ016
#10

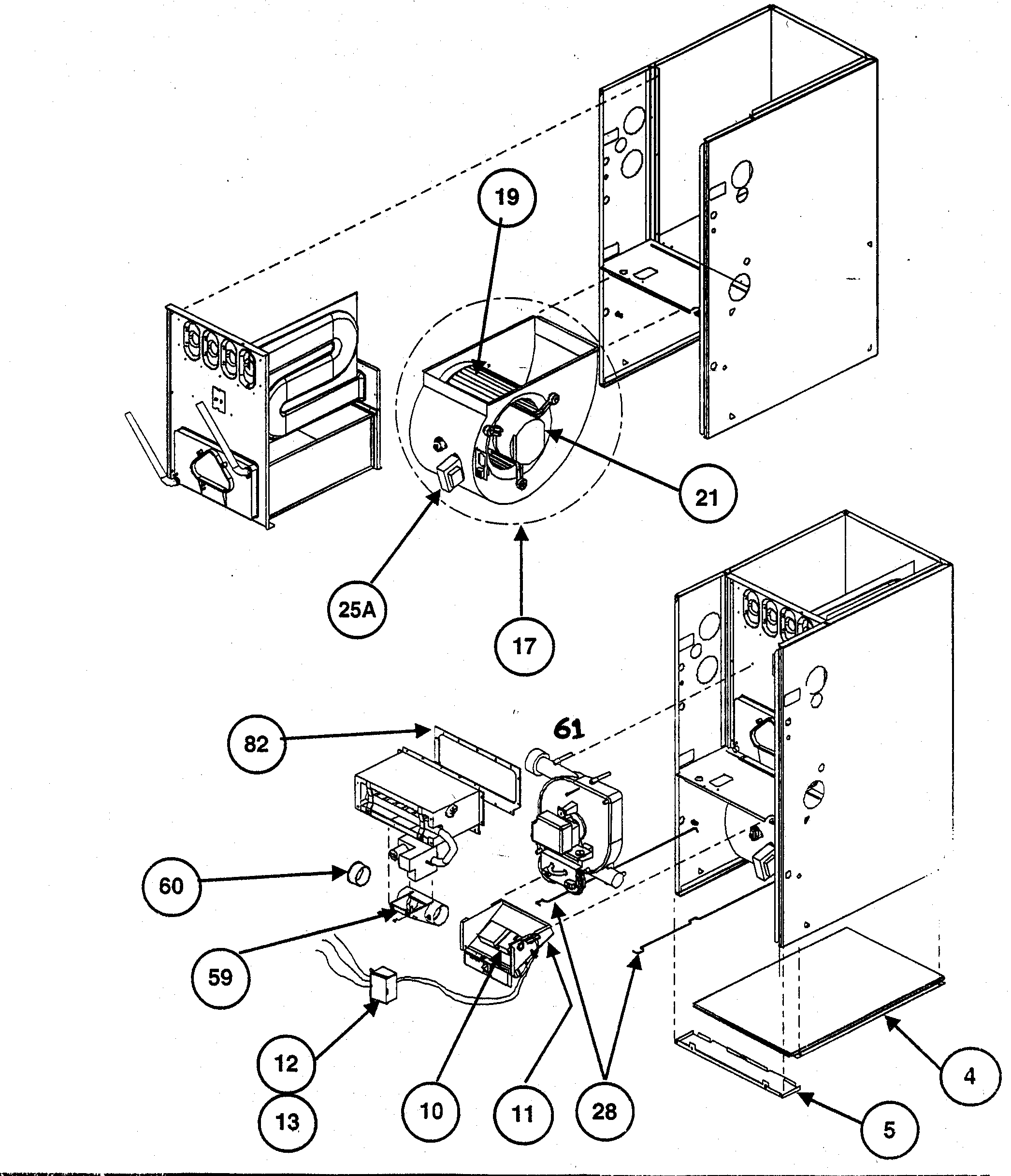

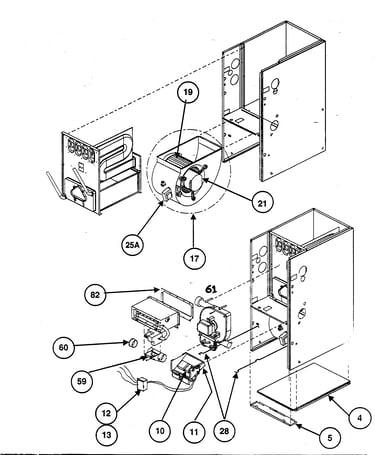

Cabinet parts 1 diagram

Circ.board

Part #HK42FZ016

Replaced by #325878-751

?
Manufacturer substitution
This part replaces HK42FZ016. Substitute parts can look different from the original.
$451.41 |
$12.00 OFF Phone Price : $463.41
In Stock
Sensor LH680013
#57

Burner assy diagram

Sensor

Part #LH680013

Replaced by #LH680-014

?
Manufacturer substitution
This part replaces LH680013. Substitute parts can look different from the original.
$51.20
In Stock
Furnace Temperature Limit Switch HH12ZB250
#38

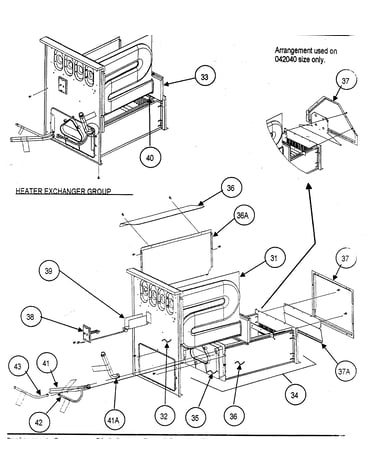

Heater exchanger assy diagram

Furnace temperature limit switch

Part #HH12ZB250

$28.89 |
17% OFF Phone Price : $34.89
In Stock
Motor HC43AE116
#21

Cabinet parts 1 diagram

Motor

Part #HC43AE116

Replaced by #HC43AQ116

?
Manufacturer substitution
This part replaces HC43AE116. Substitute parts can look different from the original.
$480.45 |
$12.00 OFF Phone Price : $492.45
In Stock
Kit 320726-753
#33

Heater exchanger assy diagram

Kit

Part #320726-753

Replaced by #330541-753

?
Manufacturer substitution
This part replaces 320726-753. Substitute parts can look different from the original.
$199.00
In Stock
Flex Tube 319873-314
#42

Heater exchanger assy diagram

Flex tube

Part #319873-314

Replaced by #319873-714

?
Manufacturer substitution
This part replaces 319873-314. Substitute parts can look different from the original.
$59.26 |
9% OFF Phone Price : $65.26
In Stock
Heat Exchange 320722-752
#34

Heater exchanger assy diagram

Heat exchange

Part #320722-752

Replaced by #334357-755

?
Manufacturer substitution
This part replaces 320722-752. Substitute parts can look different from the original.
$2199.74
In Stock
Icp Inlet Box 319847-401
#59

Cabinet parts 1 diagram

Icp inlet box

Part #319847-401

$32.67
In Stock
