Model # D280K-04 TYPE 1 Official DeWalt drywall screwdriver

Here are the diagrams and repair parts for Official DeWalt D280K-04-TYPE-1 drywall screwdriver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Sears Screw 448269-00
#31

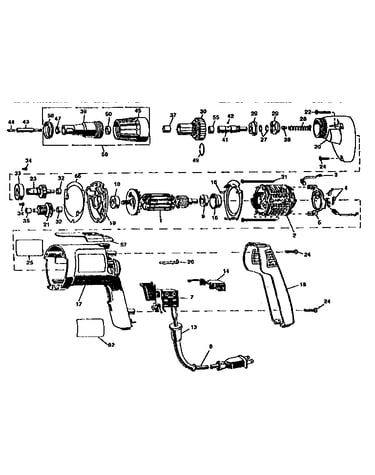

Unit parts diagram

Sears screw

Part #448269-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 330003-09
#33

Unit parts diagram

Power tool bearing

Part #330003-09

The manufacturer no longer makes this part, and there's no substitute part

#2 Bit DW2002
#44

Unit parts diagram

#2 bit

Part #DW2002

The manufacturer no longer makes this part, and there's no substitute part

Kit Box DW9449

#*12728

All parts diagram

Kit box

Part #DW9449

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Spring 86211-00
#28

Unit parts diagram

Black & decker spring

Part #86211-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#13

Unit parts diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part

Sears Screwdriver Clutch 96558-00
#29

Unit parts diagram

Sears screwdriver clutch

Part #96558-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Drill Motor Brush Spring 445860-00
#4

Unit parts diagram

Sears drill motor brush spring

Part #445860-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Spindle 96540-01
#41

Unit parts diagram

Sears spindle

Part #96540-01

The manufacturer no longer makes this part, and there's no substitute part

Sears Dust Seal 449890-00
#58

Unit parts diagram

Sears dust seal

Part #449890-00

The manufacturer no longer makes this part, and there's no substitute part
