Model # R-305CW Official Sharp microwave
Here are the diagrams and repair parts for Official Sharp R-305CW microwave, as well as links to manuals and error code tables, if available.

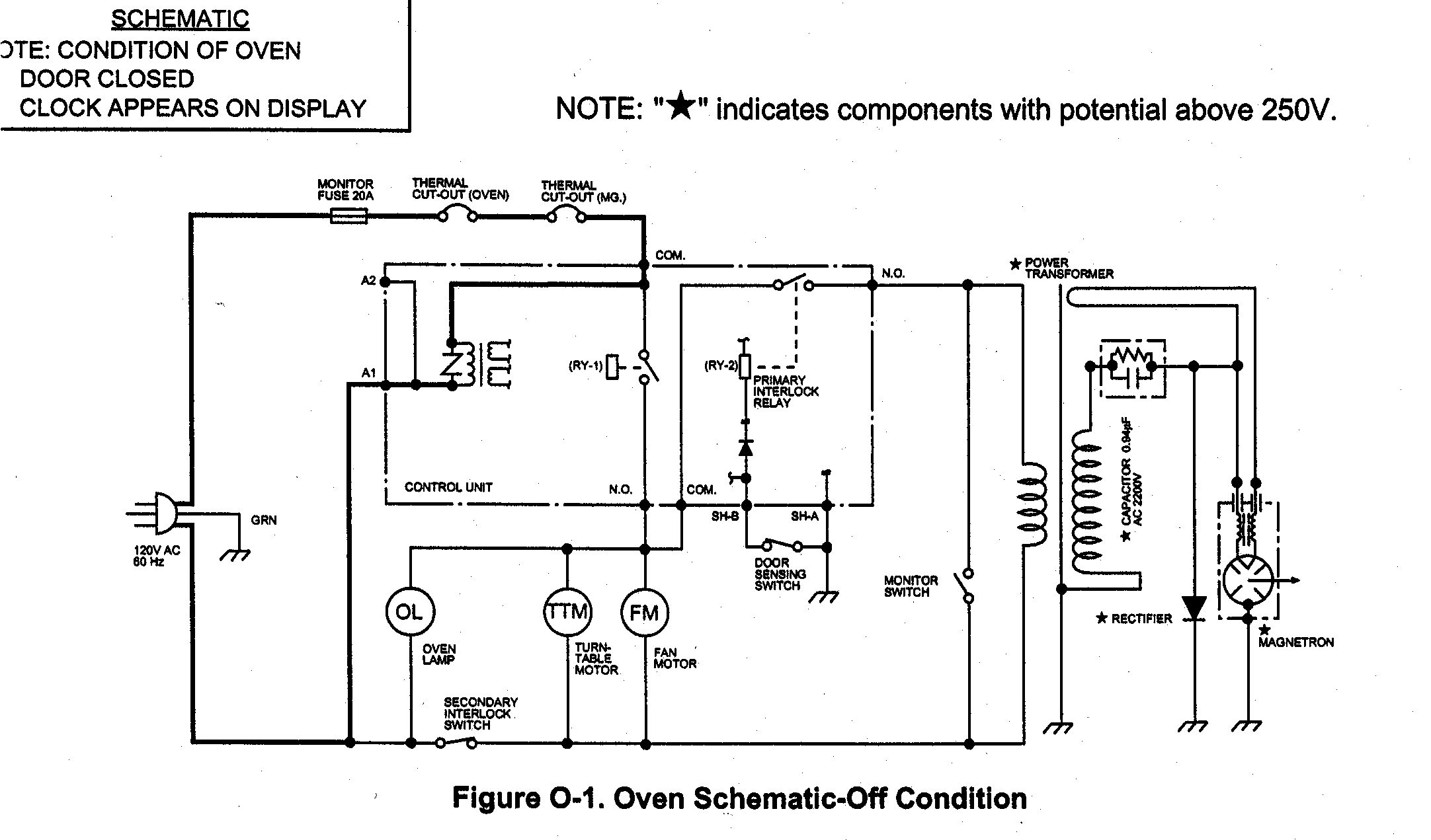

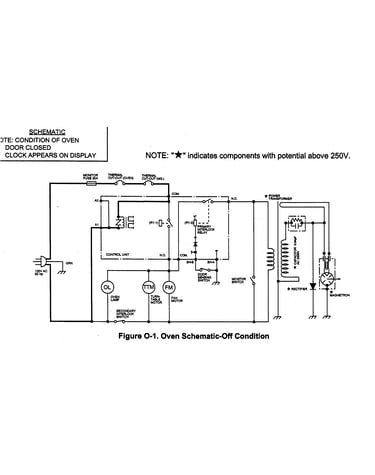

By Schematic
SELECT DIAGRAM
Browse Parts for
R-305CW Microwaves
#1-8

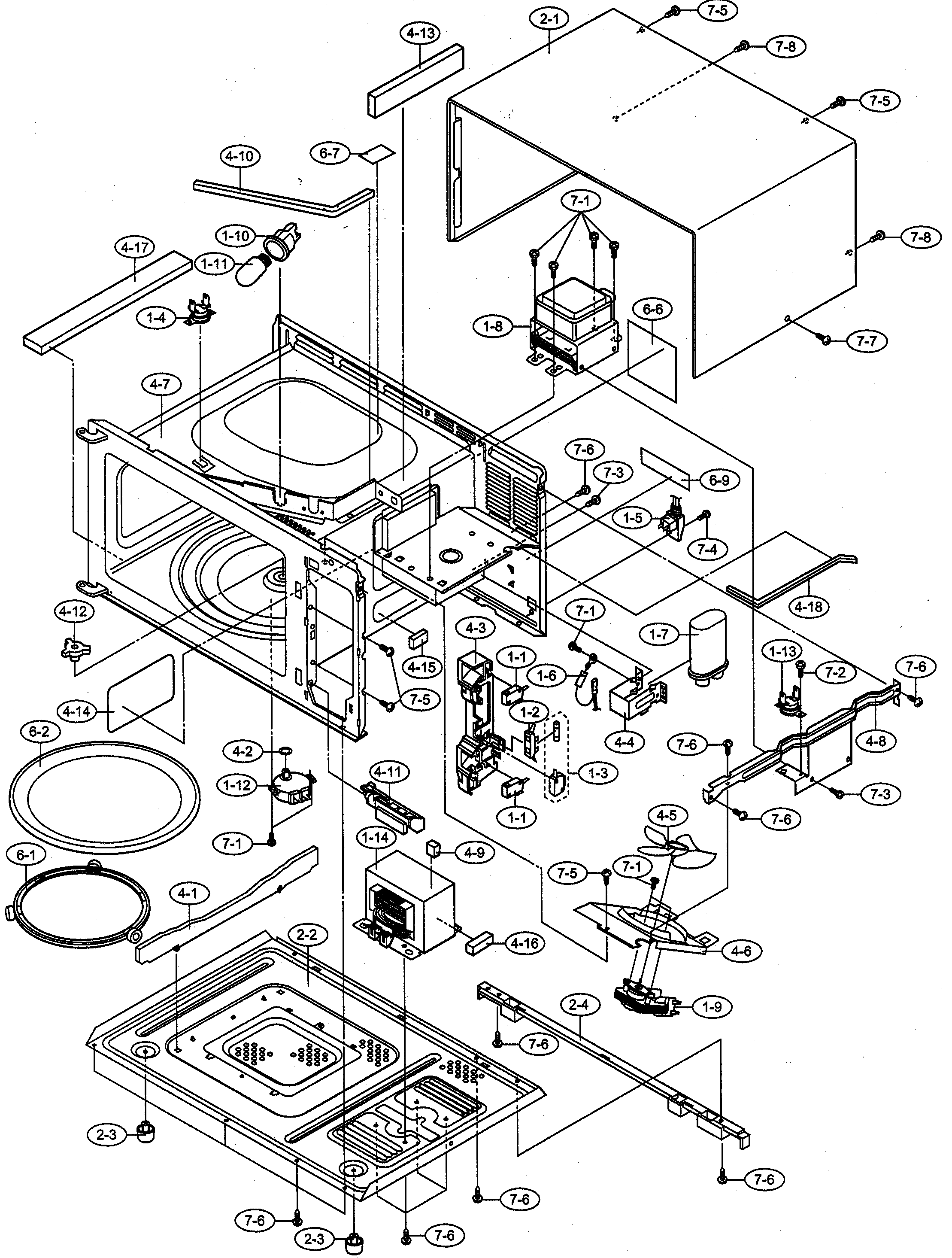

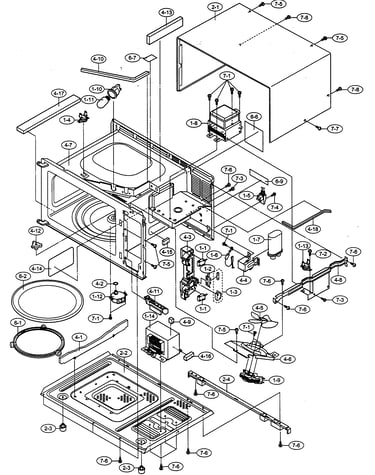

Oven/cabinet parts diagram
Magnetron
Part #RV-MZA288WRE0
The manufacturer no longer makes this part, and there's no substitute part
#1-1
Oven/cabinet parts diagram
Switch
Part #QSW-MA137WRE0
The manufacturer no longer makes this part, and there's no substitute part
#1-7
Oven/cabinet parts diagram
Capacitor
Part #RC-QZA173WRE0
The manufacturer no longer makes this part, and there's no substitute part
#7-8
Oven/cabinet parts diagram
Screw
Part #LX-CZA070WRE0
The manufacturer no longer makes this part, and there's no substitute part
#4-2
Oven/cabinet parts diagram
Coupling
Part #PPACGA084WRF0
The manufacturer no longer makes this part, and there's no substitute part
#1-13
Oven/cabinet parts diagram
Cutoff thermostat
Part #RTHM-A080WRE0
The manufacturer no longer makes this part, and there's no substitute part
#5-6

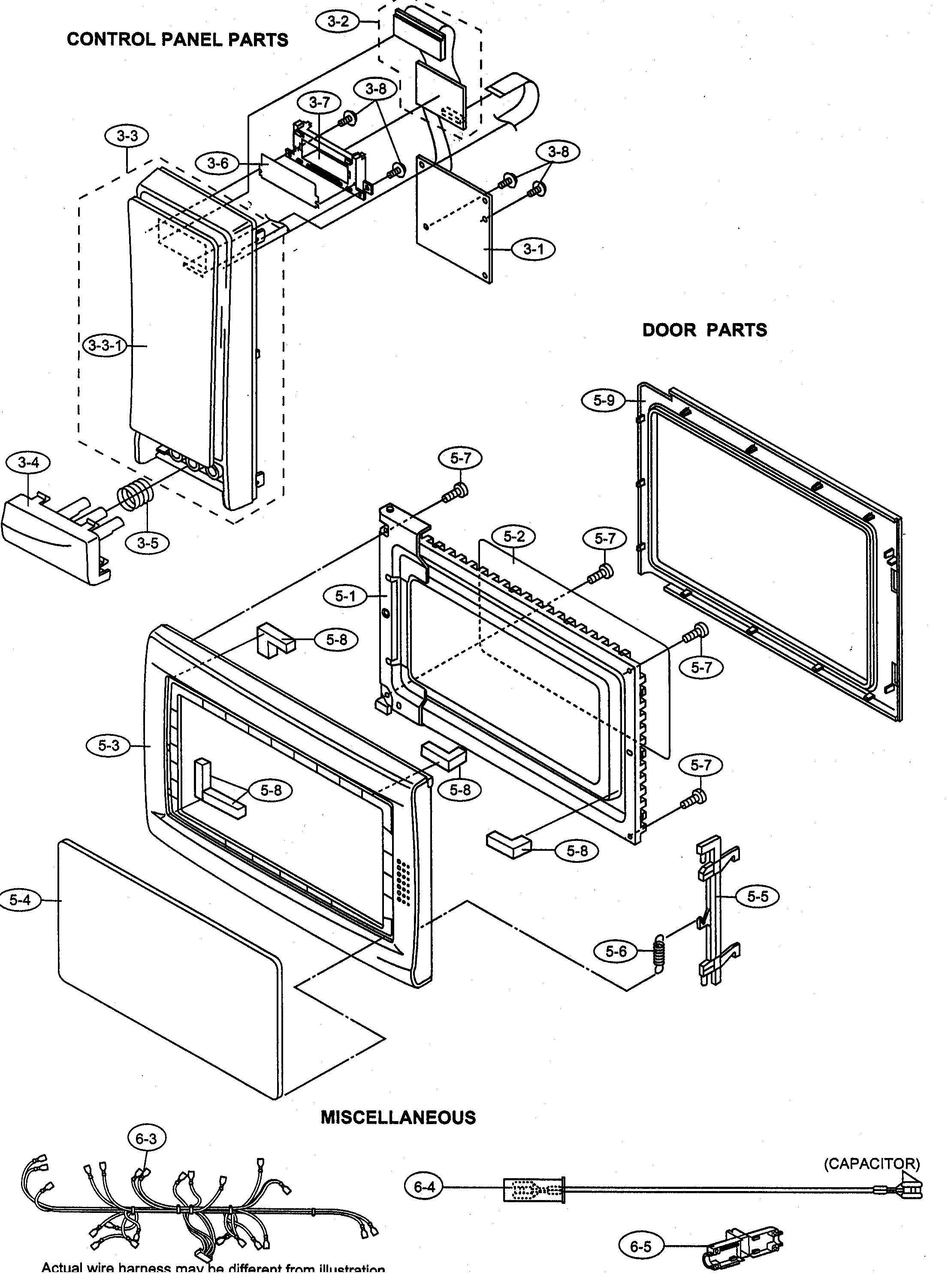

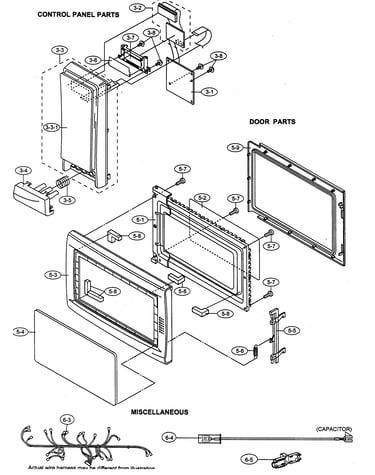

Control panel/door parts/miscellaneous diagram
Spring
Part #MSPRTA187WRE0
The manufacturer no longer makes this part, and there's no substitute part
#6-1
Oven/cabinet parts diagram
Microwave turntable support
Part #FROLPA079WRK0
The manufacturer no longer makes this part, and there's no substitute part
#4-11
Oven/cabinet parts diagram
Lever
Part #MLEVPA233WRF0
The manufacturer no longer makes this part, and there's no substitute part
#1-12
Oven/cabinet parts diagram
Motor
Part #RMOTDA161WRE0
The manufacturer no longer makes this part, and there's no substitute part
