Hoover
Upright Vacuum

Model # UH70040 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH70040 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Vacuum Beater Bar Belt (replaces 11041084, 38520835) 38528035
#11

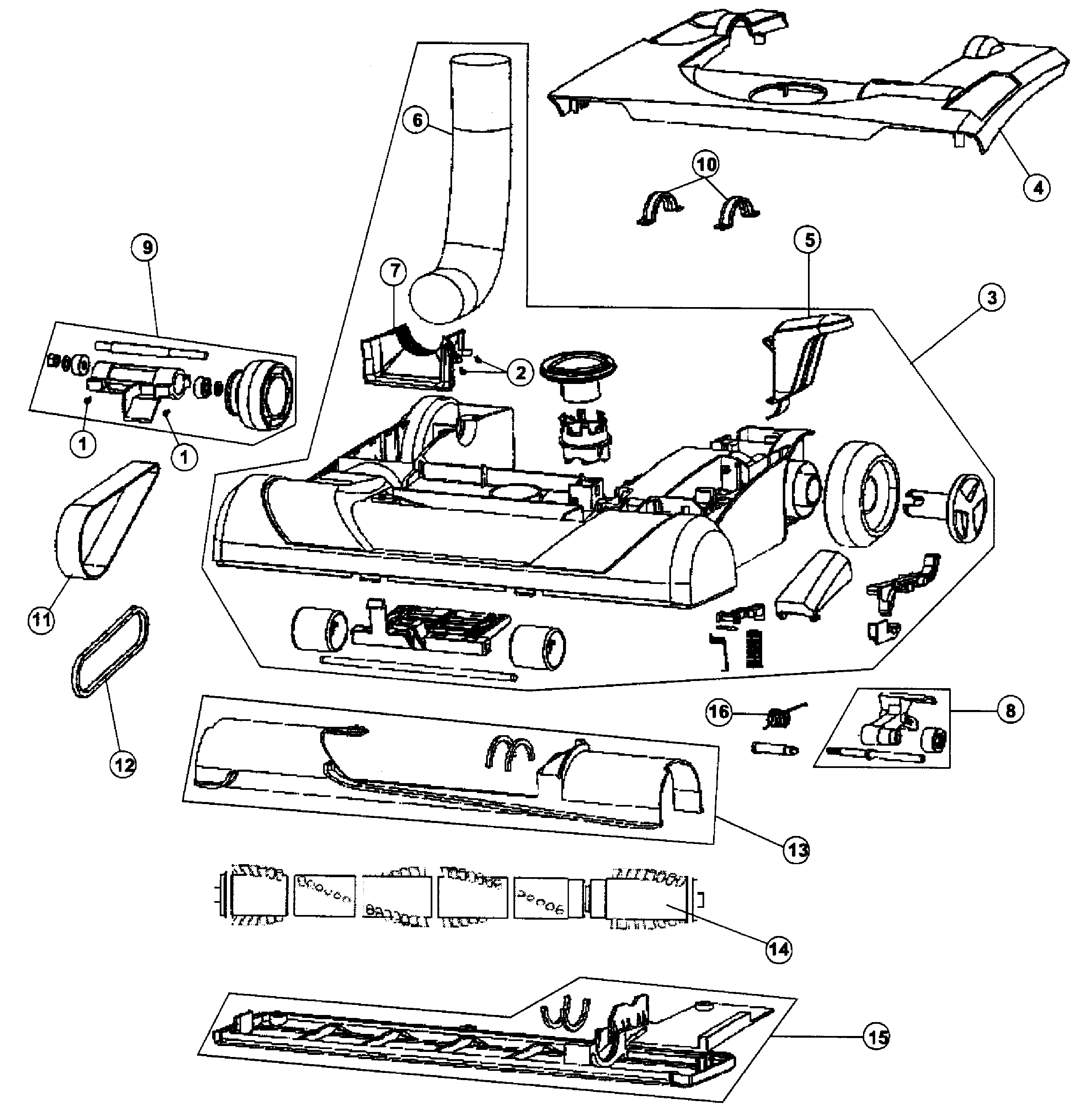

Base assy diagram

Vacuum beater bar belt (replaces 11041084, 38520835)

Part #38528035

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Vacuum Idler Arm Lock Assembly 93005300
#8

Base assy diagram

Vacuum idler arm lock assembly

Part #93005300

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Secondary Filter 40110012
#37

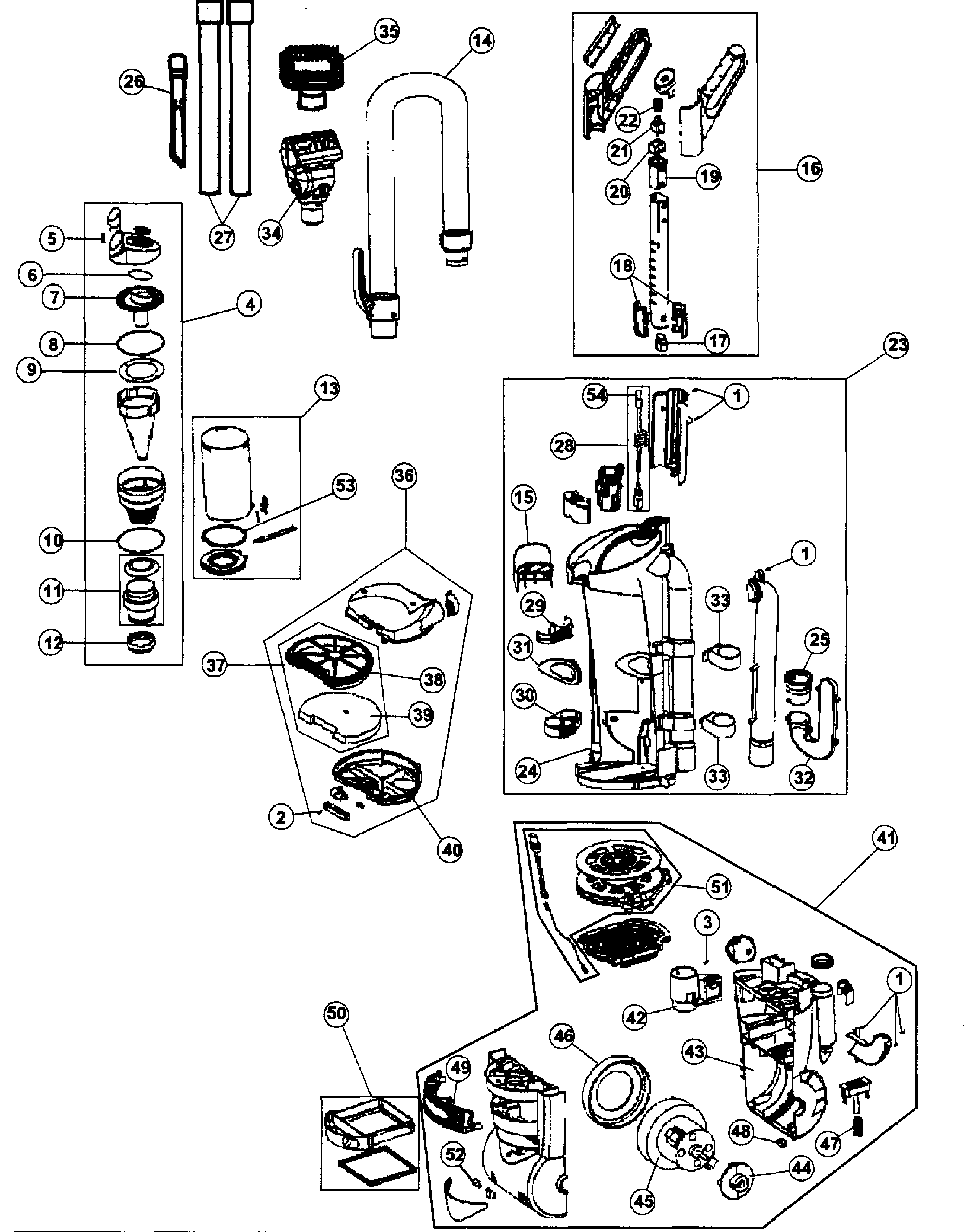

Main body diagram

Vacuum secondary filter

Part #40110012

The manufacturer no longer makes this part, and there's no substitute part

Mtr Hsng-r 93002474
#43

Main body diagram

Mtr hsng-r

Part #93002474

The manufacturer no longer makes this part, and there's no substitute part

Cover 93002467
#4

Base assy diagram

Cover

Part #93002467

The manufacturer no longer makes this part, and there's no substitute part

Filter Housing 93005800
#36

Main body diagram

Filter housing

Part #93005800

The manufacturer no longer makes this part, and there's no substitute part

Spring Switch 93001706
#22

Main body diagram

Spring switch

Part #93001706

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cover 93002499
#40

Main body diagram

Vacuum cover

Part #93002499

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Housing 93002516
#13

Base assy diagram

Vacuum housing

Part #93002516

The manufacturer no longer makes this part, and there's no substitute part

Seal 93002482
#48

Main body diagram

Seal

Part #93002482

The manufacturer no longer makes this part, and there's no substitute part
