Kenmore
Room Air Conditioner

Model # 58072087200 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 58072087200 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Room Air Conditioner Fan Blade Clamp 3H02932B
#2-C

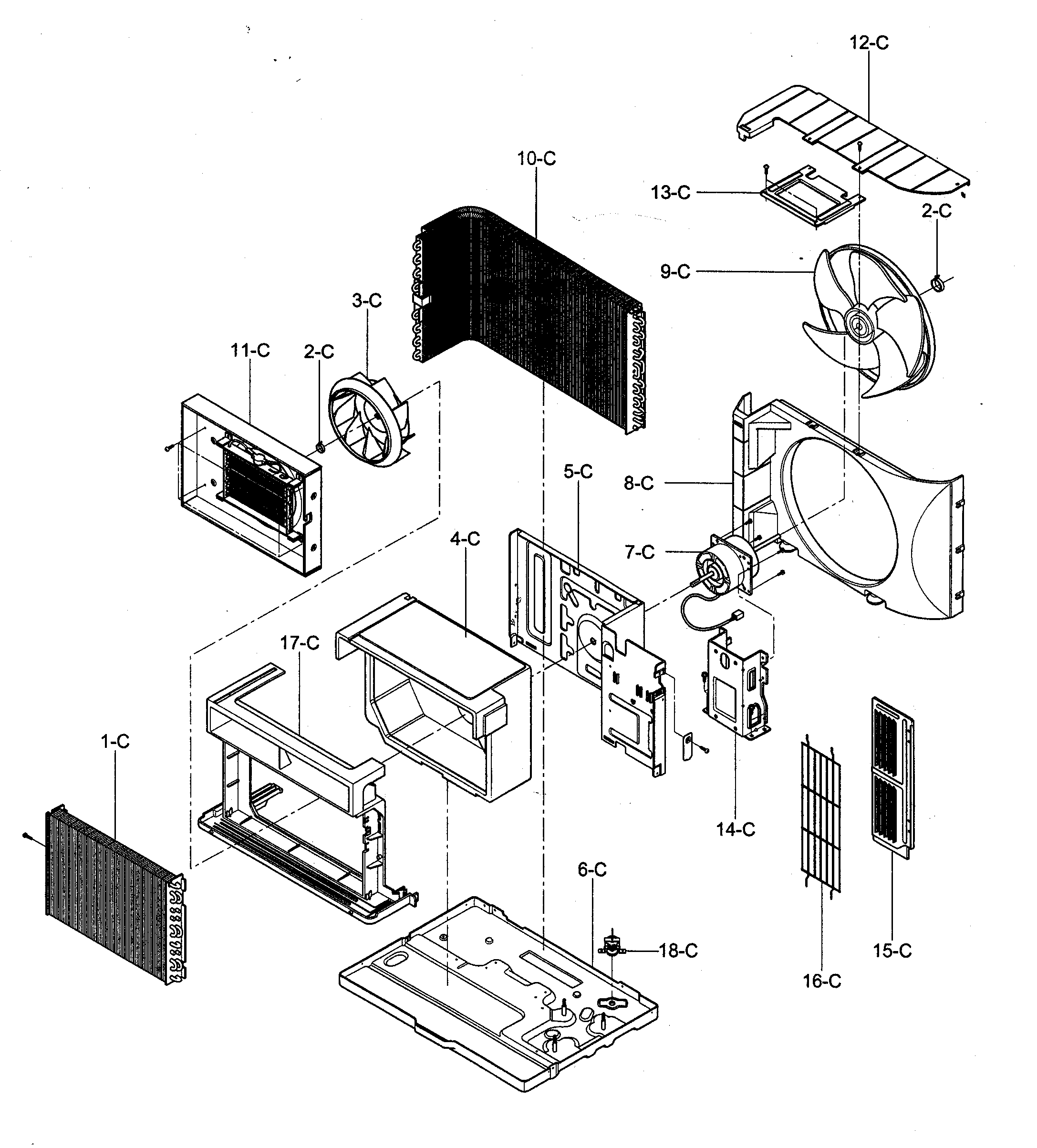

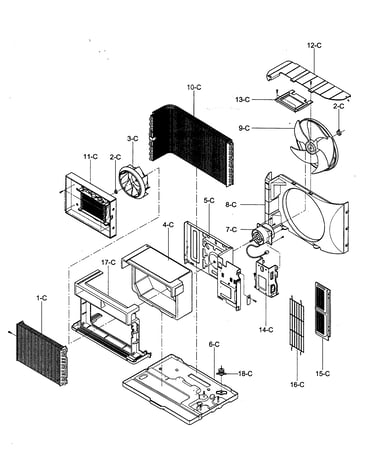

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Front Trim 4918A20001A
#1-E

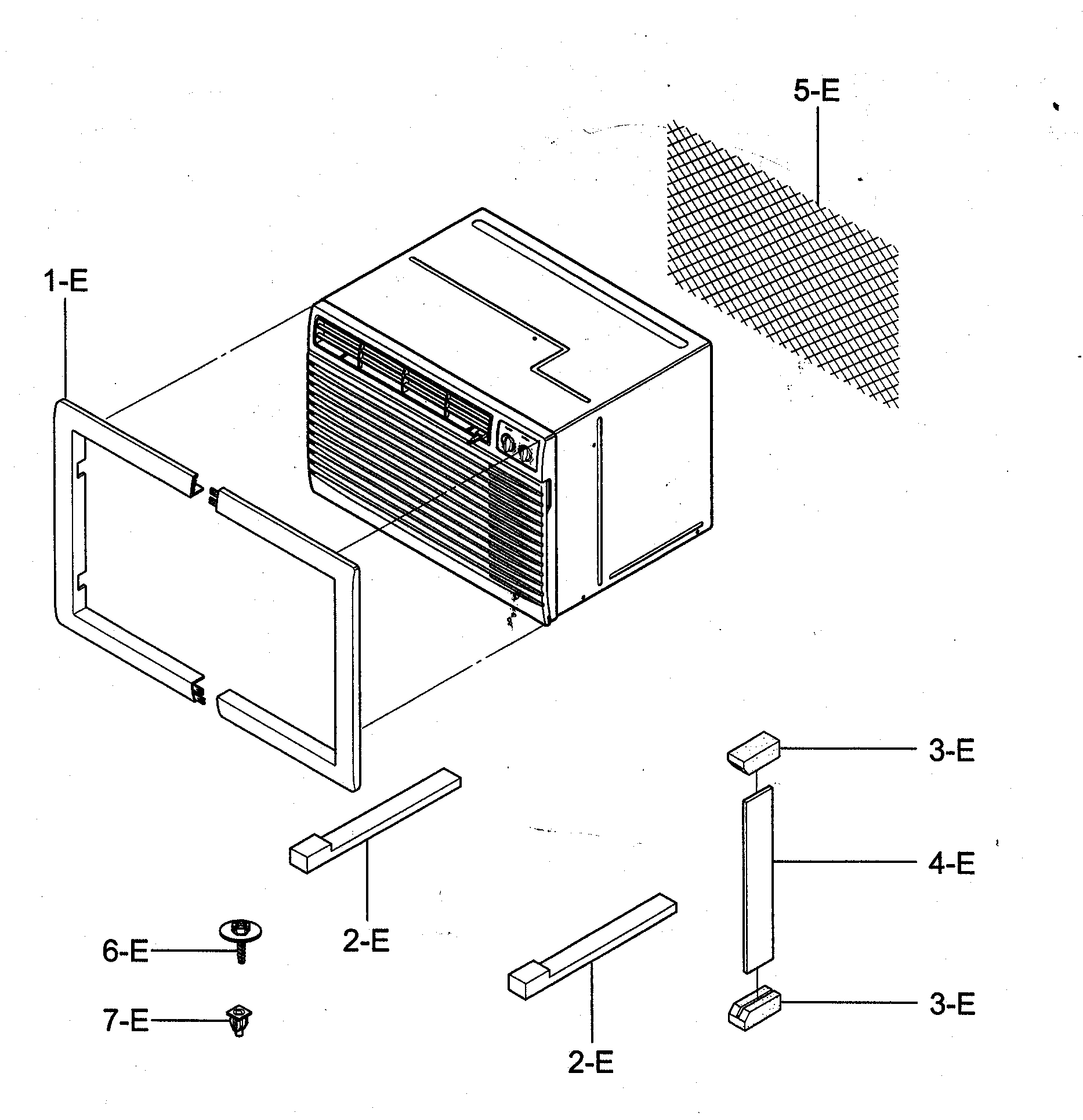

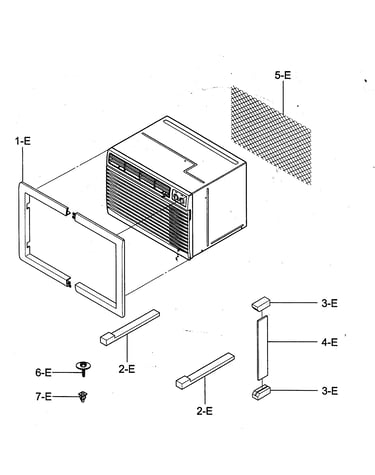

Installation kit assy diagram

Room air conditioner front trim

Part #4918A20001A

This item is not returnable
$24.09
In Stock
Icp Room Air Conditioner Compressor Grommet 4H00982E
#9-D

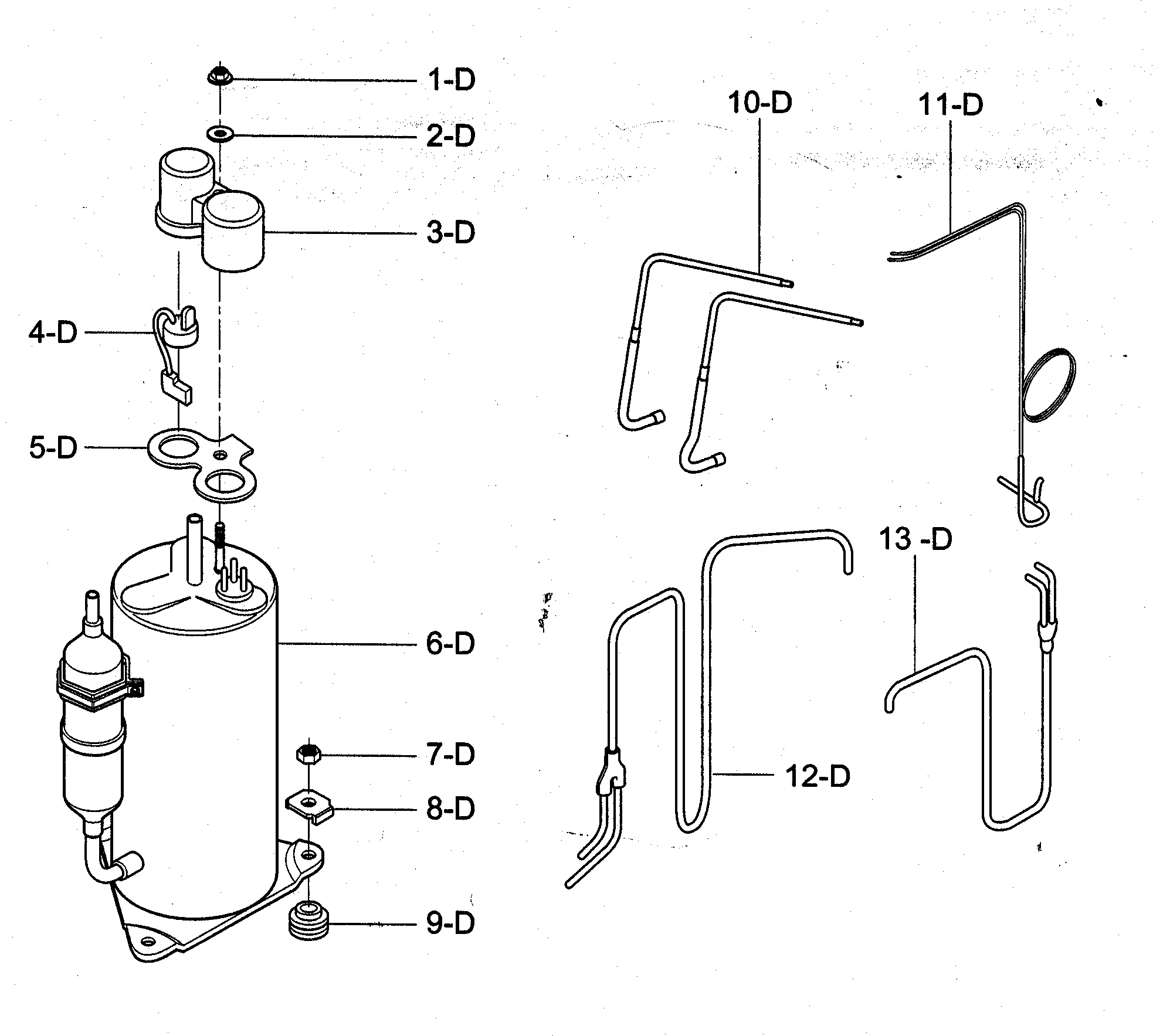

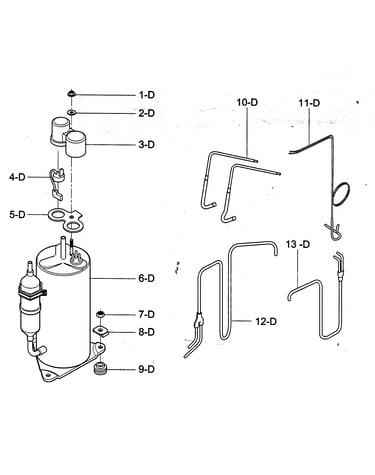

Compressor parts diagram

Icp room air conditioner compressor grommet

Part #4H00982E

This item is not returnable
$3.51 |
22% OFF Phone Price : $4.51
In Stock
Lg Screw 4001AR4160A
#6-E

Installation kit assy diagram

Lg screw

Part #4001AR4160A

This item is not returnable
$4.51
In Stock
Cabinet 3090A20003B
#1-A

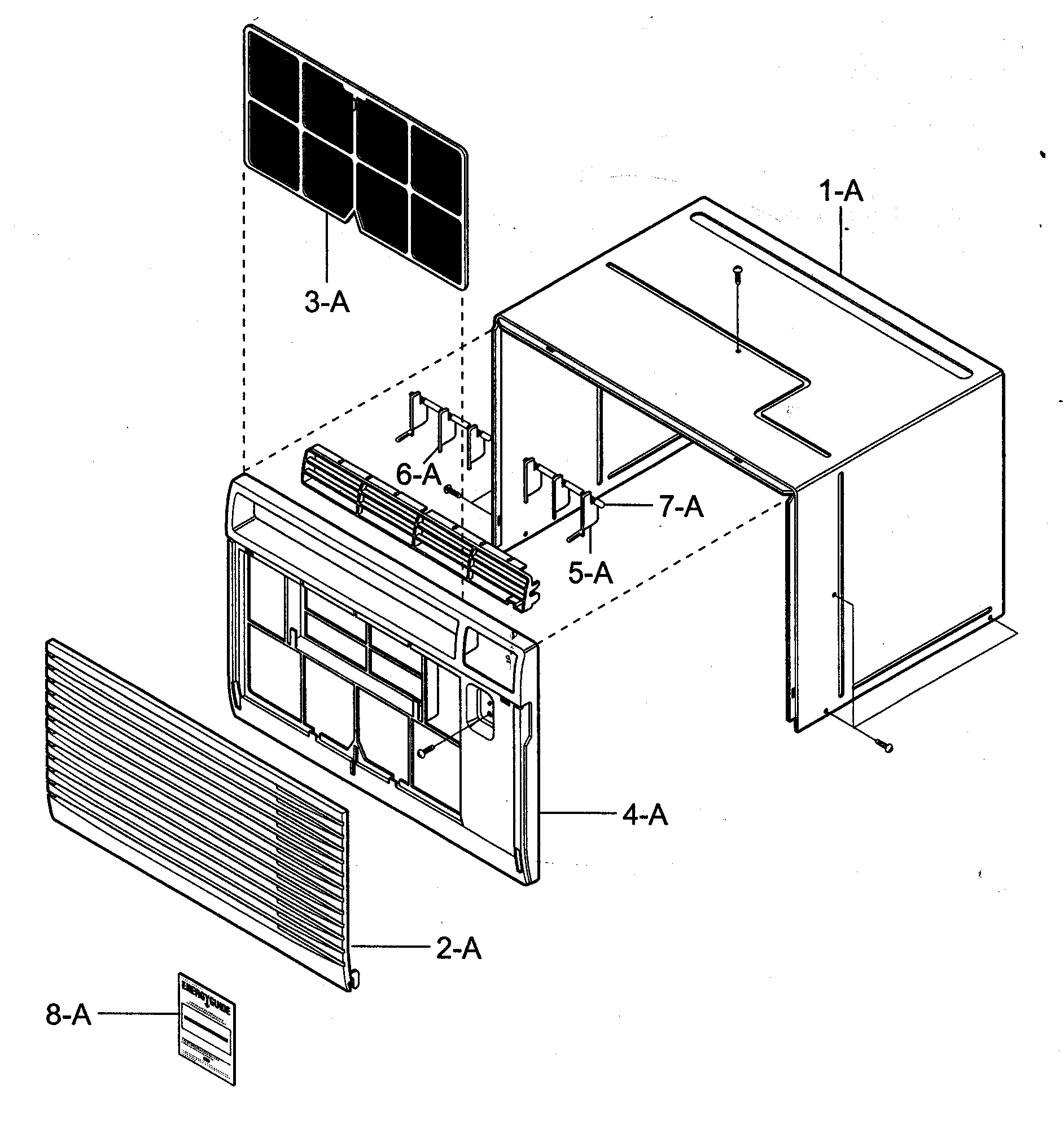

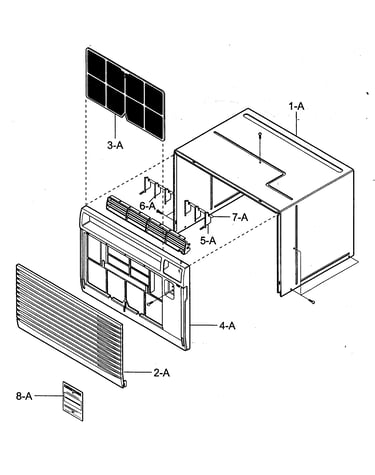

Cabinet/front grille assy diagram

Cabinet

Part #3090A20003B

$88.36
In Stock
Housing 3661AR6149A
#13-B

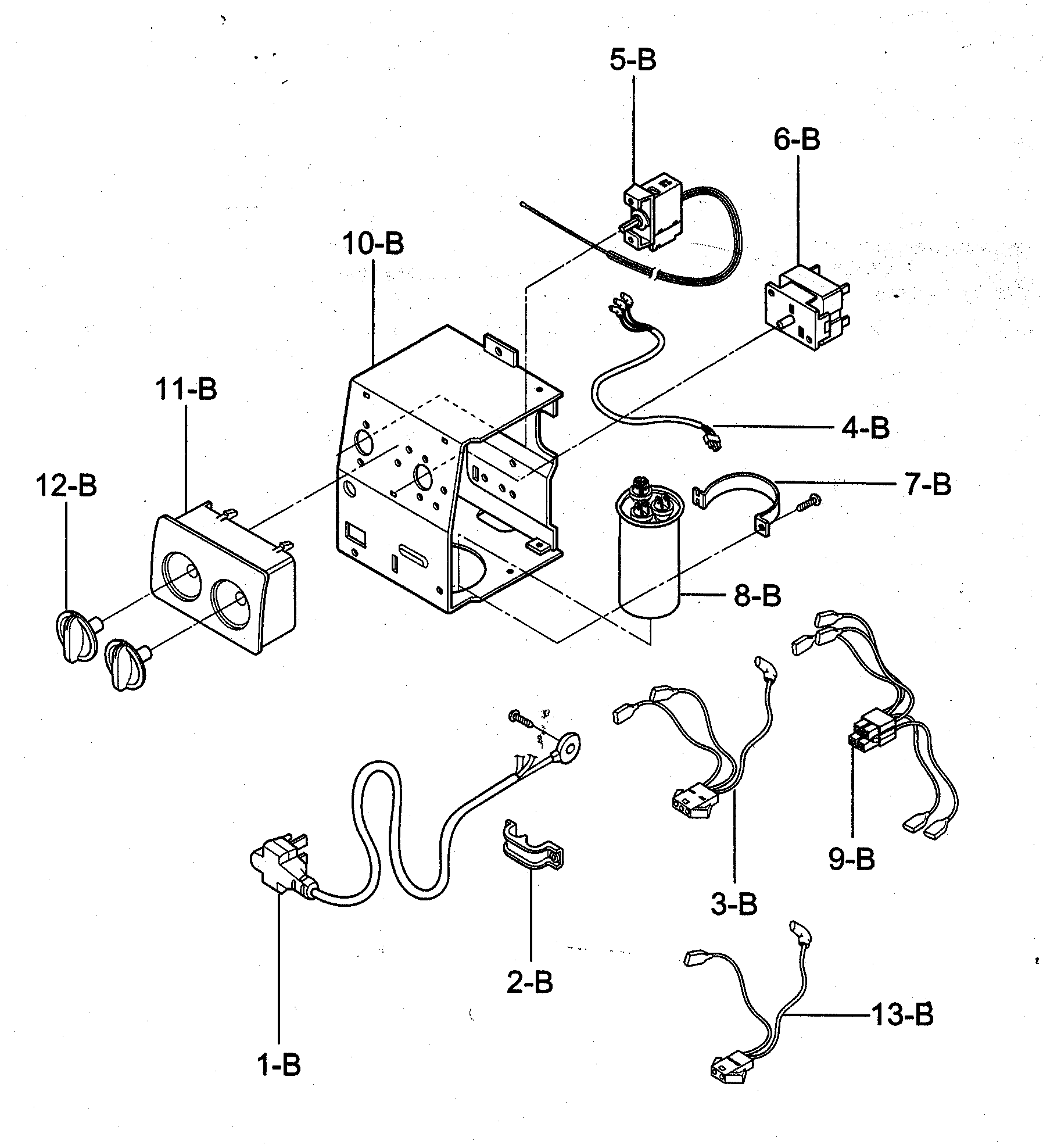

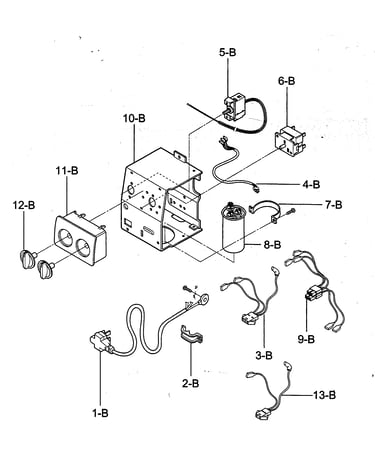

Control box assy diagram

Housing

Part #3661AR6149A

$14.51
In Stock
Valve 5220A30006A
#18-C

Air handling/cycle parts diagram

Valve

Part #5220A30006A

$46.60
In Stock
Rotary Switch 2H00598E
#6-B

Control box assy diagram

Rotary switch

Part #2H00598E

$27.47
In Stock
Scroll 3072A20003B
#4-C

Air handling/cycle parts diagram

Scroll

Part #3072A20003B

$24.09
In Stock
Kenmore Base Assembly 3041A10038B
#6-C

Air handling/cycle parts diagram

Kenmore base assembly

Part #3041A10038B

$71.93
In Stock
