Model # DEC320A1D Official Kelvinator 24" dryer - k1781-32

Here are the diagrams and repair parts for Official Kelvinator DEC320A1D 24" dryer - k1781-32, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

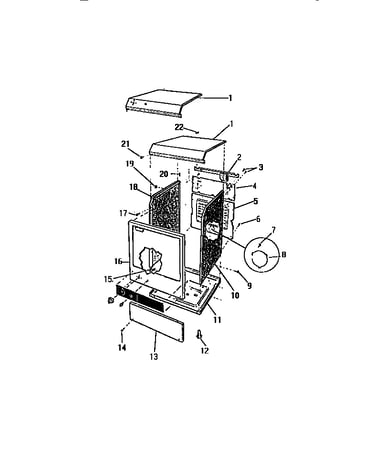

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Snap Ring F073088-000
#17

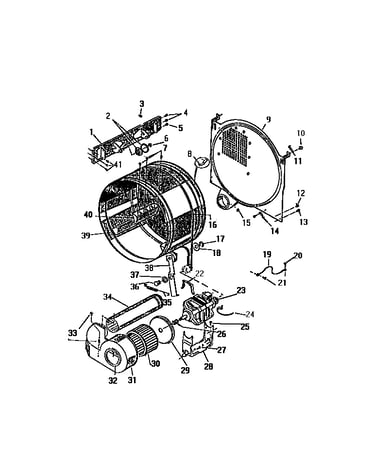

Drum, motor diagram

Snap ring

Part #F073088-000

$8.29
In Stock
Washer F060792-000
#18

Drum, motor diagram

Washer

Part #F060792-000

This item is not returnable
$2.29
In Stock
Trim Screw Bracket F060753-000
Trim screw bracket

Part #F060753-000

Replaced by #5303015671

?
Manufacturer substitution
This part replaces F060753-000. Substitute parts can look different from the original.
This item is not returnable
$3.20
In Stock
Strap F130495-100
#24

Drum, motor diagram

Strap

Part #F130495-100

Replaced by #5303161300

?
Manufacturer substitution
This part replaces F130495-100. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Fkl Latch Kt F066021-400
#12

Door panel diagram

Fkl latch kt

Part #F066021-400

Replaced by #5366021400

?
Manufacturer substitution
This part replaces F066021-400. Substitute parts can look different from the original.
$32.10 |
16% OFF Phone Price : $38.10
In Stock
Heater F136777-000
#34

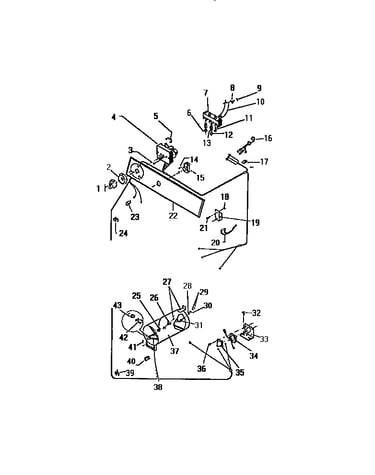

Console, controls, heat assy. diagram

Heater

Part #F136777-000

Replaced by #131658100

?
Manufacturer substitution
This part replaces F136777-000. Substitute parts can look different from the original.
$62.60
In Stock
Screw F066409-000
#4

Door panel diagram

Screw

Part #F066409-000

Replaced by #08011251

?
Manufacturer substitution
This part replaces F066409-000. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Trim Screw Bracket F68194
Trim screw bracket

Part #F68194

Replaced by #5303015671

?
Manufacturer substitution
This part replaces F68194. Substitute parts can look different from the original.
This item is not returnable
$3.20
In Stock
Stud F79485
#36

Drum, motor diagram

Stud

Part #F79485

Replaced by #3161189

?
Manufacturer substitution
This part replaces F79485. Substitute parts can look different from the original.
This item is not returnable
$2.40
In Stock
Trim Screw Bracket F60753
Trim screw bracket

Part #F60753

Replaced by #5303015671

?
Manufacturer substitution
This part replaces F60753. Substitute parts can look different from the original.
This item is not returnable
$3.20
In Stock
