Troybilt
Gas Line Trimmer

Model # 41BDT70C711 Official Troybilt trimmer

Here are the diagrams and repair parts for Official Troybilt 41BDT70C711 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Line Trimmer Handle 791-182167
#9

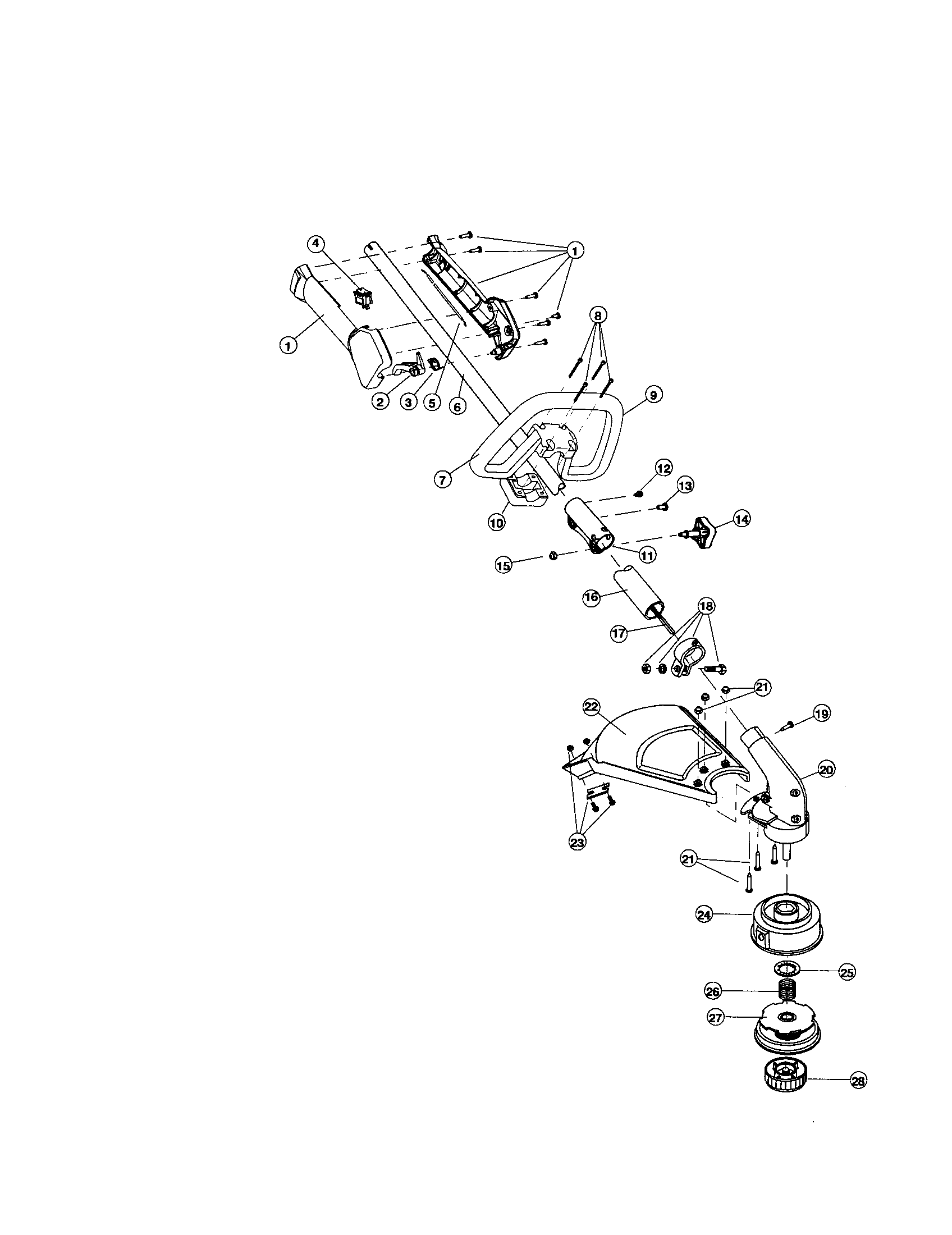

Boom and trimmer diagram

Line trimmer handle

Part #791-182167

$102.80
In Stock
Rope Guide 753-1200
#27

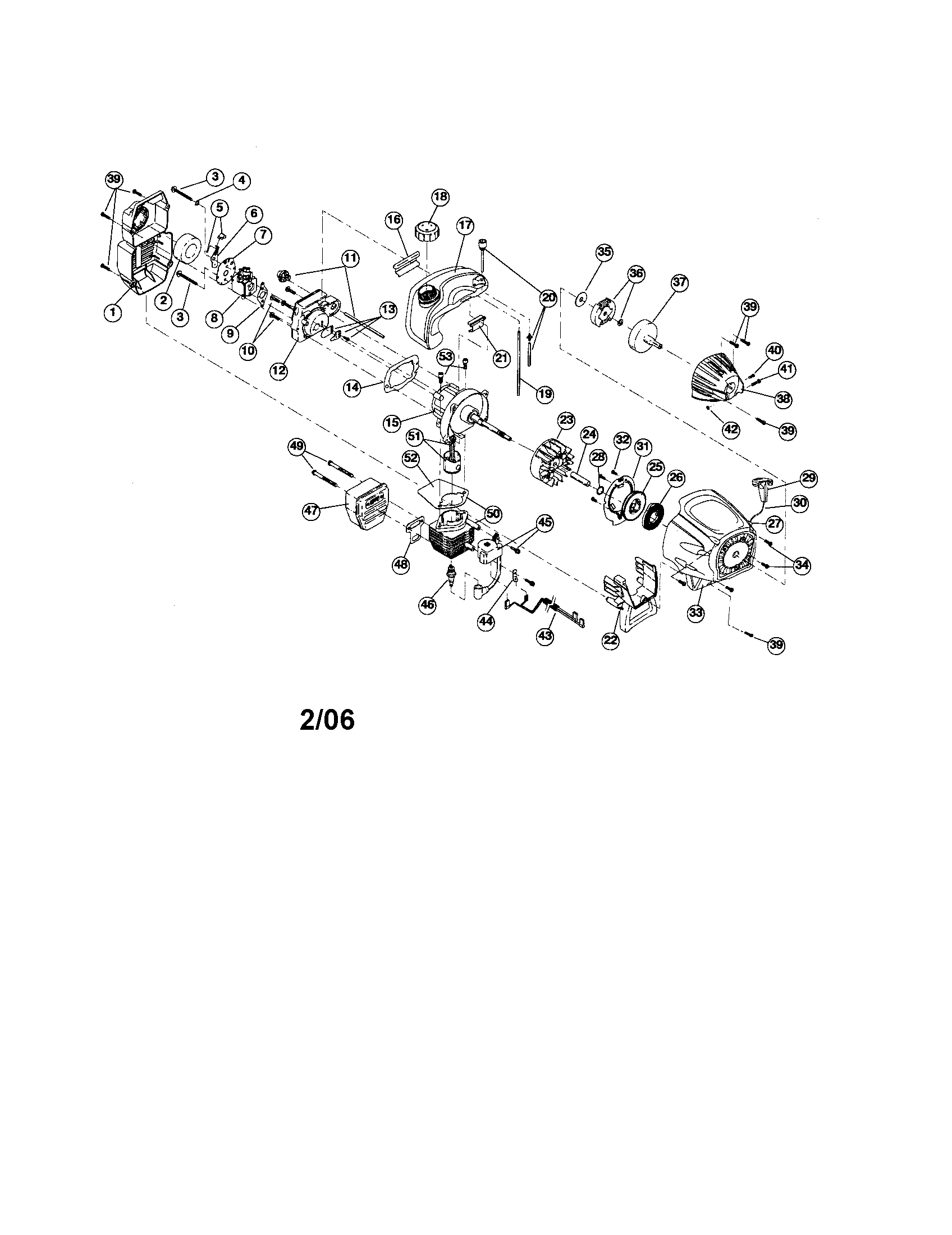

Engine diagram

Rope guide

Part #753-1200

$20.63
In Stock
Line Trimmer Muffler 753-05169
#47

Engine diagram

Line trimmer muffler

Part #753-05169

$97.29 |
11% OFF Phone Price : $109.29
In Stock
Hose 791-683947B
#11

Engine diagram

Hose

Part #791-683947B

Replaced by #791-683974B

?
Manufacturer substitution
This part replaces 791-683947B. Substitute parts can look different from the original.
$31.56 |
16% OFF Phone Price : $37.56
In Stock
Spring 791-181599

#NI04

All parts diagram

Spring

Part #791-181599

The manufacturer no longer makes this part, and there's no substitute part

Mount Pad 791-145308
#21

Engine diagram

Mount pad

Part #791-145308

The manufacturer no longer makes this part, and there's no substitute part

Mount Pad 791-612134
#16

Engine diagram

Mount pad

Part #791-612134

The manufacturer no longer makes this part, and there's no substitute part

Fuel Tank Assembly 753-04307
#17

Engine diagram

Fuel tank assembly

Part #753-04307

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Short Block 753-04401
#15

Engine diagram

Line trimmer short block

Part #753-04401

The manufacturer no longer makes this part, and there's no substitute part

Screw 791-181345
#39

Engine diagram

Screw

Part #791-181345

The manufacturer no longer makes this part, and there's no substitute part
