York
Heating & Cooling Combined Unit

Model # D3CE048A46 Official York heating & cooling unit

Here are the diagrams and repair parts for Official York D3CE048A46 heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Capacitor 024-21219-000

#7

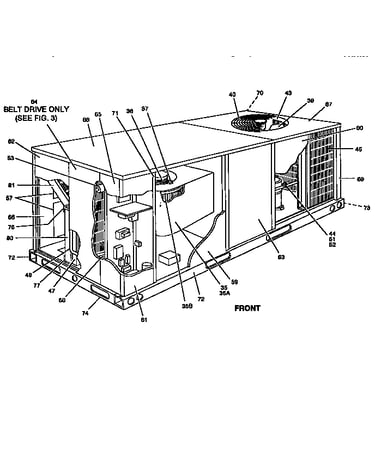

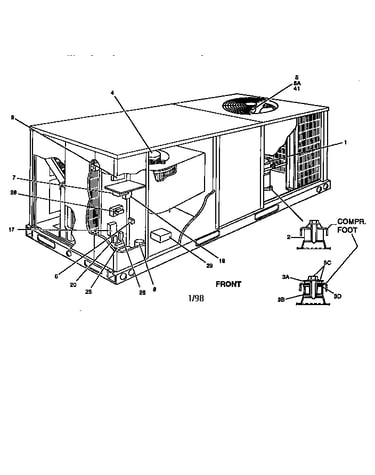

All parts diagram

Capacitor

Part #024-21219-000

Replaced by #12910

?
Manufacturer substitution
This part replaces 024-21219-000. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Belt 028-09573-000
#7

Belt drive option diagram

Belt

Part #028-09573-000

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 024-20045-700

#8

All parts diagram

Capacitor

Part #024-20045-700

Replaced by #12907

?
Manufacturer substitution
This part replaces 024-20045-700. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Liq Drier 029-17738-000

#53

All parts diagram

Liq drier

Part #029-17738-000

The manufacturer no longer makes this part, and there's no substitute part

Cont Elec 024-18056-002

#17

All parts diagram

Cont elec

Part #024-18056-002

The manufacturer no longer makes this part, and there's no substitute part

Side Panel 373-02027-000

#65A

All parts diagram

Side panel

Part #373-02027-000

The manufacturer no longer makes this part, and there's no substitute part

Isolator, Neoprene (mtg. Hanger) 028-12414-700

#37

All parts diagram

Isolator, neoprene (mtg. hanger)

Part #028-12414-700

The manufacturer no longer makes this part, and there's no substitute part

Scroll Blowr 026-31031-000

#35A

All parts diagram

Scroll blowr

Part #026-31031-000

The manufacturer no longer makes this part, and there's no substitute part

Label, Wiring Control (reference) 035-12951-000

#24A

All parts diagram

Label, wiring control (reference)

Part #035-12951-000

The manufacturer no longer makes this part, and there's no substitute part

Circuit Breaker 024-24055-000

#6

All parts diagram

Circuit breaker

Part #024-24055-000

The manufacturer no longer makes this part, and there's no substitute part
