Model # NEX-3K/W Official Sony digital camera

Here are the diagrams and repair parts for Official Sony NEX-3K-W digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

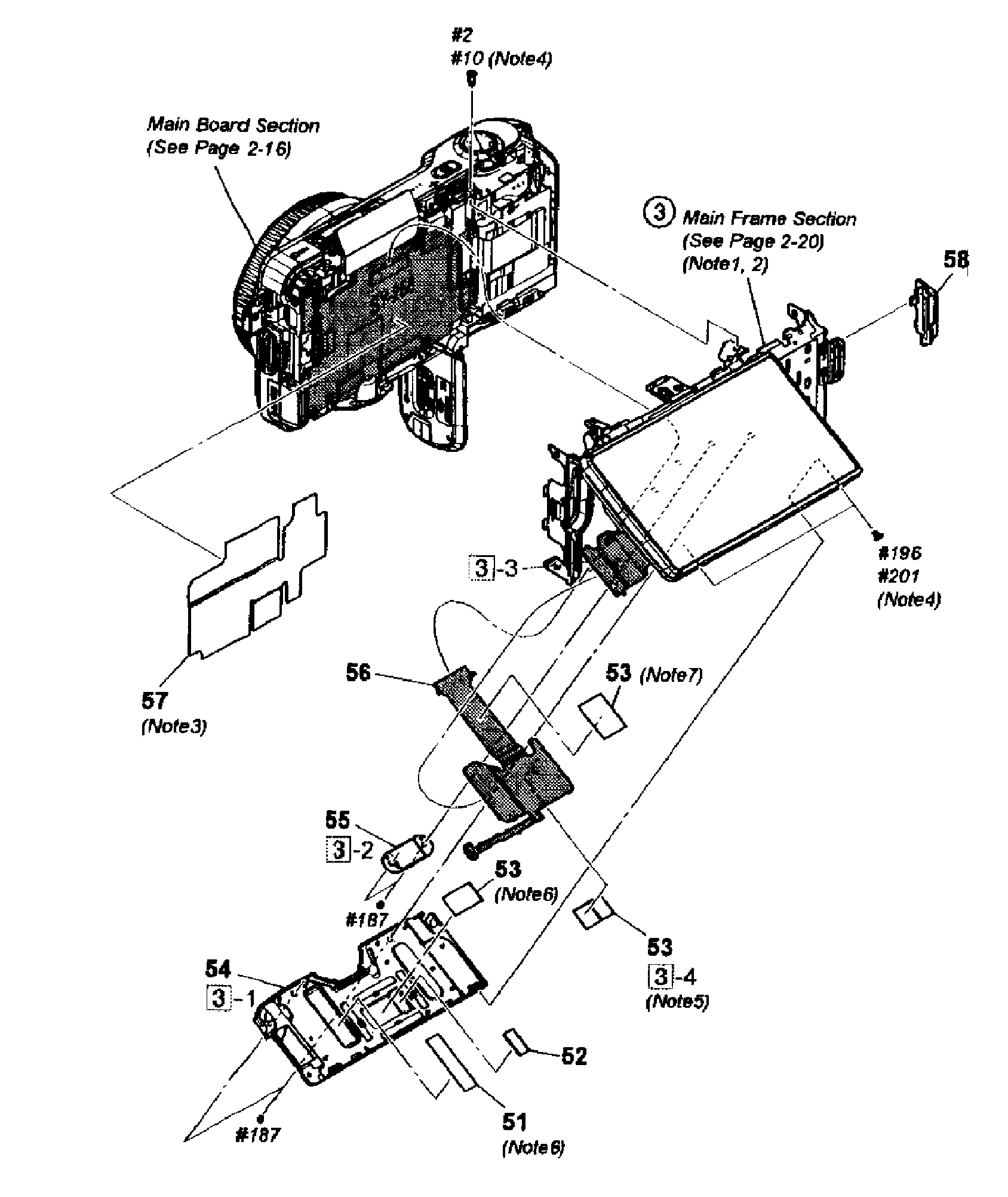

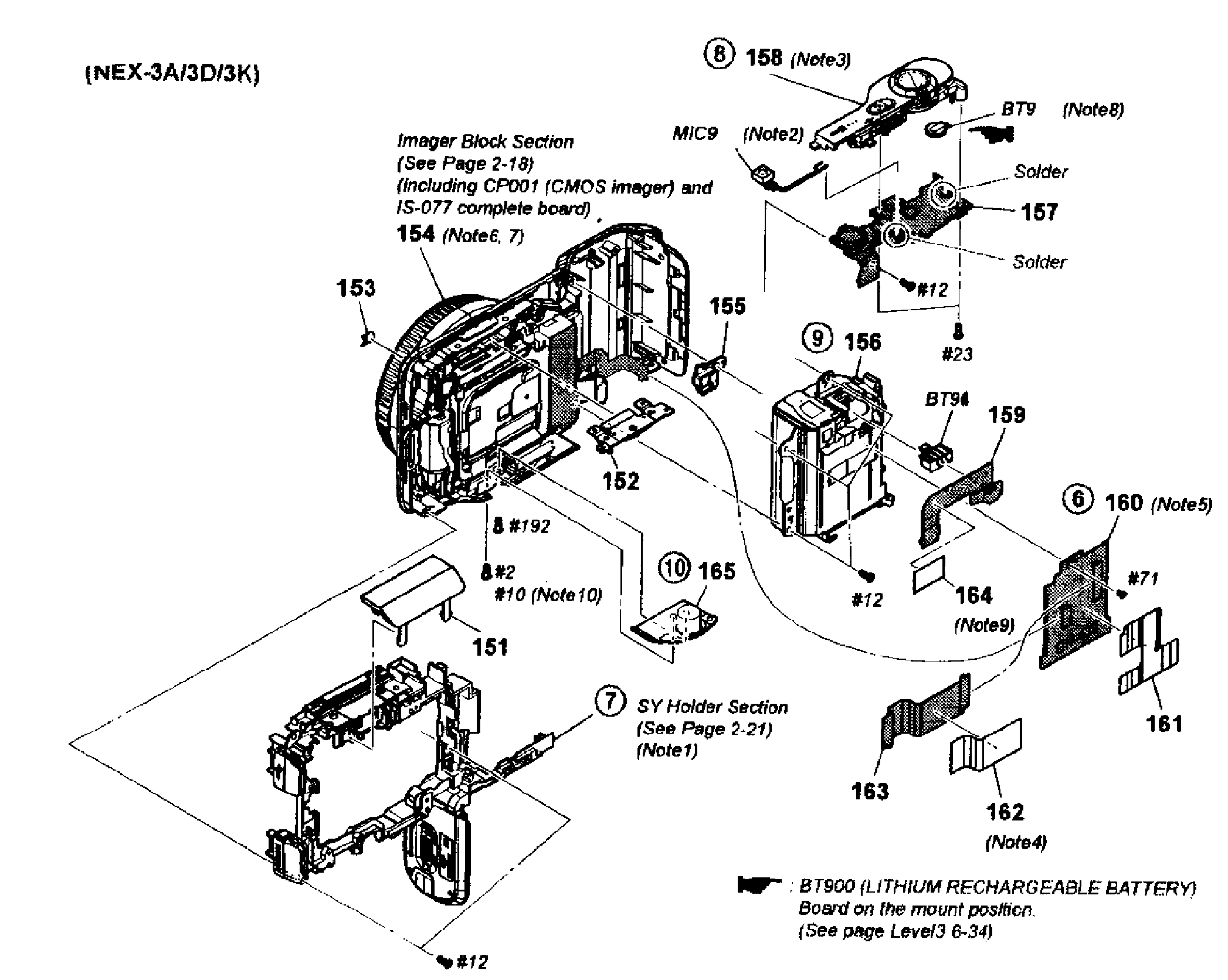

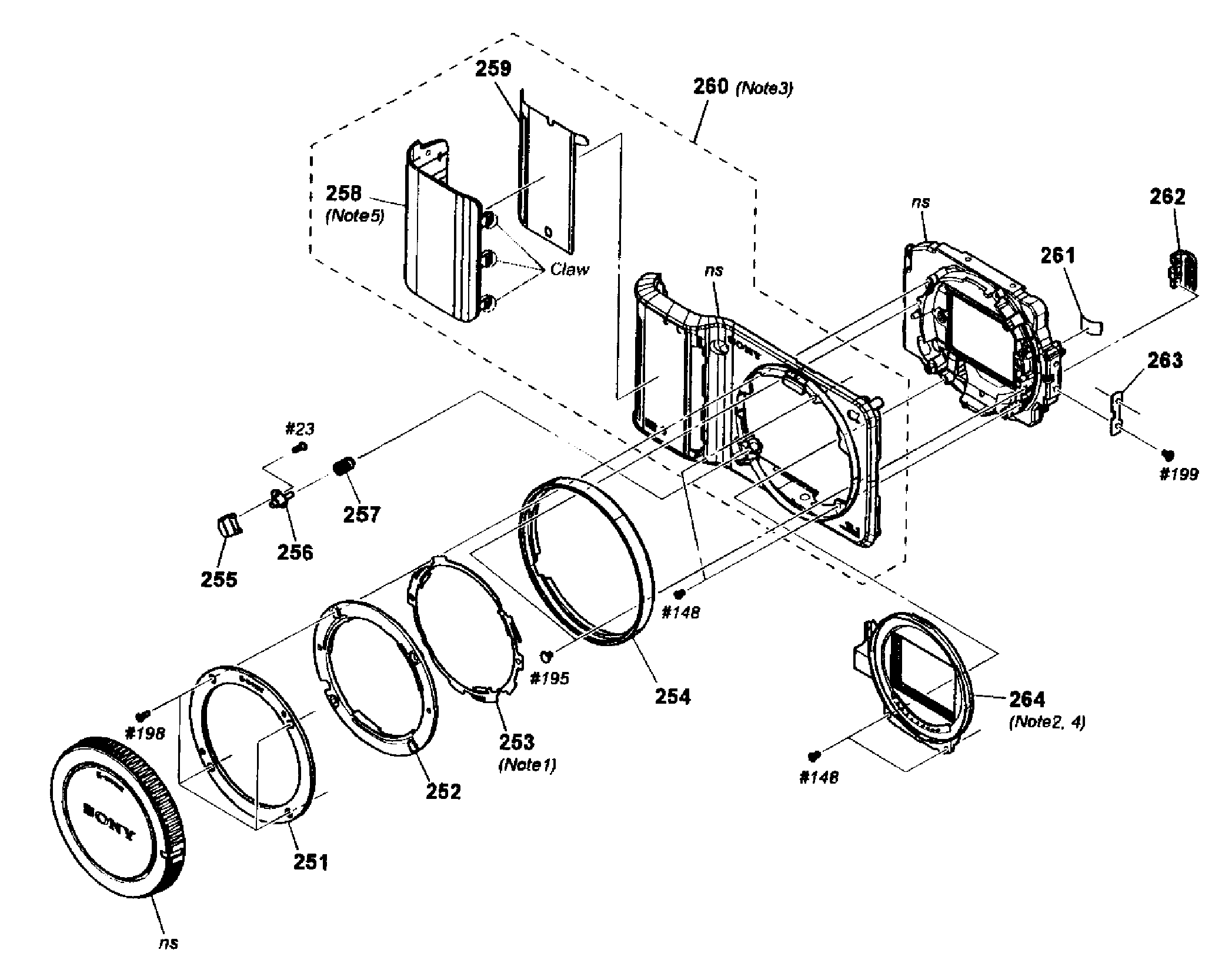

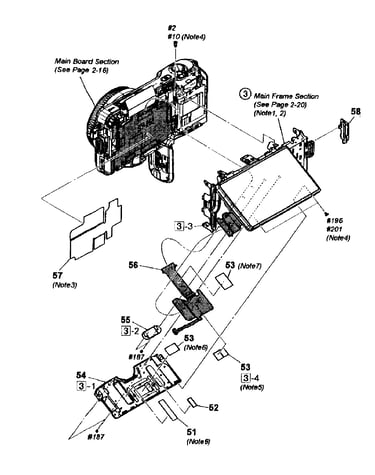

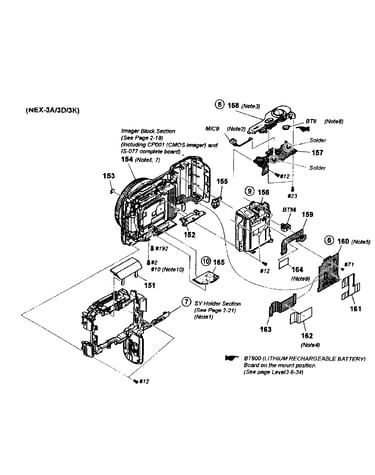

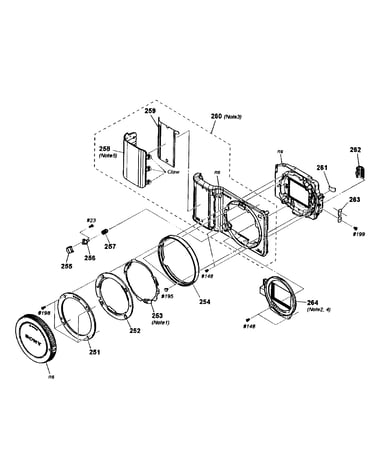

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Bracket 419076301
#304

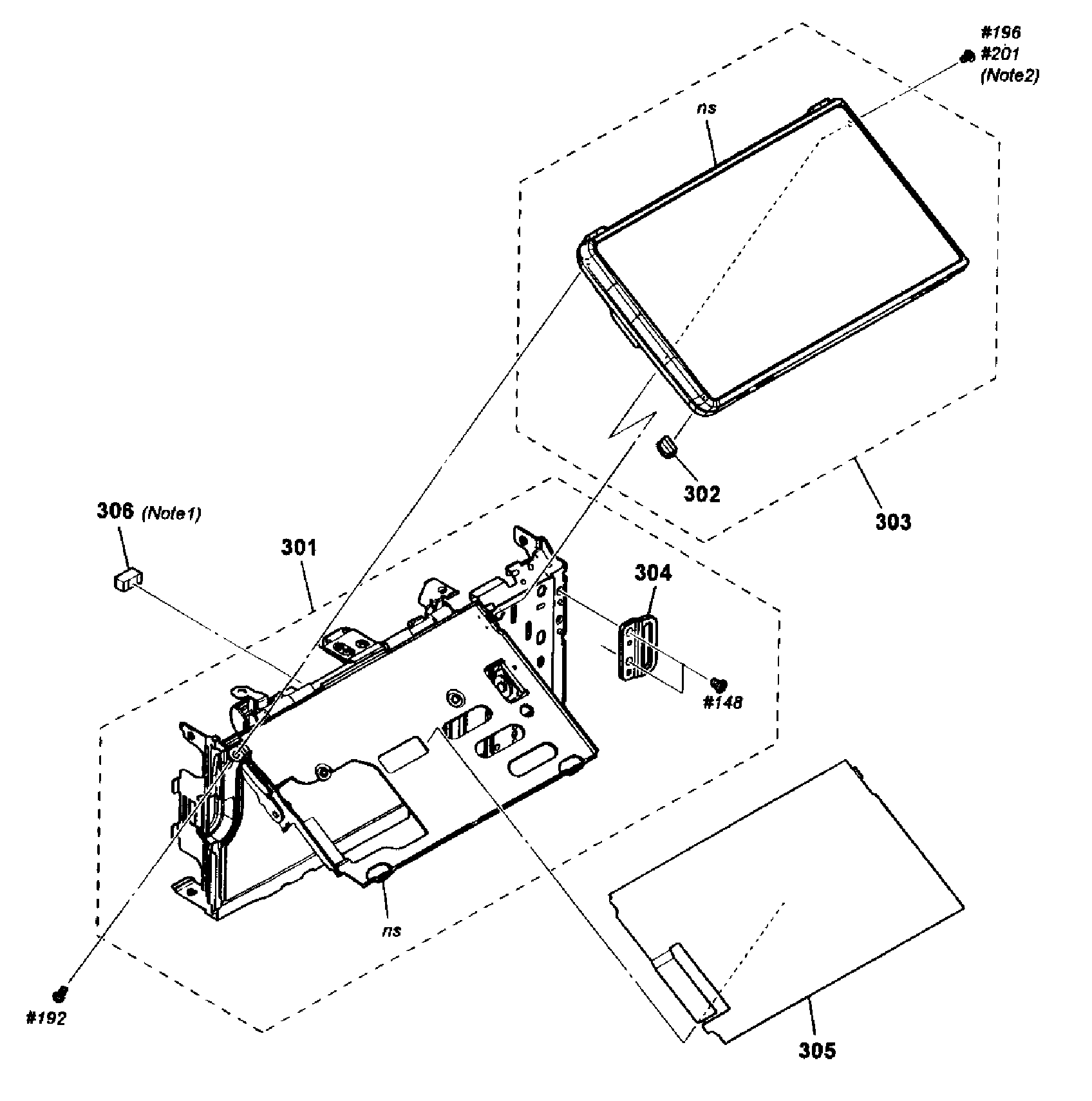

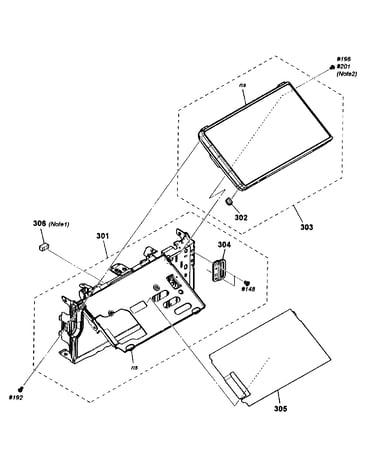

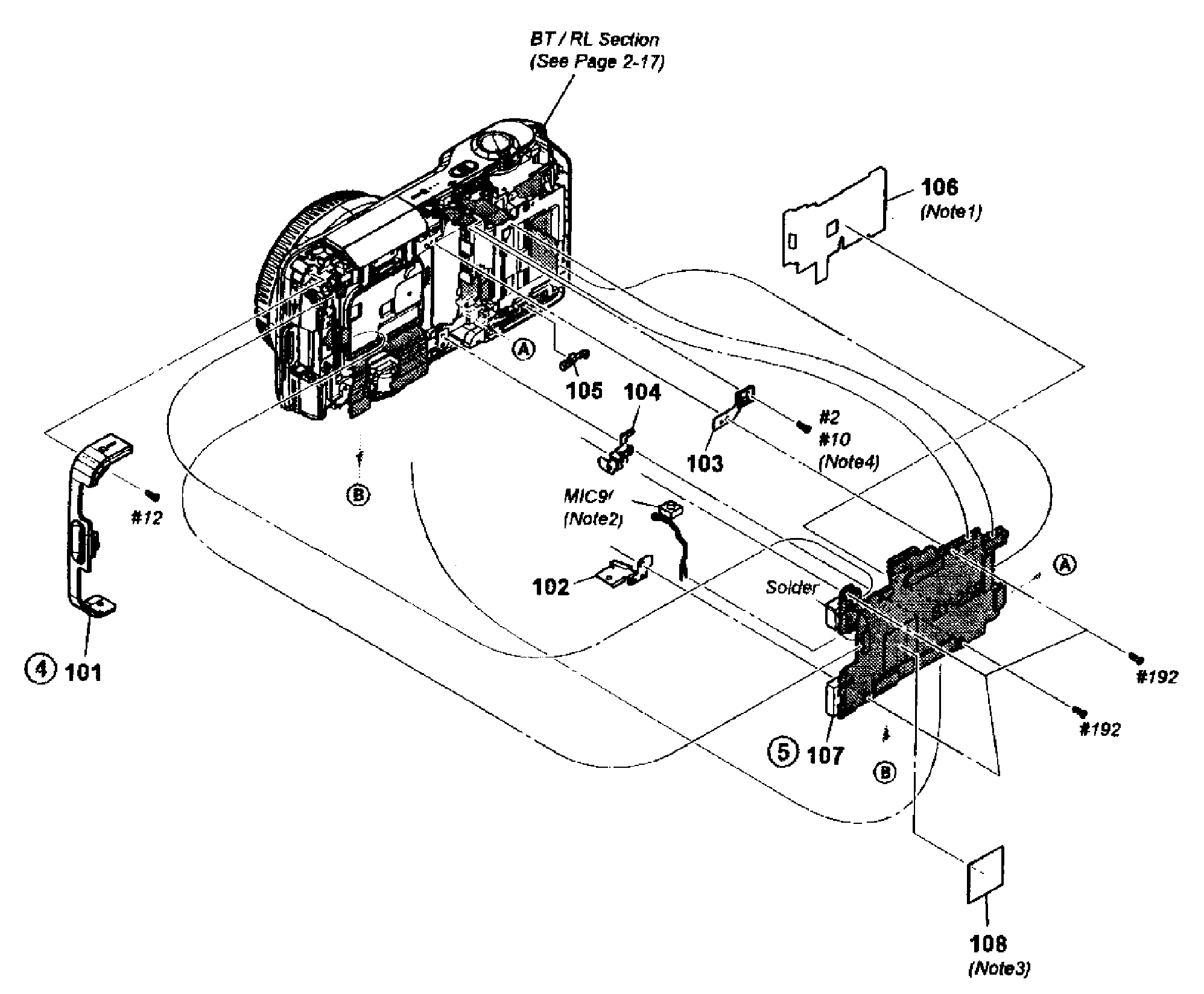

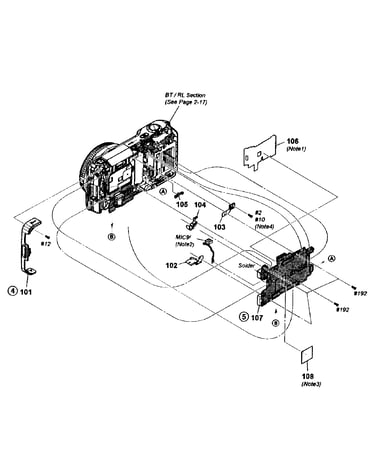

Main frame diagram

Bracket

Part #419076301

This item is not returnable
$6.49
In Stock
Sheet Radi 419103501
#108

Main frame diagram

Sheet radi

Part #419103501

This item is not returnable
$6.03
In Stock
Label 419096101
#359

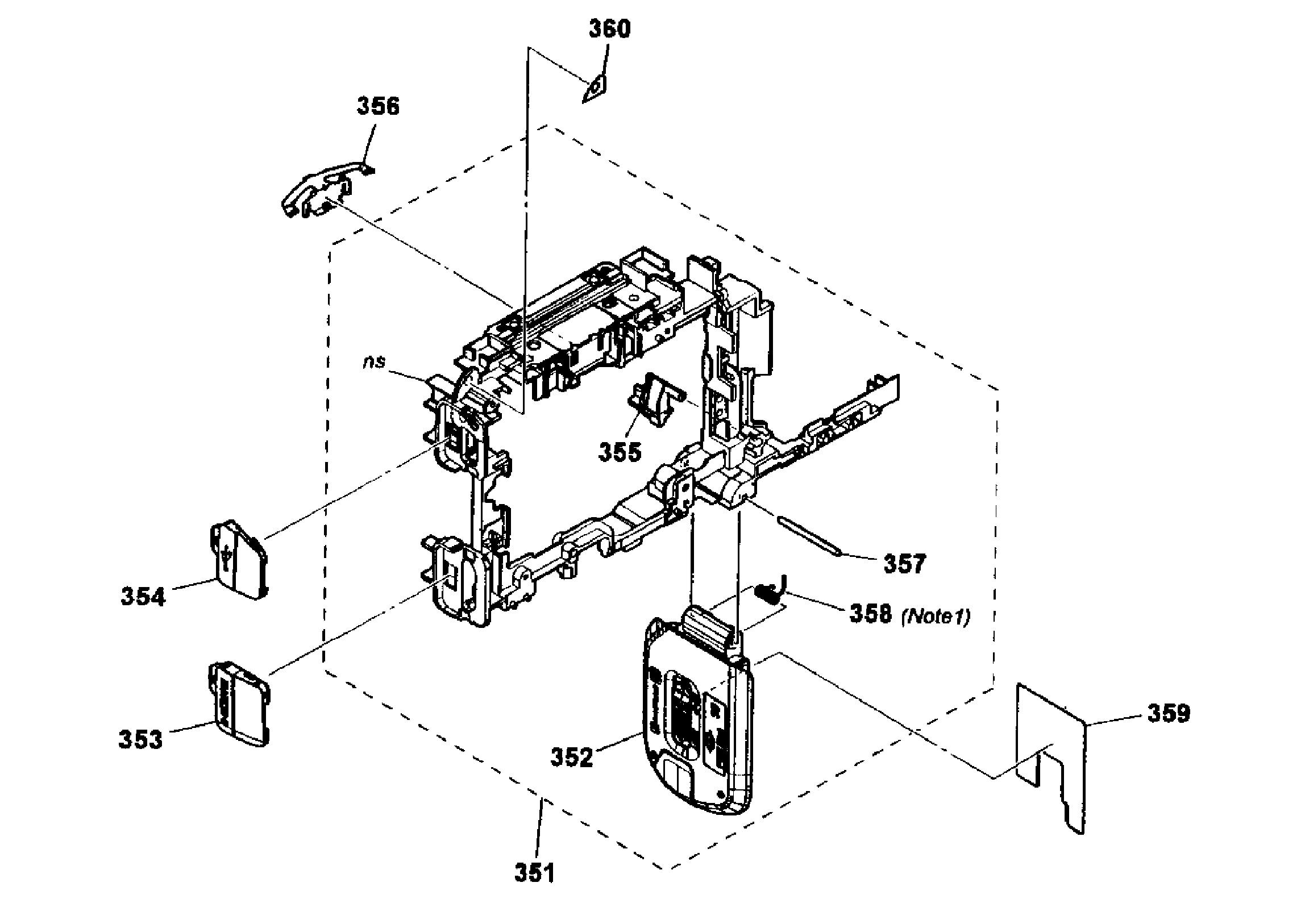

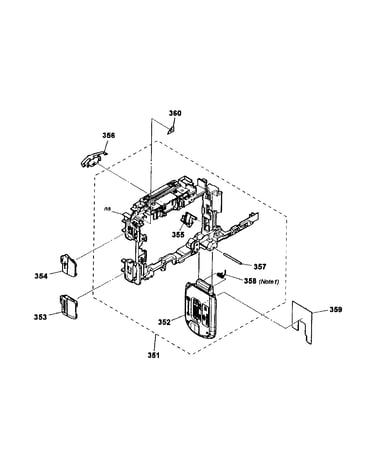

Sy holder diagram

Label

Part #419096101

$32.00
In Stock
Mask Sheet 418596601
#207

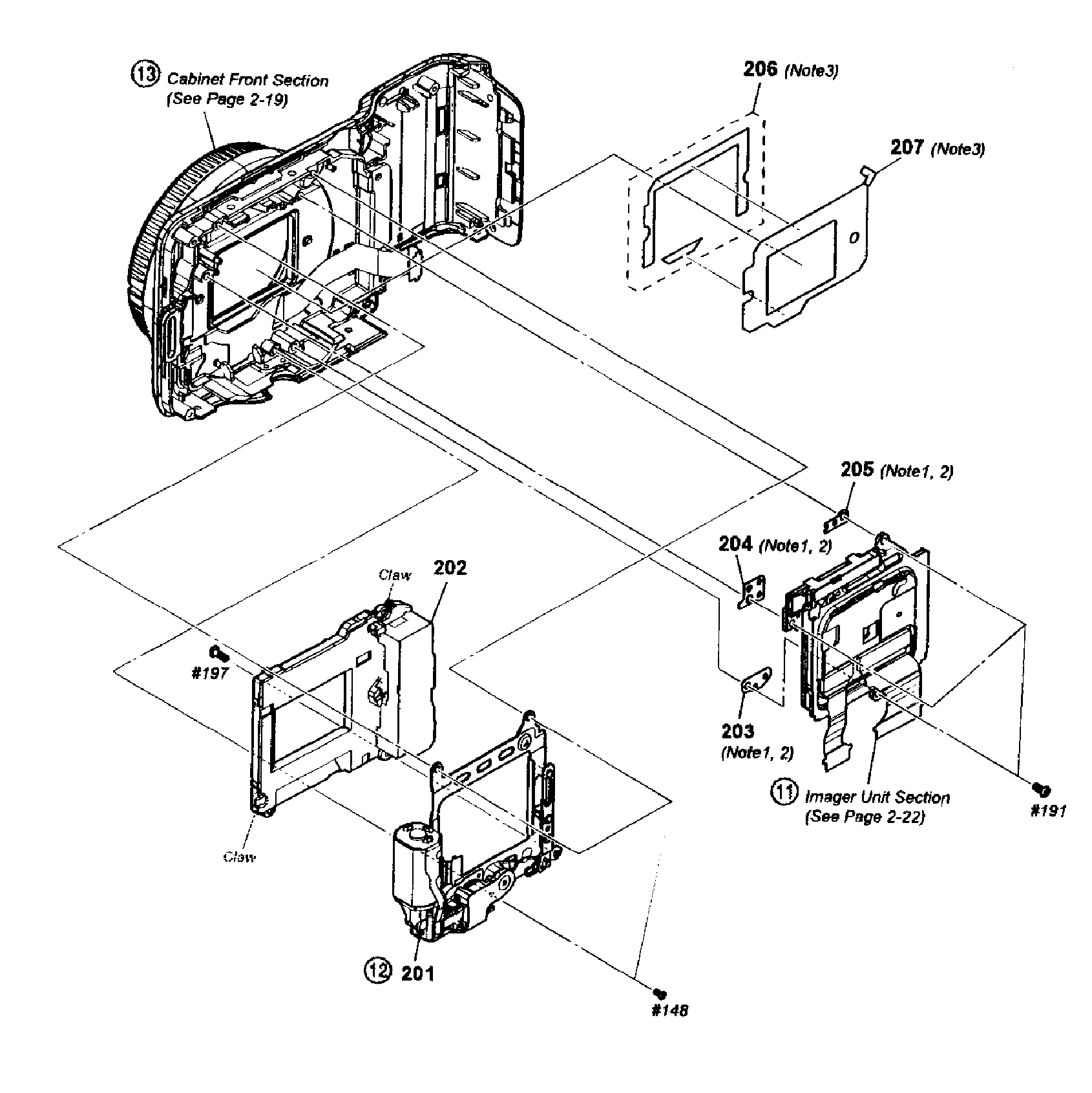

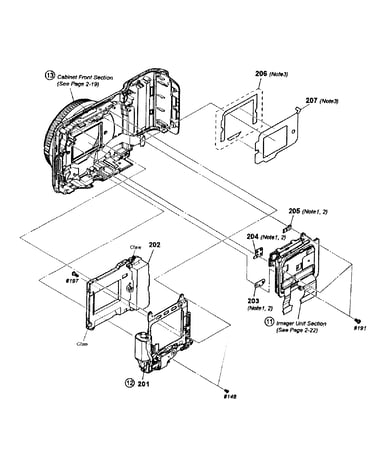

Imager block diagram

Mask sheet

Part #418596601

This item is not returnable
$6.49
In Stock
Is-075 Pcb 188096311
#409

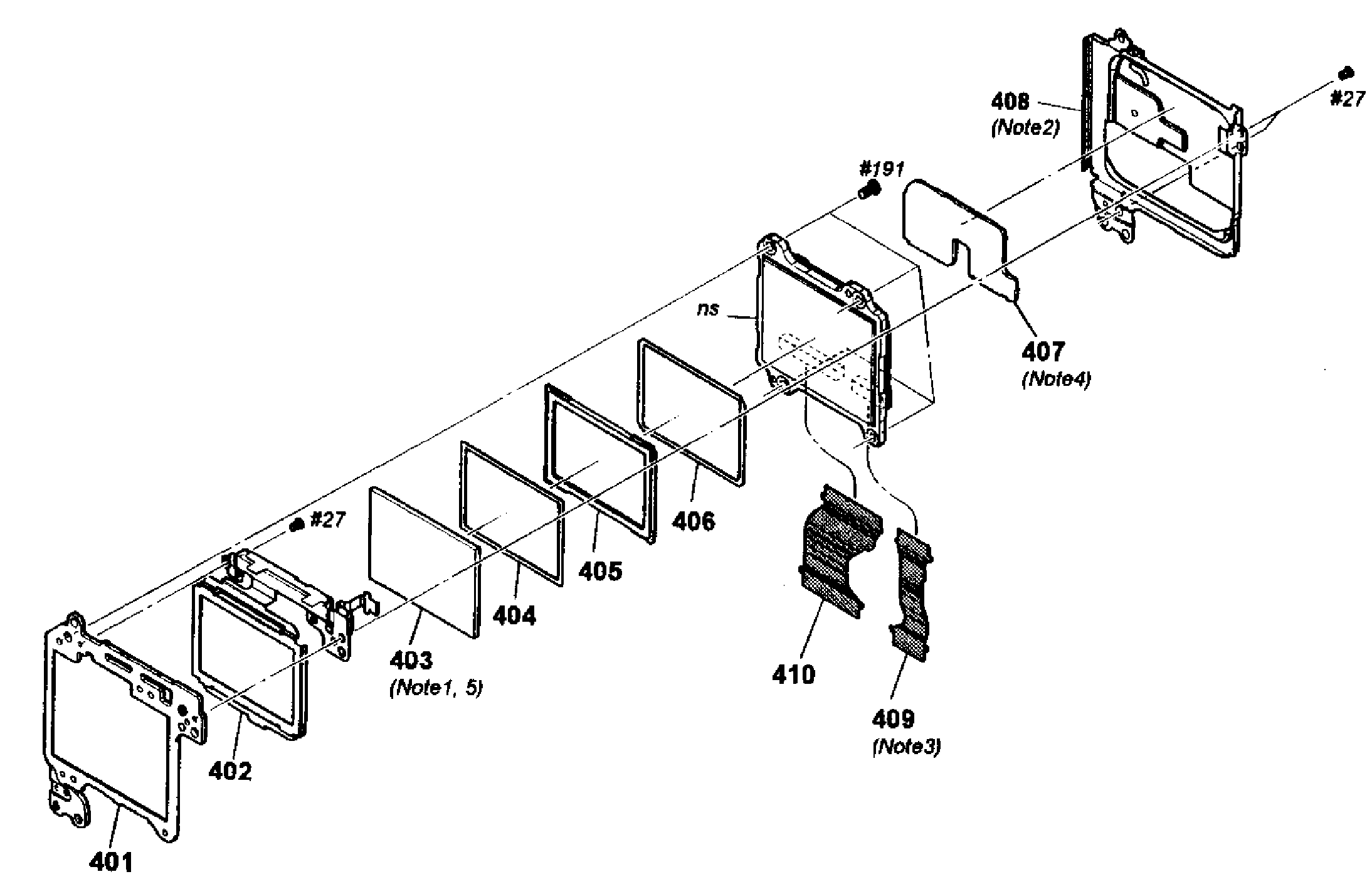

Imager unit diagram

Is-075 pcb

Part #188096311

This item is not returnable
$3.54
In Stock
Shoulder S 418853801
#NI

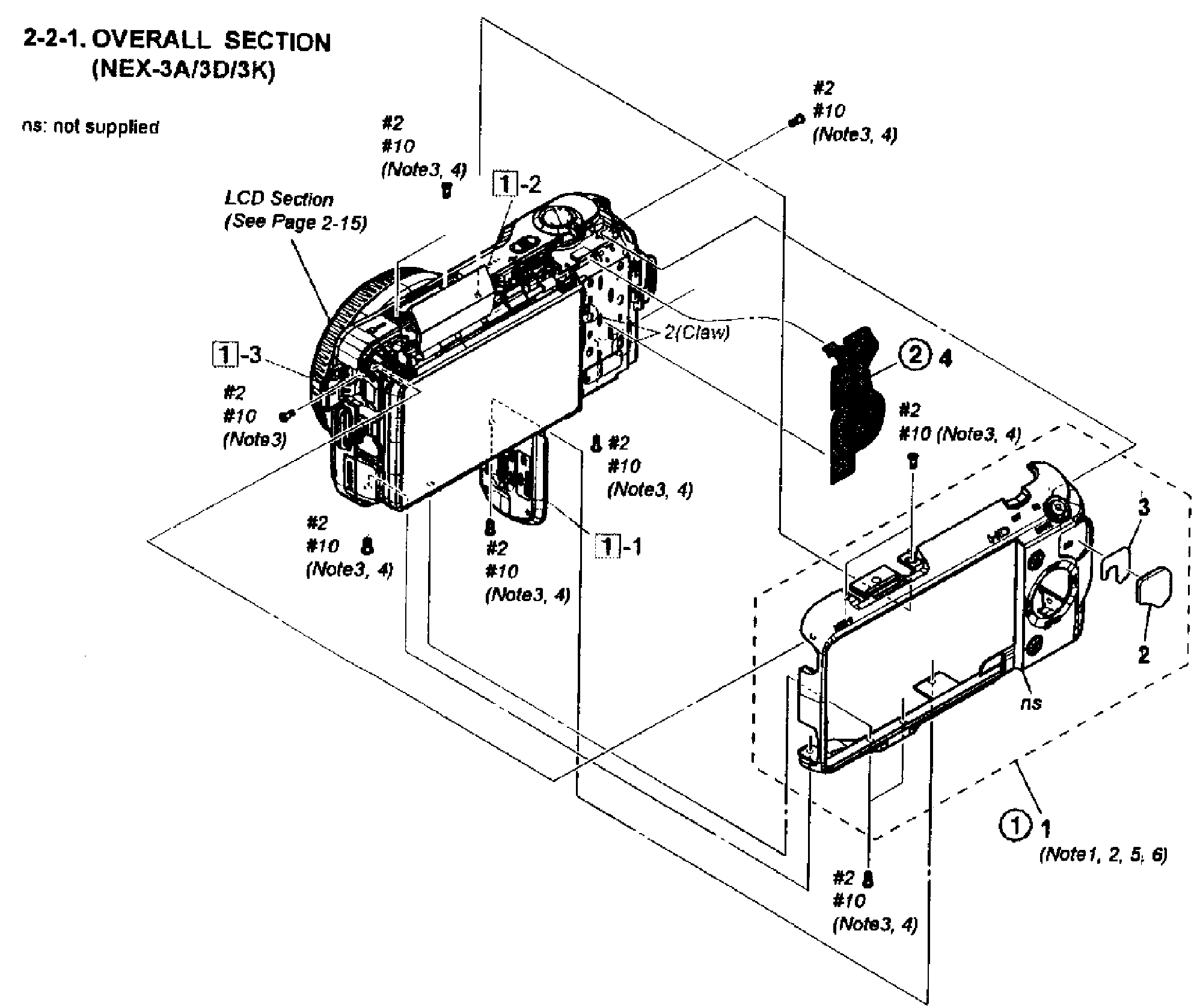

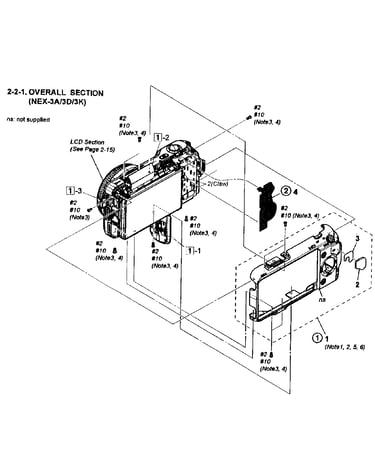

Overall view diagram

Shoulder s

Part #418853801

$14.95
In Stock
Mask Tape 418596802
#206

Imager block diagram

Mask tape

Part #418596802

This item is not returnable
$3.15
In Stock
Shaft 419089301
#357

Sy holder diagram

Shaft

Part #419089301

This item is not returnable
$7.22
In Stock
Sheet,radi 418645401
#407

Imager unit diagram

Sheet,radi

Part #418645401

This item is not returnable
$5.65
In Stock
Sheet 418657101
#305

Main frame diagram

Sheet

Part #418657101

This item is not returnable
$2.65
In Stock
