Model # 426260922 Official Craftsman 36" trailer lawn sweeper

Here are the diagrams and repair parts for Official Craftsman 426260922 36" trailer lawn sweeper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 93 parts |

#18

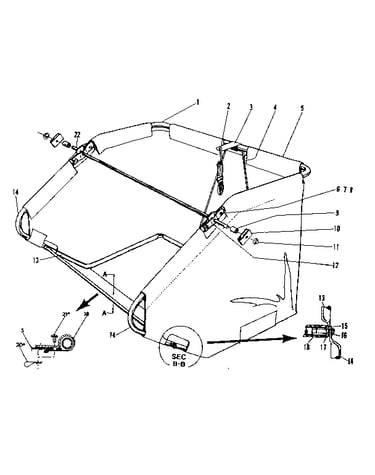

Basket diagram

Basket bottom clamp assembly

Part #SA-1093

The manufacturer no longer makes this part, and there's no substitute part

#17

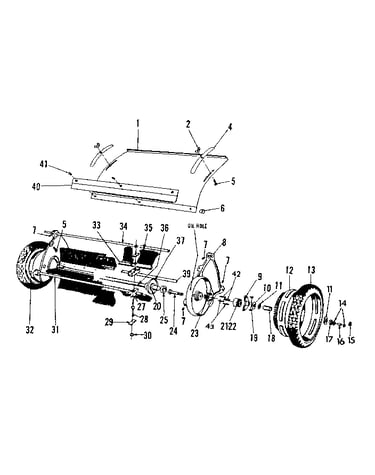

Sweeper unit diagram

Hexagon nut 1/2-20

Part #STD541150

The manufacturer no longer makes this part, and there's no substitute part

#10

Sweeper unit diagram

Washer

Part #946-816-16

The manufacturer no longer makes this part, and there's no substitute part

#24

Sweeper unit diagram

Axle

Part #53-35

The manufacturer no longer makes this part, and there's no substitute part

#29

Sweeper unit diagram

Brush clamp

Part #69-04

The manufacturer no longer makes this part, and there's no substitute part

#13

Sweeper unit diagram

Tire

Part #75-88

The manufacturer no longer makes this part, and there's no substitute part

Bearing

Part #68-60

The manufacturer no longer makes this part, and there's no substitute part

#18

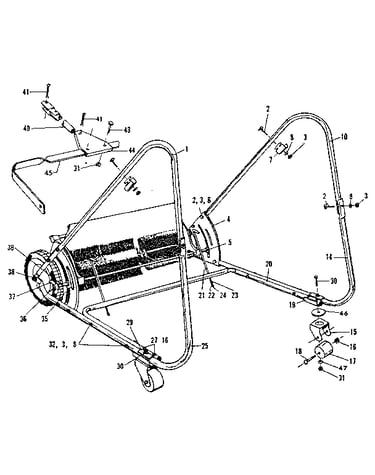

Frame diagram

Axle

Part #76-202

The manufacturer no longer makes this part, and there's no substitute part

#32

Frame diagram

Cap screw

Part #STD522517

The manufacturer no longer makes this part, and there's no substitute part

"u" type speed nut (replacement parts for rivets, originally supplied with unit. supplied with item 5 and/or item 18.)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
