Roper
Gas Range

Model # FGP325VW2 Official Roper 30" gas freestanding range

Here are the diagrams and repair parts for Official Roper FGP325VW2 30" gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Igniter Switch 4157180
#8

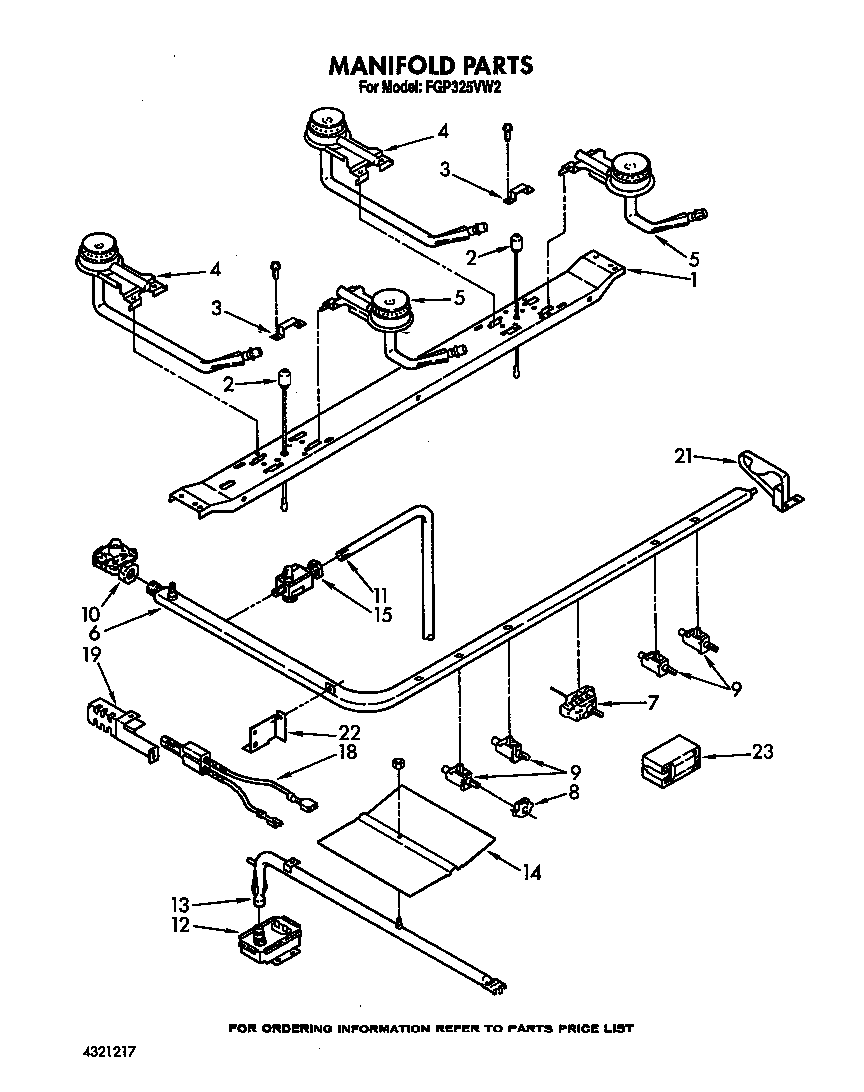

Manifold diagram

Igniter switch

Part #4157180

Replaced by #WP4157180

?
Manufacturer substitution
This part replaces 4157180. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
Flue, Box, Screw, 10-12 X 1/2 (3) 4157114
Flue, box, screw, 10-12 x 1/2 (3)

Part #4157114

The manufacturer no longer makes this part, and there's no substitute part

Bracket (l.h.) 4320443
#22

Manifold diagram

Bracket (l.h.)

Part #4320443

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Bottom, Screw, 10-12 X 1/2 (7) 4320407
Baffle, bottom, screw, 10-12 x 1/2 (7)

Part #4320407

The manufacturer no longer makes this part, and there's no substitute part

Bumper (4) 4315387
#22

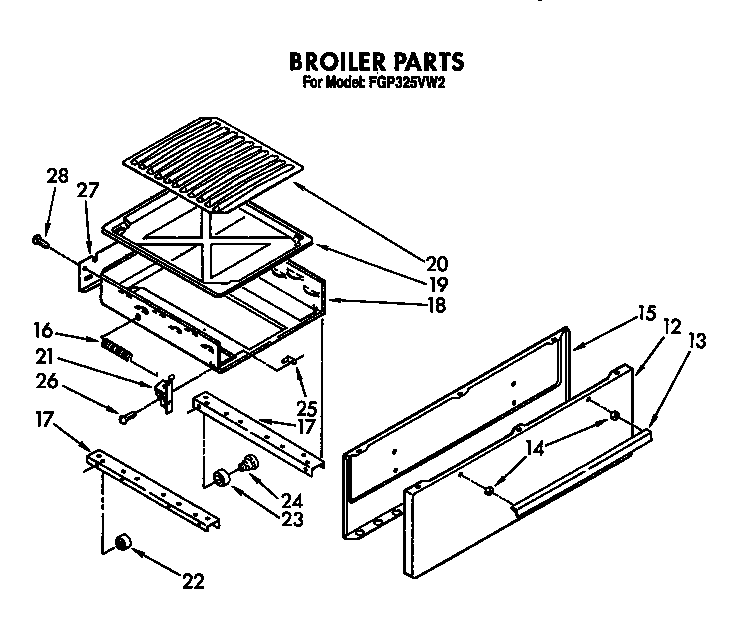

Broiler diagram

Bumper (4)

Part #4315387

The manufacturer no longer makes this part, and there's no substitute part

Almond 4320373
#1B

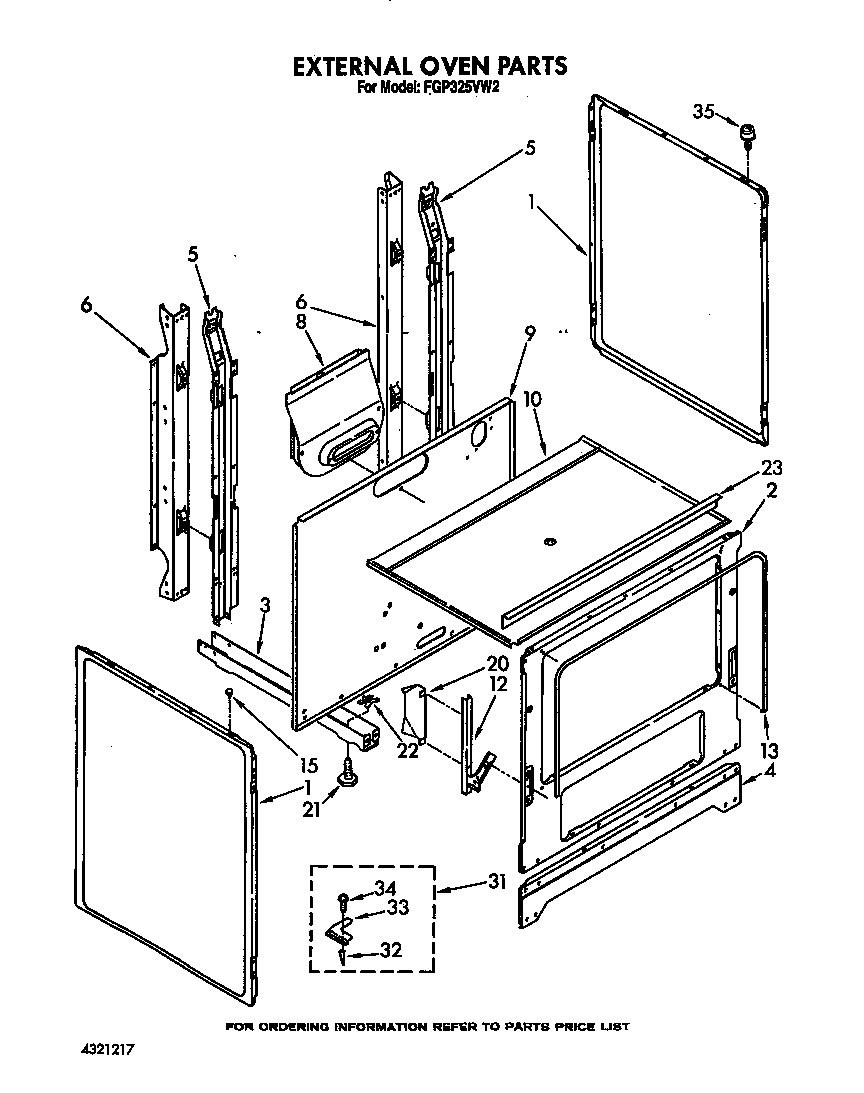

External oven diagram

Almond

Part #4320373

The manufacturer no longer makes this part, and there's no substitute part

Base, Front 4157006
#4

External oven diagram

Base, front

Part #4157006

The manufacturer no longer makes this part, and there's no substitute part

Broiler Body 4157172
#18

Broiler diagram

Broiler body

Part #4157172

The manufacturer no longer makes this part, and there's no substitute part

Bracket "z" (2) 4320476
#11

Oven door diagram

Bracket "z" (2)

Part #4320476

The manufacturer no longer makes this part, and there's no substitute part

Pin, Hinge (2) 4157053
#25

Broiler diagram

Pin, hinge (2)

Part #4157053

The manufacturer no longer makes this part, and there's no substitute part
