Craftsman
Front-Engine Lawn Tractor

Model # 917575135 Official Craftsman garden tractor

Here are the diagrams and repair parts for Official Craftsman 917575135 garden tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Ball 7392M
#42

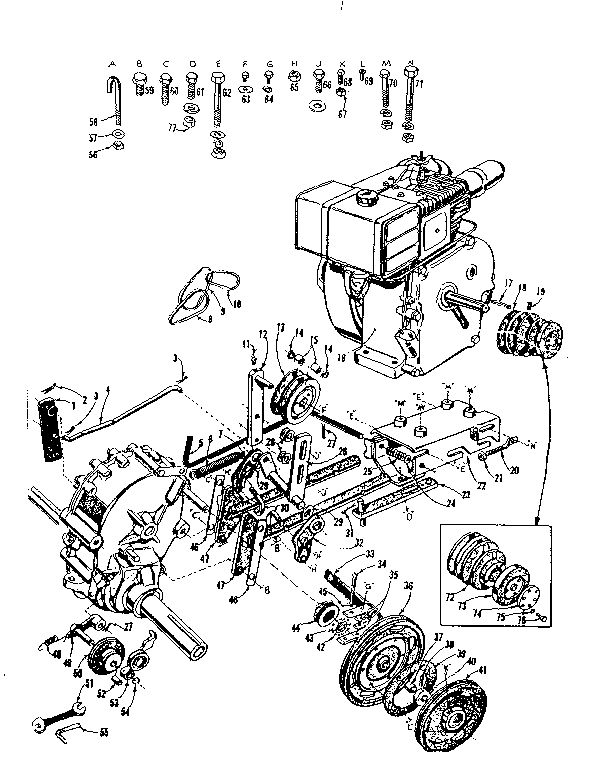

Main frame diagram

Ball

Part #7392M

Replaced by #532100482

?
Manufacturer substitution
This part replaces 7392M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Bolt 04010720
Bolt

Part #04010720

Replaced by #874780720

?
Manufacturer substitution
This part replaces 04010720. Substitute parts can look different from the original.
$10.26
In Stock
Tr Sup Stand 465H
#5

Main frame diagram

Tr sup stand

Part #465H

The manufacturer no longer makes this part, and there's no substitute part

Saddle 575PA220
#21

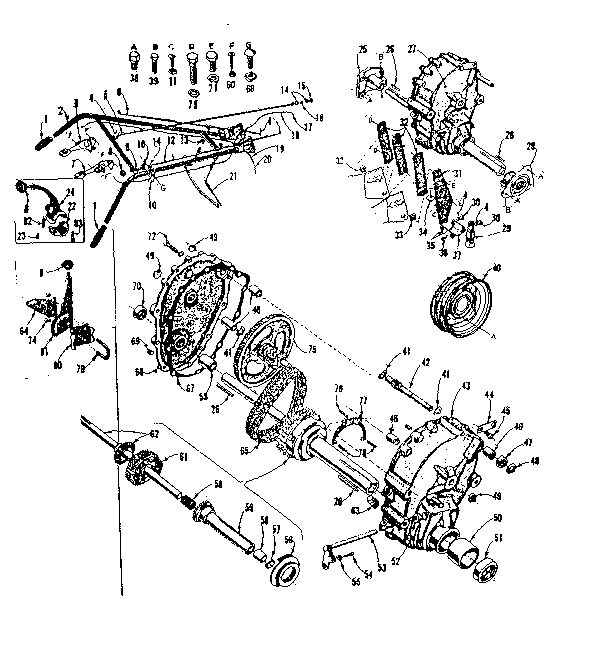

Transmission diagram

Saddle

Part #575PA220

The manufacturer no longer makes this part, and there's no substitute part

Bushing 4276M
#46

Transmission diagram

Bushing

Part #4276M

The manufacturer no longer makes this part, and there's no substitute part

Bearing 9437M
#15

Main frame diagram

Bearing

Part #9437M

The manufacturer no longer makes this part, and there's no substitute part

Groove Pin 4865M
#38

Main frame diagram

Groove pin

Part #4865M

The manufacturer no longer makes this part, and there's no substitute part

Screw 04180808
#36

Transmission diagram

Screw

Part #04180808

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 04811022
#60

Transmission diagram

Machine screw

Part #04811022

The manufacturer no longer makes this part, and there's no substitute part

Ring 9473M
#54

Main frame diagram

Ring

Part #9473M

The manufacturer no longer makes this part, and there's no substitute part
