Bosch
Washer

Model # WFL2060UC/30 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFL2060UC-30 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Washer Door Boot (replaces 354135) 00354135
#322

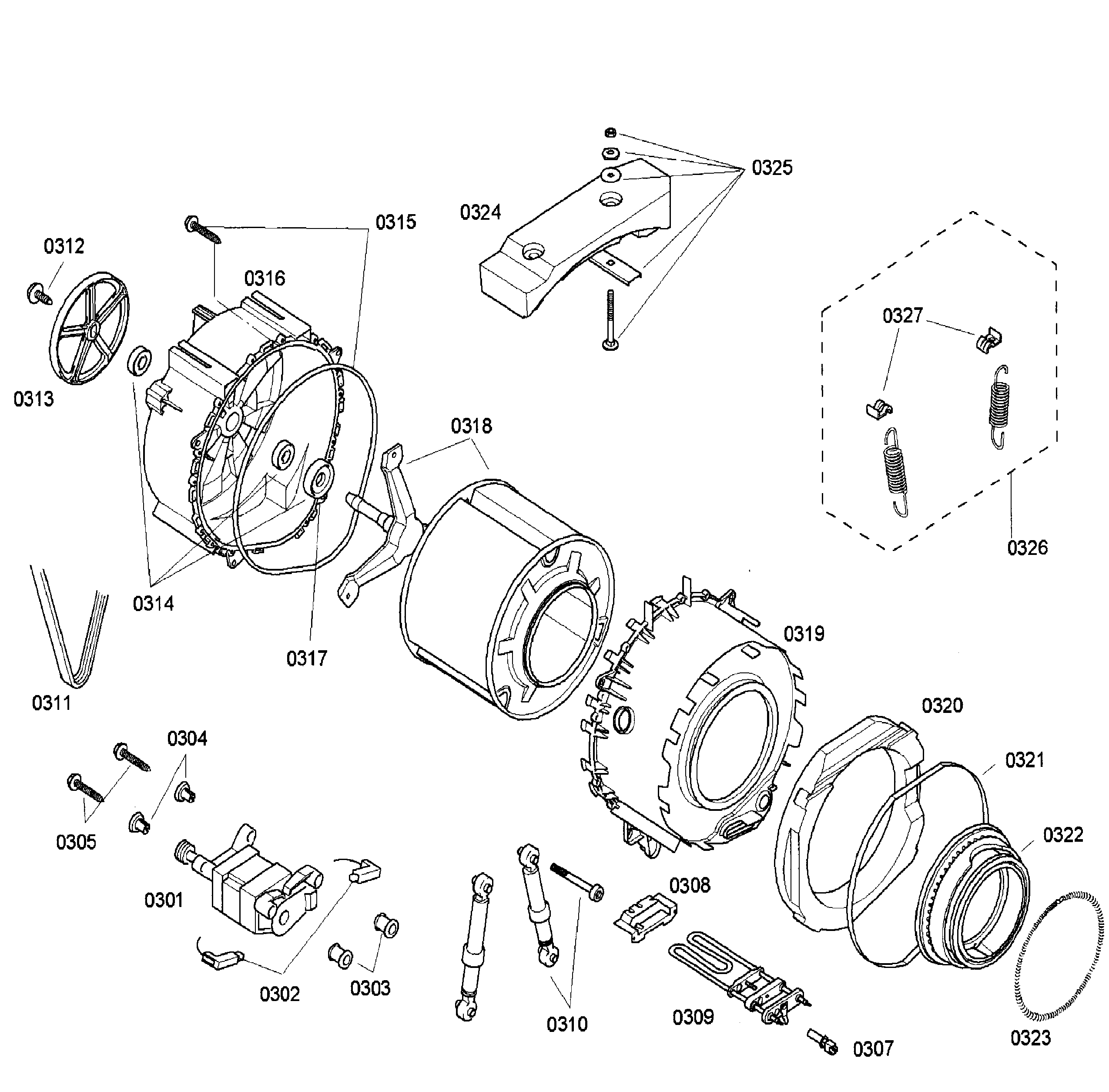

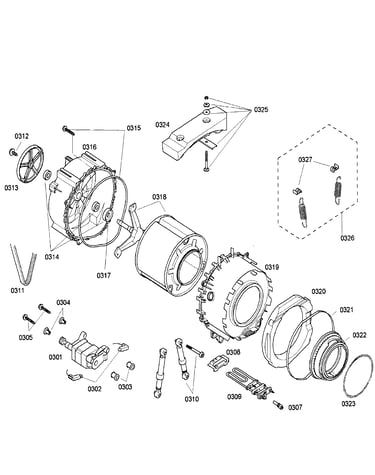

Drum diagram

Washer door boot (replaces 354135)

Part #00354135

$93.09 |
6% OFF Phone Price : $99.09
In Stock
Drive Belt 00439491
#311

Drum diagram

Drive belt

Part #00439491

$26.97
In Stock
Washer Door Hinge Bushing 00171264
#223

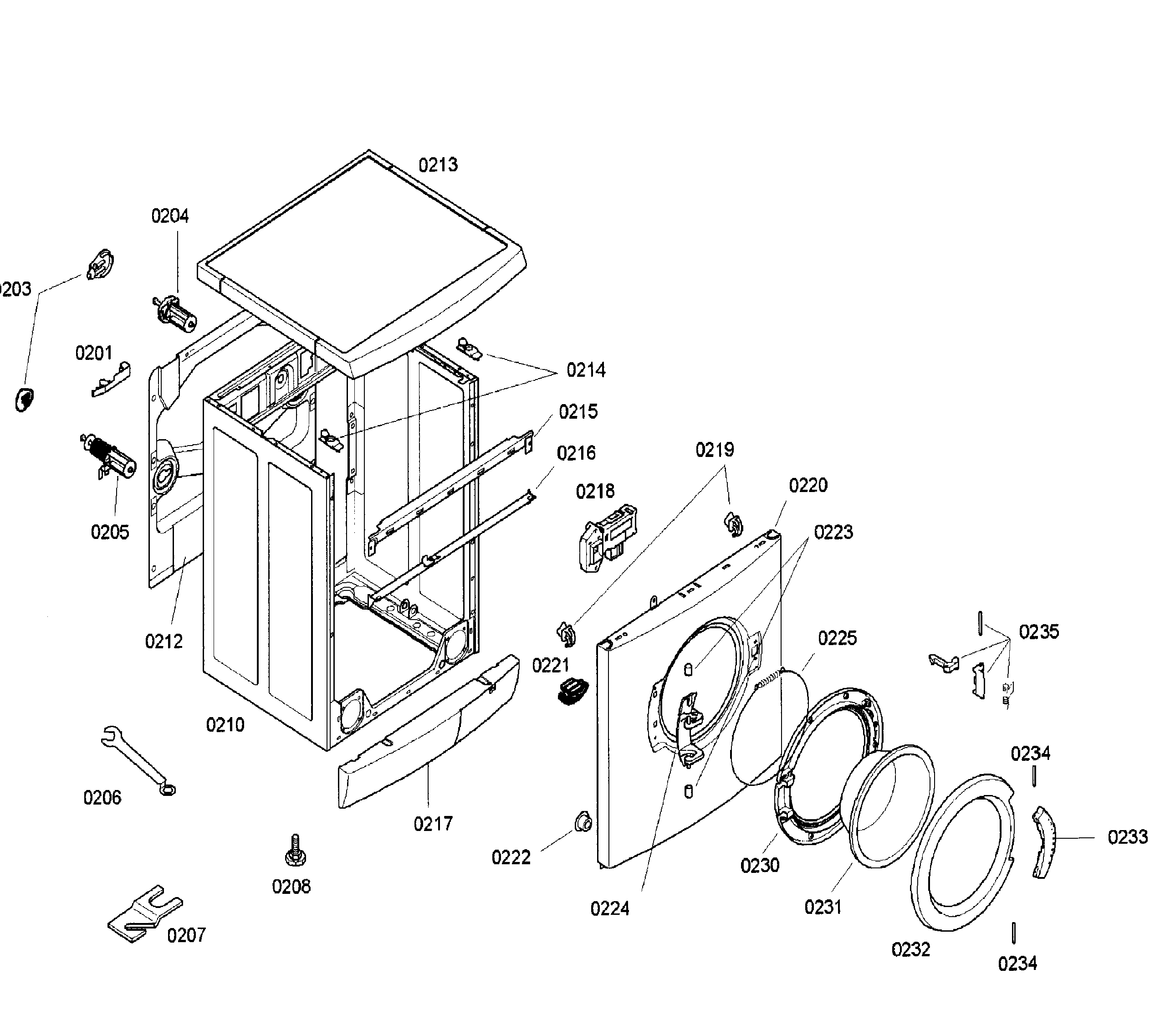

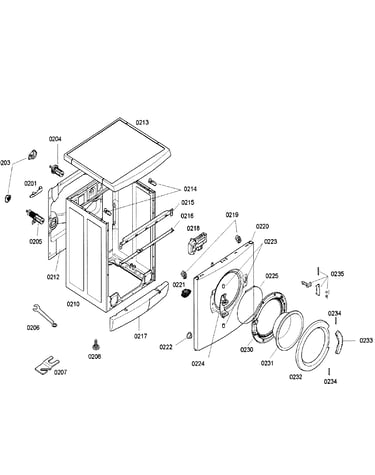

Door/cabinet diagram

Washer door hinge bushing

Part #00171264

$23.77
In Stock
Hinge Washer 00171269
#224

Door/cabinet diagram

Hinge washer

Part #00171269

$28.69 |
17% OFF Phone Price : $34.69
In Stock
Ring 00354134
#323

Drum diagram

Ring

Part #00354134

$11.60
In Stock
Washer Motor Brush (replaces 154740) 00154740
#302

Drum diagram

Washer motor brush (replaces 154740)

Part #00154740

$75.19 |
7% OFF Phone Price : $81.19
In Stock
Foot 00170953
#208

Door/cabinet diagram

Foot

Part #00170953

Replaced by #00610643

?
Manufacturer substitution
This part replaces 00170953. Substitute parts can look different from the original.
This item is not returnable
$19.89
In Stock
Drain Pump 00144339
#435

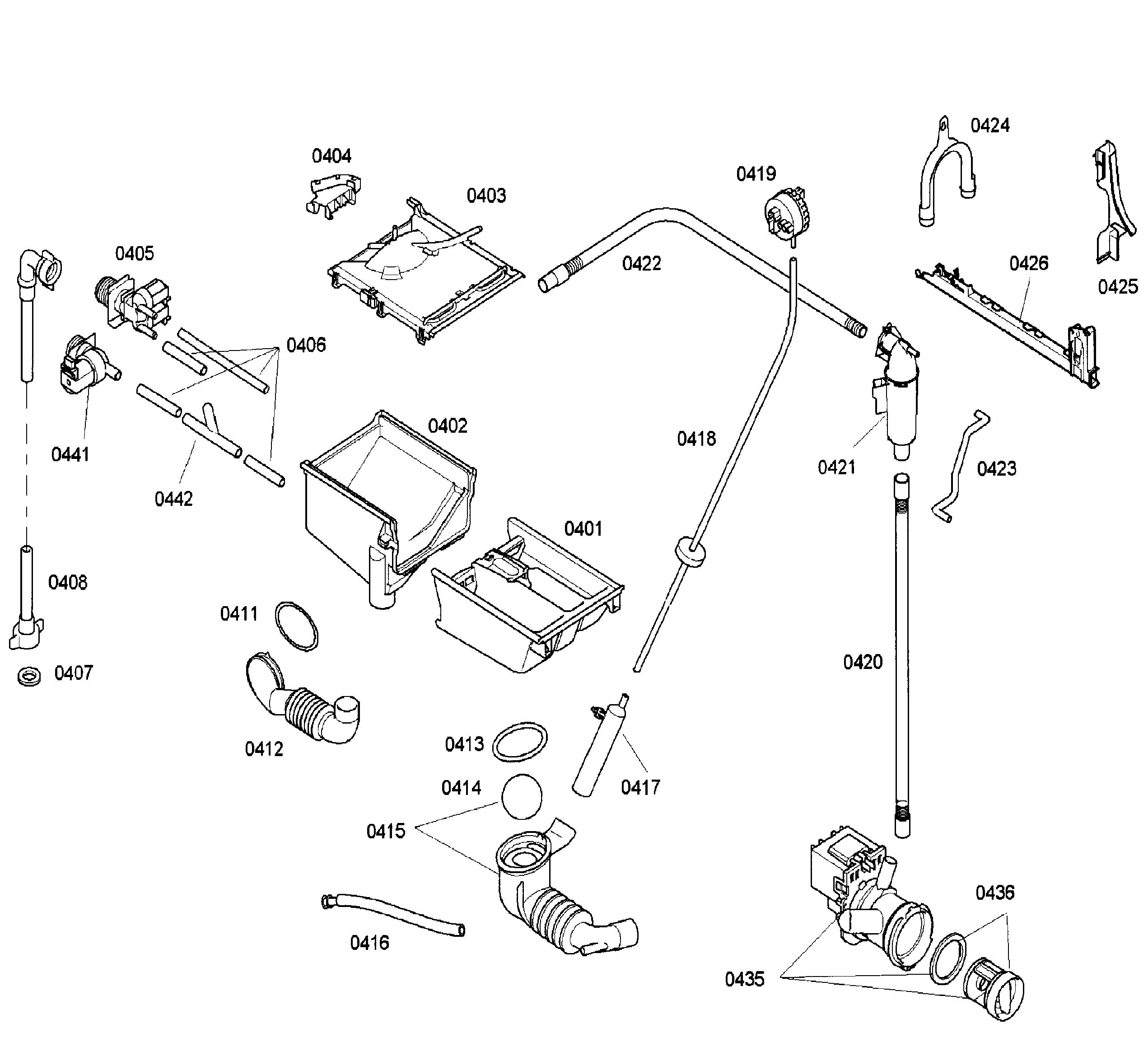

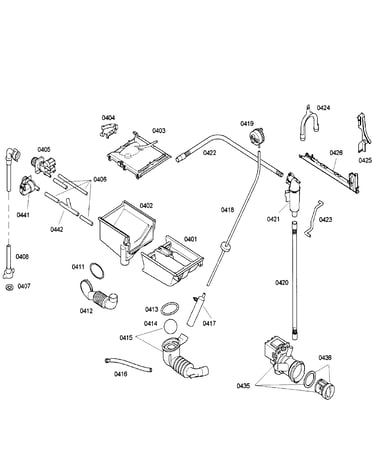

Pump diagram

Drain pump

Part #00144339

Replaced by #00144486

?
Manufacturer substitution
This part replaces 00144339. Substitute parts can look different from the original.
$96.83 |
11% OFF Phone Price : $108.83
In Stock
Filter Flu 00602008
#436

Pump diagram

Filter flu

Part #00602008

Replaced by #00647920

?
Manufacturer substitution
This part replaces 00602008. Substitute parts can look different from the original.
This item is not returnable
$28.99 |
17% OFF Phone Price : $34.99
In Stock
Cable Support 00482048
#135

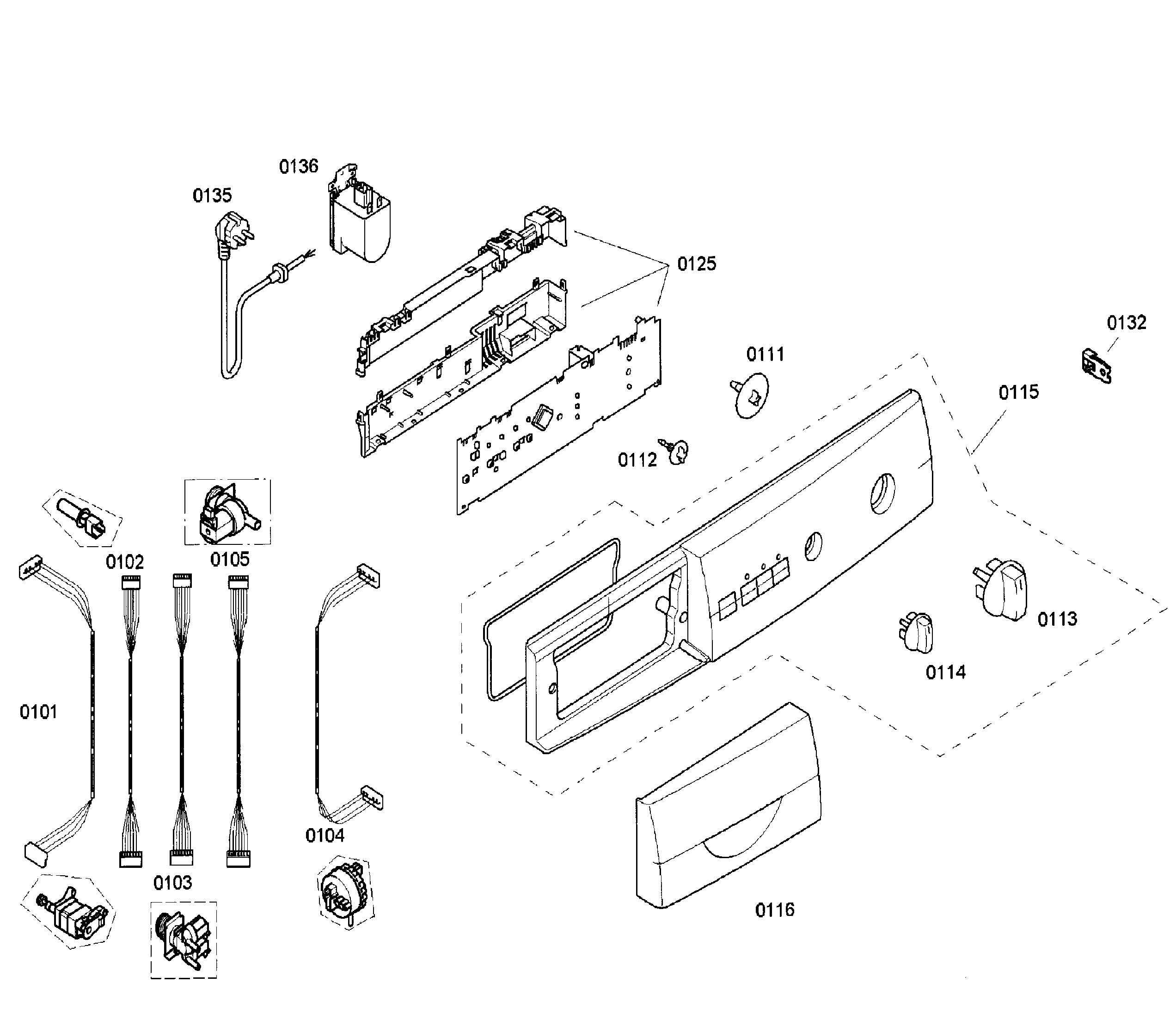

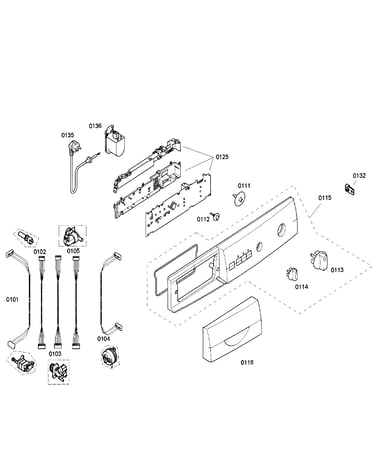

Control panel diagram

Cable support

Part #00482048

Replaced by #00648023

?
Manufacturer substitution
This part replaces 00482048. Substitute parts can look different from the original.
$101.22 |
11% OFF Phone Price : $113.22
In Stock
