Front-Engine Lawn Tractor

Model # 750256050 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 750256050 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

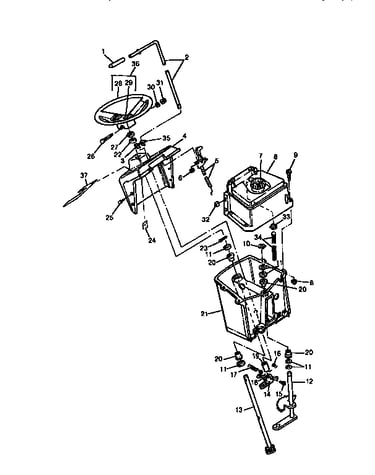

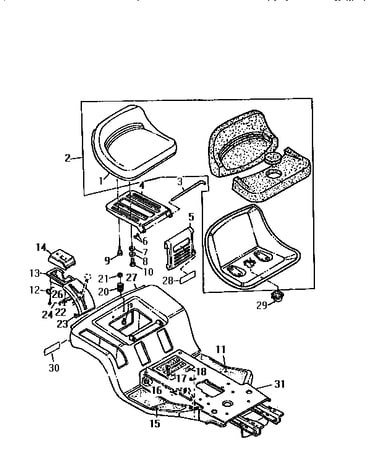

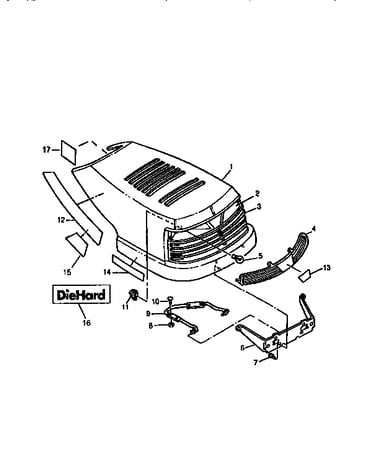

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 363 parts  |
Battery AM121593
#28

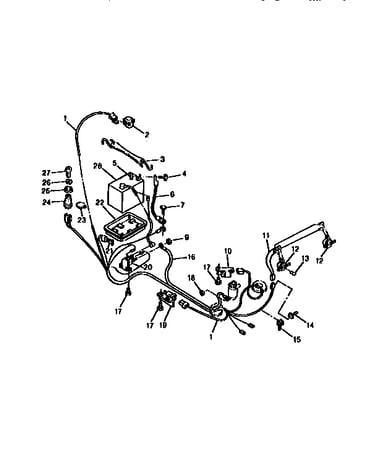

Electrical system diagram

Battery

Part #AM121593

The manufacturer no longer makes this part, and there's no substitute part

Tie Band M66044
#23

Electrical system diagram

Tie band

Part #M66044

The manufacturer no longer makes this part, and there's no substitute part

Link M95532
#19

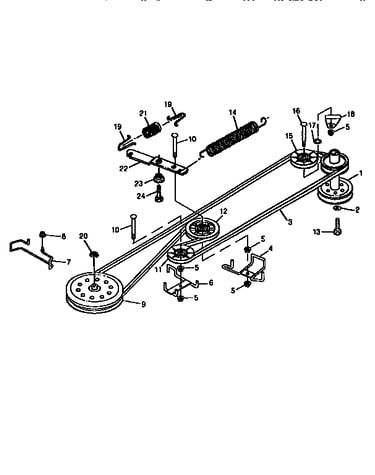

Belt drive and idlers diagram

Link

Part #M95532

The manufacturer no longer makes this part, and there's no substitute part

Lawn Tractor Battery Cable AM121095
#8

Electrical system diagram

Lawn tractor battery cable

Part #AM121095

The manufacturer no longer makes this part, and there's no substitute part

Guide AM122702
#10

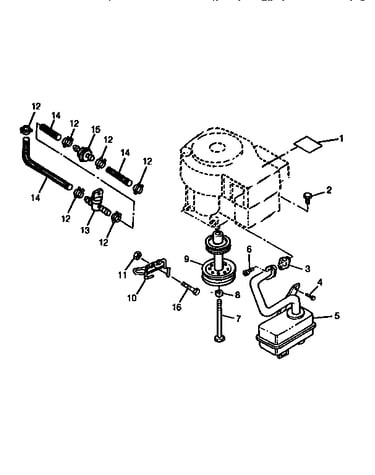

Fuel line,muffler,drive sheave diagram

Guide

Part #AM122702

The manufacturer no longer makes this part, and there's no substitute part

Bushing M74744
#23

Belt drive and idlers diagram

Bushing

Part #M74744

The manufacturer no longer makes this part, and there's no substitute part

Plug M124365
#14

Electrical system diagram

Plug

Part #M124365

The manufacturer no longer makes this part, and there's no substitute part

Shaft Key 26H14
#7

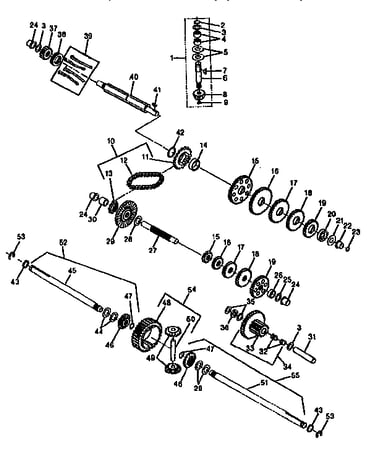

Transaxle shafts and gears diagram

Shaft key

Part #26H14

The manufacturer no longer makes this part, and there's no substitute part

Boot M120322
#6

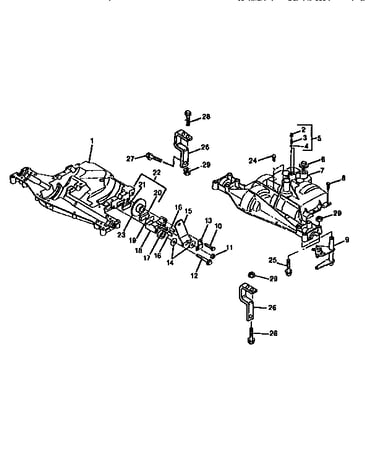

Transaxle shifter, brake&case diagram

Boot

Part #M120322

The manufacturer no longer makes this part, and there's no substitute part

Label M126481
#72

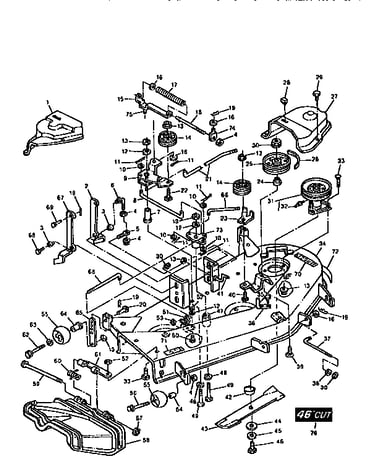

Mower deck 46" (1.17m) diagram

Label

Part #M126481

The manufacturer no longer makes this part, and there's no substitute part
