Model # DH25J5/9F04A Official Maytag magic chef dehumidifier

Here are the diagrams and repair parts for Official Maytag DH25J5-9F04A magic chef dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Clip 63297-1
#6

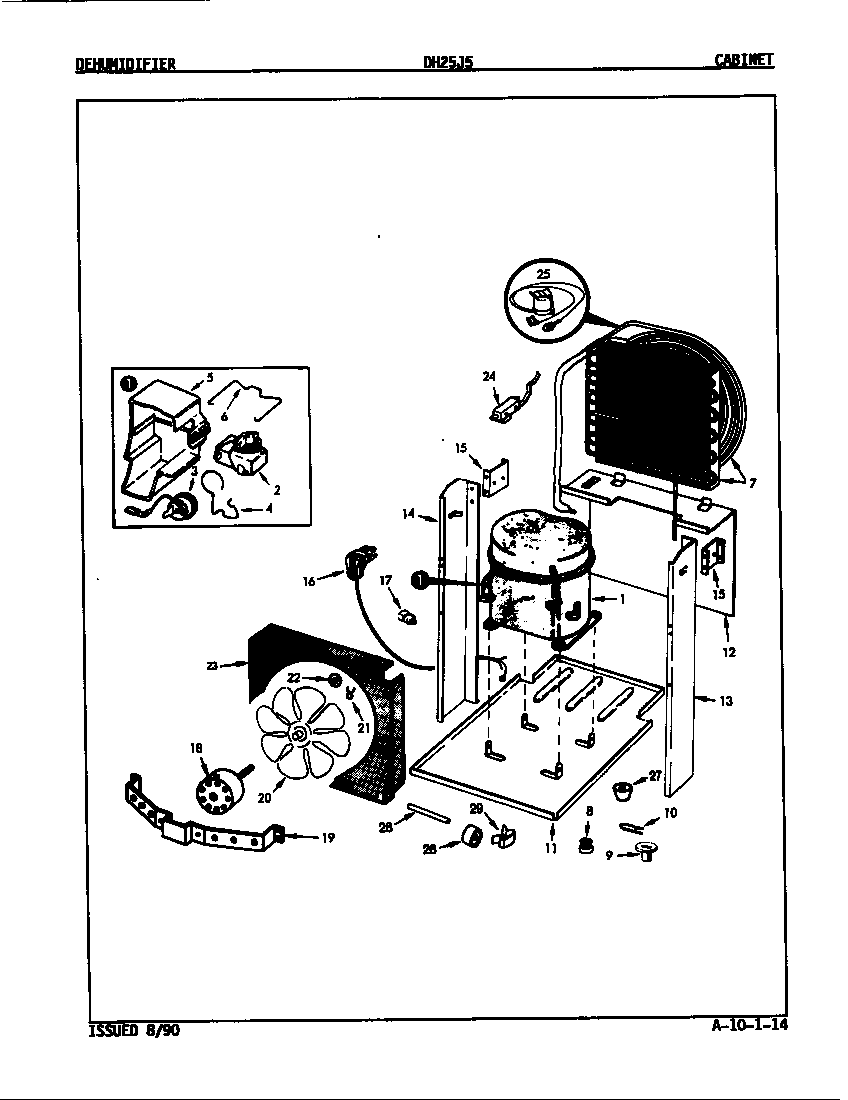

System & chassis diagram

Clip

Part #63297-1

The manufacturer no longer makes this part, and there's no substitute part

Guide 18182-1
#11

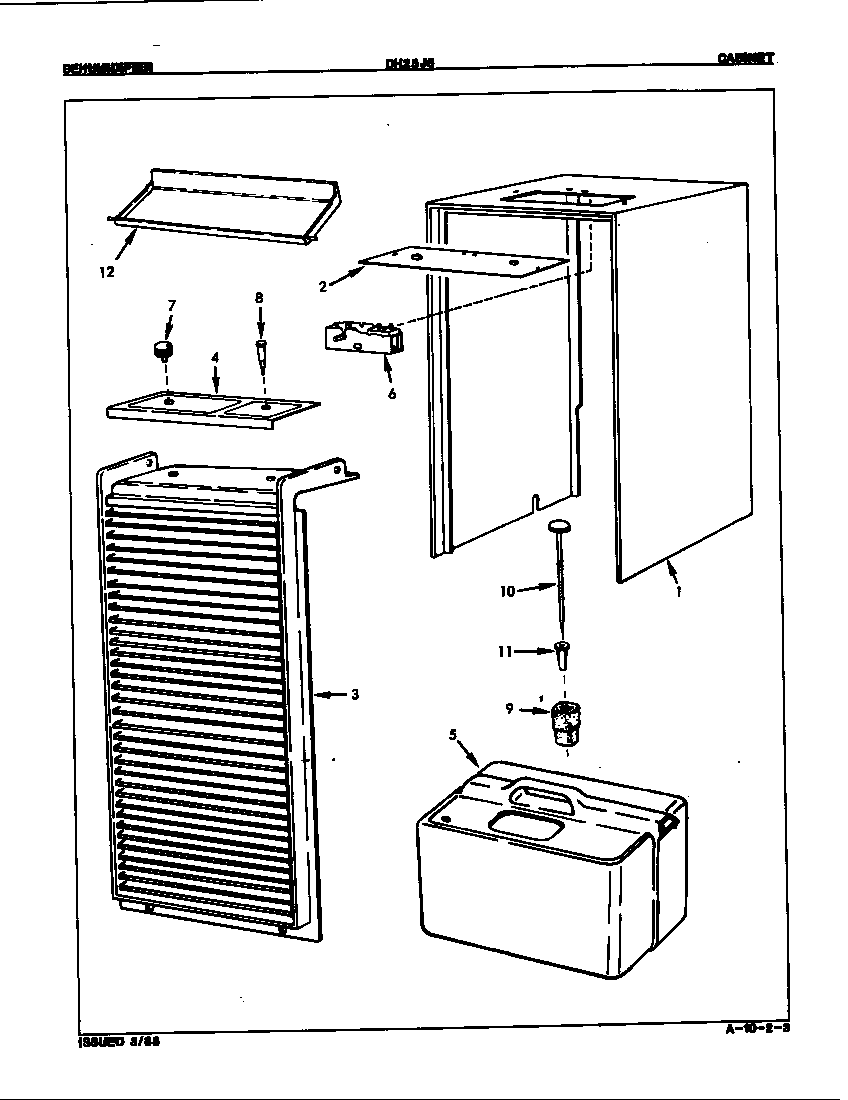

Cabinet diagram

Guide

Part #18182-1

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 18186-13
#18A

System & chassis diagram

Fan motor

Part #18186-13

The manufacturer no longer makes this part, and there's no substitute part

Grommet 242-4
#8

System & chassis diagram

Grommet

Part #242-4

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 18434-4
#2

Cabinet diagram

Control panel

Part #18434-4

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light 18509-1
#8

Cabinet diagram

Indicator light

Part #18509-1

The manufacturer no longer makes this part, and there's no substitute part

Bracket 18131-1
#19

System & chassis diagram

Bracket

Part #18131-1

The manufacturer no longer makes this part, and there's no substitute part

Pan Base 18126-3
#11

System & chassis diagram

Pan base

Part #18126-3

The manufacturer no longer makes this part, and there's no substitute part

Plug, Compressor 52656-2
#9

System & chassis diagram

Plug, compressor

Part #52656-2

The manufacturer no longer makes this part, and there's no substitute part

Coil Set 18548-1
#7

System & chassis diagram

Coil set

Part #18548-1

The manufacturer no longer makes this part, and there's no substitute part
